03-76

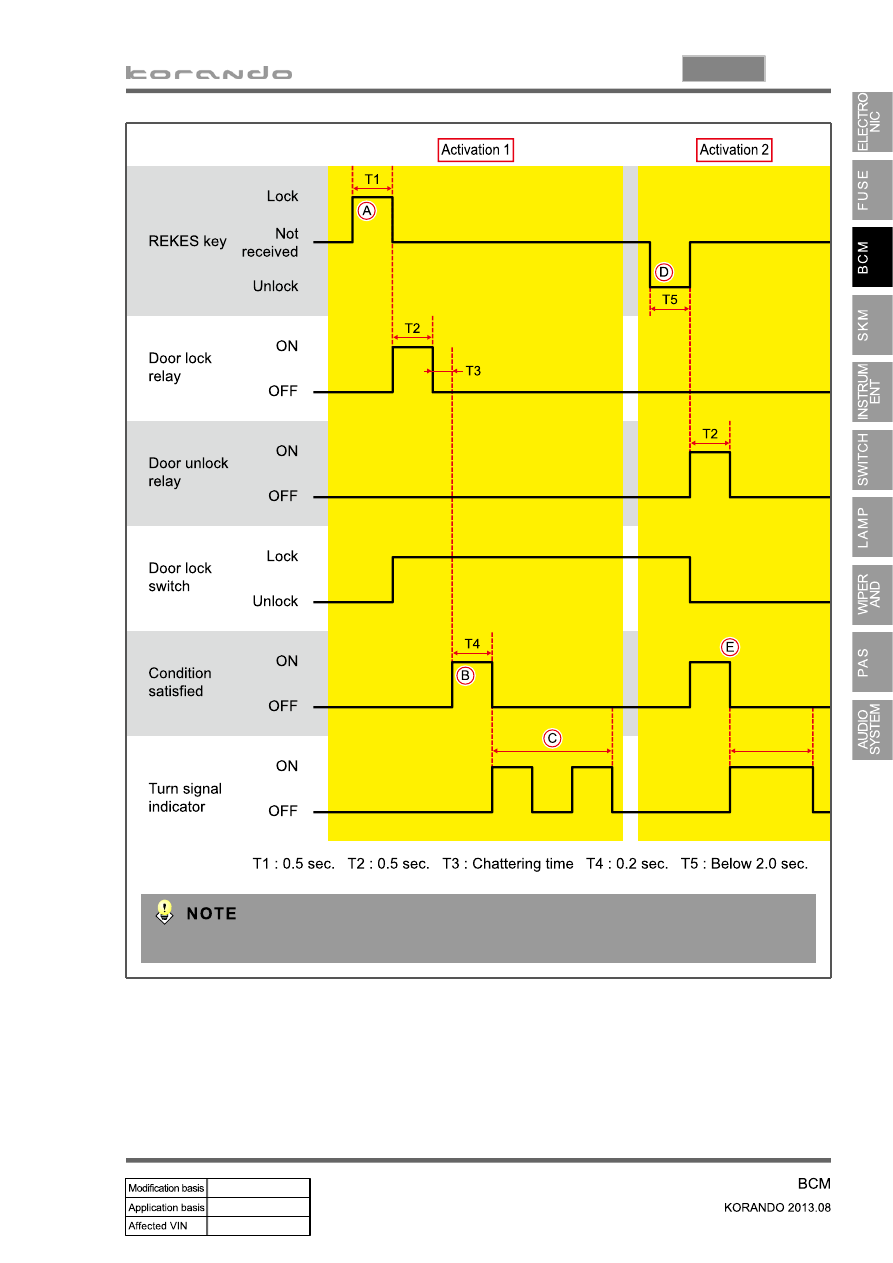

Door LOCK/UNLOCK by REKES key

▶

When the REKES LOCK switch is pressed less than 0.5 seconds (T1), the door LOCK relay is

activated for 0.5 seconds (T2).

All of following conditions are met within 0.2 seconds (T4) after the chattering time (T3):

A.

B.

Operation 1.

When the REKES UNLOCK switch is pressed less than 2 seconds (T5), the door UNLOCK relay is

activated for 0.5 seconds (T2).

The door UNLOCK conditions are met, the turn signal lamp is operated once for 1 second.

D.

E.

Operation 2.

All doors closed

Hood closed

Tailgate closed

Door LOCK detection switch in LOCK state

-

 -

 -

-

The turn signal lamp flashes 2 times at intervals of 0.5 sec. ON/0.5 sec. OFF.

C.

Operating process (for vehicles without SKM)

Do not operate the REKES key with the ignition key inserted or for 1 second after the ignition key is

removed. (to prevent the remote controller switch malfunction)

When one of the LOCK switches is unlocked after the door LOCK, all doors will be unlocked.

-

-

03-77

8710-01

The door LOCK/UNLOCK relay is installed inside the actuator.

03-78

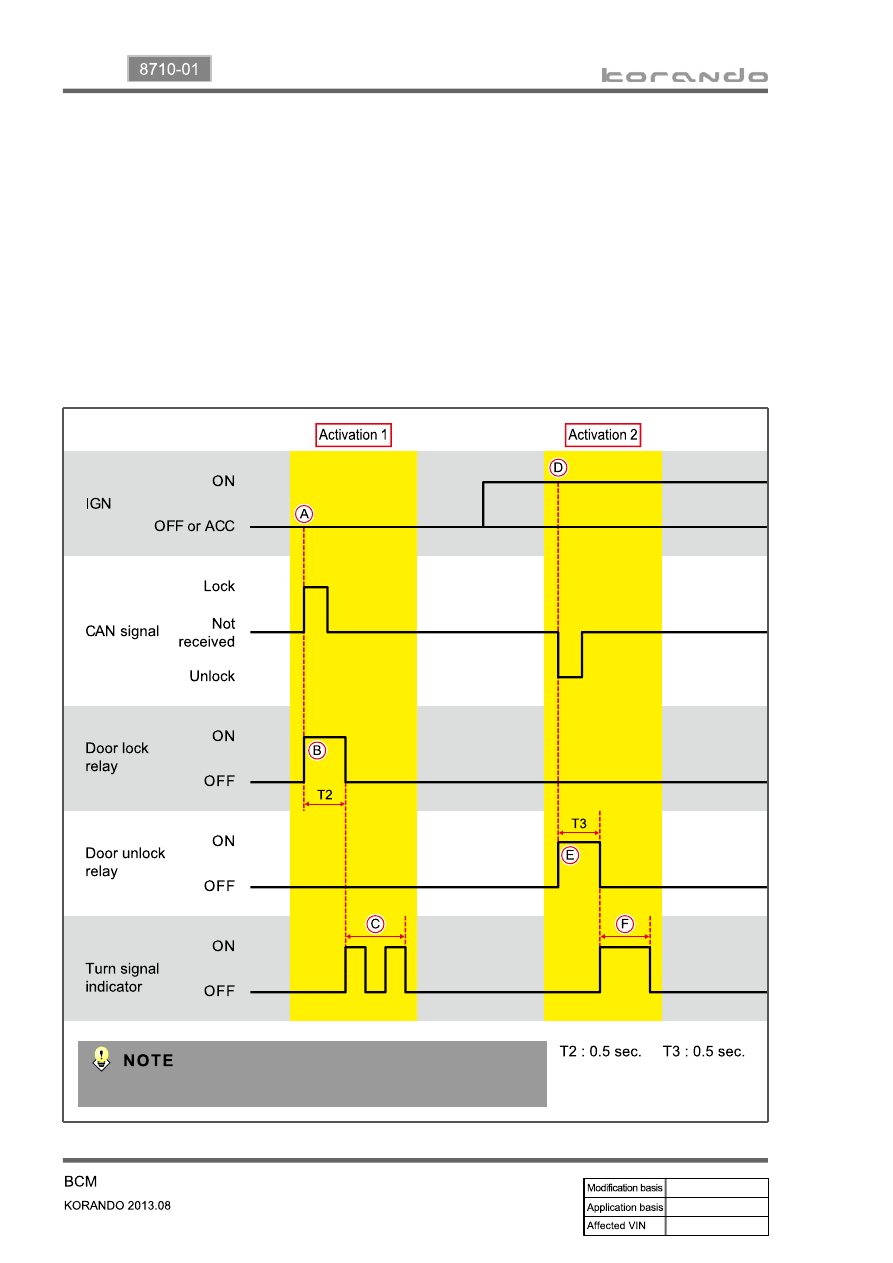

Door LOCK/UNLOCK control by smart key

▶

The SKM receives LOCK signal through B-CAN with IGN OFF or ACC ON.

The BCM outputs LOCK relay signal for 0.5 seconds (T2).

The turn signal lamp is turned ON for 0.5 seconds and then turned OFF for 0.5 seconds, and this

operation is repeated 2 times.

A.

B.

C.

Operation 1.

SKM receives UNLOCK signal through B-CAN with IGN ON, IGN OFF, or ACC ON.

BCM outputs UNLOCK relay signal for 0.5 seconds (T3).

The turn signal lamp is operated once for 1 second.

D.

E.

F.

Operation 2.

The door LOCK/UNLOCK relay is installed inside the actuator.

03-79

8710-01

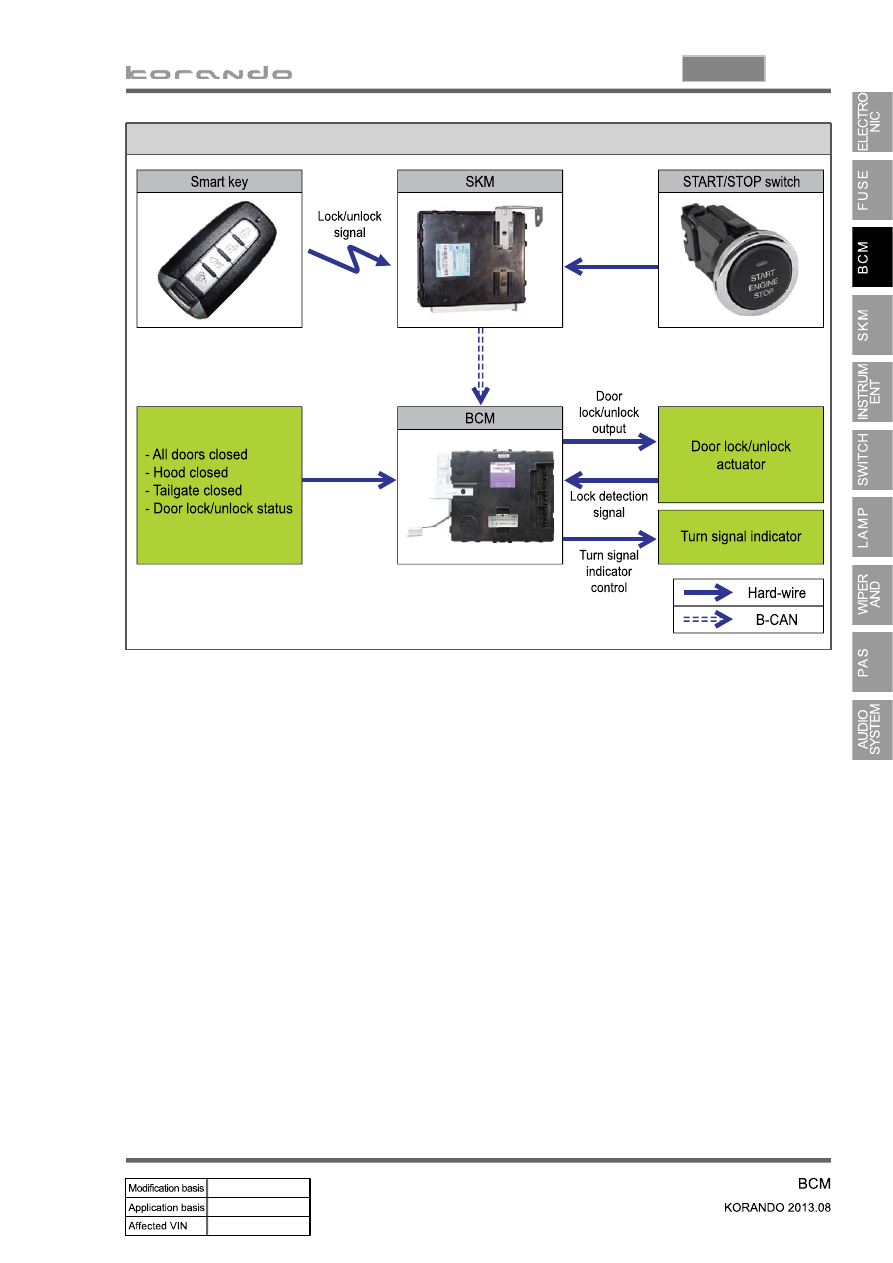

Operating process (for vehicles with SKM)
