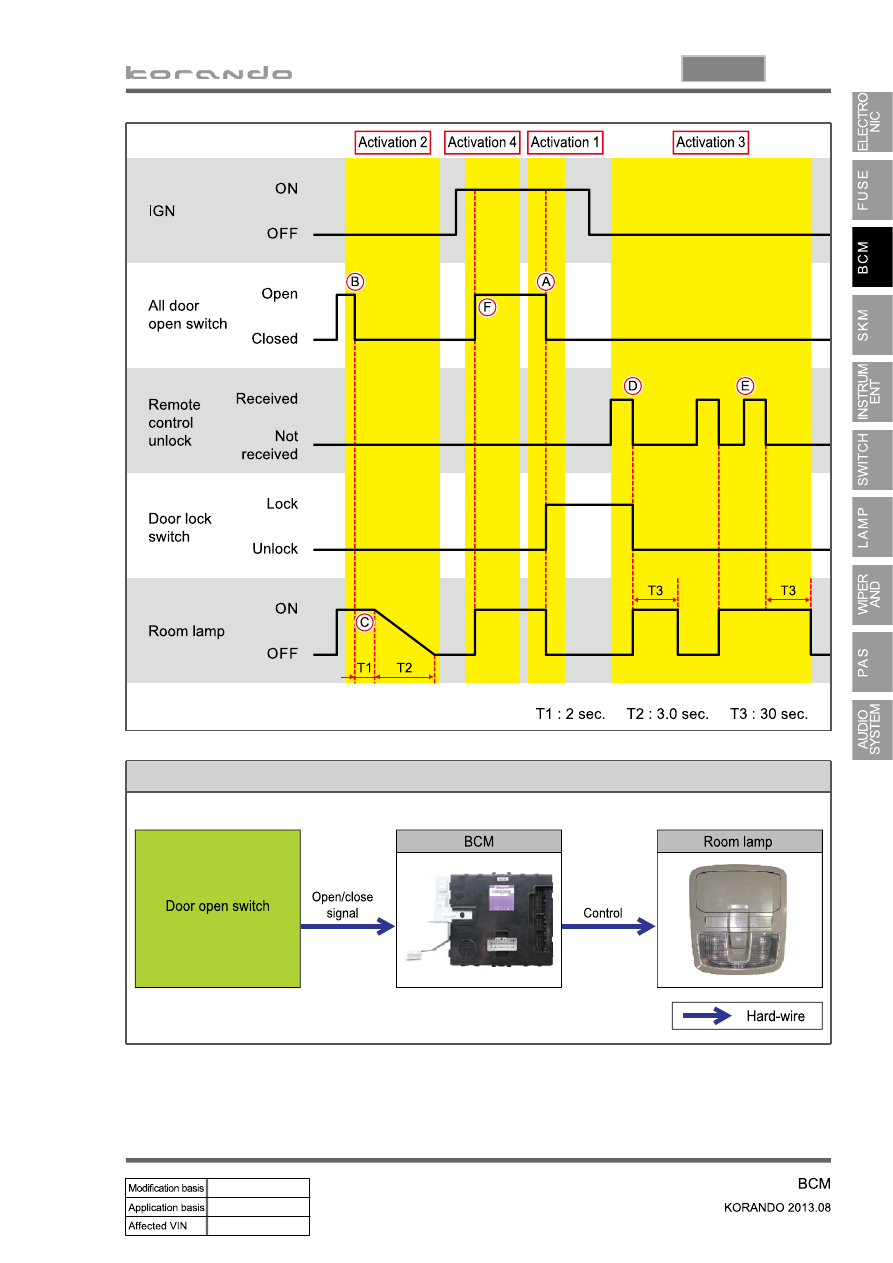

Door coupled room lamp control

▶

When all doors are closed with IGN ON, the room lamp goes out immediately.

A.

Operation 1.

All doors are closed with IGN OFF.

The room lamp stays on for 2 seconds (T1) and then fades out over 3 seconds (T2) and goes off.

- When the ignition is turned ON while the room lamp is fading out, the lamp goes out immediately.

B.

C.

Operation 2.

When UNLOCK signal by the smart key (REKES key) is received with IGN OFF (ignition key

removed) and all doors closed, the room lamp remains ON for 30 seconds (T3).

When UNLOCK signal is received again while the room lamp is ON, the lamp stays on for 30

seconds more. The room lamp lighting is extended when UNLOCK signal by the REKES key is

received.

D.

E.

Operation 3.

The room lamp stays on when a door is opened during fading out.

The lamp goes out or fades out when the door is closed.

F.

Operation 4.

12. ROOM LAMP CONTROL

When the room lamp switch is in the door coupled position and the driver/passenger/rear door is

opened, the room lamp comes on.

The room lamp goes out automatically after 10 minutes of illumination when the ignition is turned OFF

(ignition key is removed) and a door is open.

The sleep mode is deactivated when the door status is changed or UNLOCK signal is received after

automatic switching off.

-

-

-

When the open driver/passenger/rear door is closed, the room lamp fades out. When the system

enters the theft deterrent mode, the room lamp goes out immediately.

In puddle lamp coupled room lamp mode, the room lamp comes on when the puddle lamp

operation signal is received.

-

-

03-69

8710-01

Operating process

- Door coupled front room lamp switch in ON position

03-70

Room lamp cut off control

▶

The lamp is turned off when entering sleep mode or in alarming status.

A.

Operation 1.

When the ignition is turned OFF (ignition key removed) with the room lamp switch ON, the room

lamp comes on for 10 minutes and then goes out automatically.

When the room lamp is turned off automatically, the room lamp automatic switching off signal is sent

to the instrument cluster before entering sleep mode.

B.

C.

Operation 2. (preventing battery discharge)

When the ACC is turned ON or ignition is turned ON with the ignition key inserted, the room lamp is

activated.

D.

Operation 3.

When the room lamp cut off operation is activated, the BCM sends cut off operation signal to the

instrument cluster through B-CAN to prevent the battery discharge.

-

03-71

8710-01

REKES key switch description

▶

Door LOCK (locks the doors and tailgate when pressed briefly)

1.

All doors and the tailgate are locked and the theft deterrent mode is activated.

When the theft deterrent mode is activated, the hazard warning lamp flashes twice. When this

button is pressed once more within 4 seconds, the hazard warning lamp flashes twice and the

buzzer sounds once.

-

-

Panic (Press and hold for 2 seconds or more)

3.

If this button is pressed for 2 seconds or more, the hazard warning lamp flashes while the buzzer

sounds for approx. 30 seconds.

If the door LOCK button or panic button is pressed, this function is deactivated.

-

 -

Door UNLOCK (unlocks the doors and tailgate when pressed briefly)

2.

If this button is pressed briefly, all doors and the tailgate are unlocked and the theft deterrent

mode is deactivated.

When the theft deterrent mode is deactivated, the hazard warning lamp flashes once.

In theft deterrent mode, if a door, tailgate or engine hood is not opened within 30 seconds after

the door is unlocked by a remote controller, the doors are locked with the hazard warning lamp

and buzzer activated (lamp flashes twice and buzzer sounds once, the theft deterrent mode is

activated again).

-

-

 -

13. REMOTE KEYLESS ENTRY SYSTEM (REKES)

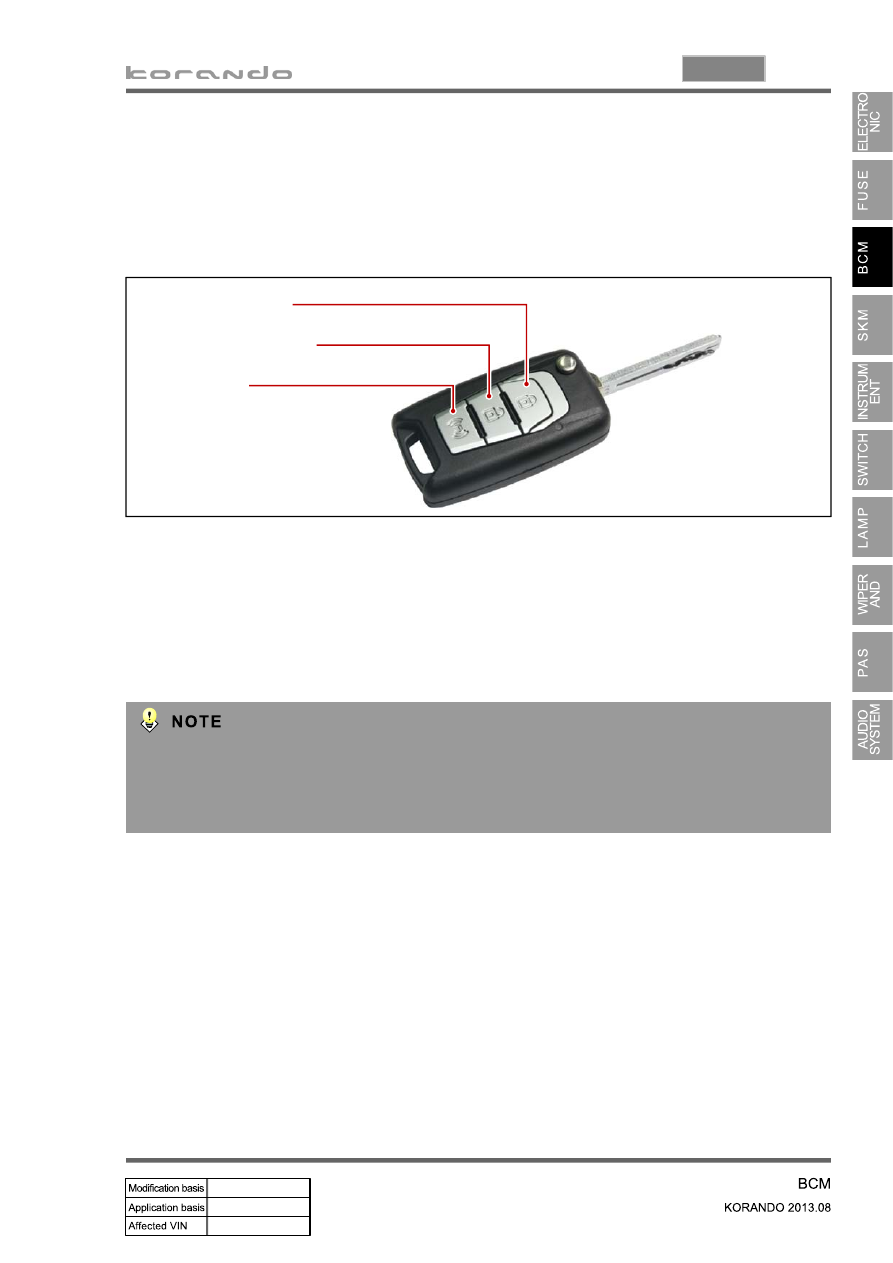

REKES key (Transmitter)

▶

When the user operates the switch of the REKES key, the vehicle control message formatted by the

remote controller CPU is sent to the main part via radio transmission. The CPU of the main part controls

the vehicle and the main part controls the vehicle operations.

Door LOCK

Door UNLOCK

Panic

The escort function is activated with the headlamp ON for 20 seconds when the door LOCK button

is pressed for 0.5 seconds or more in the theft deterrent mode. If the door LOCK button is pressed

briefly or the ignition is turned ON during the escort operation, the escort is deactivated.
