03-60

Door is opened with IGN OFF.

The key hole lamp comes on.

The key hole lamp comes on for 10 seconds (T1) when the door is closed.

A.

B.

C.

Operation 1.

The ignition is turned ON with the key hole lamp ON.

The key hole lamp goes out.

D.

E.

Operation 2.

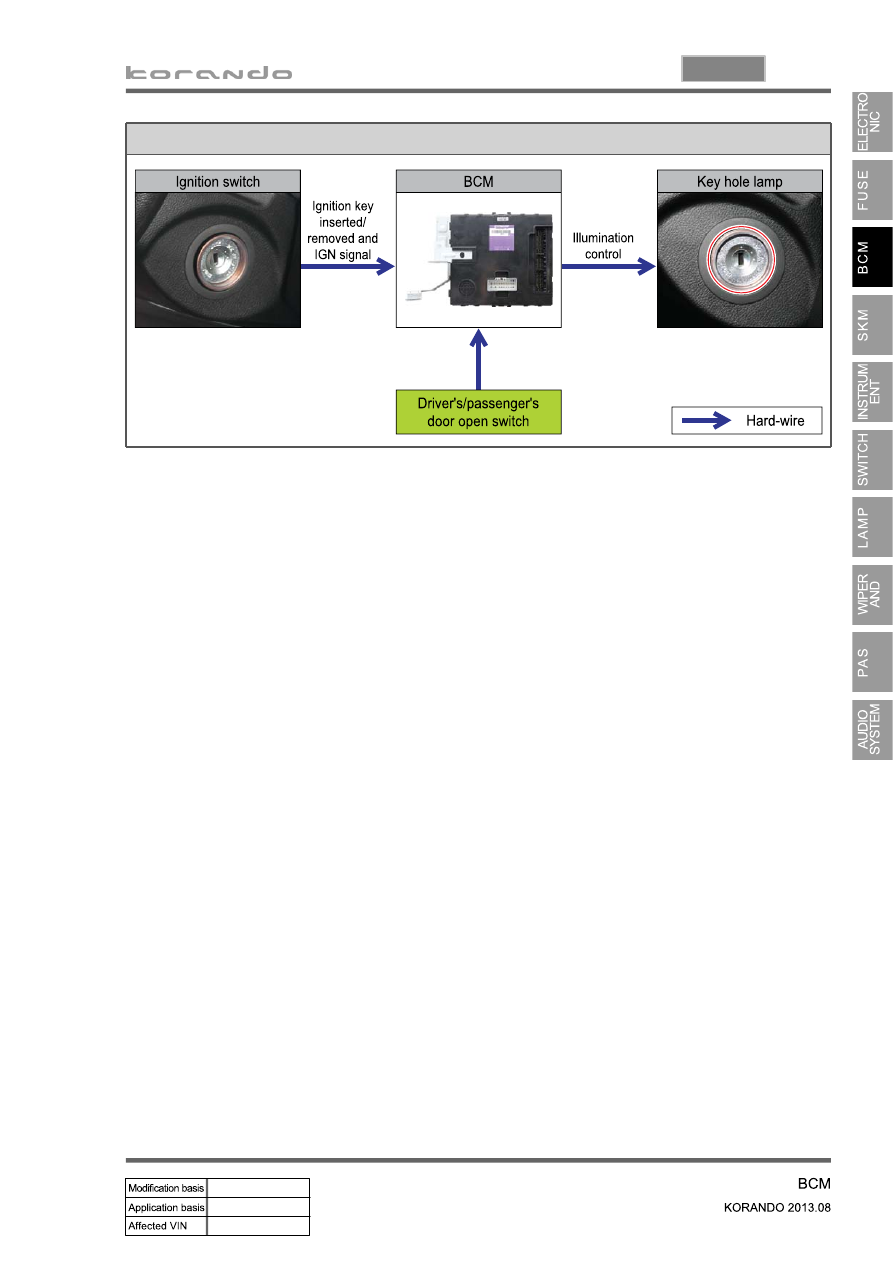

10. KEY HOLE LAMP CONTROL

The key hole lamp goes out when the REKES LOCK signal is received (in theft deterrent

mode).

When the key hole lamp and immobilizer signals are received simultaneously, the immobilizer signal

overrides the key hole lamp signal.

When the immobilizer confirmation is failed, regardless of the key hole lamp operation condition, it

flashes for 11 seconds at intervals of 0.5 sec. ON/0.5 sec. OFF.

When the ignition is turned ON in virgin status, the key hole lamp flashes for 8 seconds at intervals

of 0.5 sec. ON/0.5 sec. OFF.

-

-

-

-

03-61

8710-01

Operating process

03-62

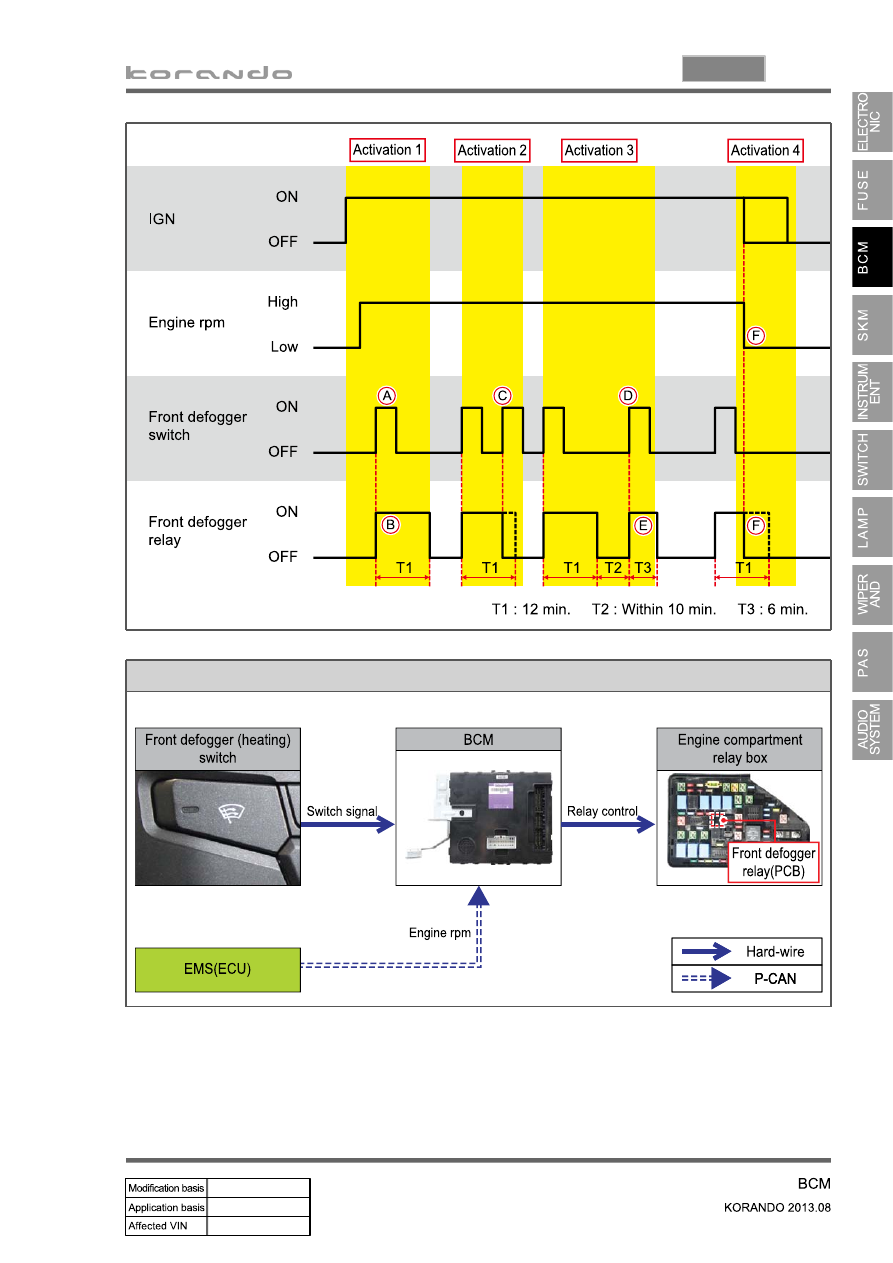

Front defogger (heated wire) timer control

▶

The front defogger (heated wire) switch is turned ON.

The front defogger (heated wire) is activated for 12 minutes (T1).

A.

B.

Operation 1.

Turning on the front defogger (heated wire) switch again when the defogger is activated turns off the

fog lamp output.

C.

Operation 2.

Within 10 minutes (T2) after the output of the front defogger (heated wire) for 12 minutes (T1).

When the front defogger (heated wire) switch is turned ON, the front defogger is activated for only 6

minutes (T3).

(This operation is not available when the front defogger is turned off by turning off engine, IGN OFF, or

front defogger (heated wire) switch).

D.

E.

Operation 3.

If the engine is running at low speed with IGN OFF or IGN ON, the front defogger (heated wire) is

deactivated.

F.

Operation 4.

The front defogger is turned OFF when the ignition is turned OFF or engine is not running.

11. DEFOGGER (HEATED WIRE) TIMER CONTROL

03-63

8710-01

Operating process

- Engine running (Alternator: High)
