03-56
Seat belt reminder operation
▶
A
B
If the seat belt is fastened after the seat belt reminder is activated, the output of the reminder is
turned OFF immediately. The reminder will be operated again whenever the seat belt is
unbuckled.
C
When the seat belt reminder is activated initially with the seat belt unbuckled, the internal buzzer
(chime) is turned ON for 0.02 seconds and then turned OFF for 1.18 seconds (this cycle
continues for 5 minutes) and the driver seat belt warning lamp on the instrument cluster remains
on.
D
When the seat belt reminder is activated with the seat belt unbuckled, the internal buzzer (chime)
is turned ON for 0.02 seconds and then turned OFF for 1.18 seconds (this cycle continues for 5
minutes) and the passenger seat belt warning lamp on the instrument cluster remains on, after
detecting that the passenger seat is occupied through the input value of the passenger seat
occupancy sensor.
E
When the vehicle speed is changed while the seat belt reminder is turned on, the internal buzzer
(chime) is operated as follows:
F
Priority of internal buzzer (chime) operation
(Seat belt reminder > ignition key reminder > sunroof warning > tail lamp warning > hazard
warning flasher on > turn signal indicator)
GEN
▶

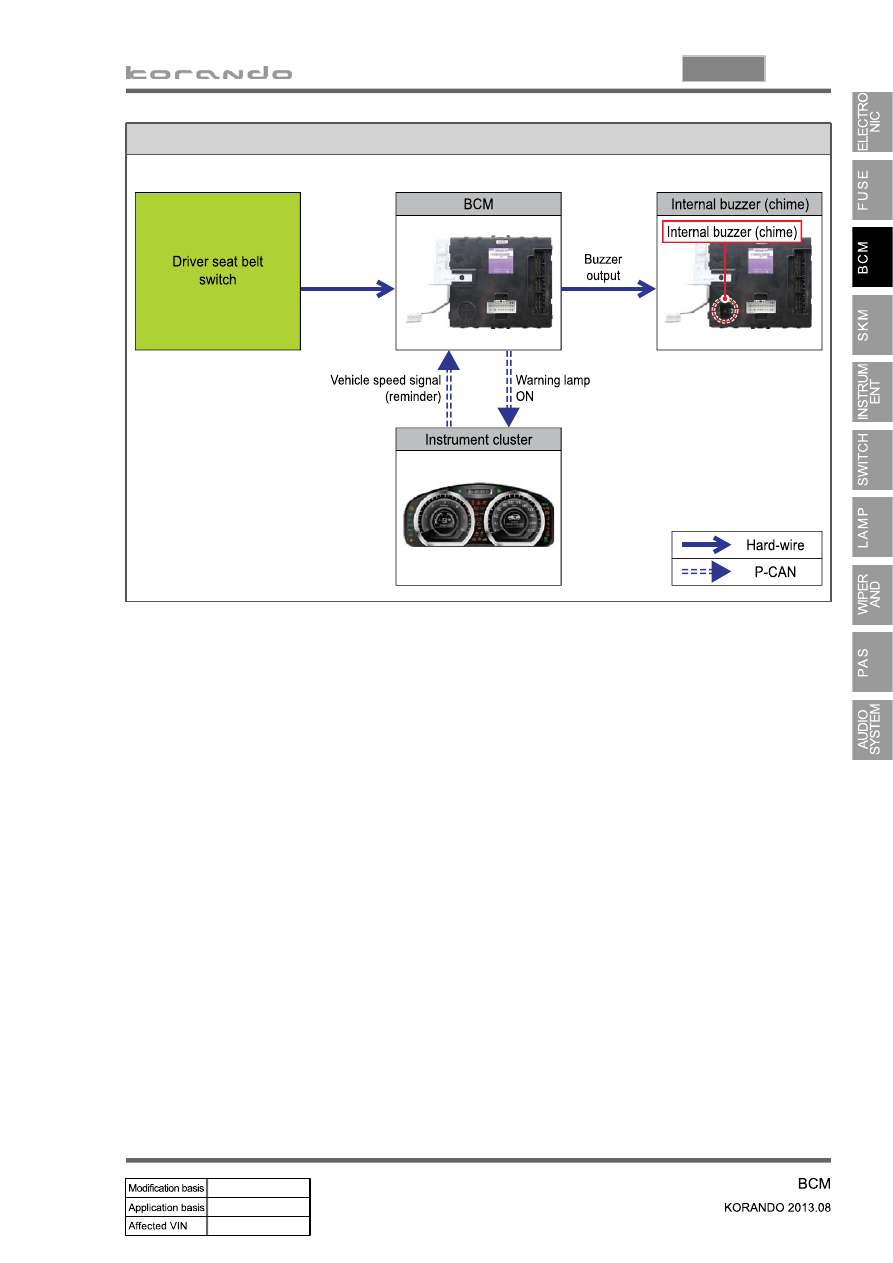

The seat belt reminder is operated when the
vehicle is driven at 25 km/h or more with IGN
ON and alternator in High status (engine
running), and driver seat belt is not fastened. If
the vehicle speed is decreased to less than 25
km/h within 5 minutes after the seat belt
reminder is activated, the internal buzzer
(chime) is turned off. If the vehicle speed is
increased to 25 km/h or more, the buzzer
signal is output for 5 minutes.
Only EU
▶
If the driver and passenger seat belts are not
fastened with the ignition switch ON, engine
running, vehicle speed above 10 km/h and
any passenger occupied, the seat belt
reminder is activated. In addition, even though
the vehicle speed reduces to below 10 km/h
after the reminder is activated at speed of 10
km/h or higher, it will remain activated.
Vehicle speed
Function
Remarks
Interior buzzer
Instrument
cluster
25 Km/h to 49 Km/h
(10km/h~49km/h)
0.02 sec. ON / 1.18 sec. OFF
Remains on
(Only EU)
50 Km/h to 99 Km/h
0.02 sec. ON / 0.98 sec. OFF
Remains on
100 km/h or more
0.02 sec. ON / 0.78 sec. OFF
Remains on
