Door ajar warning lamp

▶

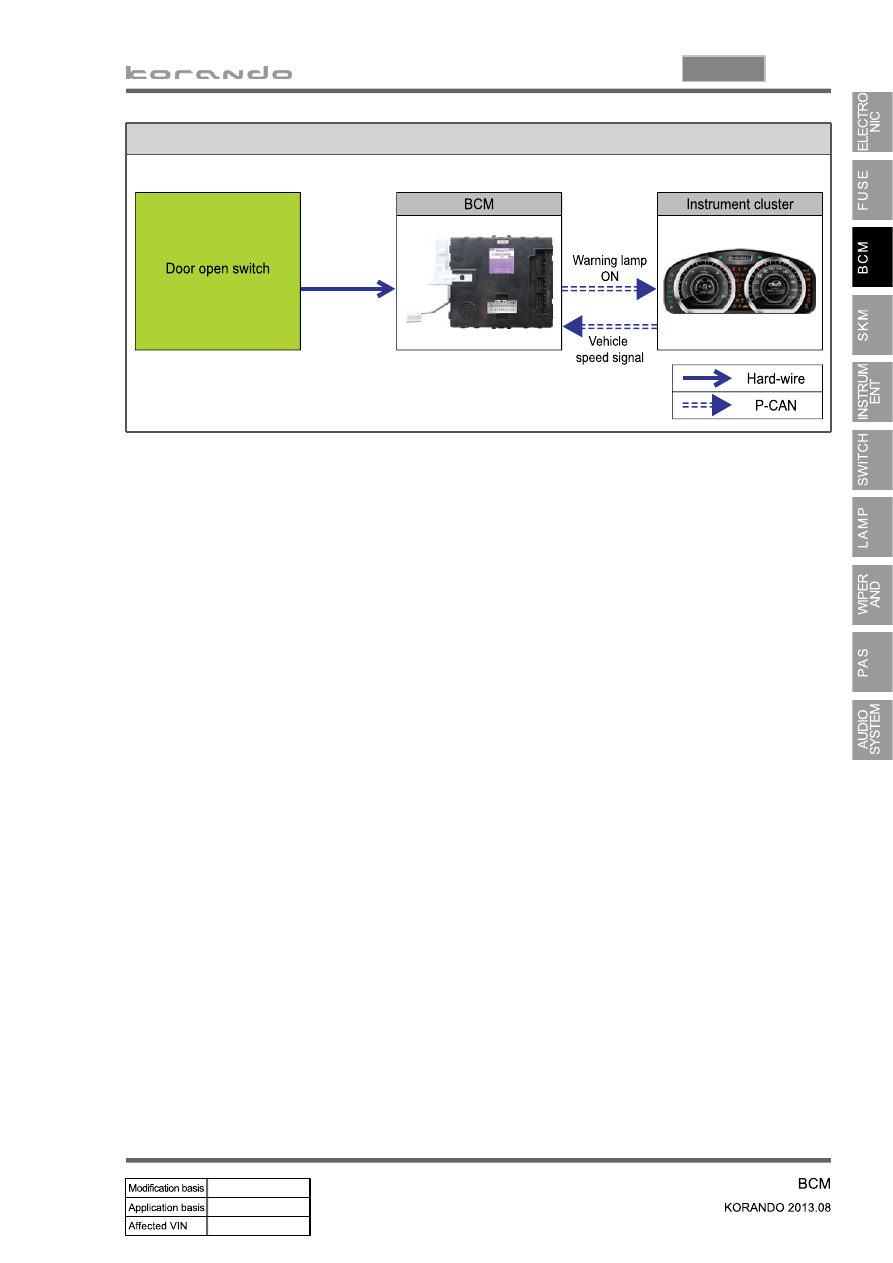

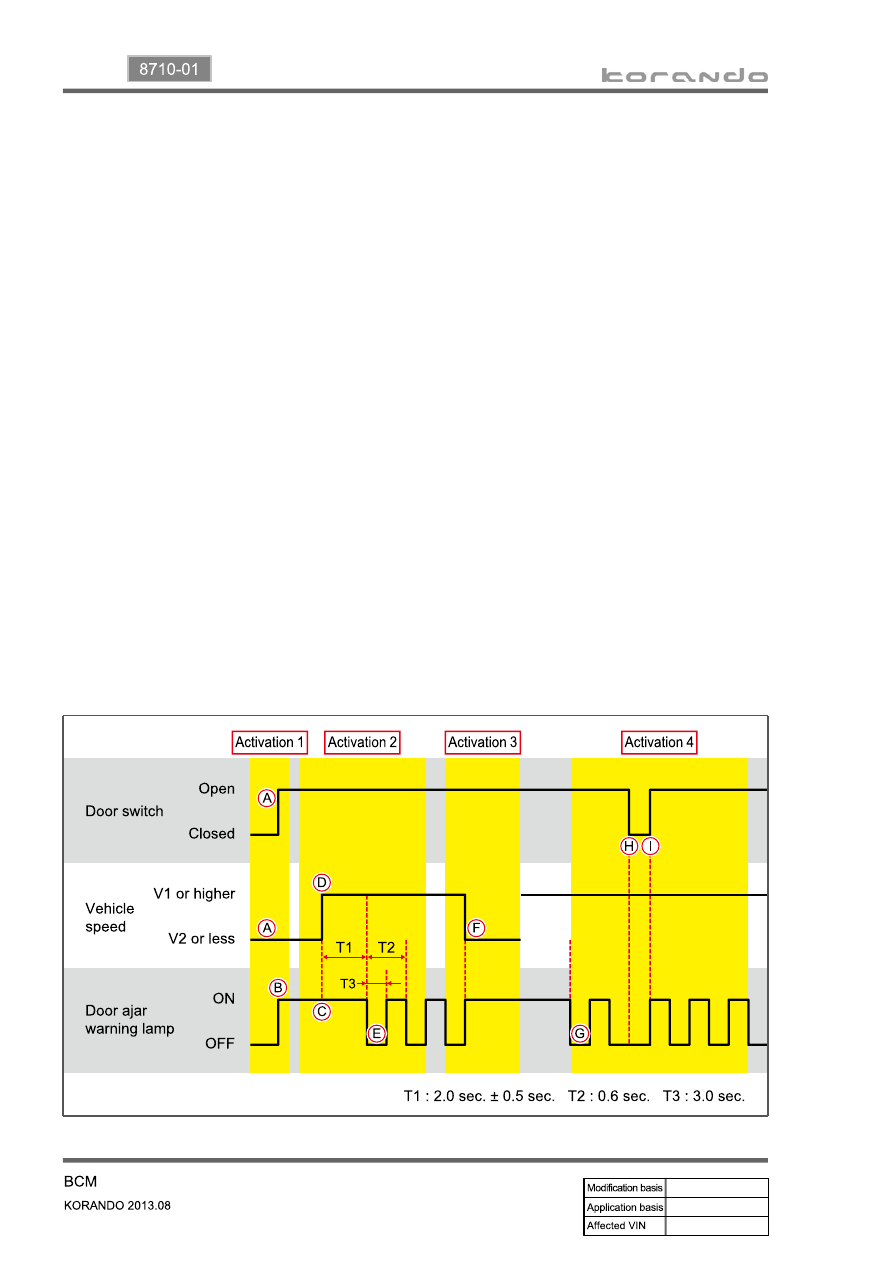

7. DOOR AJAR WARNING LAMP CONTROL

When the door ajar signal is input while the vehicle is driven at 10 km/h or less (V2).

The door ajar warning lamp comes on.

A.

B.

Operation 1.

The door ajar warning lamp is ON.

The vehicle is driven at 10 km/h or more (V1) for 2 seconds or longer (T1).

The door ajar warning lamp starts to flash.

C.

D.

E.

Operation 2.

The warning lamp remains on when the vehicle speed decreases to 10 km/h or less (V2).

F.

Operation 3.

(The warning lamp flashes under the condition of operation 2.)

Operation 4.

The door ajar warning lamp flashes.

The lamp goes out when the open door is closed.

The lamp flashes again whenever a door is opened.

G.

H.

I.

The door ajar warning lamp goes out when the open door is closed under the condition stated

above.

-

The door ajar warning lamp goes out when the open door is closed under the condition stated

above.

-

03-53

8710-01

Operating process

- IGN ON

03-54

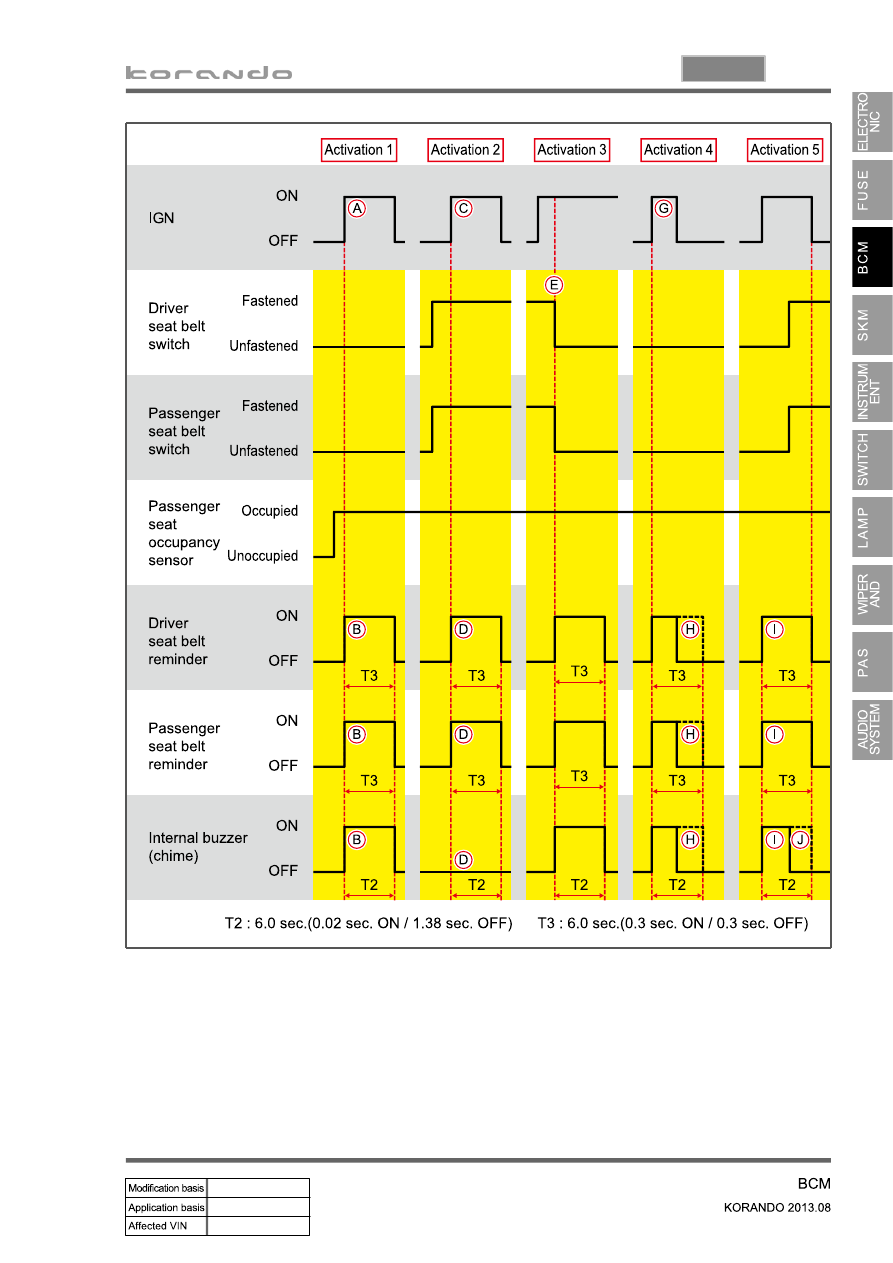

Seat belt internal buzzer (chime) and warning lamp

▶

The ignition is turned ON from OFF with the driver and passenger seat belts unbuckled.

The internal buzzer (chime) sounds and the warning lamp comes on for 6 seconds (T2).

(internal buzzer controlled by BCM, warning lamp controlled by instrument cluster)

A.

B.

Operation 1.

The ignition is turned ON from OFF with the driver and passenger seat belts unbuckled.

The internal buzzer (chime) does not sound but the warning lamp comes on for 6 seconds (T2).

(The seat belt reminder is operated when the vehicle is driven at 10 km/h (for EU), 25 km/h (for GEN))

C.

D.

Operation 2.

When the fastened driver seat belt is unbuckled with IGN ON.

The internal buzzer (chime) sounds and the driver seat belt warning lamp comes on for T2 again.

E.

F.

Operation 3.

The ignition is turned OFF while the internal buzzer (chime) and seat belt warning lamp are activated.

The internal buzzer (chime) and seat belt warning lamp are deactivated.

G.

H.

Operation 4.

8. SEAT BELT CONTROL

The driver seat belt is fastened while the internal buzzer (chime) and seat belt warning lamp are

activated.

The internal buzzer (chime) does not sound but the warning lamp comes on for the time remaining.

I.

J.

Operation 5.

When the seat belt reminder operation conditions are met during the warning, the seat belt reminder

is operated after stopping the warning output.

For the passenger seat, however, the system detects if the passenger seat is empty or occupied

and operates the warning lamp only for the first time. After that, the only seat belt reminder detects if

the passenger seat is occupied.

-

-
