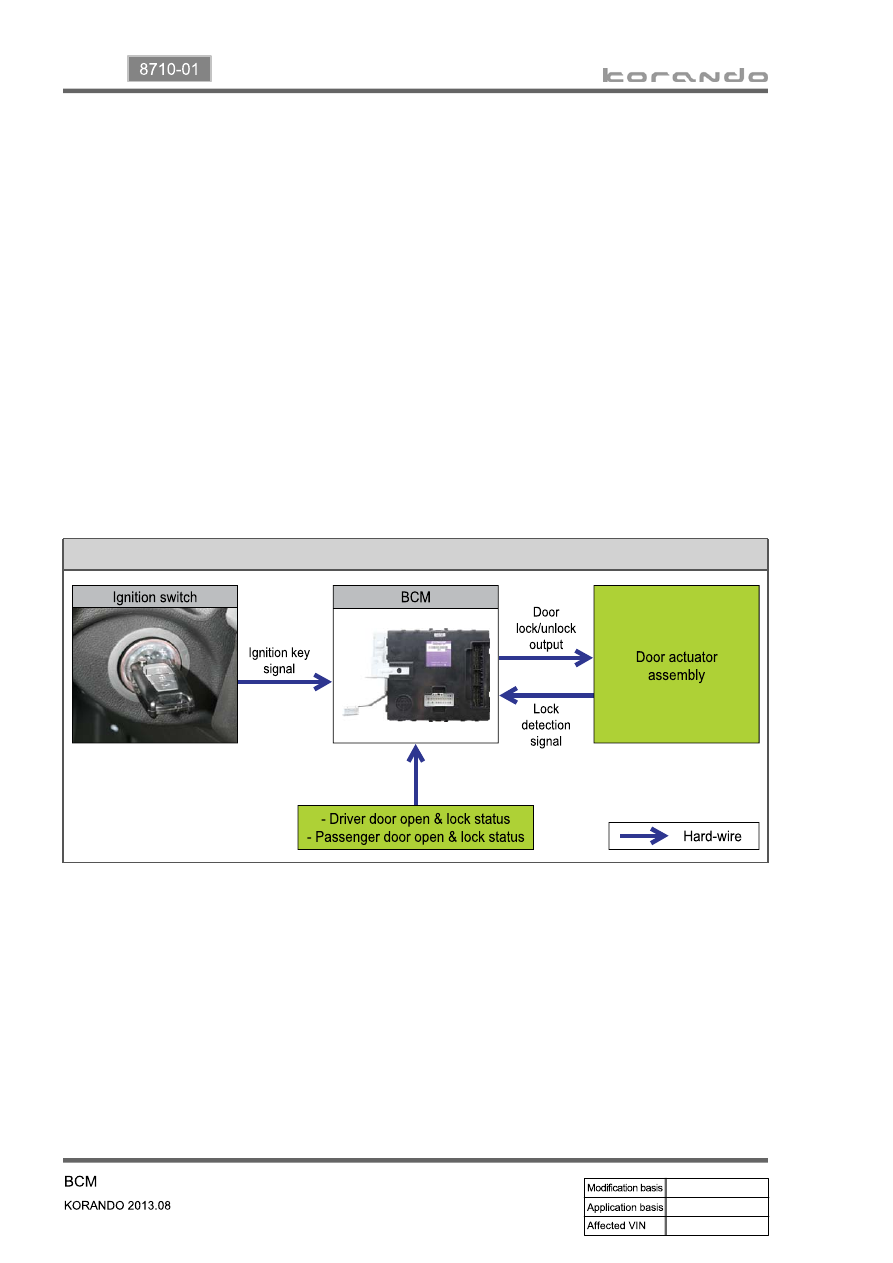

Ignition key reminder operation

▶

The door LOCK switch is in LOCK position after the driver door is opened with the ignition key

inserted.

The UNLOCK signal is output for 0.5 seconds (T2) immediately after the LOCK signal output.

A.

B.

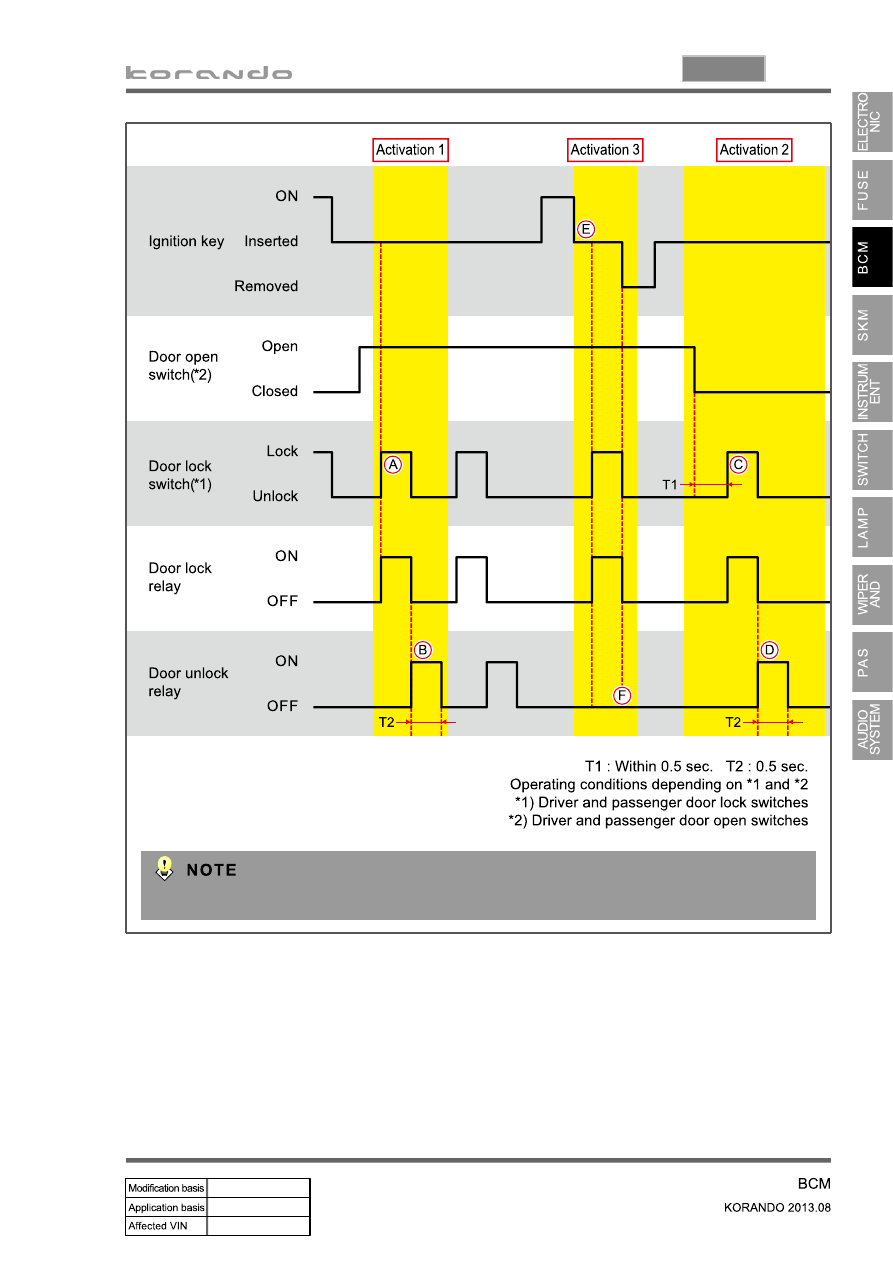

Operation 1.

The door LOCK switch is in LOCK position within 0.5 seconds (T1) after the door is closed with the

ignition key inserted.

The UNLOCK signal is output for 0.5 seconds (T2) immediately after the LOCK signal output.

C.

D.

Operation 2.

The door LOCK switch is in LOCK position after the driver door is opened with the ignition key

inserted.

The door UNLOCK signal is not output when the ignition key is removed during the door LOCK

output.

E.

F.

Operation 3.

Operating process

03-45

8710-01

The door LOCK/UNLOCK relay is installed inside the actuator.

03-46

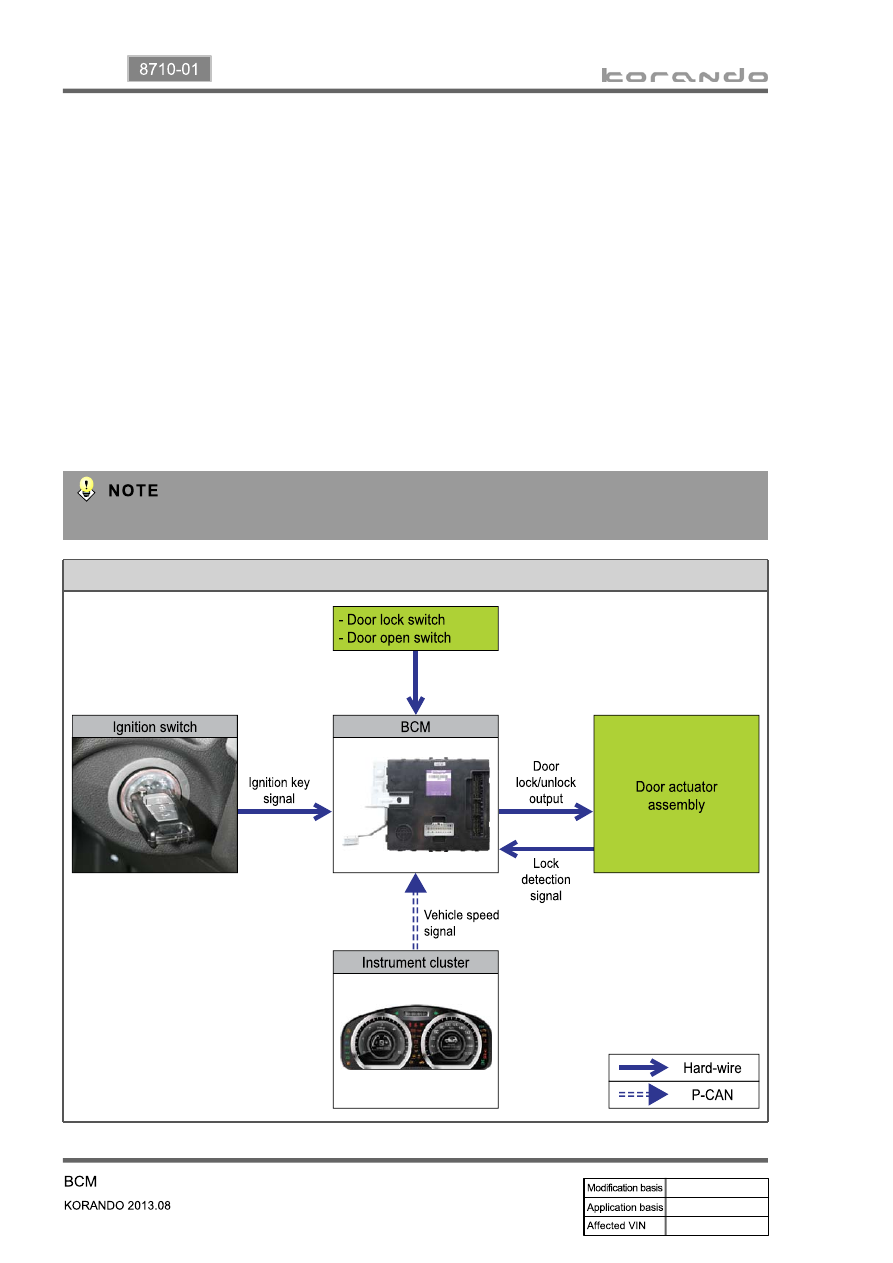

All doors LOCK prevention function

▶

When the LOCK signal is input with the doors (driver/passenger/rear) open and the ignition key

removed or IGN ON).

The UNLOCK signal is output for 0.5 seconds (T1) immediately after the LOCK signal output.

A.

B.

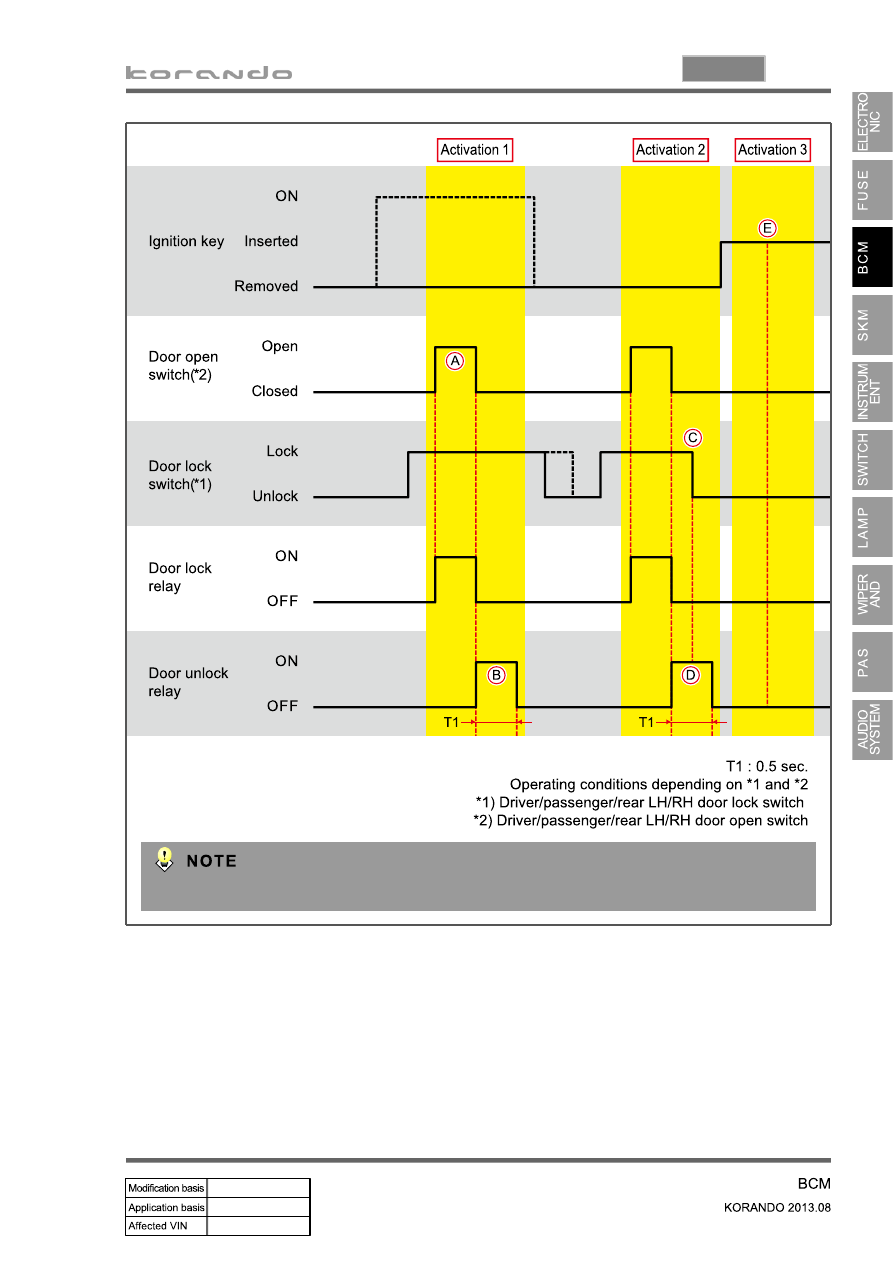

Operation 1.

All doors are closed during the UNLOCK output.

The UNLOCK output continues.

C.

D.

Operation 2.

When the ignition key is inserted, the ignition key reminder is operated.

E.

Operation 3.

Except tailgate and hood

-

Operating process

This function does not work if the vehicle speed is over 10 km/h.
