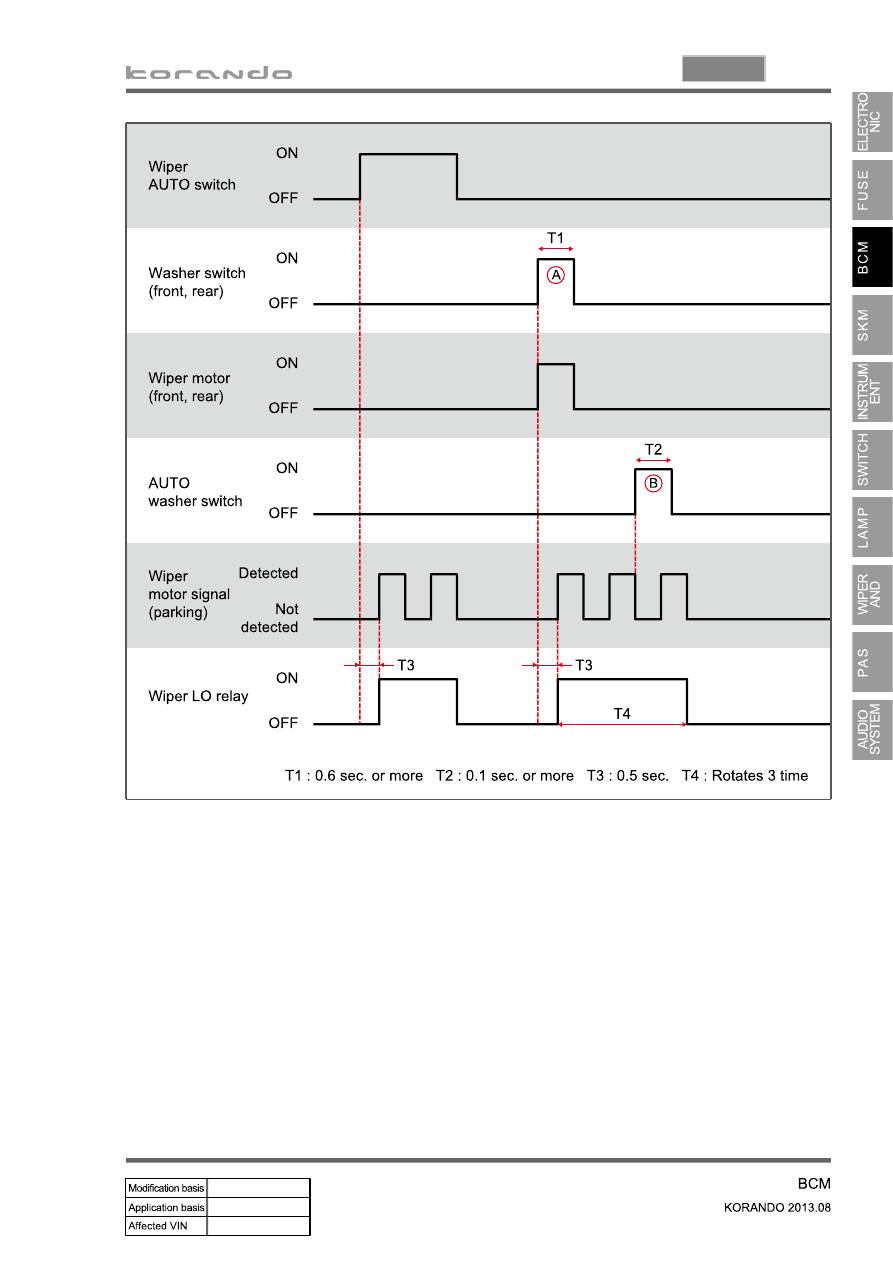

Wiper LO/HI control

▶

When front or rear washer signal is input during the wiper LO/HI operation, the front or rear washer

motor is activated.

The AUTO washer input is overridden during wiper LO/HI operation.

A.

B.

Operation 1.

When the signal from the wiper LO/HI switch is received, the wiper LO/HI relay is turned ON/OFF.

(The wiper LO relay is always activated when the HI relay is activated.)

If the ignition turned OFF while the wiper is operated, the wiper stops operating when the wiper

motor parking signal is input.

If no wiper motor parking signal is input during the wiper LO/HI operation, the wiper relay continues

working. (If no wiper parking signal is input for 3 seconds of wiper AUTO operation, wiper relay is

deactivated after 5 seconds - failure notification)

When the ignition is turned OFF during the wiper HI operation, the wiper is operated in LO mod and

then returns to the parking position.

-

-

 -

 -

03-41

8710-01

03-42

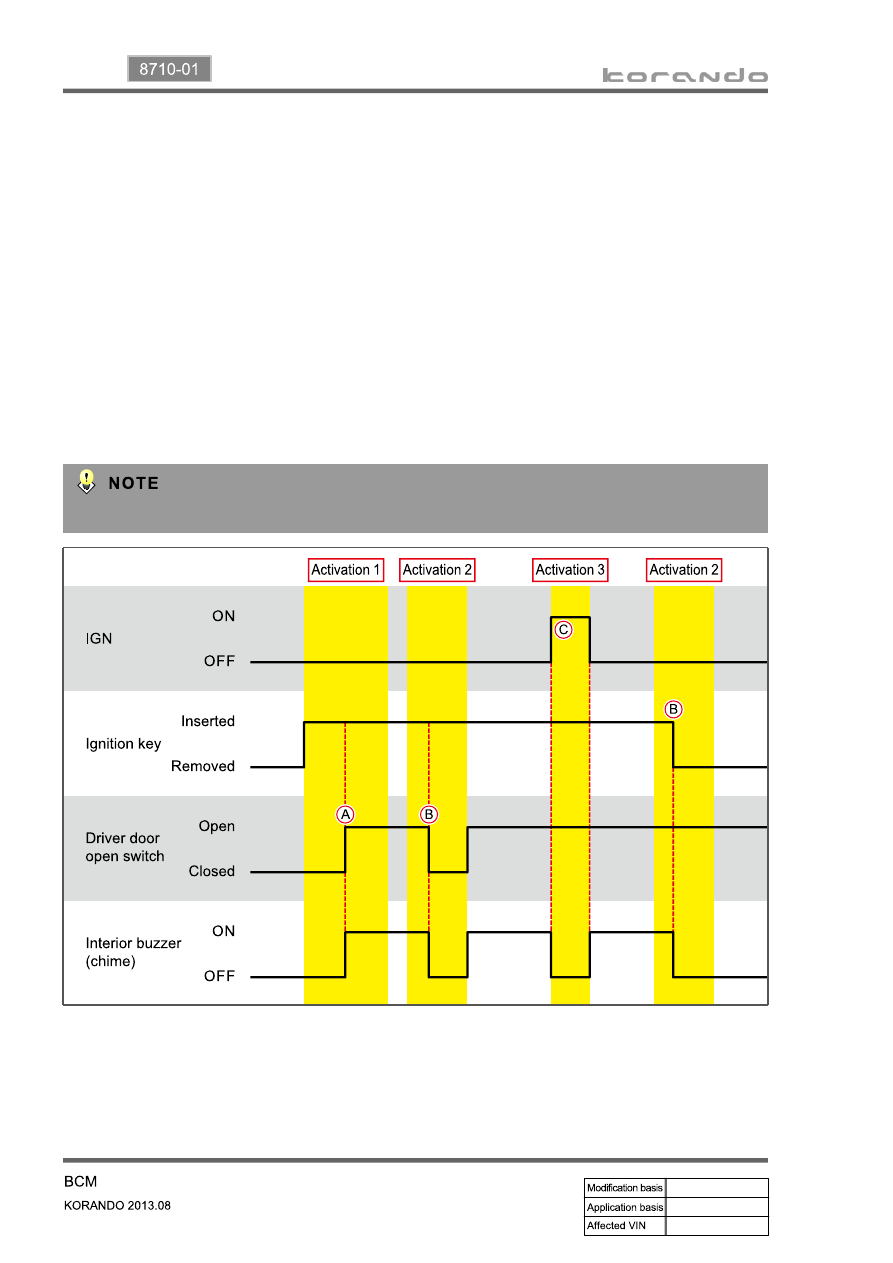

Internal buzzer (chime) operation for ignition key reminder

▶

When the driver door is opened with the ignition key inserted, the internal buzzer (chime) is operated

for 10 seconds at intervals of 0.02 sec. ON/1.38 sec. OFF.

A.

Operation 1.

When the ignition key is removed or the driver door is closed while the internal buzzer (chime) is

activated for up to 10 seconds, the buzzer is deactivated.

B.

Operation 2.

5. IGNITION KEY REMINDER

The 2 operations stated above are not available after the ignition is turned ON.

C.

Operation 3.

This function overrides the tail lamp switch warning function.

03-43

8710-01

Operating process

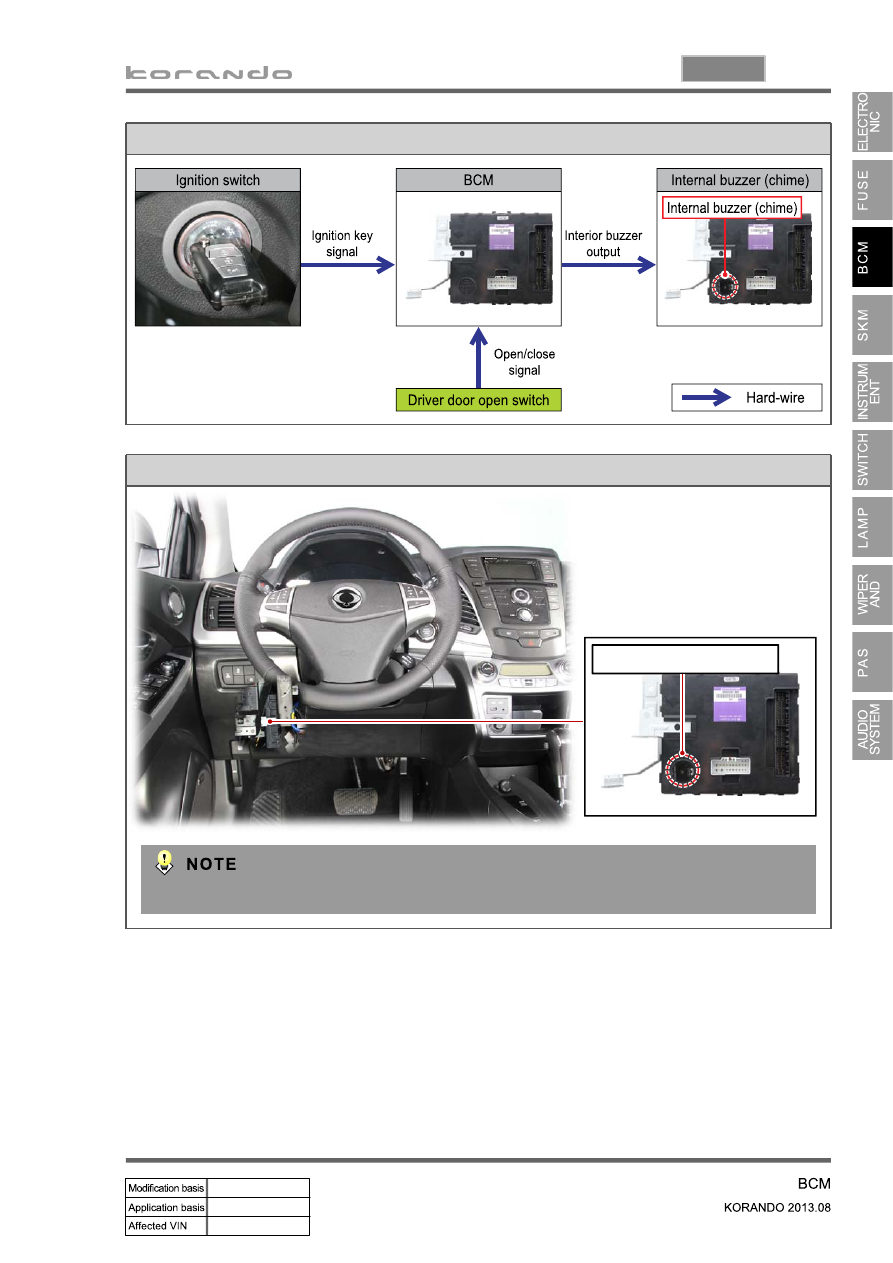

Mounting location for internal buzzer (chime)

Internal buzzer (chime)

The internal buzzer (chime) is fitted inside the BCM.
