03-48

Tail lamp ON warning

▶

The driver door is opened with the tail lamp ON and ACC or IGN OFF (ignition key removed).

The internal buzzer (chime) sounds for 10 seconds (T2) at intervals of 1.4 seconds (T1).

A.

B.

Operation 1.

The tail lamp switch is turned OFF while the internal buzzer (chime) is activated, or the driver door is

closed.

The internal buzzer (chime) is deactivated immediately.

C.

D.

Operation 2.

6. TAIL LAMP CONTROL

The 2 operations stated above are not available after the ignition is turned ON.

E.

Operation 3.

The sunroof and ignition key reminder warnings override this function.

If the tail lamp switch is turned ON from OFF while the internal buzzer (chime) is activated, the

buzzer sounds again.

-

-

03-49

8710-01

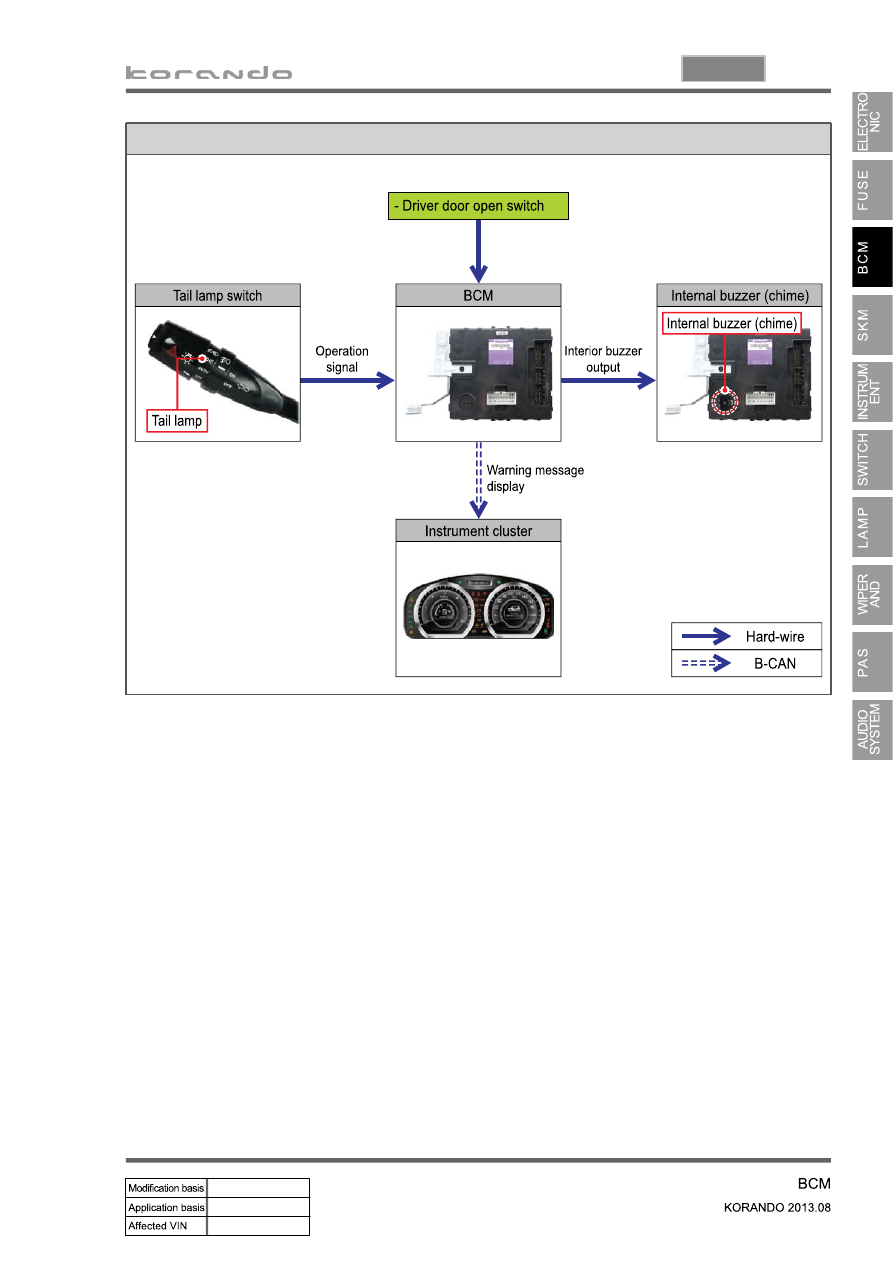

Operating process

- IGN OFF (ignition key removed)

03-50

Tail lamp AUTO switching off

▶

The tail lamp relay is turned ON or OFF according to the ON/OFF operation of the tail lamp switch.

A.

Operation 1.

When the ignition is turned OFF or the ignition key is turned to the ACC ON position (ignition key

removed) with the tail lamp switch ON.

After this, the tail lamp relay is turned OFF automatically when the driver door is opened and then

closed. (with tail lamp switch ON)

B.

C.

Operation 2.

When the ignition is turned ON (ignition key inserted) after the operation 2, the tail lamp relay is turned

ON.

D.

Operation 3.

The ignition is turned OFF or the ACC is turned ON (ignition key removed).

After the tail lamp is turned ON, the lamp relay is not turned OFF automatically when the driver door is

opened and then closed. (with tail lamp switch ON)

E.

F.

Operation 4.

To reset, turn the ignition ON (ignition key inserted)

03-51

8710-01

Operating process

- IGN OFF (ignition key removed)
