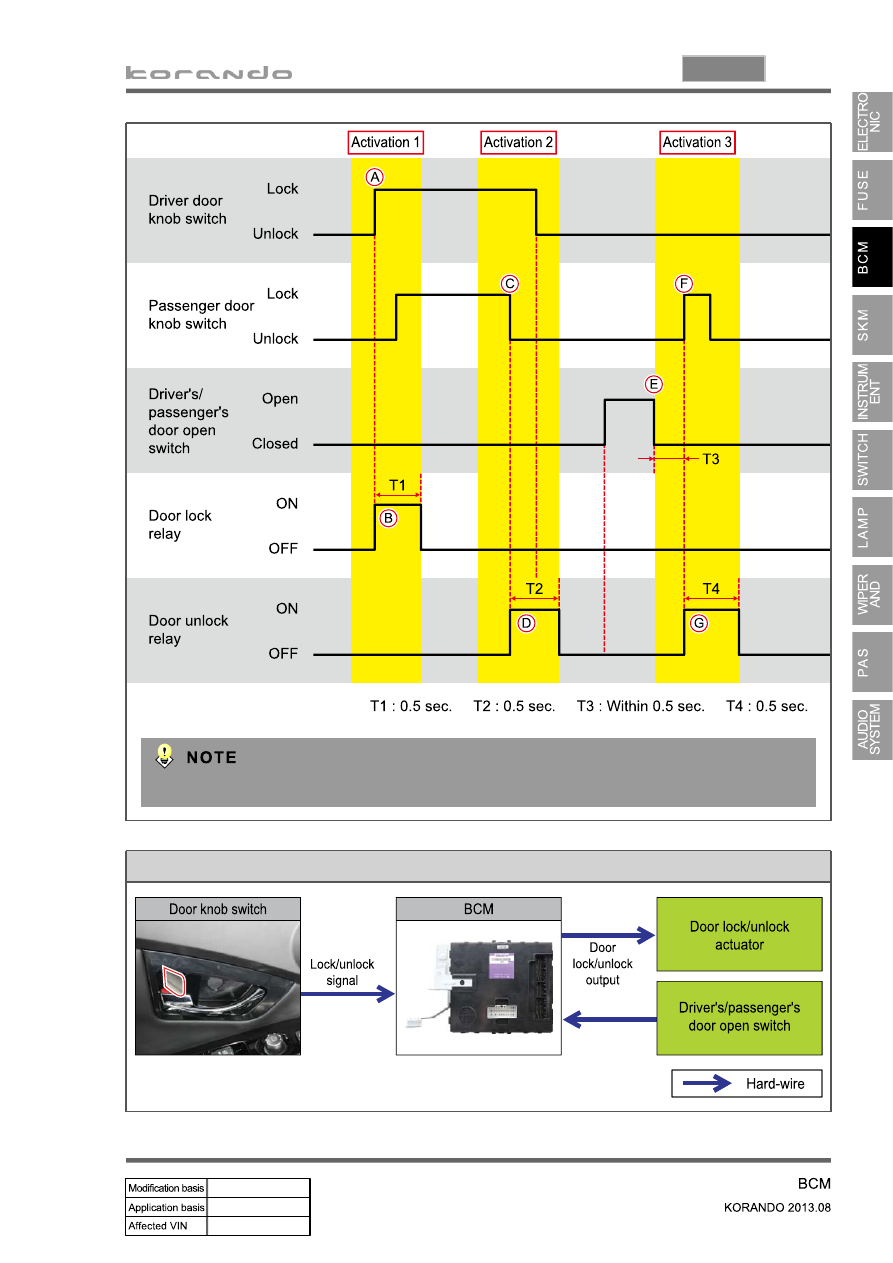

Door LOCK/UNLOCK control by door knob switch
▶
The driver and passenger door LOCK knob switches are in the LOCK position from UNLOCK
position.
The door LOCK relay is activated for 0.5 seconds (T1).
A.
B.
Operation 1.
The driver and passenger door LOCK knob switches are in the UNLOCK position from LOCK
position.
The door UNLOCK relay is activated for 0.5 seconds (T2).
C.
D.
Operation 2.
All open doors are closed.
The LOCK signal is input within 0.5 seconds (T3).
The UNLOCK signal for all doors is output once for 0.5 seconds (T4).
E.
F.
G.
Operation 3.

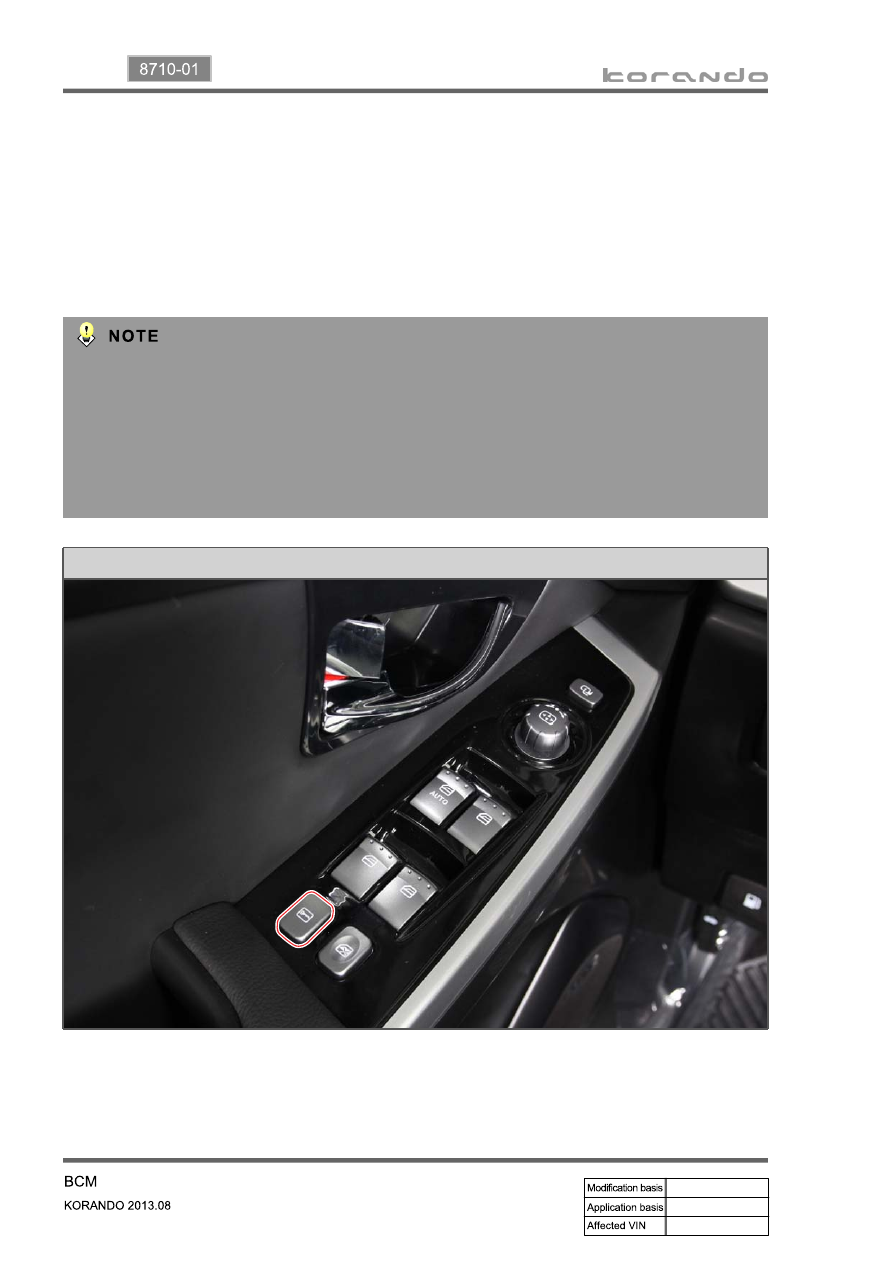

14. CENTRAL DOOR LOCKING SYSTEM CONTROL
For BCM with SKM, sleep mode is deactivated by receiving the status signals from the driver door
knob switch, passenger door knob switch, rear LH/RH door knob switch, and central door
LOCK/UNLOCK switch through the wiring.
If all doors are unlocked 5 times within 1 minute after door LOCK signal output, because of faulty
door knob switch and door open switch, the doors are forced to lock and not allowed to unlock.
However, the UNLOCK conditions are met, the UNKLOCK signal is input normally.
-
-
The door lock/unlock system does not work regardless of the door LOCK/UNLOCK switch position,
when reconnecting the battery. (to reset, turn the ignition ON)
-
The signal change from UNLOCK to LOCK is ignored during LOCK/UNLOCK output by the central
door LOCK switch, REKES key, and door handle switch.
If LOCK signal from the switch is input within 0.5 seconds after any door is closed, UNLOCK signal
is output.
-
-
