03-92

Tailgate open control (for vehicles with SKM)

▶

The ignition is turned OFF or ON, or ACC is turned ON with the driver door unlocked.

When the tailgate open switch is pressed for more than 0.1 seconds (T1), the tailgate open relay is

activated for 1 second. With the ignition turned ON, the tailgate open relay is activated only when the

vehicle is driven at 3 km/h or less.

A.

B.

Operation 1.

The tailgate open relay is activated.

The vehicle is driven at 3 km/h or more with the driver door locked or IGN ON.

The tailgate open relay is deactivated immediately.

C.

D.

E.

Operation 2.

The vehicle is driven at 3 km/h or more with IGN ON.

The tailgate open relay is not activated when the tailgate open switch is pressed.

F.

G.

Operation 3.

The ignition is turned OFF or ON, or ACC is turned ON with the driver door and tailgate door locked.

The tailgate open switch is pressed for 0.1 seconds or more.

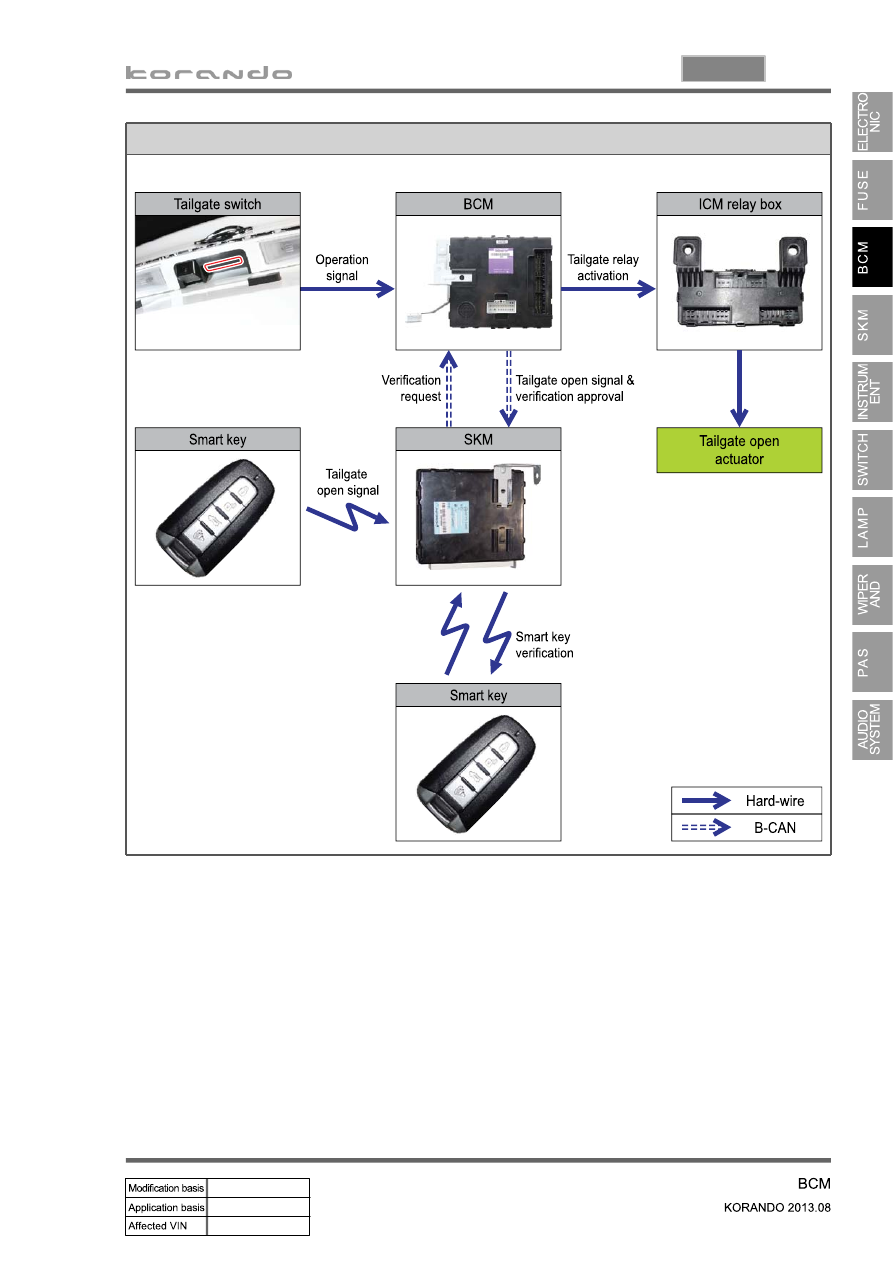

The BCM sends the verification request to the SKM through B-CAN. The SKM verifies the smart key

and sends the signal to the BCM through B-CAN.

The BCM activates the tailgate open relay after the valid smart key verification.

(In theft deterrent mode, only the theft deterrent for tailgate is deactivated.)

-

 -

-

 -

Operation 4.

The tailgate open signal is input by the smart key when the vehicle is not in stationary or the power is

not turned OFF.

The BCM keeps the tailgate open relay ready to operate for 30 seconds.

If the signal from the tailgate open switch is input within this 30 seconds,

The tailgate open relay is activated.

If no signal is input within 30 seconds in theft deterrent mode, the mode remains on. The system

enters the theft deterrent mode immediately when the LOCK signal from the smart key is input.

-

 -

-

-

Operation 5.

The tailgate closed signal is input in theft deterrent mode with power OFF.

The BCM searches a verified smart key in the luggage compartment after 1 second.

If a verified smart key is found in the luggage compartment, the BCM activates the external buzzer for

5 seconds.

The driver presses the tailgate open switch to find the smart key.

The BCM deactivates the tailgate LOCK function so that the tailgate can be opened even when the

driver door is locked. (standby to operate without verification)

-

 -

-

-

-

Operation 6.

03-93

8710-01

Operating process

- in theft deterrent mode

03-94

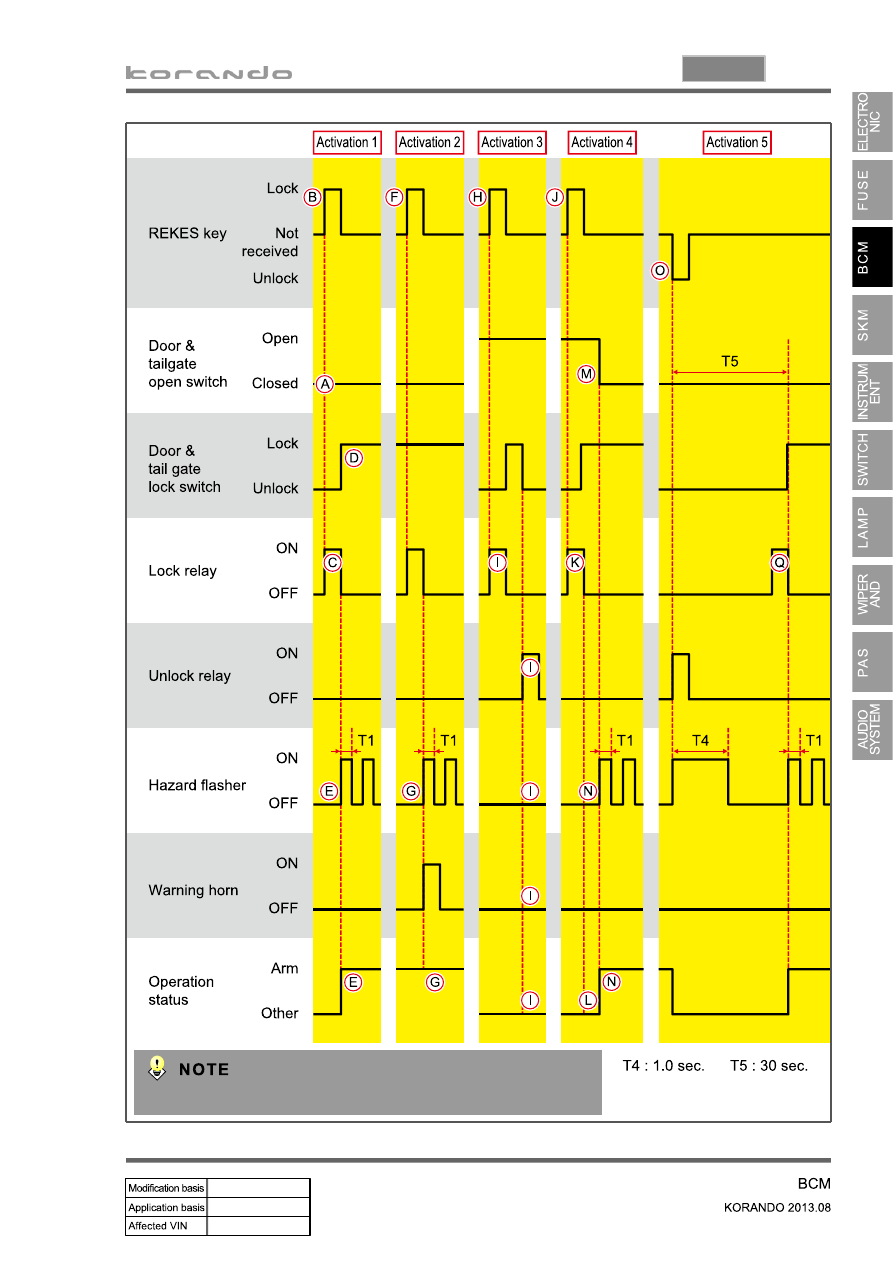

Theft deterrent mode entering by REKES key (for vehicles without SKM)

▶

All doors (including hood and tailgate) are closed with the ignition key removed.

REKES LOCK signal is received.

The door LOCK relay is activated.

All doors (including hood and tailgate) are locked

The system enters the theft deterrent mode after operating the hazard warning lamp twice.

A.

B.

C.

D.

E.

Operation 1.

REKES LOCK signal is received again within 4 seconds of theft deterrent mode activation.

The hazard warning lamp flashes twice and the warning horn is operated once in the theft deterrent

mode.

F.

G.

Operation 2.

REKES LOCK signal is received with one or more doors open.

The LOCK relay is activated followed by activation of UNLOCK relay.

H.

I.

Operation 3.

REKES LOCK signal is received with the tailgate and hood open.

Only the LOCK relays of the closed doors except hood and tailgate are activated.

The system does not enter theft deterrent mode.

If the open tailgate and hood are closed.

The system enters the theft deterrent mode after operating the hazard warning lamp twice.

J.

K.

L.

M.

N.

Operation 4.

All doors are opened or the ignition key is not inserted within 30 seconds (T5) after the REKES

UNLOCK signal is received.

The LOCK relay is activated and the system enters the theft deterrent mode after operating the

hazard warning lamp twice.

O.

P.

Operation 5.

17. THEFT DETTERENT FUNCTION

The theft deterrent mode will not be activated when the door is locked by the door key.

-

03-95

8710-01

The door LOCK/UNLOCK relay is installed inside the actuator.
