Operating process

- IGN OFF/ACC ON
- All doors (including hood and tailgate) closed

Theft deterrent mode deactivation conditions (for vehicles with SKM)

▶

When UNLOCK signal by the smart key with IGN OFF or by the door handle switch with the door

locked is received, the door UNLOCK signal is output and the theft deterrent mode is deactivated

after the hazard warning lamp (once) and external buzzer (SKM buzzer) (twice) operations.

If UNLOCK signal by the smart key is received after the deactivation of theft deterrent mode, the

hazard warning lamp relay and external buzzer (SKM buzzer) are turned ON.

When the tailgate open signal by the smart key or tailgate open switch is received, only the theft

deterrent for tailgate is deactivated.

The theft deterrent mode is deactivated when the ignition is turned ON.

-

-

-

-

03-101

8710-01

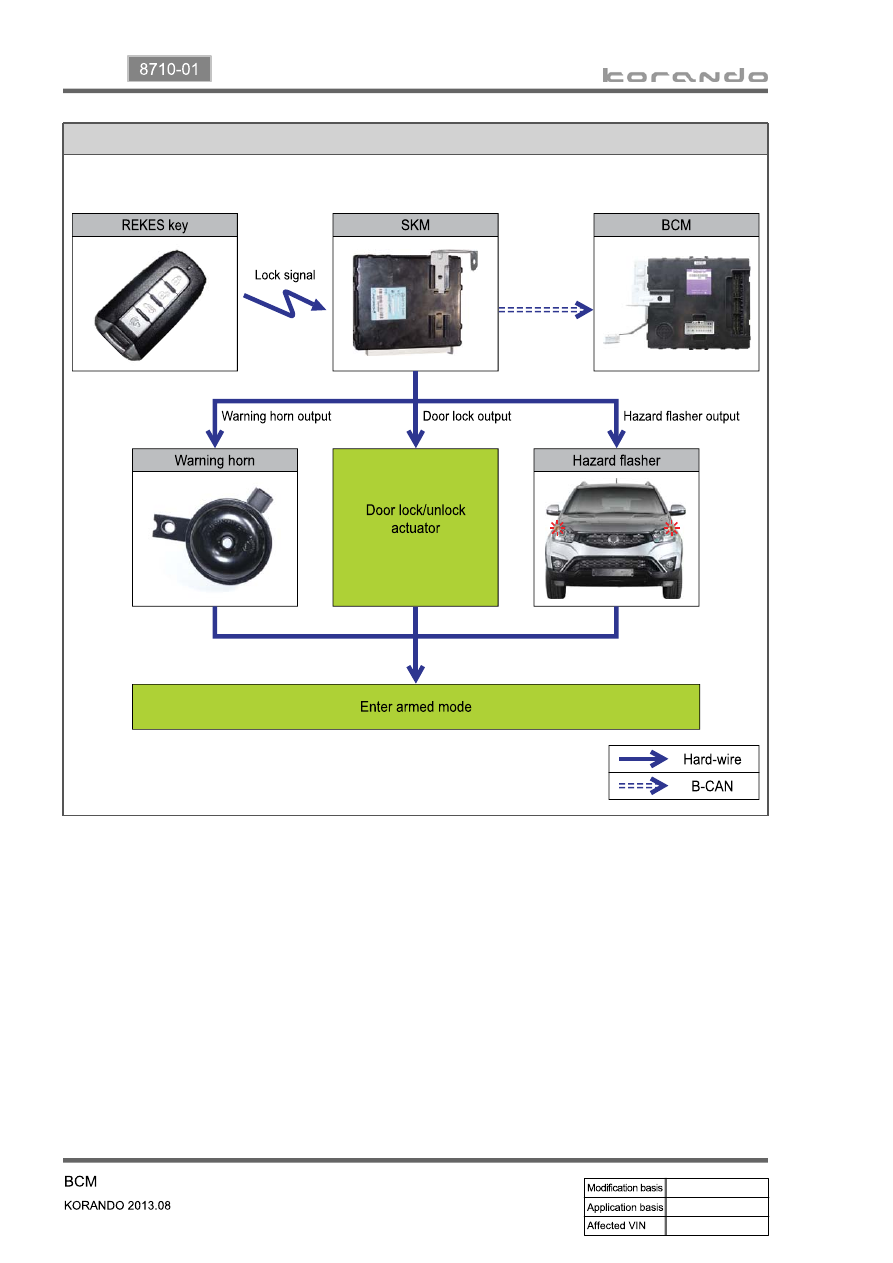

Theft deterrent mode (for vehicles with SKM)

▶

Battery power

Front/rear door open

Tailgate open

4 doors LOCK/UNLOCK

Hood open

-

 -

 -

-

-

The BCM monitors the following conditions continuously in theft deterrent mode.

Theft deterrent alarm activation (for vehicles with SKM)

▶

Any door including hood and tailgate is opened in theft deterrent mode.

The LOCK switch of any door including tailgate is set to UNLOCK in theft deterrent mode.

Any door including tailgate and hood is closed and then opened after 30 seconds of alarming.

The hazard warning lamp and warning horn are activated for 30 seconds at intervals of 0.5 sec.

ON/0.5 sec. OFF.

-

-

-

-

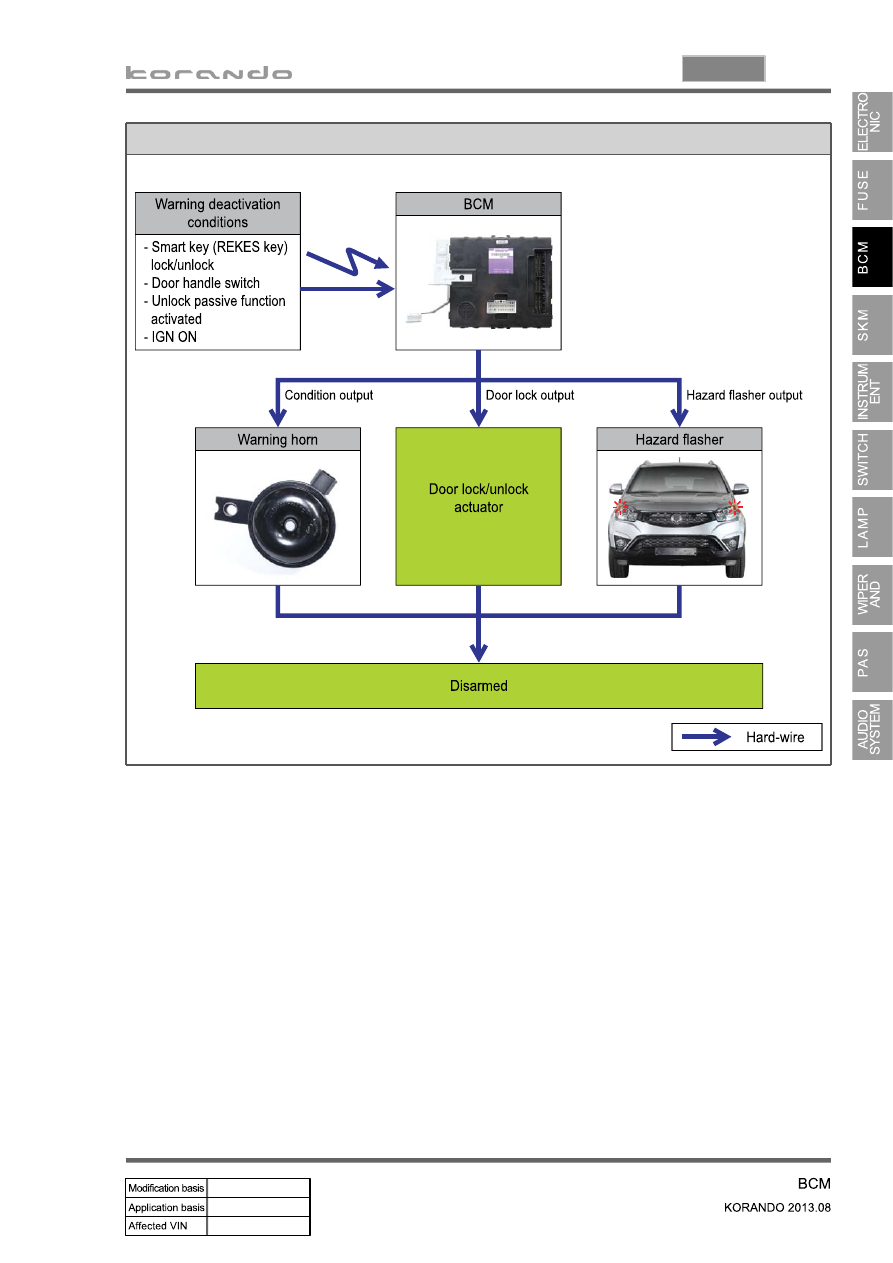

Theft deterrent alarm deactivation conditions (for vehicles with SKM)

▶

The theft deterrent alarm is deactivated in the following conditions. The theft deterrent mode is kept

ON.

a. Door LOCK/UNLOCK signal by smart key is received.

b. Tailgate open signal by smart key is received.

c. UNLOCK signal by door switch is received.

d. Tailgate open switch signal is received.

e. IGN ON signal is received.

f. Panic function is activated.

When the ignition is turned ON while the theft deterrent alarm is activated, the alarm is deactivated

immediately.

When the theft deterrent alarm is activated in theft deterrent mode, turning the ignition ON

immediately deactivates the mode. The alarm is deactivated 30 seconds (time remaining) after that.

If no deactivation command is received, the system enter the theft deterrent mode after the 30

seconds.

-



-

-

-

Theft deterrent mode re-activation after tailgate open (for vehicles with SKM)

▶

All doors except the tailgate are in theft deterrent mode, the system searches for the smart key inside the

vehicle 1 second after the tailgate is closed. If no smart key is found, the system enters the theft

deterrent mode again.

The hazard warning lamp and warning horn are activated when the system enters the mode.

03-102

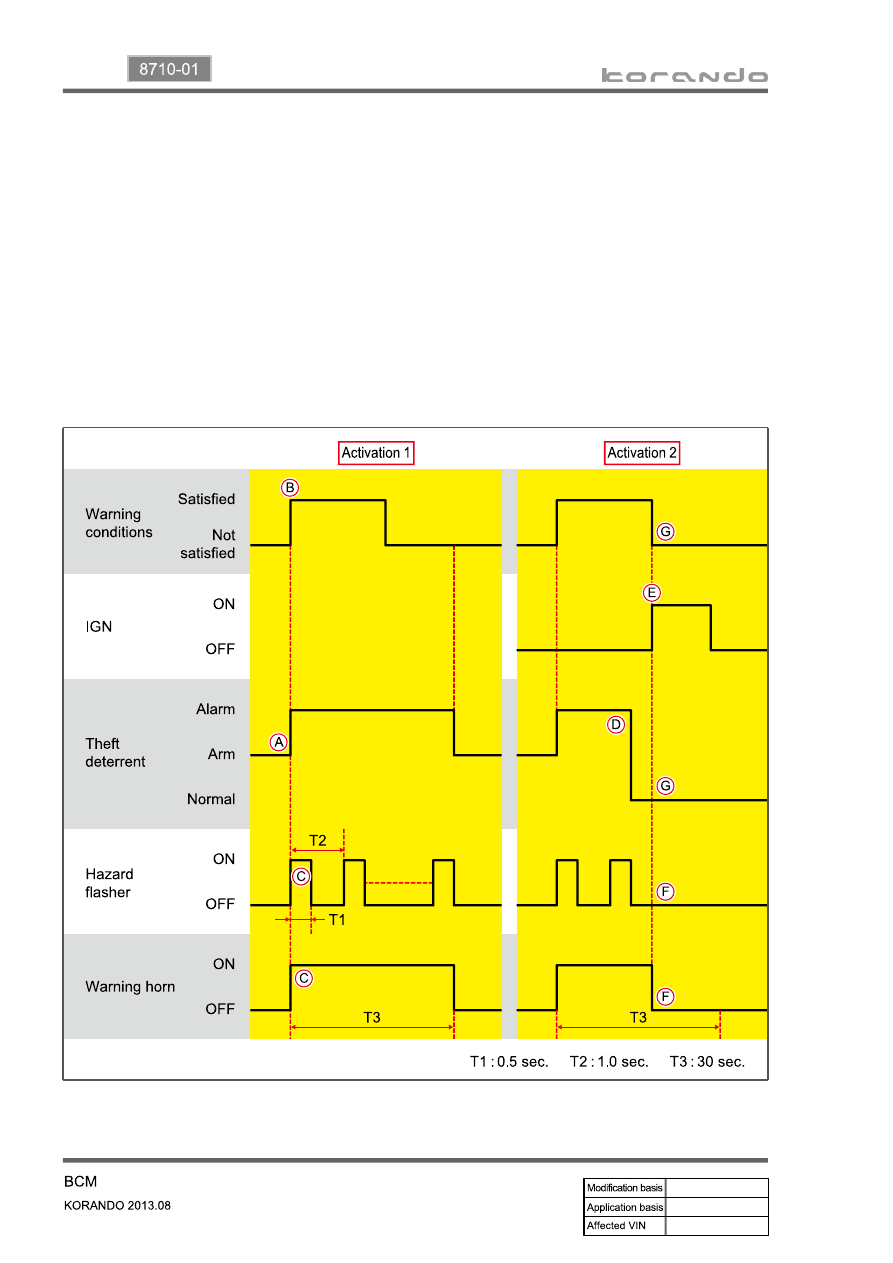

Theft deterrent alarm deactivation (for vehicles with/without SKM)

▶

The system is in theft deterrent mode.

The conditions for theft deterrent alarm are met.

The hazard warning lamp flashes and the warning horn is activated.

A.

B.

C.

Operation 1.

The theft deterrent alarm is activated.

The conditions for deactivation of theft deterrent alarm are met.

The hazard warning lamp and warning horn are deactivated.

The theft deterrent alarm is deactivated because the conditions are not met, and the system enters

the theft deterrent mode.

D.

E.

F.

G.

Operation 2.

03-103

8710-01

Operating process

- Theft deterrent alarm activated
