Hazard warning lamp switch control

▶

The hazard warning lamp switch is turned ON with IGN ON or OFF.

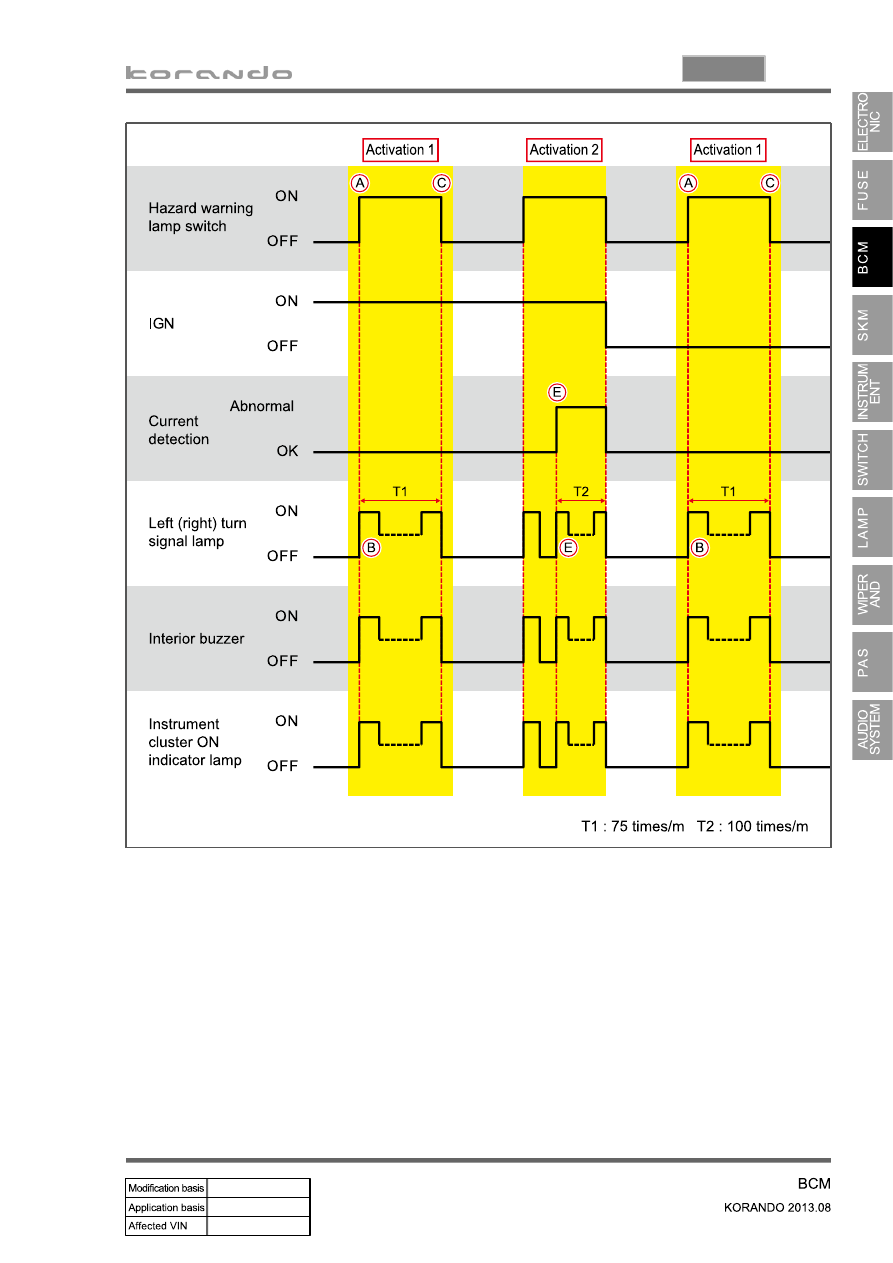

The hazard warning lamp flashes 75 times per minute (T1), and the internal buzzer sounds at

intervals of 0.4 sec. ON/0.4 sec. OFF.

The hazard warning lamp and internal buzzer are deactivated when the hazard warning lamp switch

is turned OFF.

A.

B.

C.

Operation 1.

Operation 1. Abnormal current (less than 3 A or more than 7 A) detection signal is input while the

lamp is ON.

The hazard warning lamp flashes 100 times per minute (T2), and the internal buzzer sounds at

intervals of 0.3 sec. ON/0.3 sec. OFF.

D.

E.

Operation 2.

Hazard warning lamp functions at B+ or more.

The allowed time difference between the LH and RH turn signal lamp operations is within 0.1

seconds.

The hazard warning lamp overrides the turn signal lamp.

Priority of internal buzzer (chime) operation while the hazard warning lamp is ON

(Seat belt reminder > Ignition key reminder > Sunroof open > Tail lamp ON > Hazard warning lamp

> Turn signal lamp)

-

 -

-

-

03-109

8710-01

03-110

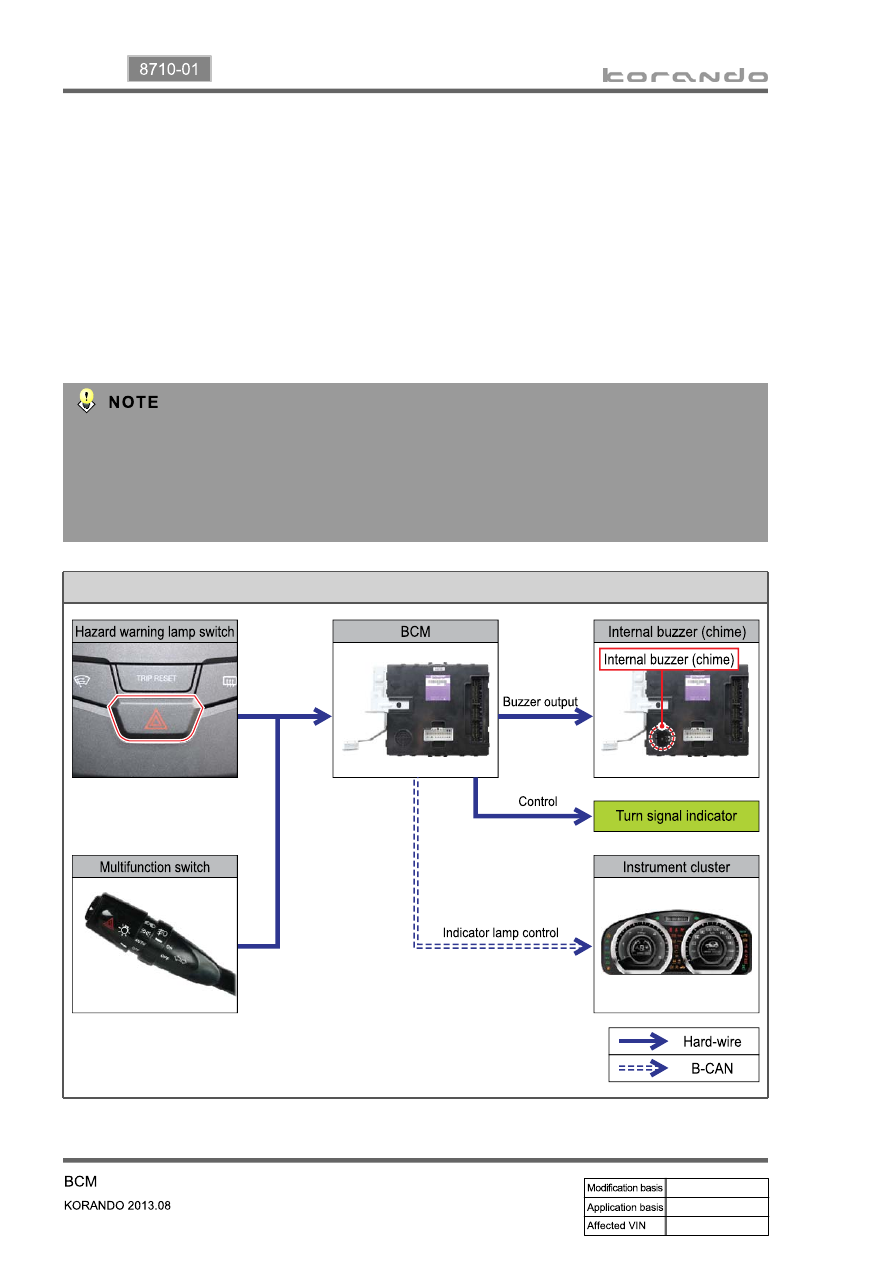

AUTO hazard warning flasher control

▶

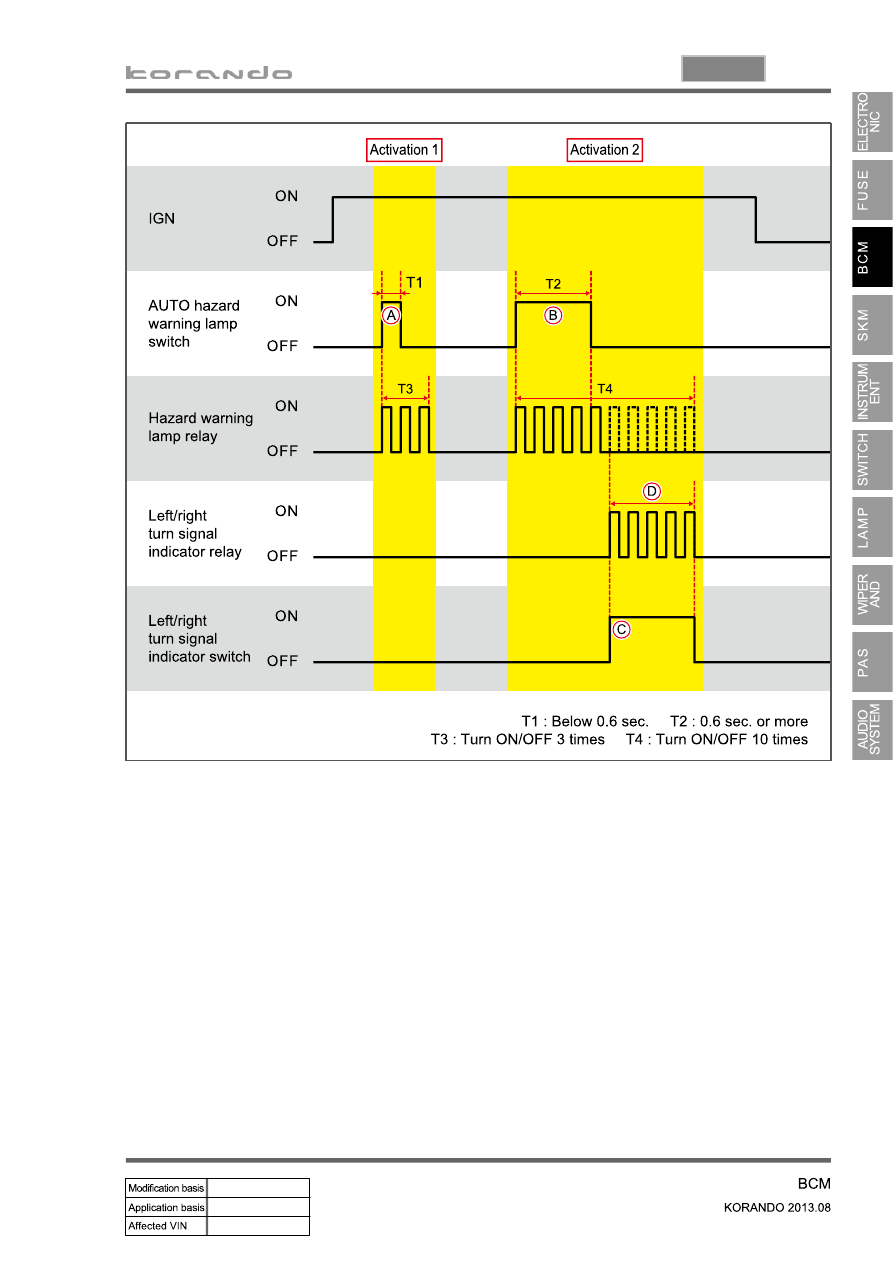

The hazard warning lamp comes on 3 times (T3) when the AUTO hazard warning lamp switch is

pressed for less than 0.6 seconds (T1).

A.

Operation 1.

The hazard warning lamp comes on 10 times (T4) when the AUTO hazard warning lamp switch is

pressed for 0.6 seconds or more (T2).

The turn signal lamp switch is pressed during the AUTO hazard warning lamp operation.

The corresponding turn signal lamp is activated after this AUTO hazard warning lamp operation.

B.

C.

D.

Operation 2.

The AUTO hazard warning lamp can be controlled only with IGN ON.

The input from the AUTO hazard warning lamp switch is ignored during the turn signal lamp

operation by the turn signal lamp switch.

Priority of operation: (Hazard warning lamp switch > LH/RH turn signal lamp > AUTO hazard

warning lamp switch)

-

-

-
