03-116

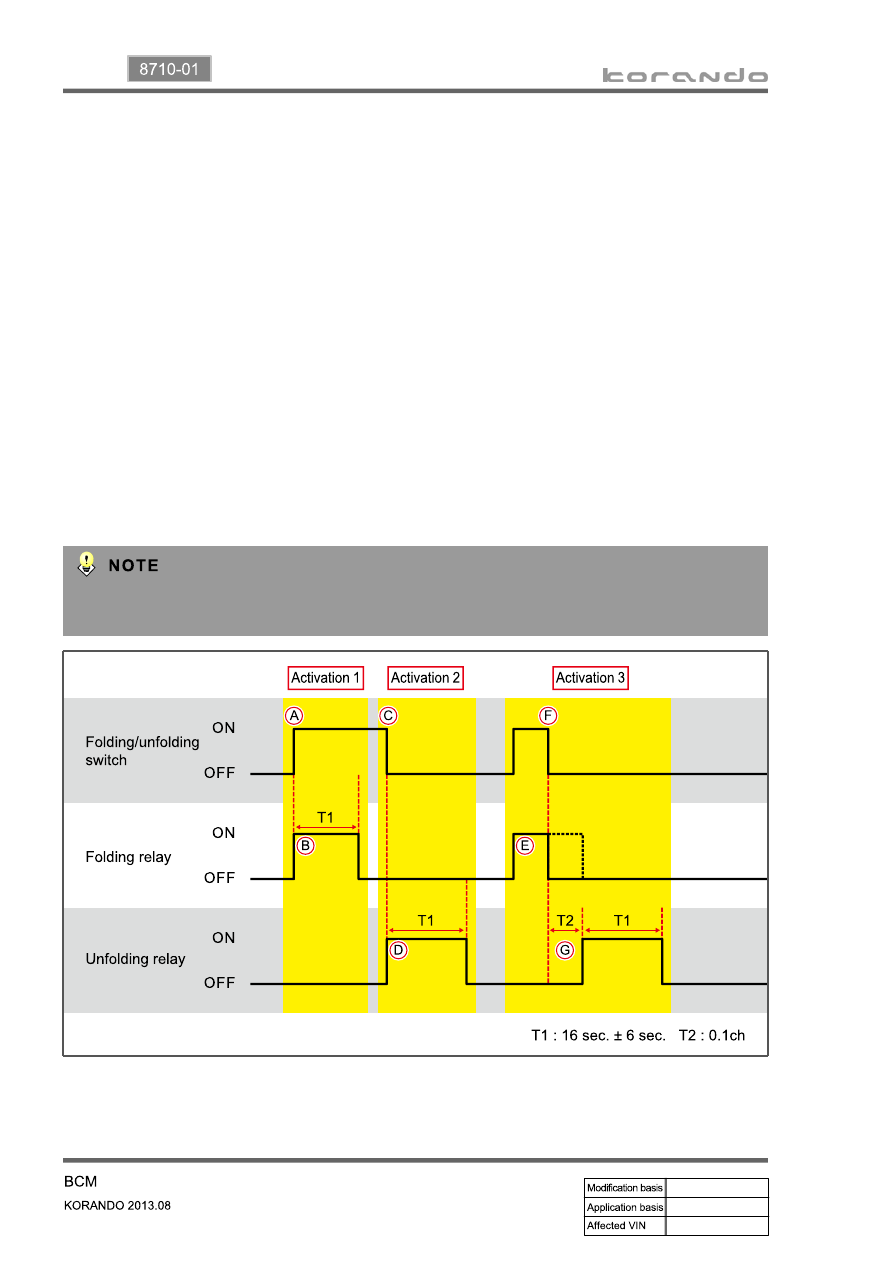

Folding/unfolding control

▶

The folding switch is turned ON.

The folding relay is activated for 16 seconds (T1).

A.

B.

Operation 1.

The folding switch is turned OFF.

The unfolding relay is activated for 16 seconds (T1).

C.

D.

Operation 2.

The folding relay is activated by the folding switch.

The folding switch is turned OFF.

The unfolding relay is activated after 0.1 seconds (T2).

E.

F.

G.

Operation 3.

21. OUTSIDE REAR VIEW MIRROR FOLDING/UNFOLDING

 The AUTO folding/unfolding function is not available when the folding switch is ON.

 The AUTO folding/unfolding function is available when the folding switch is OFF.

-

-

The control logic is the same for folding to unfolding operation and unfolding to folding operation.

-

03-117

8710-01

Approach lamp control (for vehicles without SKM)

▶

The lamp is illuminated for 30 seconds when the REKES key UNLOCK signal is received in theft

deterrent mode.

The lamp is illuminated when the driver door is opened after the ignition is turned OFF.

A.

B.

Operation 1. (Puddle lamp ON conditions)

When the door LOCK signal is received with the lamp ON (the system enters the theft deterrent

mode)

When the ignition is turned ON with the lamp ON.

Thirty seconds after the lamp ON

C.

D.

E.

Operation 2. (Puddle lamp OFF conditions)

22. APPROACH (PUDDLE) LAMP

Approach lamp control (for vehicles with SKM)

▶

The lamp is illuminated for 30 seconds when UNLOCK signal by the smart key or door handle switch

is received in theft deterrent mode.

The lamp is illuminated when the driver door is opened after the ignition is turned OFF.

A.

B.

Operation 1. (Puddle lamp ON conditions)

When the door LOCK signal is received with the lamp ON (the system enters the theft deterrent

mode)

When the ignition is turned ON with the lamp ON.

Thirty seconds after the lamp ON

C.

D.

E.

Operation 2. (Puddle lamp OFF conditions)

03-118

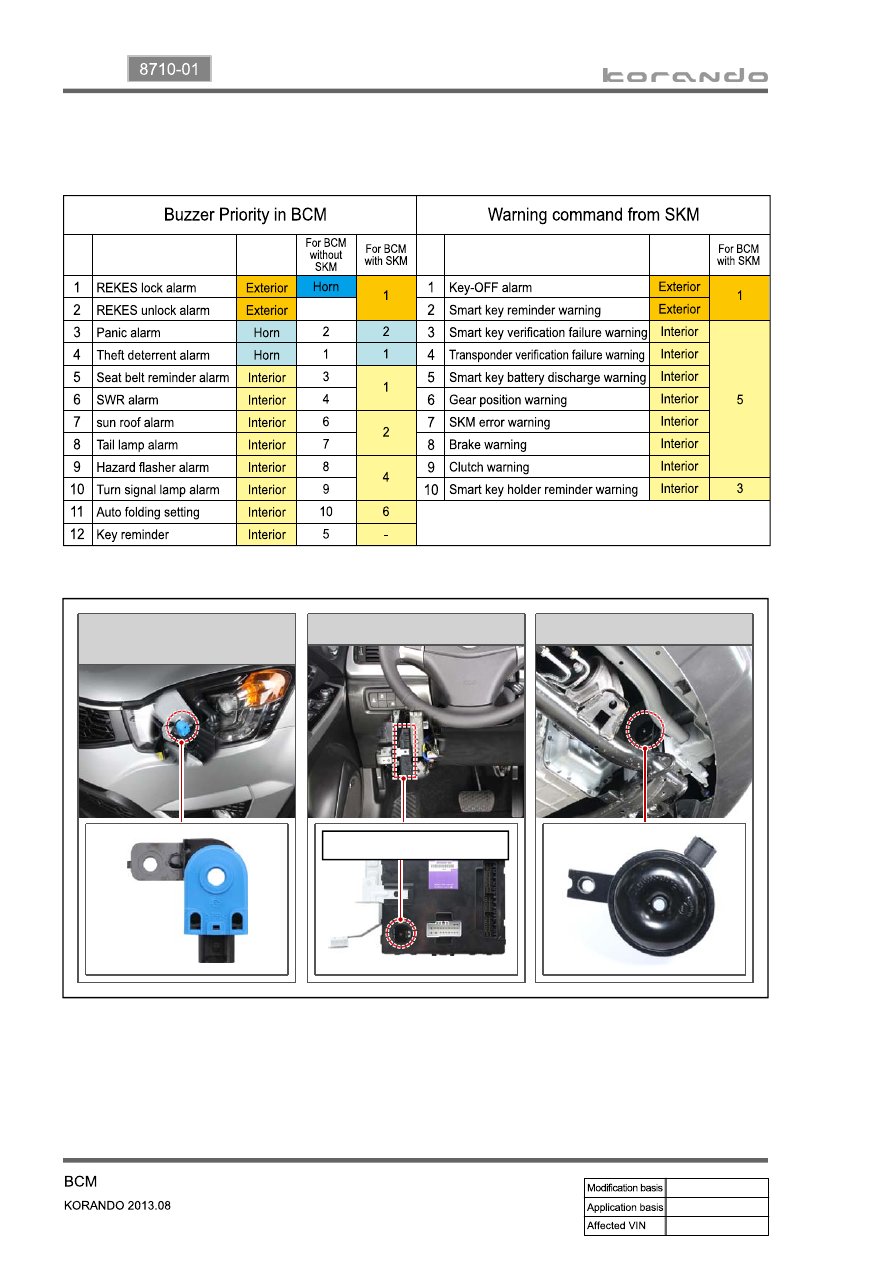

Priority of BCM buzzer control

▶

23. BUZZER CONTROL

External buzzer

(SKM buzzer)

Internal buzzer (chime)

Warning horn

Internal buzzer (chime)

03-119

8710-01

24. IMMOBILIZER SYSTEM

1) System Description

The BCM without SKM communicates with the transponder in the REKES key and immobilizer unit in

the key box through wireless communication. The immobilizer unit and BCM check the encrypted codes

received through hard wire communication to start the engine.

Stays on: Communication failure between immobilizer and EMS (ECU)

Flashes: Immobilizer coding failure (once per second)

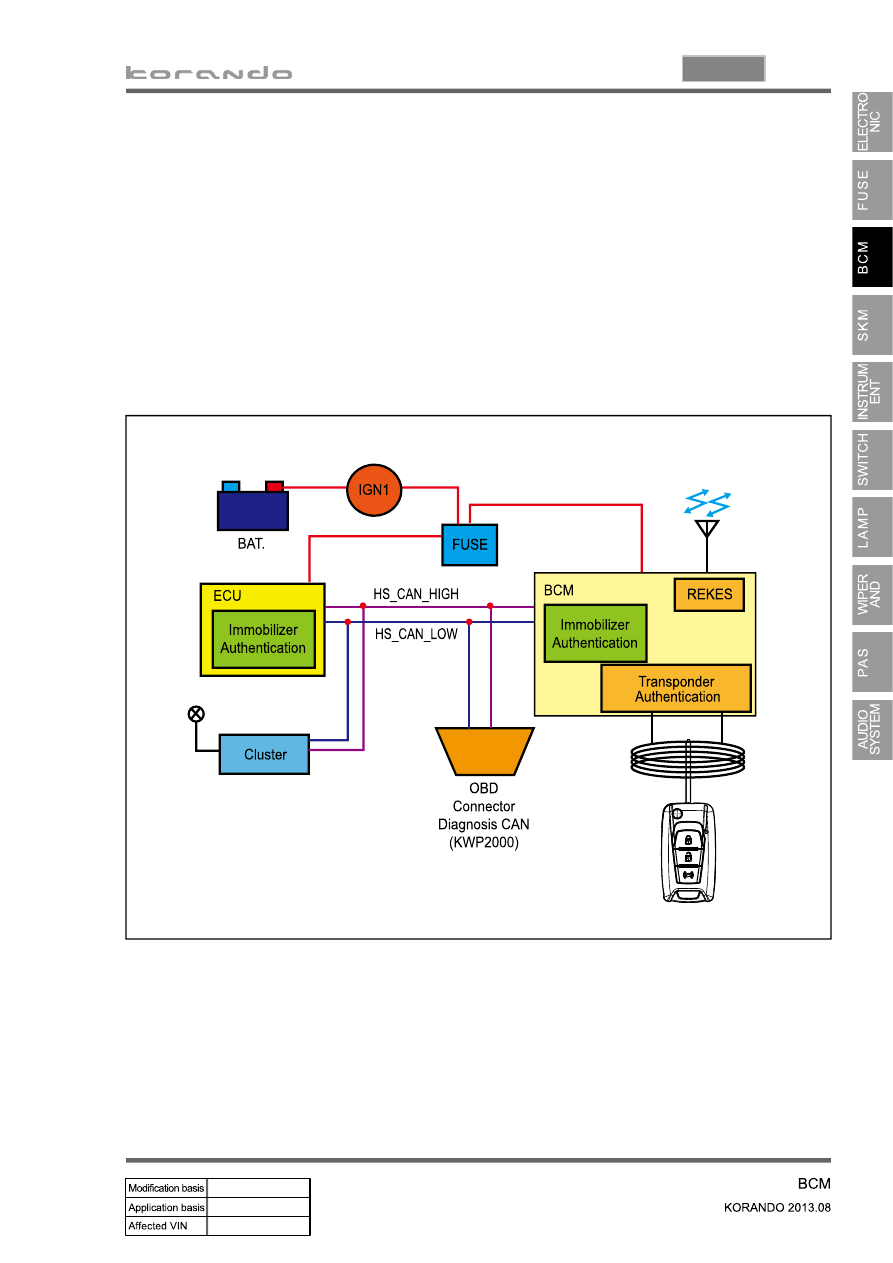

2) System Diagram
