3. TIGHTENING TORQUE

Component

Size

Quantity

Tightening torque

(Nm)

Remark

(Total torque)

Main bearing cap

M12×82

10

55 ± 5Nm,

180˚

Not re-usable

Connecting rod cap

M9×52

8

40 ± 5Nm,

90˚ ± 10˚

50~80Nm

Crankshaft rear cover

M6×20

6

10 ± 1Nm

-

Oil pump

M8×35

3

25 ± 2.5Nm

-

Flywheel

M10×22

8

45 ± 5Nm,

90˚ ± 10˚

Not re-usable

Isolation damper center

bolt

M18×50

1

200 ± 20Nm,

180˚ ± 20˚

660~720Nm

Not re-usable

Oil pan

M6×20

18

10 ± 1Nm

-

M6×35

2

10 ± 1Nm

-

M6×85

2

10 ± 1Nm

-

M6×120

2

10 ± 1Nm

-

M8×40

2

25 ± 2.5Nm

-

HP pump main nut

M14×1.5-8-1

1

650 ± 5Nm

-

HP pump mounting

bolt

M8×55

3

25 ± 2.5Nm

-

Cylinder head

M13×150

12

85Nm

270° ± 10°

-

Camshaft cap

M6×30

16

10 ± 1Nm

-

M8×60

4

25 ± 2.5Nm

-

Exhaust stud bolt

10

15 ± 1.5Nm

-

Exhaust sprocket bolt

M8×13.5

1

25 ± 2.5Nm

-

Coolant temperature

sensor

1

20 ± 2.0Nm

-

Belt auto tensioner

M8×30(LOW)

1

25 ± 2.5Nm

-

M10×75(Upper)

1

55 ± 5.5Nm

-

Coolant pump

M6×50

7

10 ± 1.0Nm

-

02-7

0000-00

품명

규격

볼트

수량

규정토오크(Nm)

비고

(총 토오크)

Knock sensor

M8×28

2

20±5Nm

-

Cam position sensor

M8×14

1

10~14Nm

-

T-MAP pressure sensor

M6×20

1

10±1Nm

-

Exhaust manifold

M8

10

40±4Nm

-

Turbocharger

M8

3

25±2.5Nm

-

T/C support bracket bolt

1

25±2.5Nm

-

T/C support bracket bolt

M8

1

25±2.5Nm

-

T/C oil supply pipe

M6(block side)

1

10±1.0Nm

-

M6(turbo side)

1

17±2.0Nm

-

T/C oil return pipe

M6×16

(turbo side)

2

10±1Nm

-

M6×16

(block side)

2

10±1Nm

-

EGR valve

M8×22

3

25±2.5Nm

-

EGR pipe bolt

(Intake side)

M6×16

2

10±1Nm

-

EGR pipe bolt

(EGR cooler side)

M8×25

2

25±2.5Nm

-

Oil pressure sensor

M24

1

Max. 50Nm

-

Component

Size

Quantity

Tightening torque

(Nm)

Remark

(Total torque)

Hot water inlet pipe

M6×12

2

10 ± 1Nm

-

Alternator

M10×90

1

25 ± 2.5Nm

Lower

M10×116

1

46 ± 4.6Nm

Upper

A/C compressor

M8×85

4

25 ± 2.5Nm

-

A/C bracket

M6×25

4

10 ± 1Nm

-

Intake manifold

M8×35

2

25 ± 2.5Nm

-

M8×110

6

25 ± 2.5Nm

-

Oil filter module

M8×40

6

25 ± 2.5Nm

-

M8×20

1

25 ± 2.5Nm

-

M8×140

2

25 ± 2.5Nm

-

02-8

품명

규격

볼트

수량

규정토오크(Nm)

비고

(총 토오크)

Oil gauge tube

M6×16

1

10 ± 1Nm

-

Oil filter cap

1

25 ± 2.5Nm

-

Fuel rail

M8×35

2

25 ± 2.5Nm

-

Injector clamp bolt

M6×60

2

9 ± 1.0Nm

130˚ + 10˚

-

High pressure pipe

(between HP pump and

fuel rail)

M17

1

30 ± 3Nm

-

High pressure pipe

(between fuel rail and

injector)

M17

4

30 ± 3Nm

-

Crank position sensor

M5×14

1

8 ± 0.4Nm

-

Main wiring

M6×16

5

10 ± 1Nm

-

Intake duct

M8x25

3

25 ± 2.5Nm

-

Power steering pump

M8×100

3

25 ± 2.5Nm

-

Mass balance shaft

(MBU)

M8×45

6

30 ± 3Nm

-

Cylinder head front cover

M6×10

5

10 ± 1Nm

-

품명

규격

볼트

수량

규정토오크(Nm)

비고

(총 토오크)

Timing gear case cover

M6×40

7

10 ± 1Nm

-

M6×45

1

10 ± 1Nm

-

M6×50

3

10 ± 1Nm

-

Cylinder head cover

M6×35

21

10 ± 1Nm

-

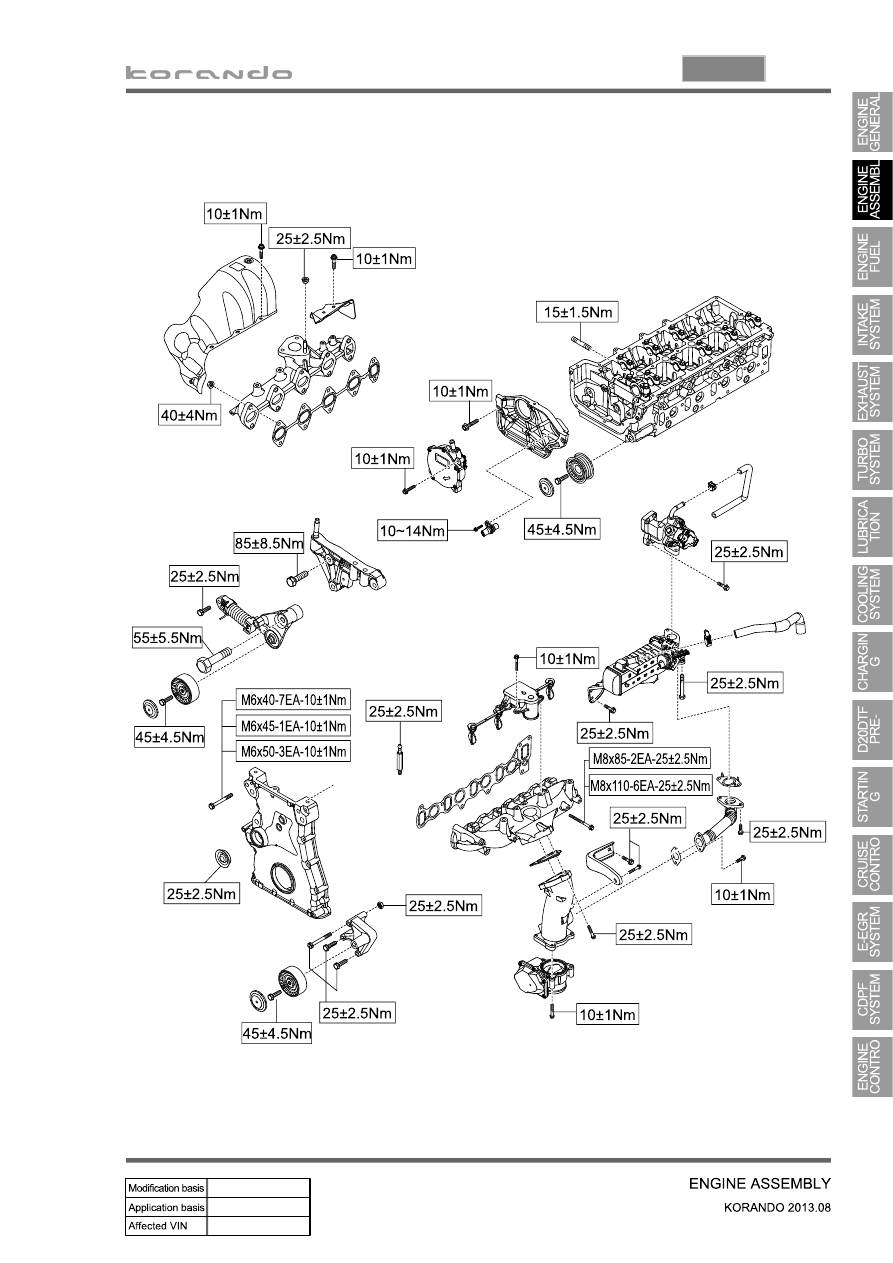

Component

Size

Quantity

Tightening torque

(Nm)

Remark

(Total torque)

Idle pulley/Tensioner

pulley

1

45 ± 4.5Nm

-

Glow plug

M5

4

20 ± 2Nm

-

Vacuum pump

M6×25

3

10 ± 1Nm

-

02-9
