SsangYong Korando III (2010 year). Manual - part 319

01-11

0000-00

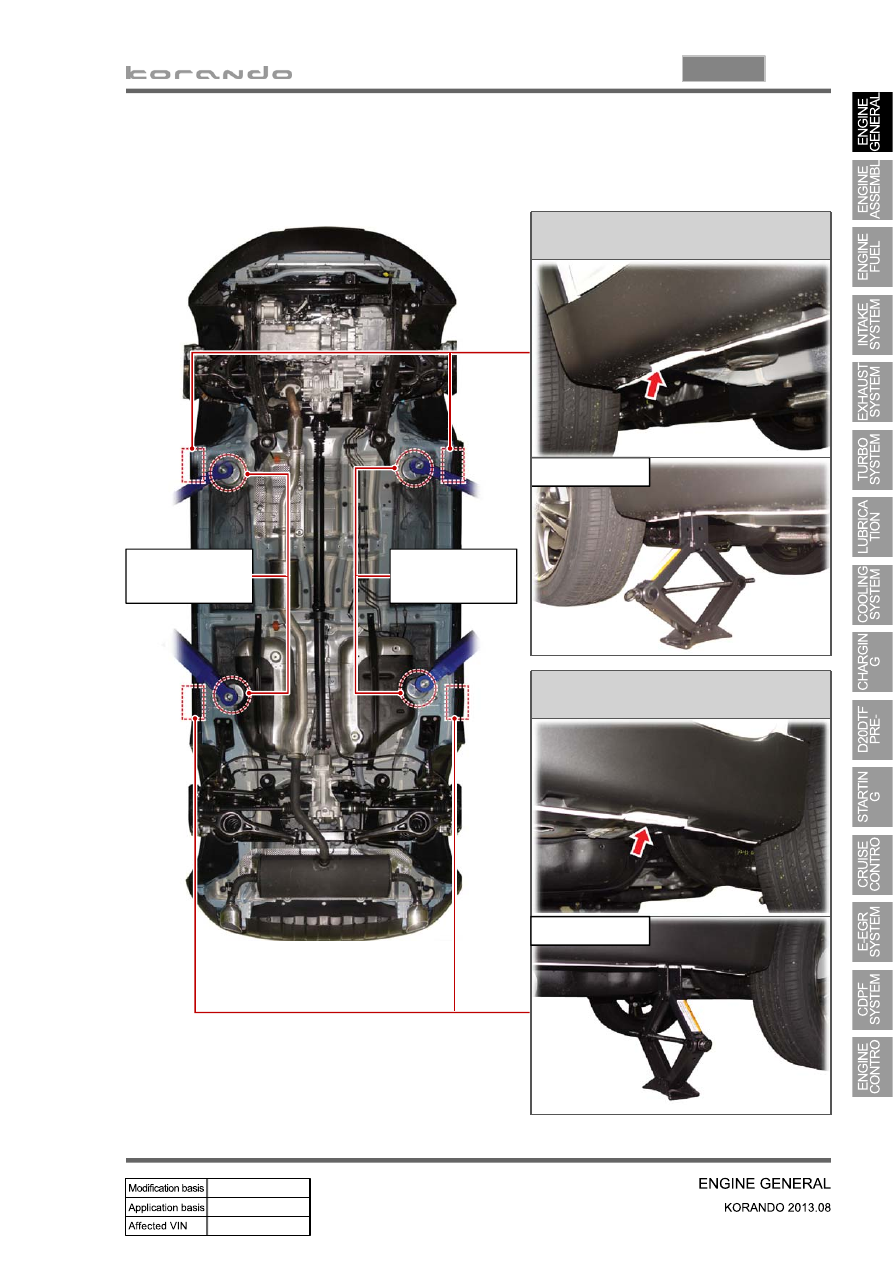

2. JACK-UP POINTS

Stand jack-up points and installation status (front side)

▶

Jack-up points for

2-post lift

Jack-up points for

2-post lift

Supporting

Jack-up points and setup

(rear side)

Supporting

Jack-up points and setup

(front side)

01-12

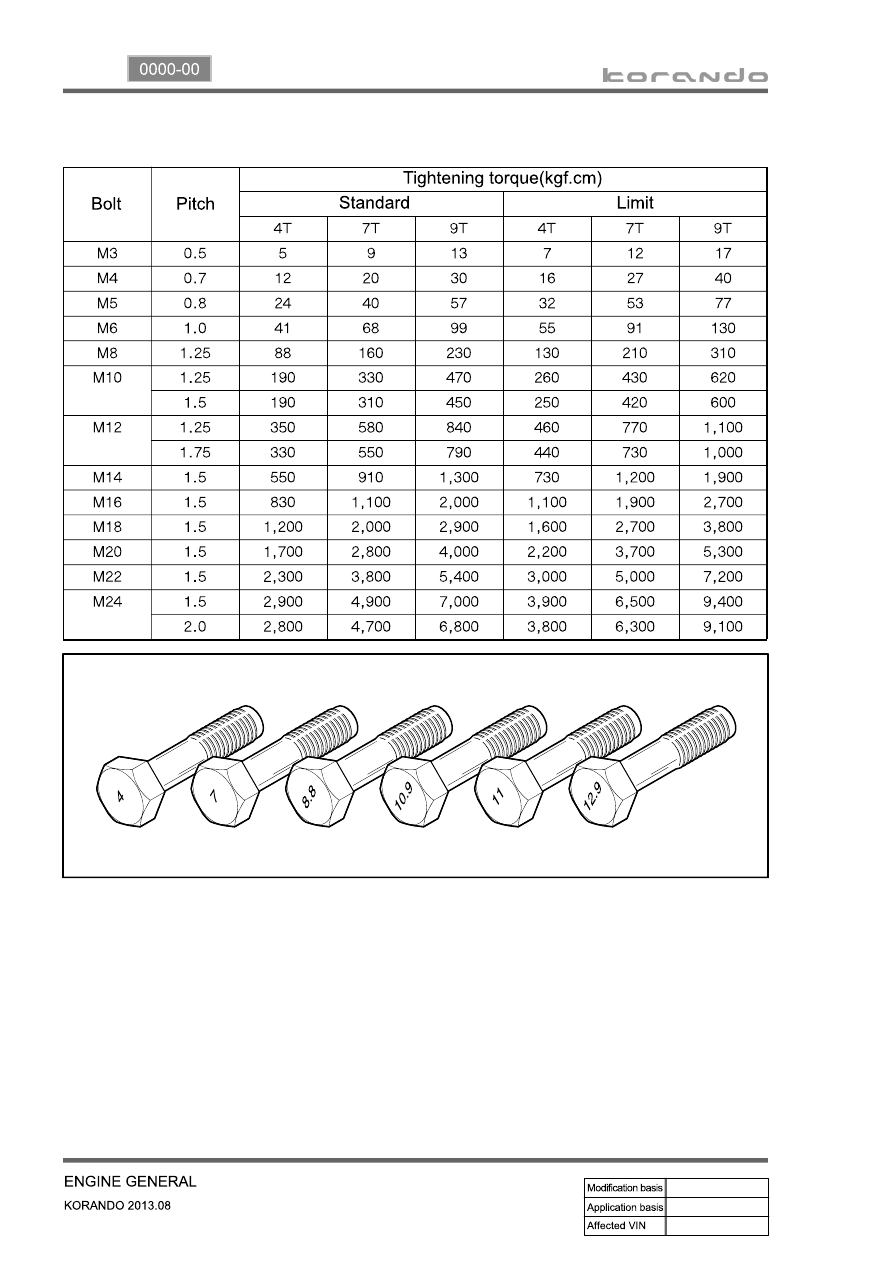

3. STANDARD BOLTS SPECIFICATIONS

Metric bolt strength is embossed on the head of each bolt. The strength of bolt can be classified as

4T, 7T, 8.8T, 10.9T, 11T and 12.9T in general.

Observe standard tightening torque during bolt tightening works and can adjust torque to be proper

within 15 % if necessary. Try not to over max. allowable tightening torque if not required to do so.

Determine extra proper tightening torque if tightens with washer or packing.

If tightens bolts on the below materials, be sure to determine the proper torque.

1)

2)

3)

4)

Aluminum alloy: Tighten to 80 % of above torque table.

Plastics: Tighten to 20 % of above torque table.

-

-

01-13

0000-00

4. CODING

1) Engine Variant Coding

Description

Selection

Coding

Additional heater

NO

PTC auxiliary heater is the standard equipment in
this vehicle.
Select "YES".

YES

Gear box

5-speed M/T

M/T : 6-speed M/T
A/T : 6-speed A/T (DSI 6AT)

6-speed M/T

5-speed A/T (DC 5 AT)

7-speed A/T (DC 7 AT)

6-speed A/T (DC 6 AT)

Immobilizer

NO

Immobilizer is the standard equipment in this
behicle.
Select "YES".

YES

FAN

2 relays

Select "2 relays".

FAN

Not defind

Engine level control

NO

Engine level control system is not available in this
vehicle.
Select "NO".

YES

SKM key

NO

with Smart key : Select "YES".

YES

Glow plug

Relay (K-Line)

AQGS is the standard equipment in this vehicle.
Select "AQGS".

AQGS (CAN)

A/C

NO

Select the appropriate system.

YES

Not defind

Vehicle speed

sensor

CAN

with ABS or ESP : Select "CAN".

WIRE

Cruise control

NO

with cruise control system : Select "YES".

YES

G-sensor

NO

with 2WD ABS and non-ABS : Select "NO"
with 4WD ABS and ESP : Select "YES"

YES

01-14

2) Chassis Variant Coding

Description

Selection

Coding

Domestic/Export

EU export

Select the appropriate system

General export

EPB application

NO

Select the appropriate system

YES

Shift lever type

Not defined

A/T : DURA lever
M/T : M/T

DC lever

DURA lever

M/T

Electric power
steering(EPS)

YES

Select the appropriate system

NO

Transfer case

2WD

Select the appropriate system

AWD(E-coupling)

Not defined

Sedan/Limousine

Sedan(RV)

Select : Sadan(RV)

Limousine

Vehicle code

(Engine)

D32DT

Select : D20DTF

D27DT

D27DTP

D20DTF

EAS

NO

Select : NO

ECS

2 corner EAS

4 corner EAS

Telematics

NO

Select : NO

YES

Brake

NO

Select the appropriate system

ABS

TCS

ESP
