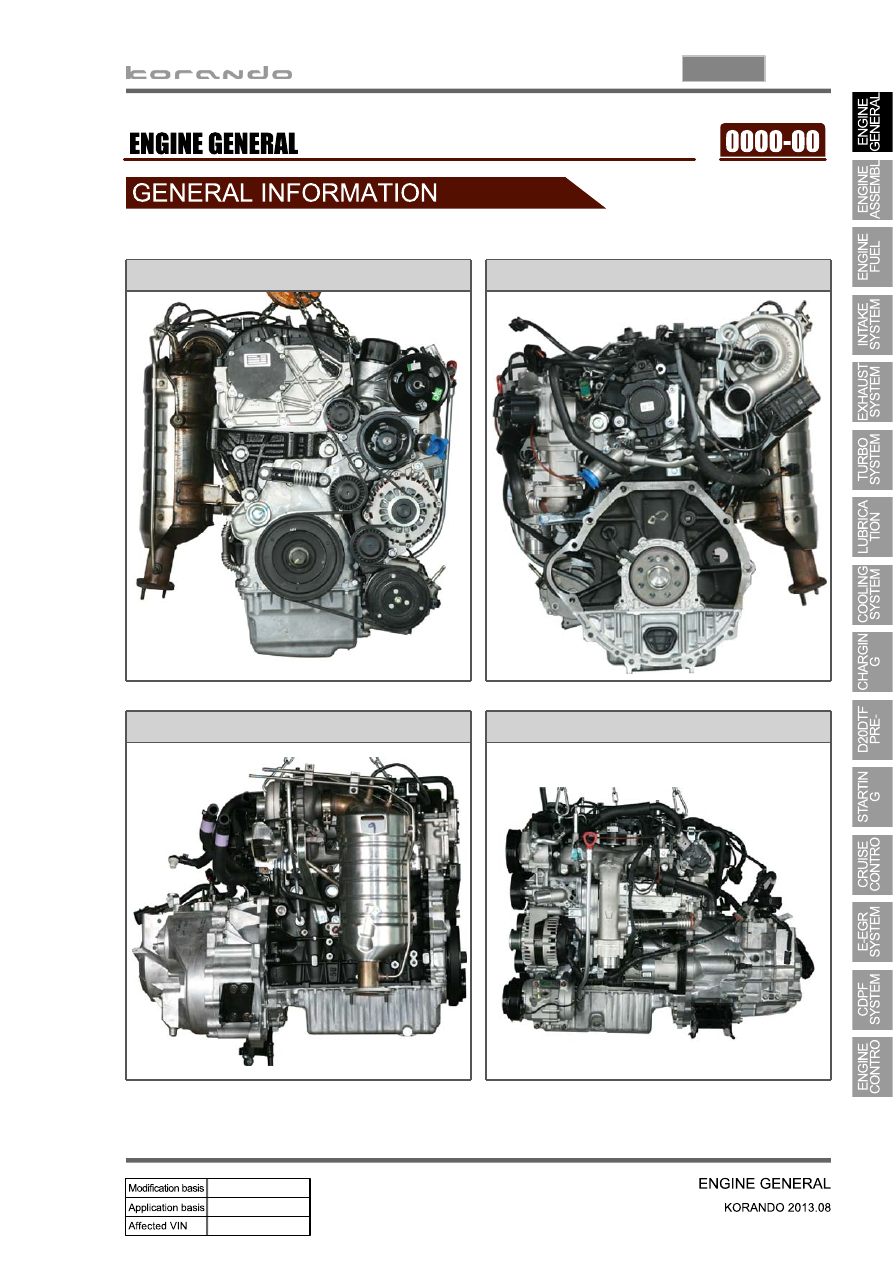

01-3

0000-00

Front view

Left side view

1. LAYOUT

Right side view

Rear view

01-4

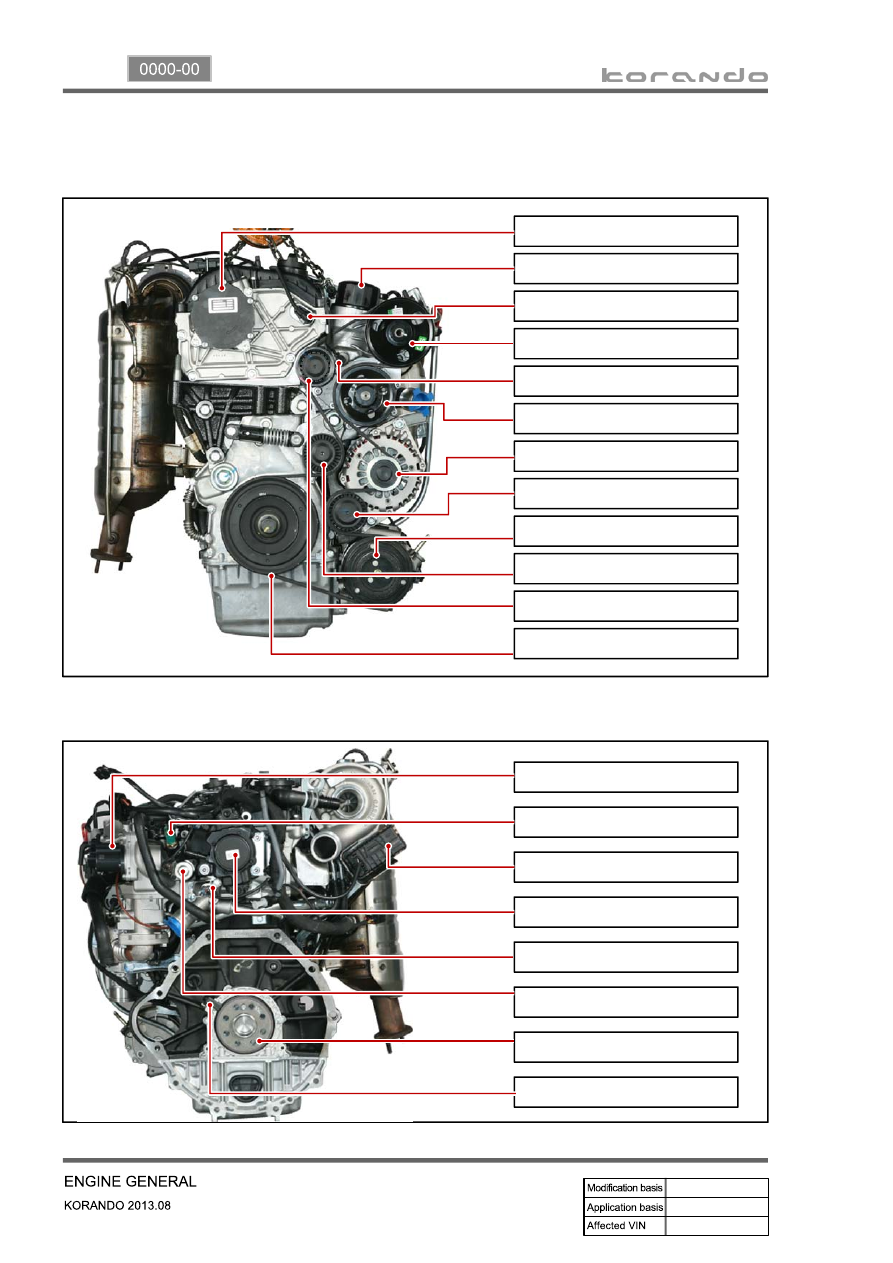

2. MAJOR COMPONENTS

Front View

▶

Rear View

▶

E-EGR valve

Fuel temperature sensor

Fuel HP pump assembly

E-VGT actuator

Coolant temperature sensor

IMV valve

Magnetic triggering

Crankshaft position sensor

Vacuum pump

Oil filter assembly

Camshaft position sensor

Power steering pump pulley

Water pump pulley

Alternator pulley

Idler pulley No. 1

A/C compressor pulley

Auto tensioner

Idler pulley No. 2

Isolation damper

Oil pressure switch

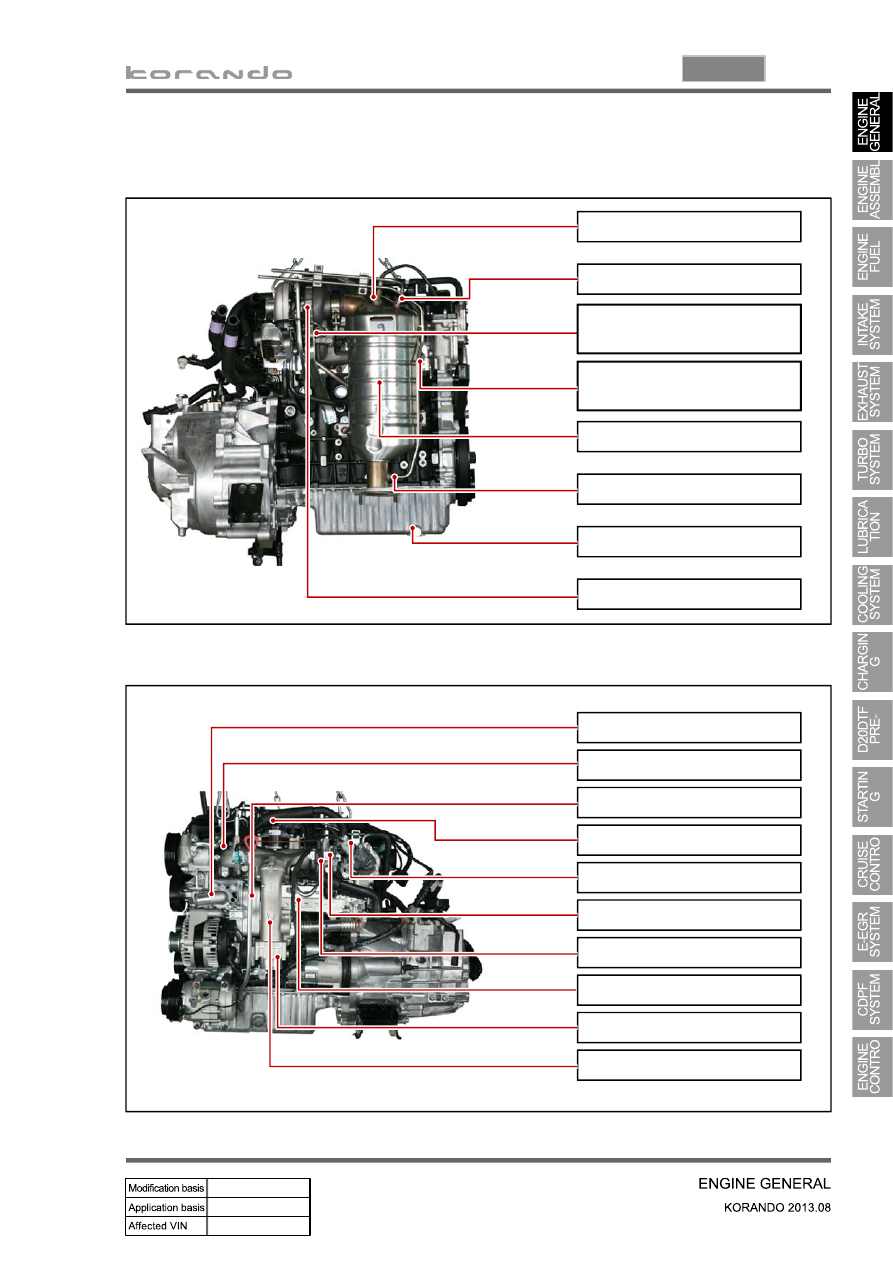

01-5

0000-00

Right side View

▶

Wide band oxygen sensor

Pre-CDPF pressure port

Rear exhaust gas temperature

sensor

CDPF assembly

E-VGT turbocharger

Post-CDPF pressure port

Oil drain plug

Left side View

▶

Thermostat assembly

Knock sensor 1 connector

Variable swirl valve assembly

Oil cooler assembly

E-EGR valve

Knock sensor 2 connector

E-EGR solenoid valve

EGR cooler

Electronic throttle body

T-MAP sensor

Front exhaust gas temperature

sensor

01-6

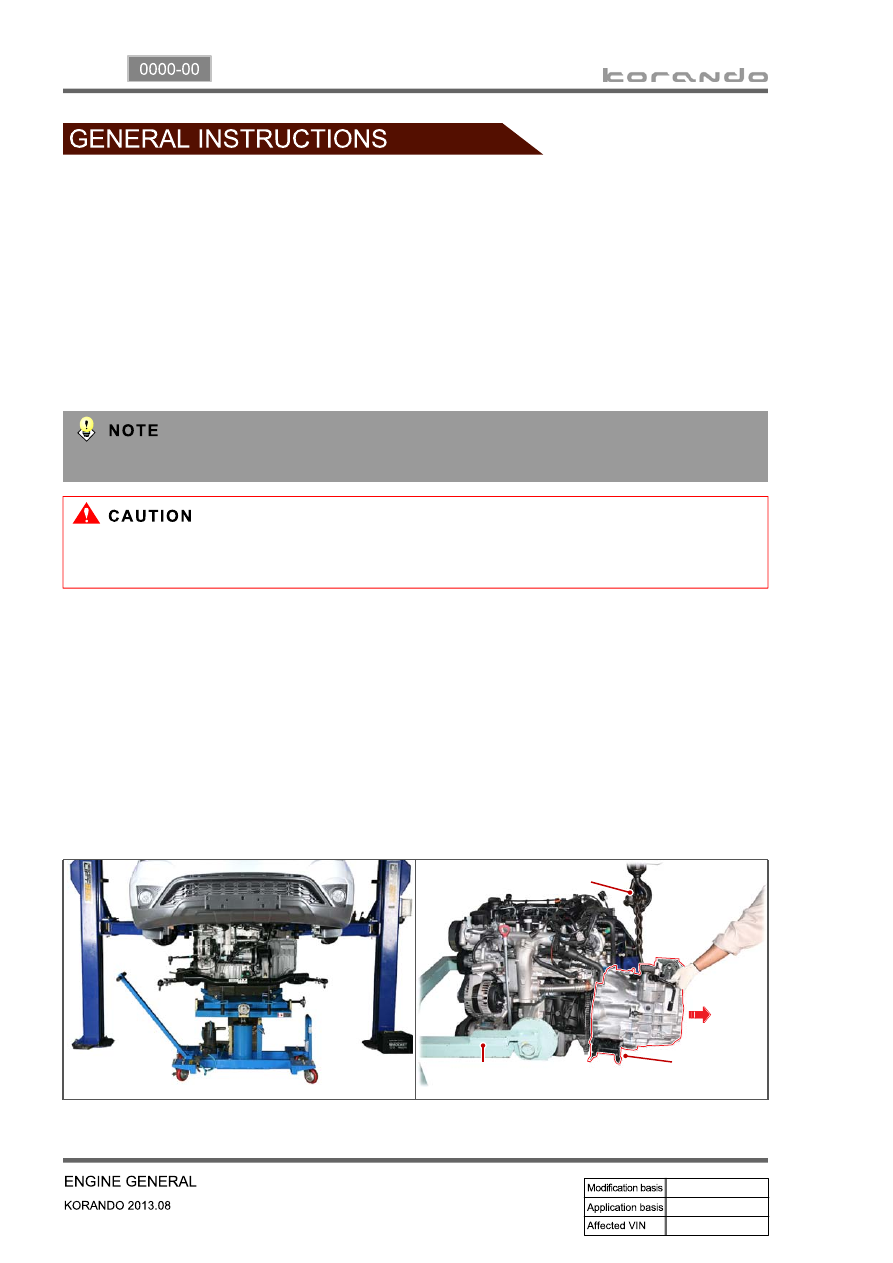

1. GUIDELINES FOR SERVICE WORKS

1) For Safety

To perform the service works easily ans safely, the service technicians must keep the proper working

procedures and rules.

This manual provides the useful instructions to the service technicians so that they can perform the

servive works with standard working process, skills, tips in time.

Please read this manual and follow the instructions carefully.

Signal words such as “CAUTION” and “NOTE” have special meanings.

indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate

injury or property damage.

However, above references and cautions cannot be inclusive measures, so should have habits of

paying attentions and cautions based on common senses.

indicates information to assist maintenance and instructions.

2) Equipment

Korando is FF (Front Engine Front Drive) type vehicle, and engine and powertrain system are

integrated into a module. Therefore, 2-post lift and general equipment are necessary when working

on the engine and transmission.

Major equipment: Engine and transmission jack, Engine stand, Engine crane, Transmission jack,

Engine hanger

-

-

Engine crane

Engine stand

Transmission

jack
