SsangYong Korando III (2010 year). Manual - part 320

01-15

0000-00

Description

Selection

Coding

TPMS application

NO

Select the appropriate system

YES

Transmission type

M/T

Select the appropriate system

DC AT

DSI AT

Vehicle code

(platform)

STAVIC

Select : KORANDO

REXTON

KORANDO

KYRON

ACTYON SPORT

Not defined

ECU coding status

ECU not coded

Select : ECU coded

ECU coded

Signal not valid

Not defined

02-3

0000-00

1. SPECIFICATION

Unit

Description

Specification

Remark

Cylinder head

Height

131.9 to 132.1mm

Flatness

below 0.1mm

Flatness on
manifold side

Intake manifold

0.1/150mm

Exhaust manifold

0.15mm

Mass balance
shaft (MBU)

Backlash

0.05 to 0.15mm

Connecting rod

End play

0.05 to 0.31mm

Camshaft

Axial end play

Intake

0.1 to 0.35mm

Exhaust

0.1 to 0.35mm

Camshaft position
sensor

Distance between Camshaft position
sensor and sprocket

0.20 to 1.80mm

Valve

Clearance
between valve
and piston

Intake

Approx. 0.7mm

Exhaust

Approx. 0.8mm

Valve recess

Intake

0.6 to 1.0mm

Exhaust

0.6 to 1.0mm

Cylinder block

Piston protrusion

0.475 to 0.745mm

Piston ring

TOP ring end gap

0.20 to 0.35mm

2nd ring end gap

0.35 to 0.50mm

3rd ring end gap

0.2 to 0.40mm

Offset

0.3mm

Head gasket

Piston protrusion

0.475~0.540

1.2t

0.541~0.649

1.3t

0.650~0.745

1.4t

02-4

0000-00

Oil pressure switch

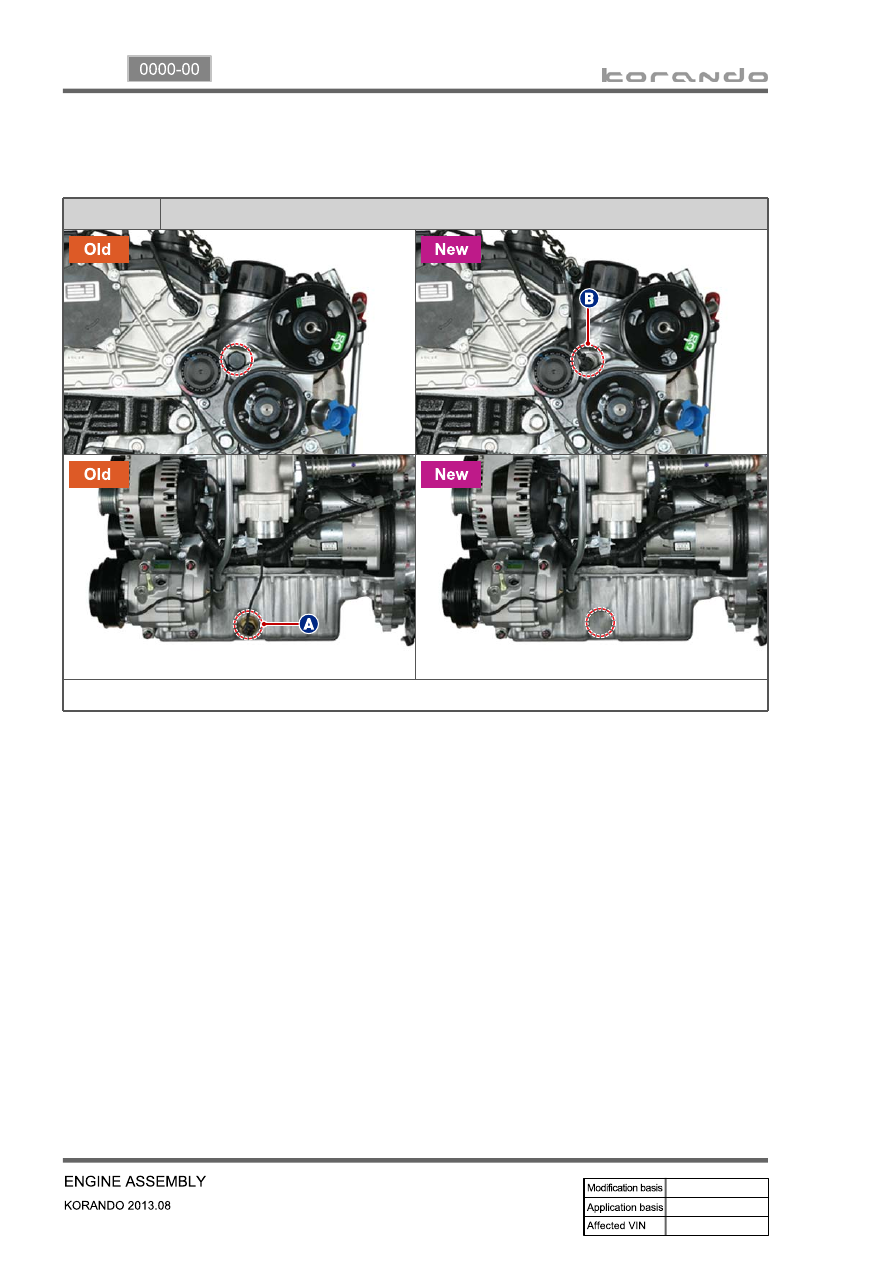

- Newly added oil pressure switch (B) instead of oil level switch (A)

2. MAJOR CHANGES

Oil pressure switch

▶

02-5

0000-00

Engine Mount

▶

1900-00

Mounting Assembly RH

1900-00

Front Mounting Assembly

1900-00

Rear Mounting Assembly

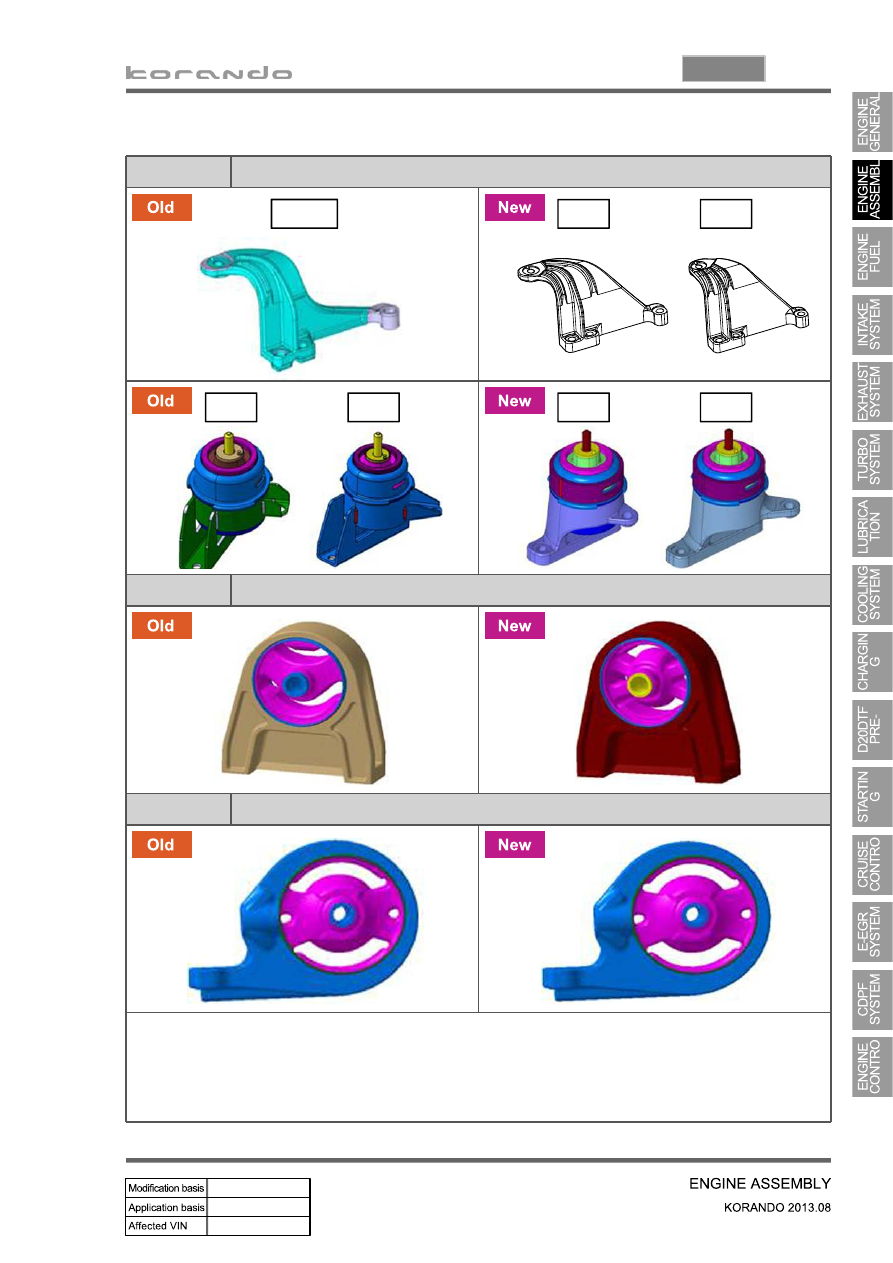

- Changed appearance of right-hand mounting assembly and its rubber for enhanced NVH
  performance
- Changed appearance and material of front/rear mounting assemblies’ rubbers for enhanced
  NVH performance
   * The mounting appearance has been changed, but work procedure is same as the old one.

2/4WD

2WD

4WD

2WD

4WD

2WD

4WD
