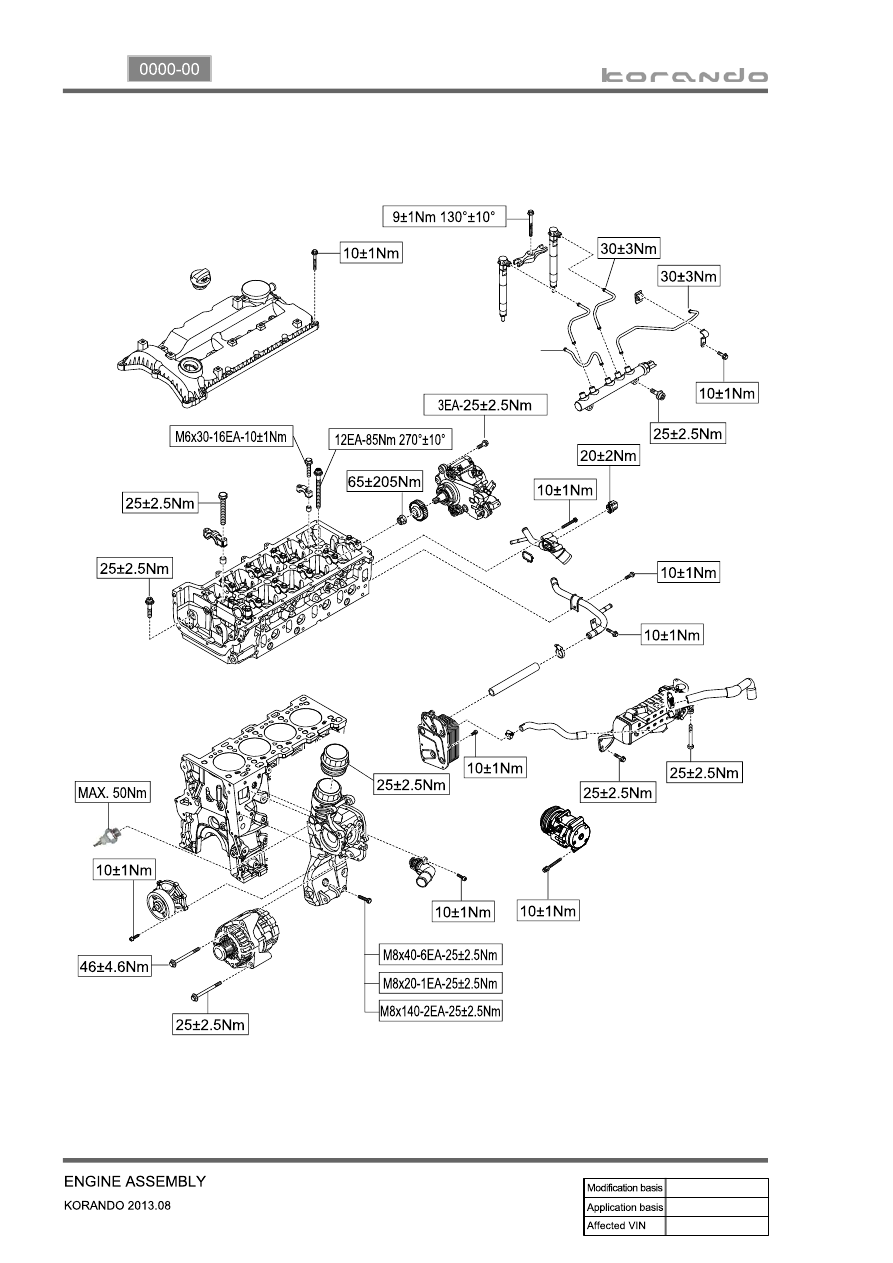

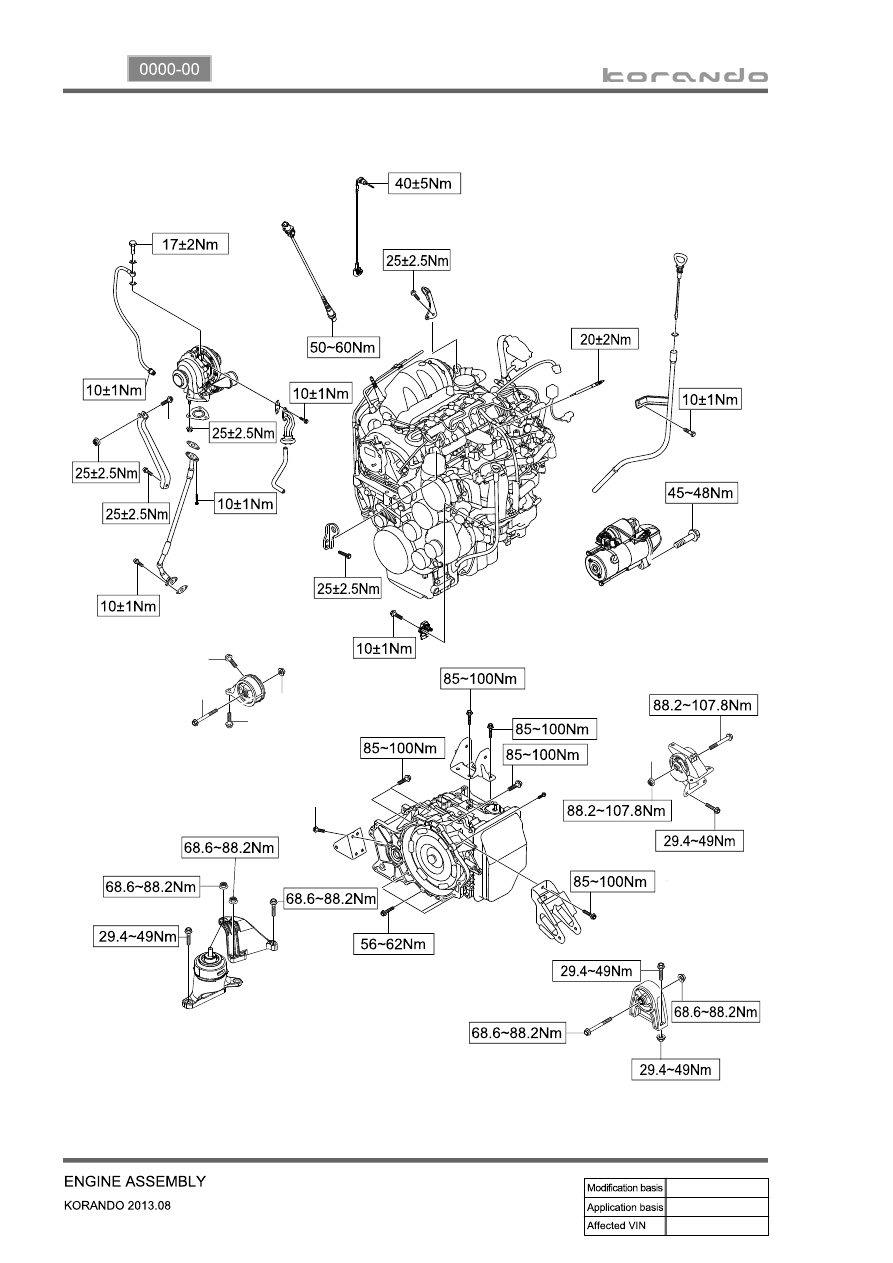

4. CHECK AND INSPECTION

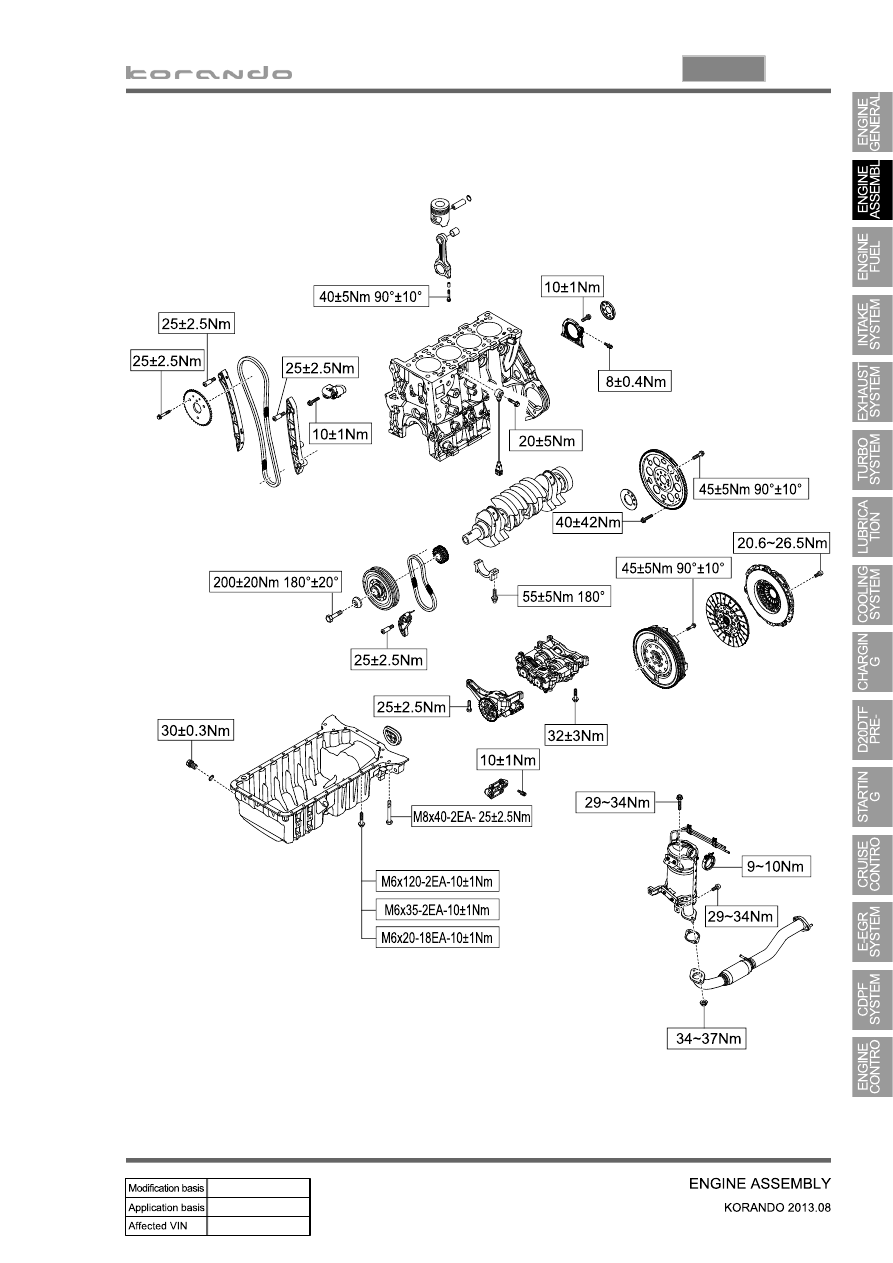

1) Cylinder

(1) Compression pressure test

Specified value

▶

Compression ratio

16.5 : 1

Test condition

at normal operating temperature (80˚C)

Compression pressure

Standard

32 bar

Minimum

18 bar

Differential limit between cylinders

Maximum 3 bar

The compression pressure test is to check the conditions of internal components (piston, piston ring,

intake and exhaust vale, cylinder head gasket). This test provides current engine operating status.

Before cranking the engine, make sure that the test wiring, tools and persons are keeping away from

moving components of engine (e.g., belt and cooling fan).

Park the vehicle on the level ground and apply the parking brake.

Do not allow anybody to be in front of the vehicle.

-

-

-

(2) Cylinder pressure leakage test

If the measured value of the compression pressure test is not within the specifications, perform the

cylinder pressure leakage test.

Specified value

▶

Perform this test in the sequence of firing order.

Do not test the cylinder pressure leakage with wet type test procedure. (do not

inject the engine oil into the combustion chamber)

-

-

Test condition: normal engine operating

temperature (80˚C)

Specified value

Whole engine

below 25%

at valve and cylinder head gasket

below 10%

at piston ring

below 20%
