01-5

6810-00

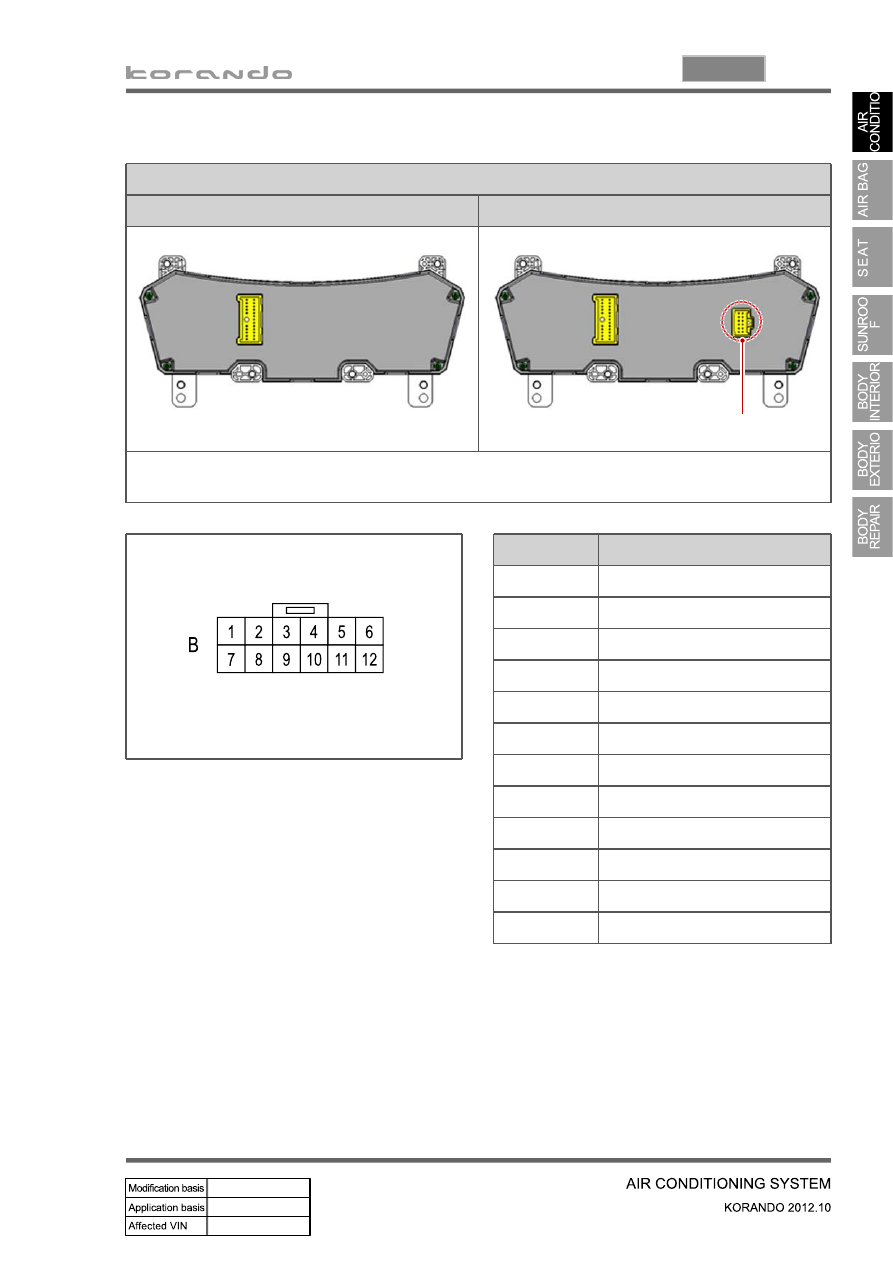

2) Manual A/C Controller

Manual air conditioner controller

Previous

Current

The driving circuit for the ambient temperature sensor is added to the manual air conditioner controller
for ambient temperature display on the instrument cluster.

Connector added

Pin No.

Function

B1

-

B2

-

B3

-

B4

Water temp. signal

B5

-

B6

-

B7

-

B8

-

B9

-

B10

Sun-load sensor signal

B11

Ambient temp. sensor signal

B12

-

01-6

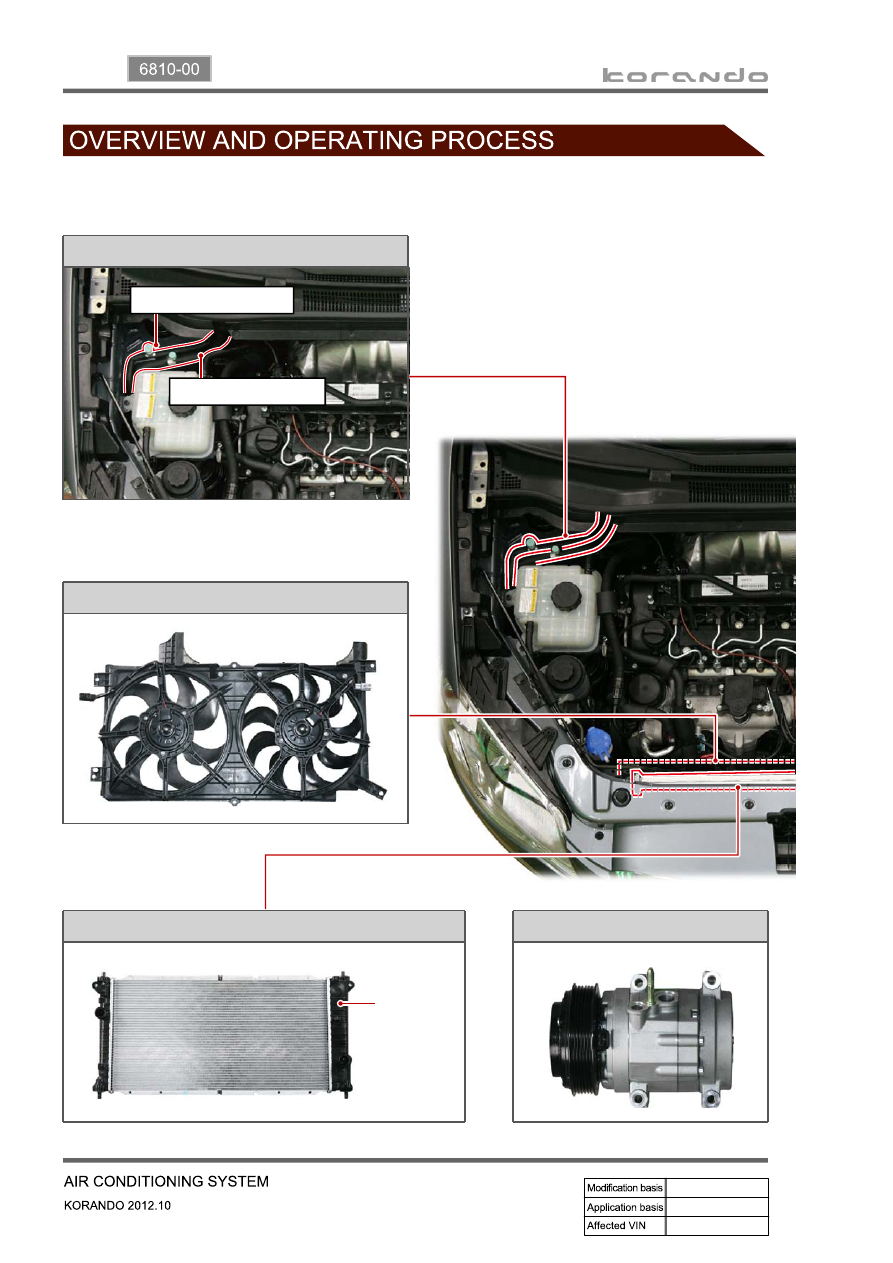

1. SYSTEM LAYOUT

Line & port

A/C compressor

Electric fan

A/C condenser & receiver drier

Integrated

receiver

drier

High pressure hose

Low pressure hose

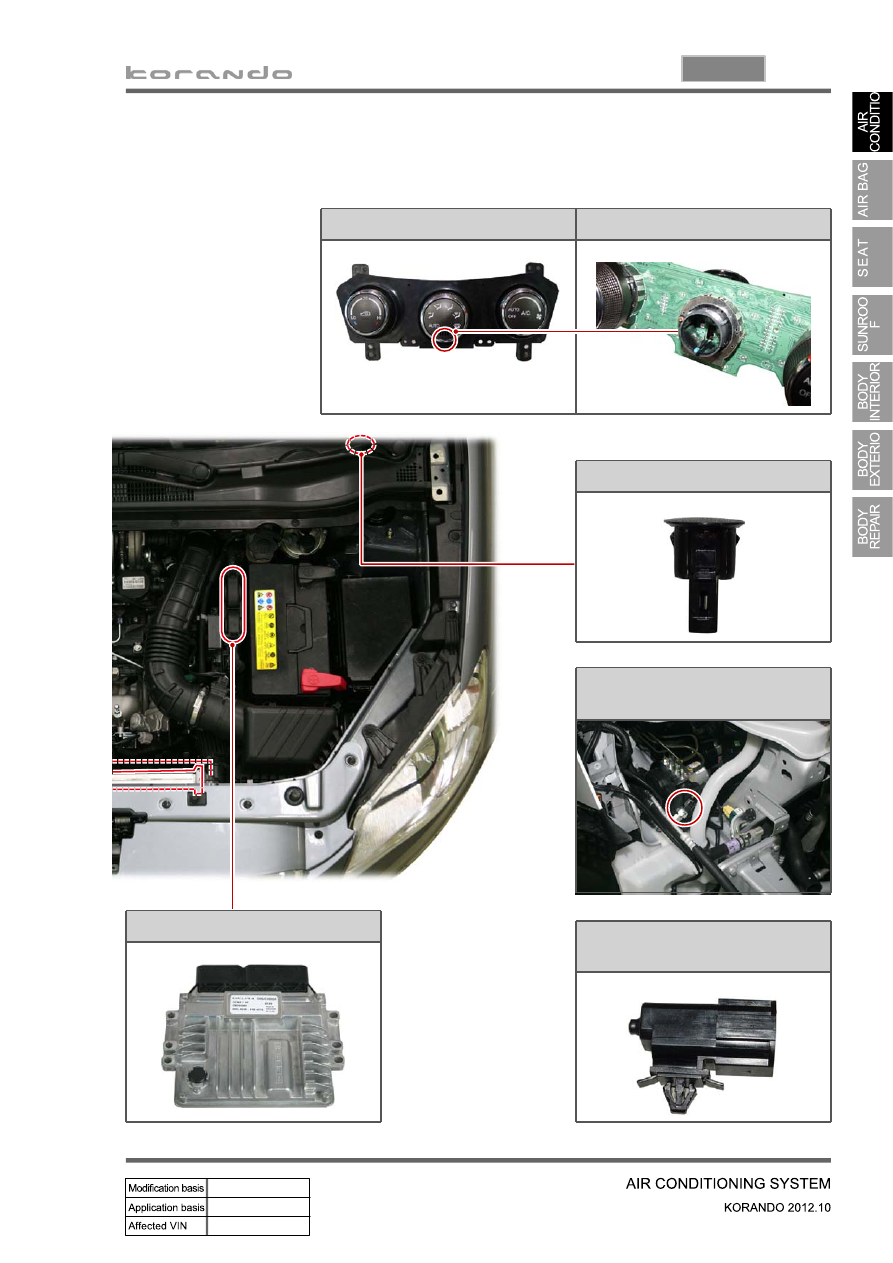

01-7

6810-00

FATC

Incar sensor

Refrigerant pressure

sensor

Ambient temperature

sensor

Sun-load sensor

Engine ECU

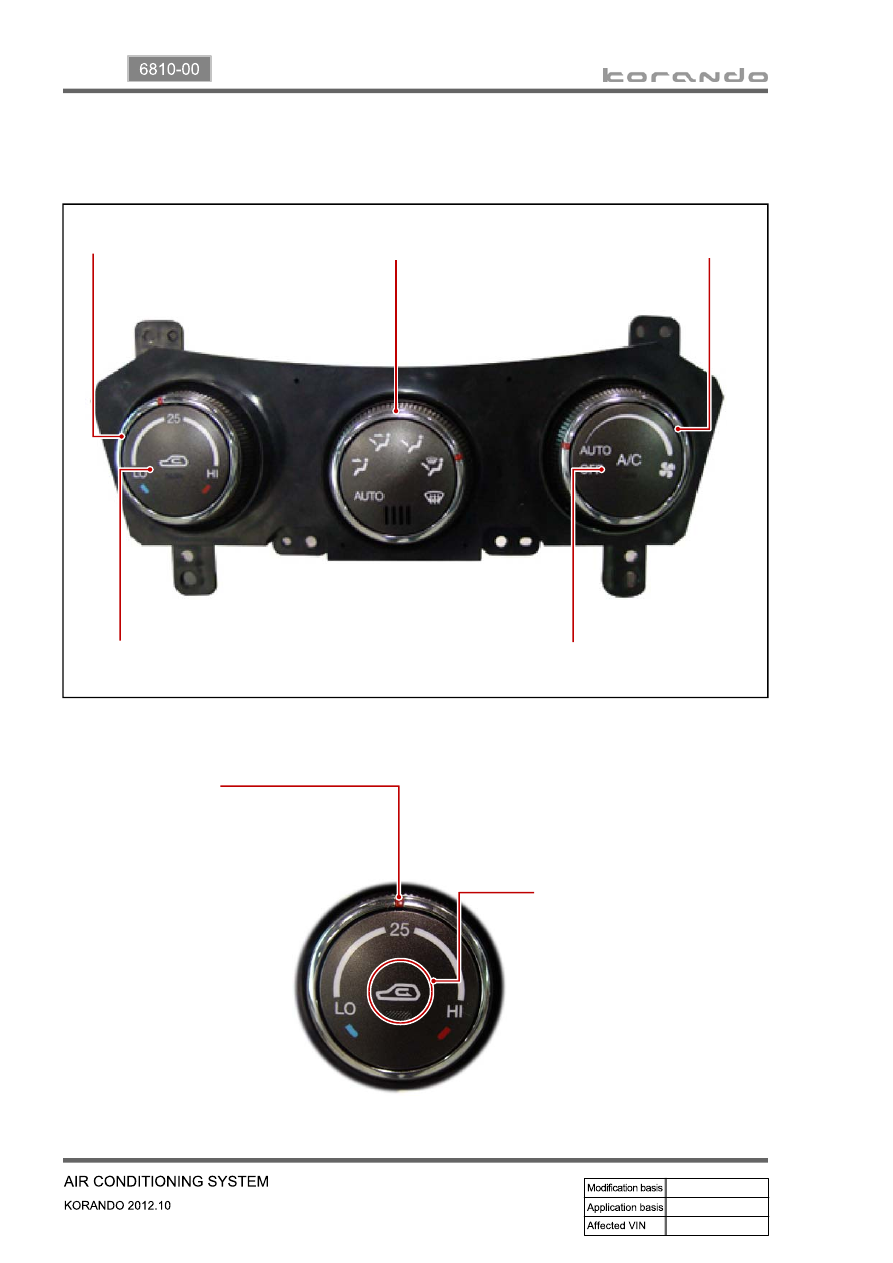

01-8

Recirculation switch

Temperature dial

Mode dial

Fan speed dial

A/C switch

Recirculation switch

When you press this switch,

recirculation indicator comes on

and the system is changed into the

recirculation mode.

(However, under defroster mode or

defroster/floor mode, it stays in the

fresh air mode.)

-

1) Full Automatic A/C Control

2. HEATER AND A/C CONTROL

To adjust the temperature, turn this

dial as required. Turning the dial to HI

increases the temperature and LO

decreases the temperature.

-

Temperature dial

Temperature dial

▶
