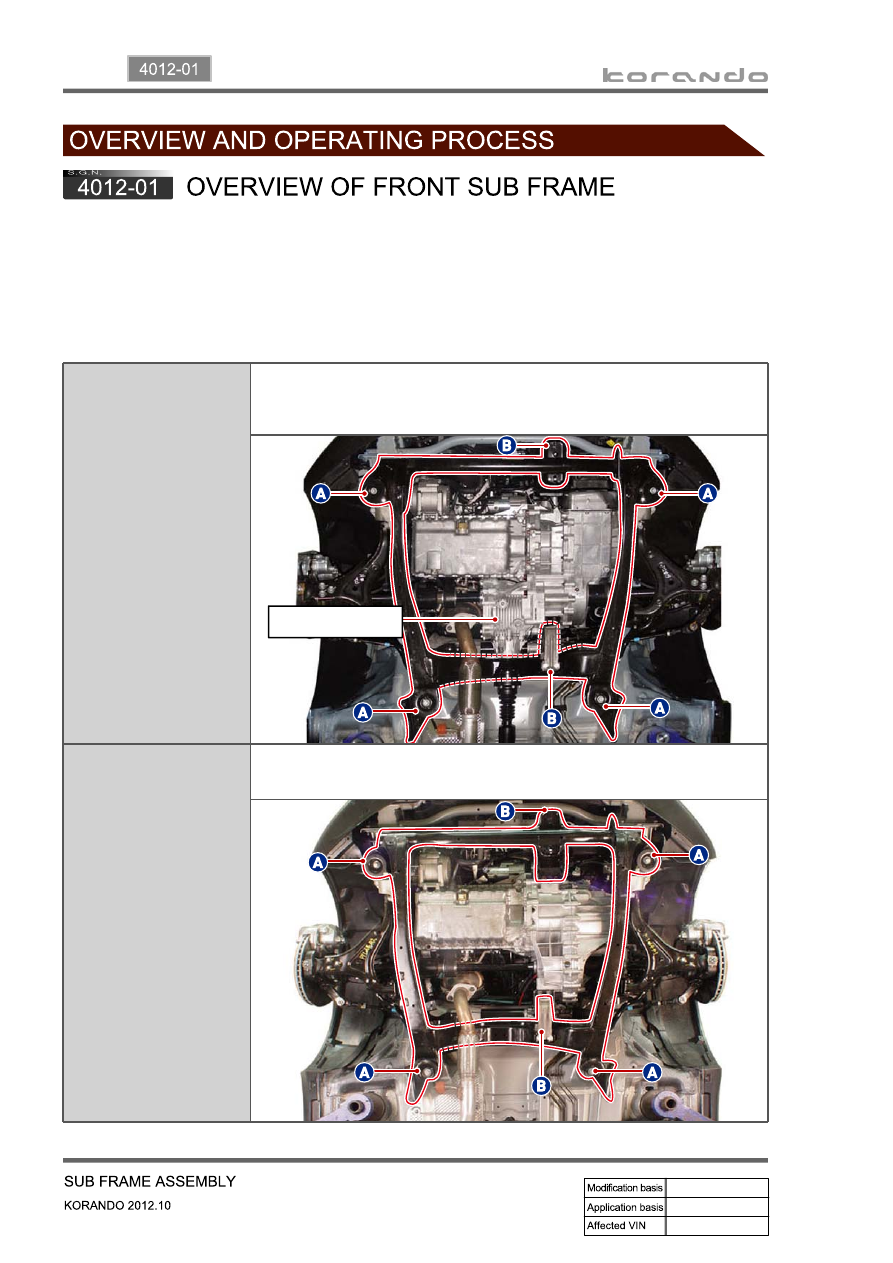

The front sub frame consists of 4 body bush mountings(A) and 2 engine bush mountings(B) which

reduce the vibration from the powertrain and road, and also control the torque. And the two engine bush

mountings consist of an engine mounting which supports the engine powertrain and a transmission

mounting.

The engine side and transmission side mountings are rubber mountings with brackets and insulators

while the body mounting is a rubber bush mounting which is fitted to the frame.

Installation of front sub

frame (4WD)

The installation of the front sub frame is the same for both automatic
transmission and manual transmission. For 4WD, the PTU and the
propeller shaft are installed.

Installation of front sub

frame (2WD)

The installation of the front sub frame is the same for both automatic
transmission and manual transmission.

PTU assembly

15-9

4015-01

Installation of rear sub

frame (4WD)

The installation of the rear sub frame is the same for both automatic
transmission and manual transmission. For 4WD, the E-coupling, propeller
shaft and rear axle are installed.

Installation of rear sub

frame (2WD)

 The installation of the rear sub frame is the same for both automatic
transmission and manual transmission.

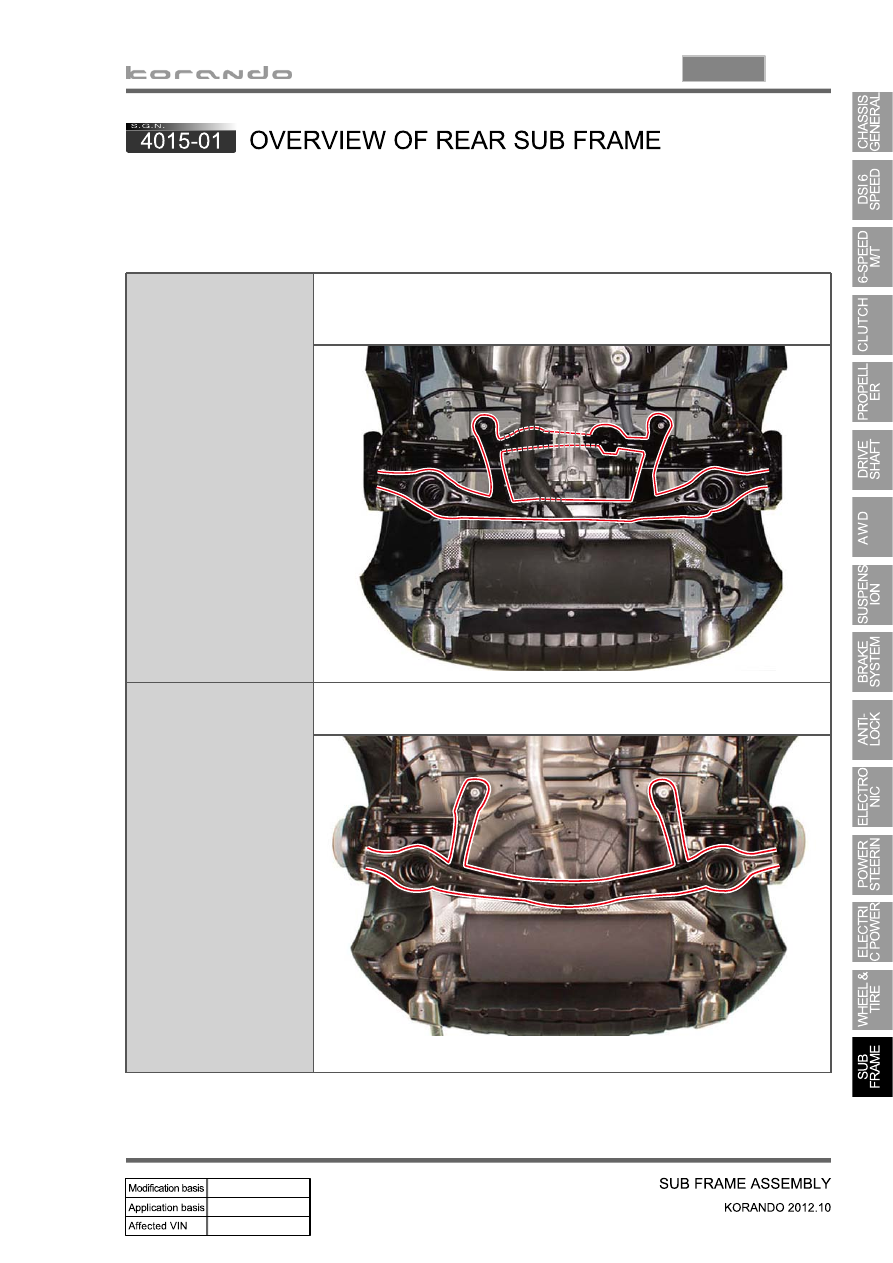

The rear sub frame system consists of body bush mountings and direct mountings which reduce the

vibration transmitted from the powertrain and road to the vehicle body.

For 4WD, it consists of 4 body mountings (bush mountings) and 2 axle mountings (bush mountings) and

for 2WD, it consists of 4 body mountings (direct mountings).

01-3

6810-00

1. SPECIFICATION

Description

Specification

Heater

Core size (㎣)

200 x 165.5 x 25

Capacity (kcal/h)

4,800

Evaporator

Core size (㎣)

254.8 x 196.75 x 60

Capacity (kcal/h)

4,700

Blower

Supply power (W)

240 + 10% Max (at 12 V)

Fan speed (rpm)

2900±200 Max
(Rec.Mode: 420㎥/h)

PTC

Supply power

1 kW

Condenser

Core size (㎣)

588 x 455 x 16 (2,625)

Capacity (kcal/h)

12,000

Capacity of receiver drier

250 cc

compressor

Capacity

170 cc/rev

Diameter of pulley

Ø120

Max. continuous speed

8,000 rpm

voltage

DC 12 V

Power consumption

2.2 A

01-4

2. MAJOR CHANGES

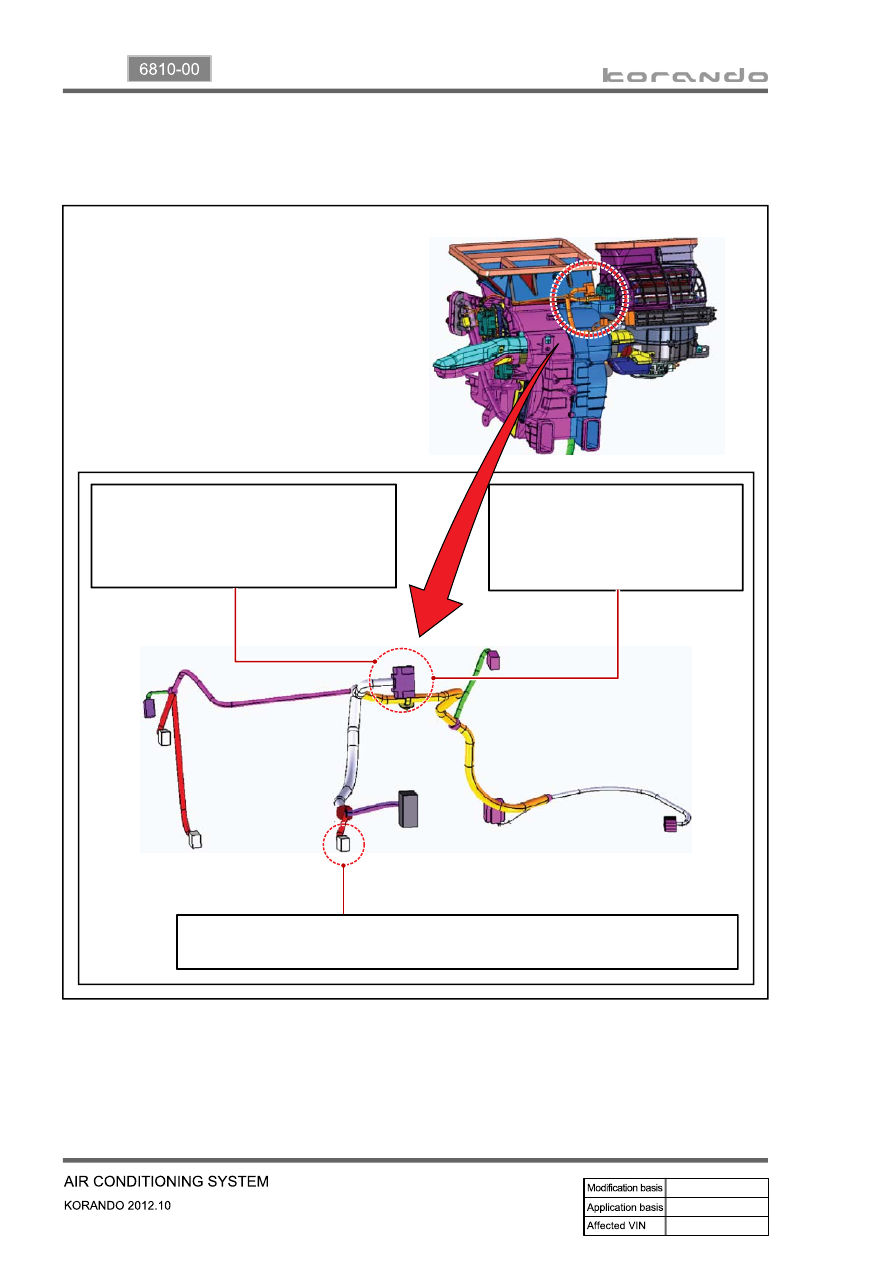

1) Heater & Evaporator Module (Wiring Specification)

The driving circuit for the manual A/C ambient temperature sensor is added, giving the change to the

heater and evaporator module.

Ambient temperature sensor signal wiring

added to vehicle wiring connecting

connector (2 circuits)

: manual A/C

Blower max signal wiring added to

vehicle wiring connecting connector

(1 circuit)

: manual A/C & FATC

Manual A/C: Wiring pin added to controller assembly connector

FATC: Wiring pin added to existing connector of controller assembly
