4. Transaxle mounting (Rear)

3. Rear mounting (LH & RH)

2. Front mounting (LH & RH)

1. Transaxle mounting (Front)

2. TIGHTENING TORQUE

Bolt (17 mm) /
Nut (17 mm)

68.6 to 88.2 Nm

Bolt (17 mm)

88.2 to 107.8 Nm

Bolt (17 mm)

88.2 to 107.8 Nm

2 Bracket mounting
bolts (17 mm)

88.2 to 107.8 Nm

Bolt (14 mm) /
Nut (14 mm)

68.6 to 88.2 Nm

3 Bolts (14 mm)

29.4 to 49.0 Nm

Front sub frame - based on 4WD

▶

15-5

4012-00

8. Other connections for rear sub frame (LH &
RH)

7. Rear axle mounting

5. Front mounting (LH & RH)

Bolt (17 mm)

88.2 to 107.8 Nm

6. Rear mounting (LH & RH)

Bolt (17 mm)

88.2 to 107.8 Nm

Rear mounting
bolt (14 mm)

68.6 to 88.2 Nm

Upper arm bolt
(17 mm) / Nut (19
mm)

98.0 to 117.6 Nm

Lower arm nut/Bolt
(19 mm)

98.0 to 117.6 Nm

Rear sub frame - based on 4WD

▶

Rear mounting
bolt (17 mm)

107.8 to 127.4 Nm

15-6

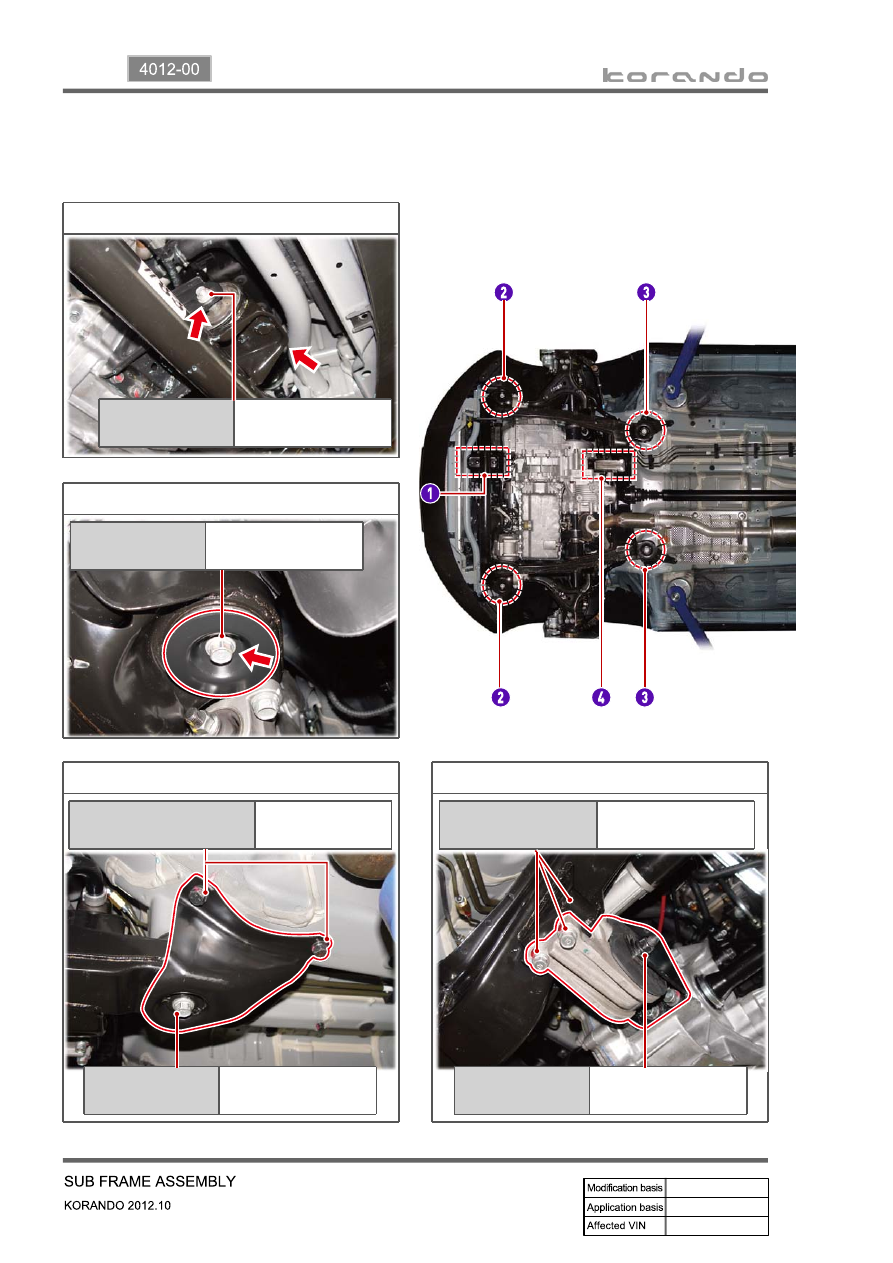

1) Sectional Diagram and Bolts for Front Sub Frame

Mounting nut

29.4 to 39.2 Nm

Bolt

9.4 to 39.2 Nm

Installation

Sectional diagram

1. Front

2. Rear

Mounting bracket

Mounting bolt

3. Transaxle mounting (Front)

For manual transaxle

For automatic transaxle
(diesel)

4. Transaxle mounting (Rear)

15-7

4012-00

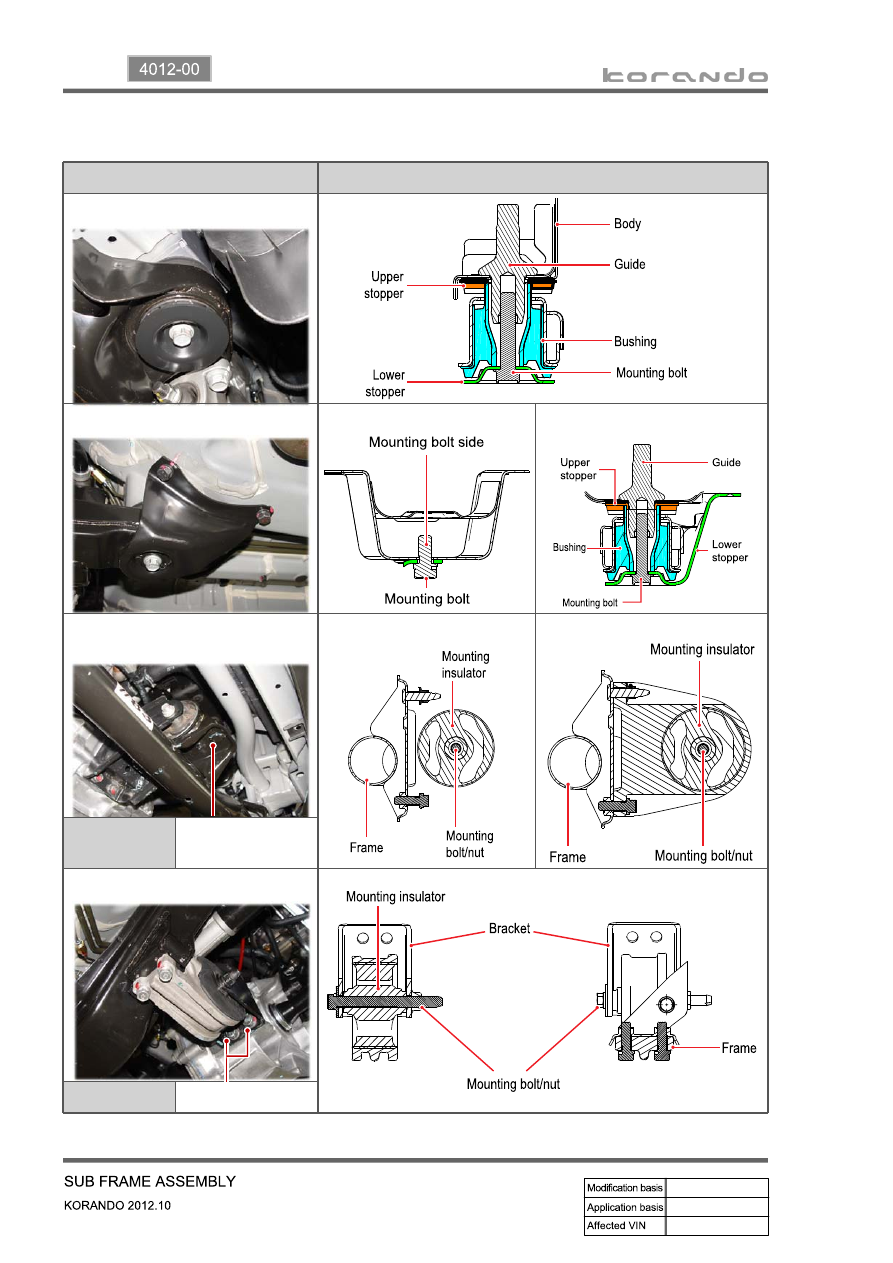

2) Sectional Diagram and Bolts for Rear Sub Frame

Installation

Sectional structure

1. Front

4WD

2WD

2. Rear

4WD

2WD

3. Rear axle - Front
   (4WD)

4. Rear axle - rear
   (4WD)
