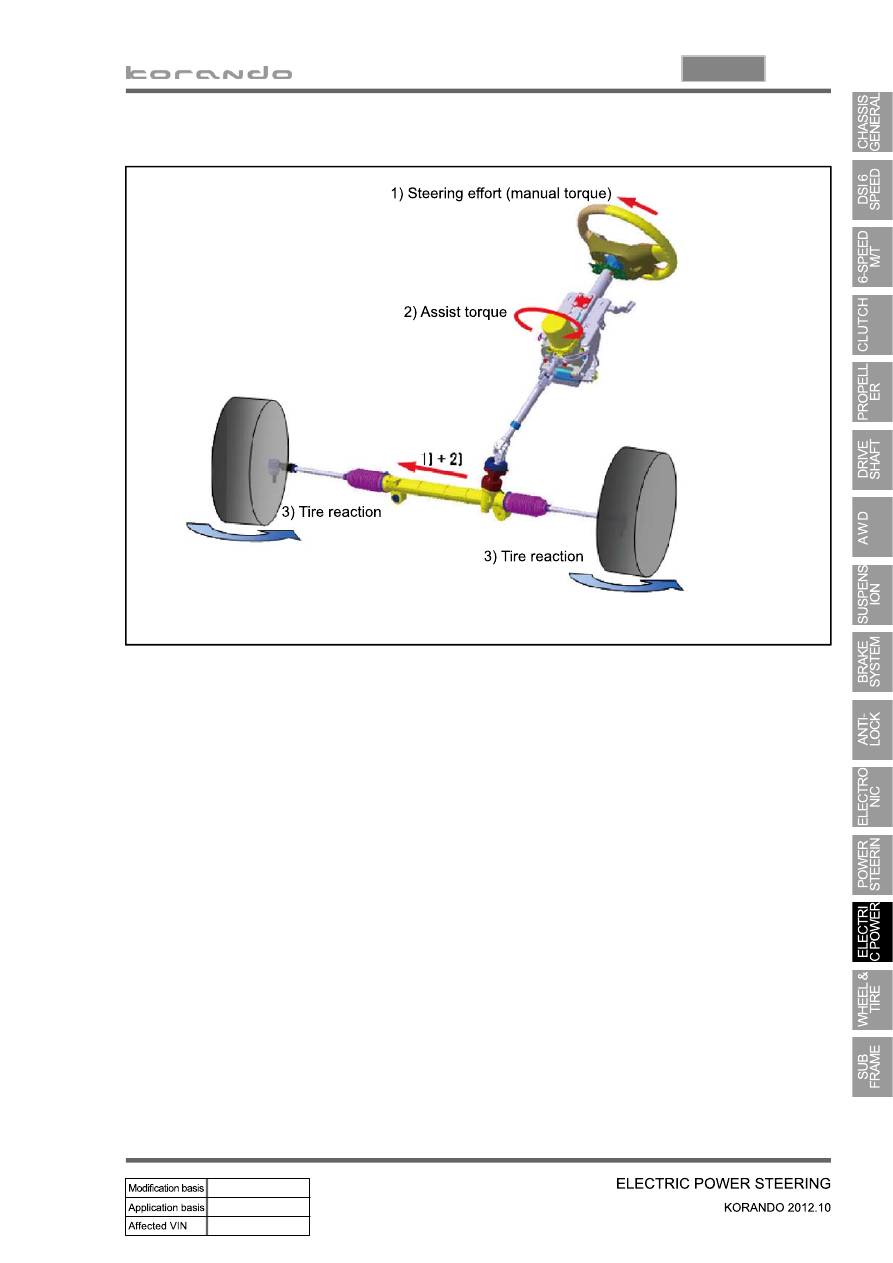

13-7 4610-00 2. OPERATION When the driver turns the steering wheel, a torque is generated and the torque sensor and the steering angle sensor in the EPS system detect the rotation of the steering column to run the electric motor. At this time, the worm gear connected to the motor drives the helical gear mounted to the steering column to generate the assist torque for the steering column. This allows the driver to operate the steering wheel easier. Output torque = 1) Steering force (manual torque) + 2) Assist torque |
