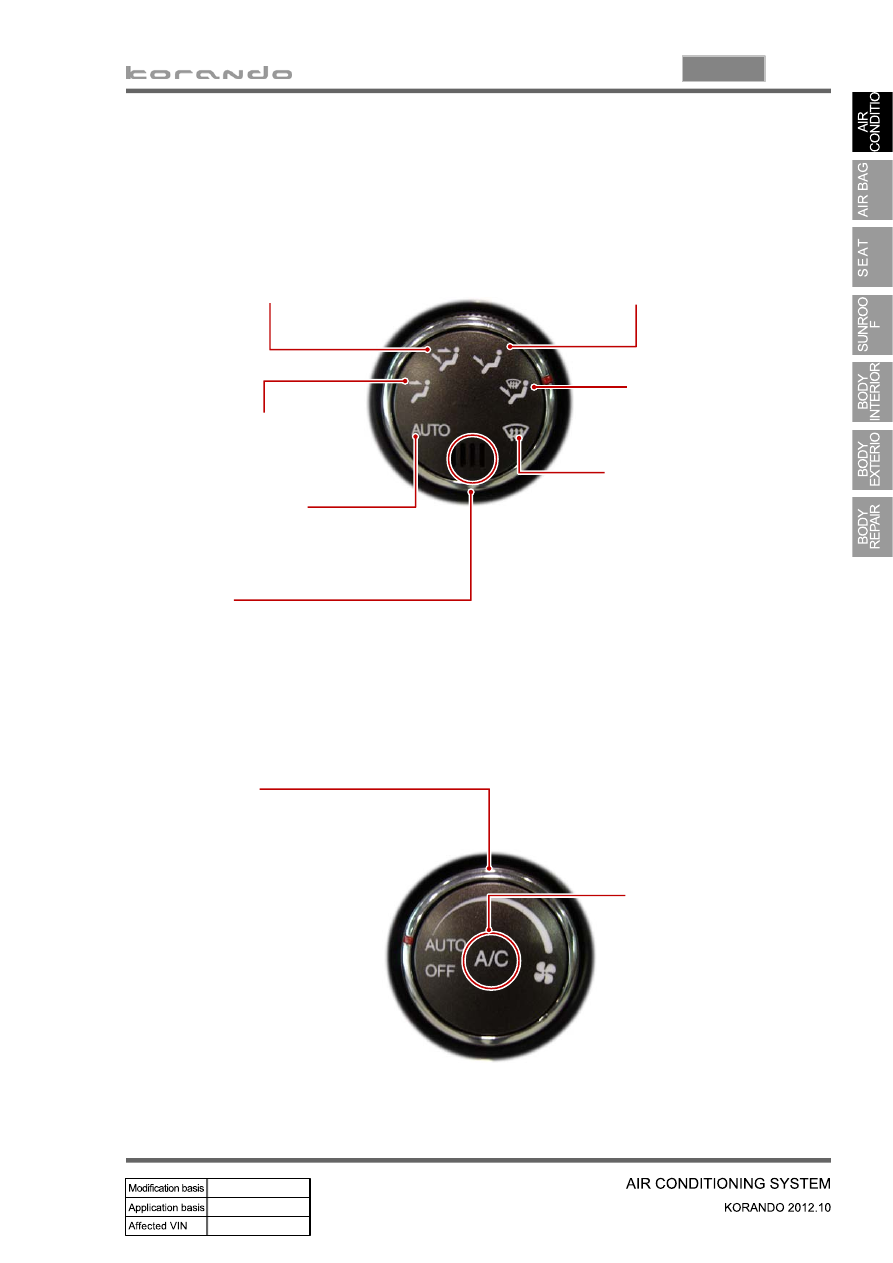

Incar sensor

This sensor detects the inside temperature and

installed in PCB.

Face-Level

(vent mode)

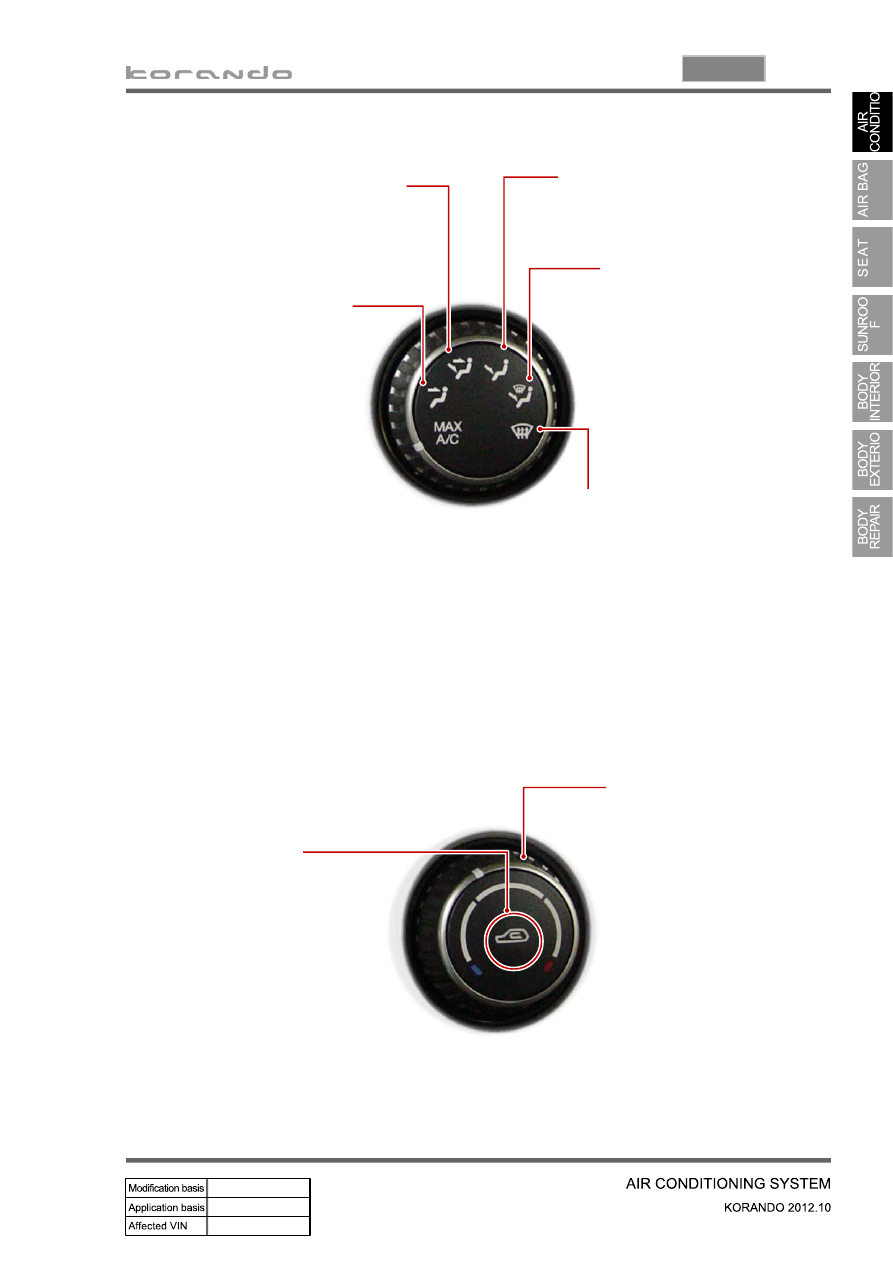

Face/Foot-Level

(bi-level mode)

Foot-Level

(foot mode)

Foot/Defrost-level

(foot/defrost mode)

Defroster switch

Use this switch to remove for or

ice from the windshield. When

choosing this mode, the airflow

direction will be changed to the

windshield and side glasses, the

air conditioner operates

automatically, and fresh air

comes in.

The air flow direction can be controlled by turning the dial.

-

Airflow is changed

automatically according to the

setting temperature.

Fan speed dial

Manual control

Fan speed is manually controlled by
this dial. The increment is 1℃.

Auto control

Fan speed is automatically

controlled by temperature setting.

The blower motor operates in a

stepless mode.

-

-

A/C switch

When pressing this switch,

the air conditioner operates

in manual mode and A/C

ON indicator comes on.

Fan speed dial

▶

Mode dial

▶

01-10

Recirculation switch

Temperature dial

Mode dial

Fan speed dial

A/C switch

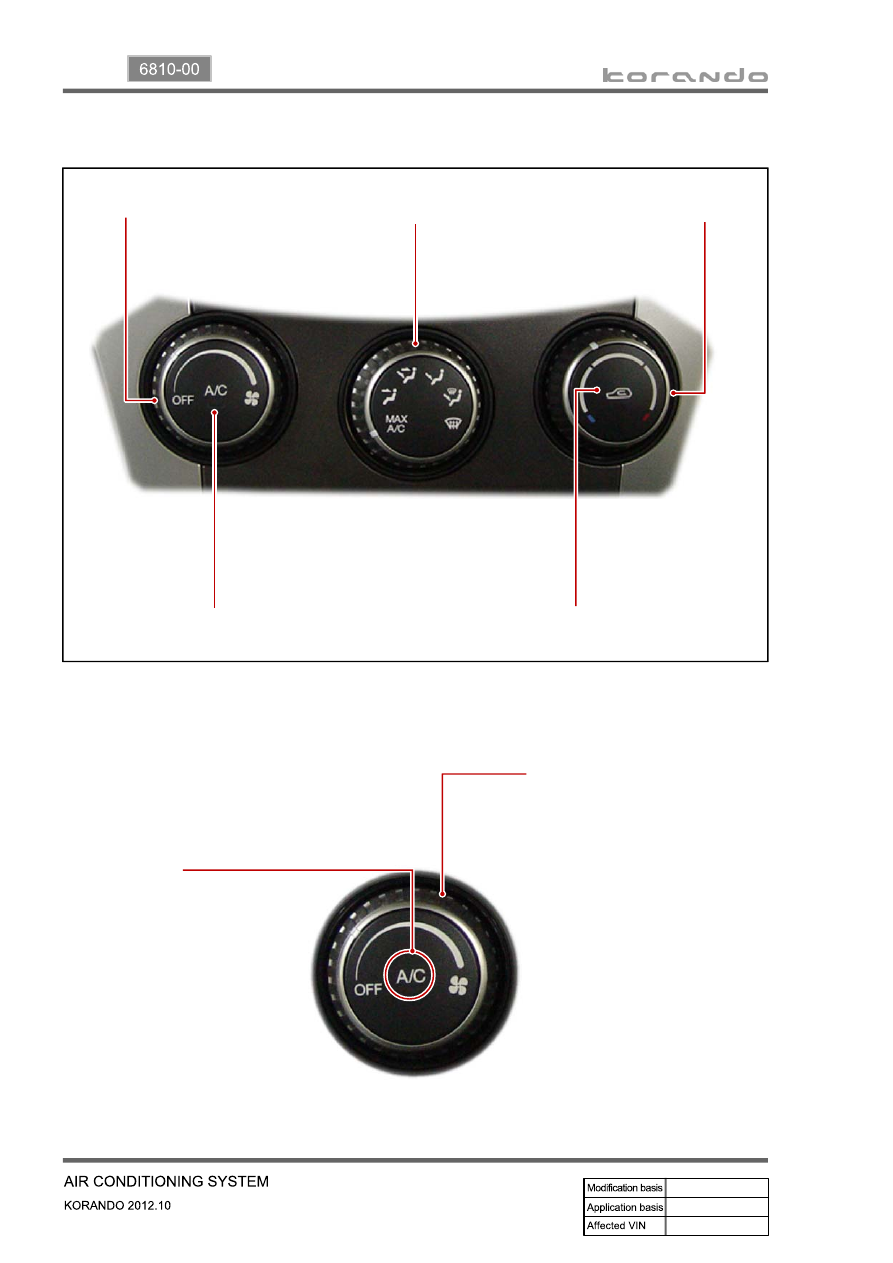

2) Manual A/C Control

Fan speed dial

The fan speed can be adjusted

by rotating the switch. To stop

the operation, turn the dial to the

"OFF" position.

The level is adjustable in 7

steps.

A/C switch

When pressing the switch with

the engine running, the A/C

compressor operates and the

indicator comes on. Pressing

the switch again deactivates the

compressor and turns off the

indicator.

Fan speed dial

▶

01-11

6810-00

Face/Foot-Level

 (bi-level mode)

Face-Level (vent mode)

Foot-Level (foot mode)

Use this switch to remove fog or ice from

the windshield.

When pressing this switch, the airflow

direction will be changed to windshield

and door glasses, the A/C is operated

automatically and the air source mode is

set to fresh air mode.

Defrost mode

Temperature dial

▶

Mode dial

▶

Recirculation switch

When pressing this switch, the air is

recirculated in the vehicle and the

indicator on the switch comes on.

When pressing it again, the indicator

goes off and the fresh air comes in.

When it's rainy or humid, set this

switch to fresh air mode with the

defroster mode selected to clear the

fogged windshield.

Foot/Defrost-level

(Foot & defrost mode)

Temperature dial

Rotate this dial to adjust the

temperature.

Turning this switch clockwise

(red side) increases the

temperature and

counterclockwise (blue side)

decreases the temperature.

01-12

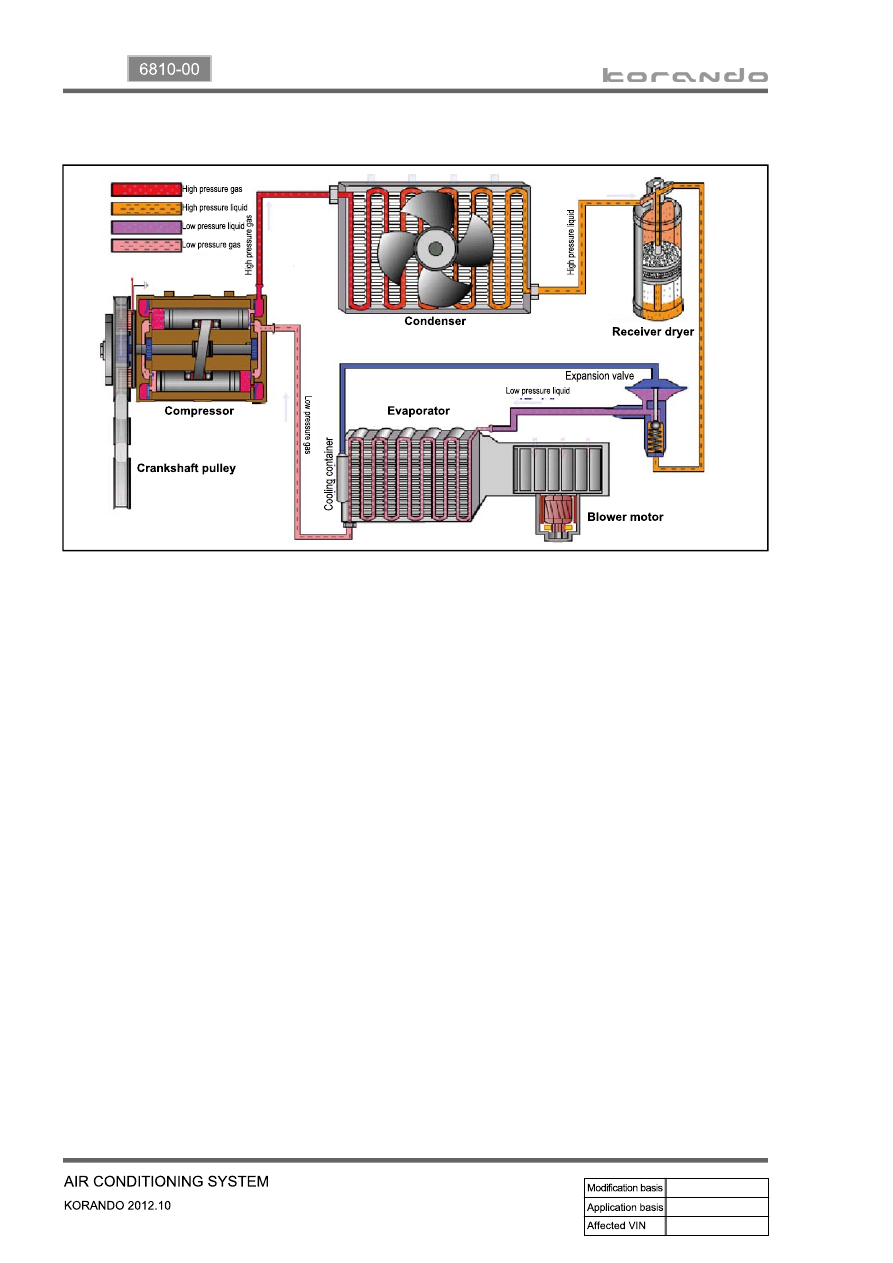

3. A/C COOLING CYCLE

1) System flow

Condition: Gas/Liquid

Function: Keeps the refrigerant free from moisture by separating/collecting the moisture from it.

-

-

"Compression -> Condensation -> Expansion -> Evaporation"

-

Condition: Liquefied gas/Gas

Function: Cools the air by absorbing the heat from the air around the evaporator.

-

-

Condition: Liquid/Liquefied gas

Function: Performs adiabatic expansion and flow control for easier evaporation.

-

-

Condition: Gas/Liquid

Function: Cools and condenses the refrigerant by using ambient air to liquefy it under high pressure.

-

-

Condition: Gas

Function: Circulates the refrigerant and increases the pressure and temperature for easier

evaporation.

-

-

2) Functions

(2) Condenser

(3) Receiver drier

(4) Expansion valve

(5) Evaporator

(1) Compressor
