04-6

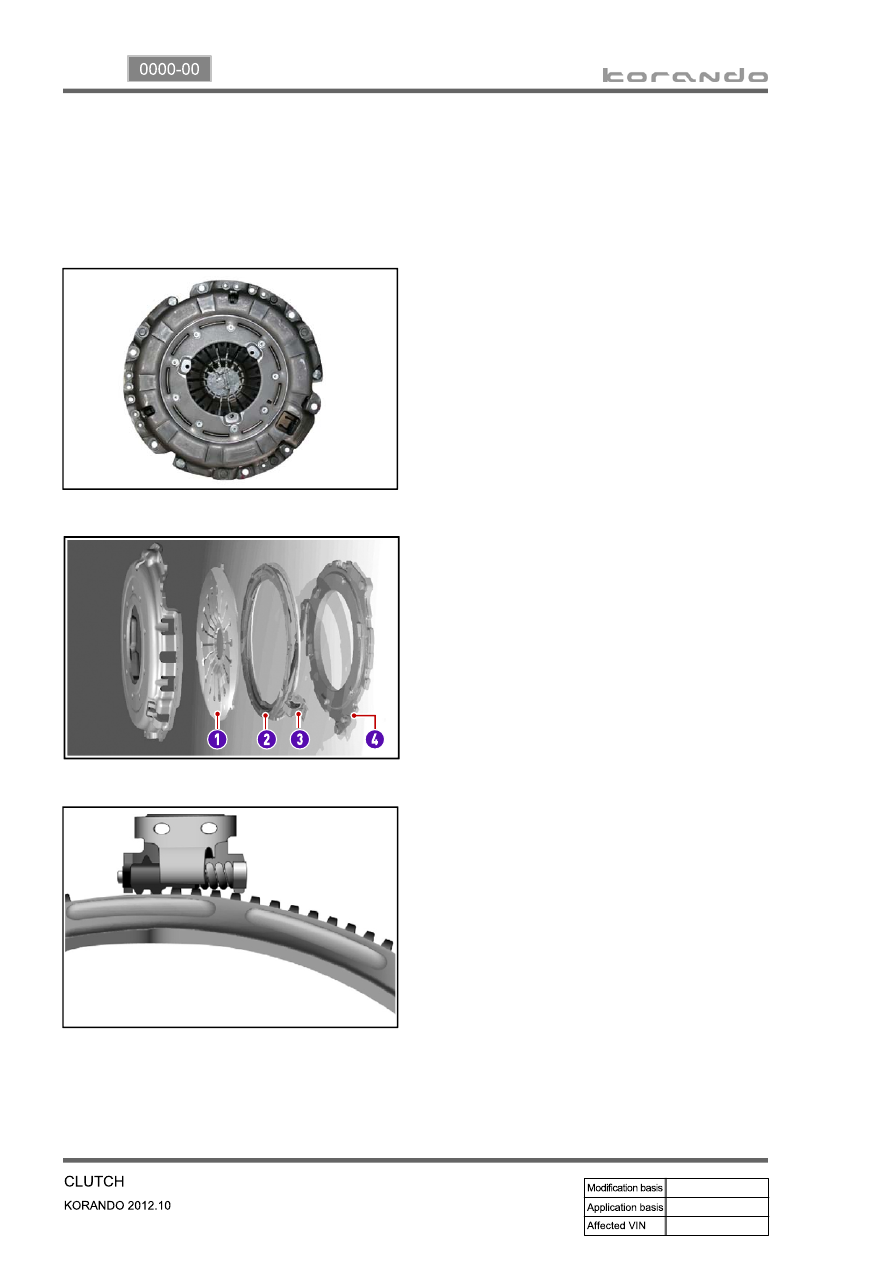

2. SATIC (SELF ADJUSTING TECHNOLOGY WITH
    INTEGRATED CASSETTE)

Function

▶

Operation

▶

On the conventional clutch, the pedal force tends

to increase in proportion to the degree of disc

run-out. However, the SATIC clutch has the

adjusting function which activates the cassette

system inserted to the clutch cover to maintain a

constant pedal force and clearance when the

disc runs out. (Unlike SAT type, SATIC type

does not need SST for clutch cover removal.)

Diaphragm spring rotates the adjusting

equipment as clutch disc is wearing and so,

pressure plate is pushed to clutch disc side at the

amount of wear.
Disc wear (Free play) → Diaphragm spring
(1) → Adjusting equipment (2, 3) → Pressure

plate (4)

1) System Description

04-7

0000-00

Operating Elements

▶

The clutch "release" system consists of the clutch pedal and clutch release cylinder.

This system directly releases the clutch by using hydraulic pressure while the conventional clutch system

releases the clutch by using release lever and release fork. This system provides higher efficiency than

conventional clutch system, and its durability is superior.

Clutch master cylinder (mounted on clutch pedal)

Concentric slave cylinder pipe (mounted inside of transmission)

-

-

Driving elements

▶

The driving elements consist of two flat surfaces machined to a smooth finish.

One of these is the rear face of the engine flywheel and the other is the clutch pressure plate. The clutch

pressure plate is fitted into a clutch steel cover, which is bolted to the flywheel.

Driven elements

▶

The driven element is the clutch disc with a splined hub which is free to slide lengthwise along the splines

of the input shaft.

The driving and driven elements are held in contact by spring pressure. This pressure is exerted by a

diaphragm spring in the clutch cover pressure plate assembly.

2) Overview

04-8

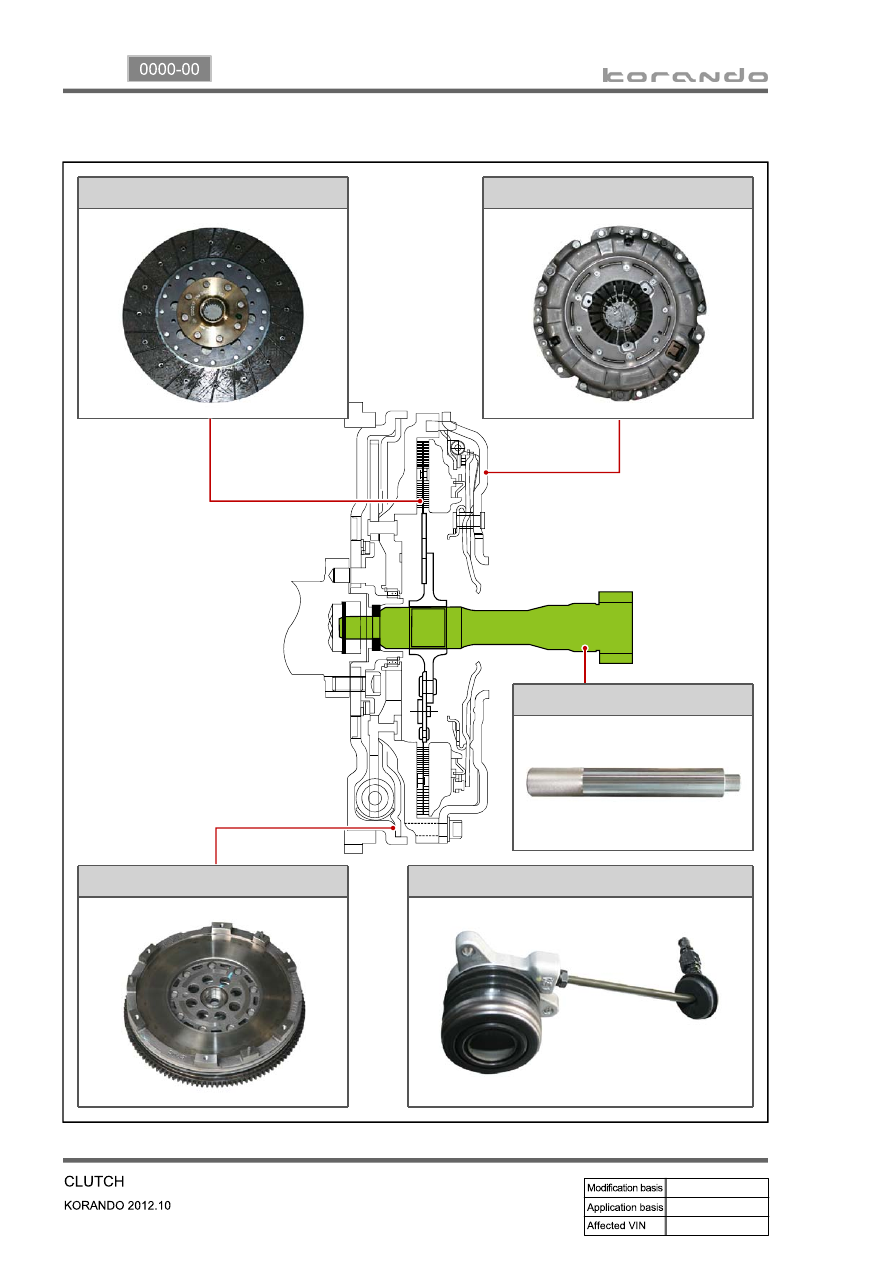

3) Layout

Clutch disc

Clutch cover assembly

Concentric slave cylinder

Dual mass flywheel (DMF)

Clutch setting jig

04-9

0000-00

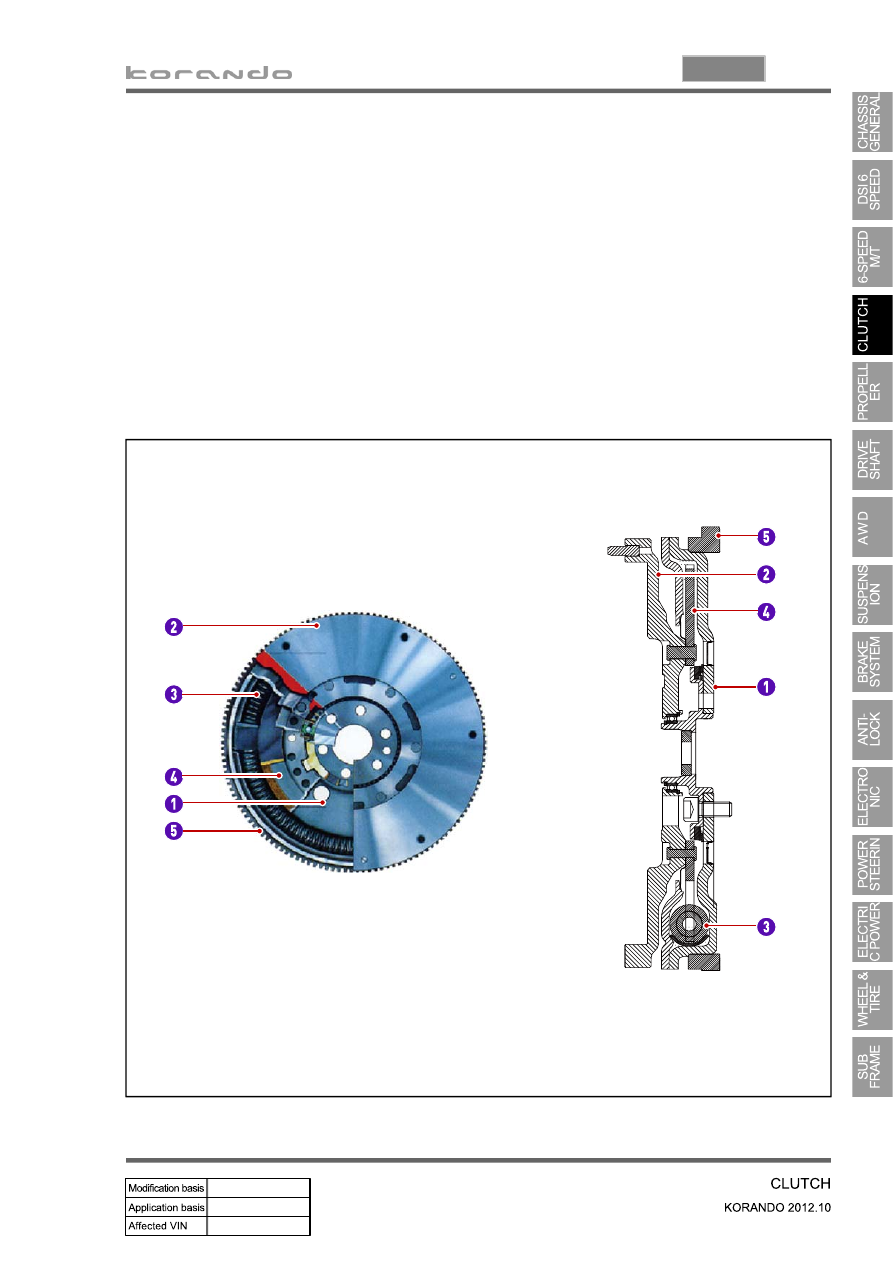

3. DUAL MASS FLYWHEEL (DMF)

The dual mass flywheel (DMF) is of having a mass divided into two halves.

While one mass is connected to the engine crankshaft, which is affected by the mass moment of inertia

of the engine, the other mass is affected by one of the transmission.

The divided dual masses are connected to the coil spring and damping system internally.

The DMF has the following benefits:

▶

Reducing fuel consumption by lowering engine speed

Reducing rattling noise and vehicle vibration in all driving ranges

Reducing synchronization wear

Facilitating gear change

Protecting power train parts by preventing excessive load from being delivered

-

-

-

-

-

Primary flywheel

Secondary flywheel

Arc damper spring

Torque limiter

Ring gear

1.

2.

3.

4.

5.
