05-3

3310-02

1. SPECIFICATION

Description

Specification

Structure

2-piece type with CV joint, spider, and rubber

coupling

Weight

below 12.0 kg

Joint type

CV joint, spider, rubber coupling

Spider

Numbers

one (installed on center bearing side)

External diameter

Ø24 mm

Overall size

Ø62.5 mm

Dimension
(Length x Dia.)

No.1 shaft (TM to spider)

1,069 x Ø60 mm

No. 2 shaft (spider to axle)

847.5 x Ø60 mm

Runout of tube (after installation)

0.3 mm

Unbalance

80g.mm @ 3,000rpm

(second measurement: 120 g.mm)

U-joint

Starting torque

0.3 to 0.7 Nm

Minimum starting angle

18˚

Amount of grease in CV joint

210+-10g

2. TIGHTENING TORQUE

Fastener

Tightening torque

Bolt/nut for rubber coupling (rear axle side)

39.2 to 49.0 Nm

Bolt/nut for CV joint (transaxle side)

29.4 to 39.2 Nm

Mounting bolt for center bearing

58.8 to 68.6 Nm

05-4

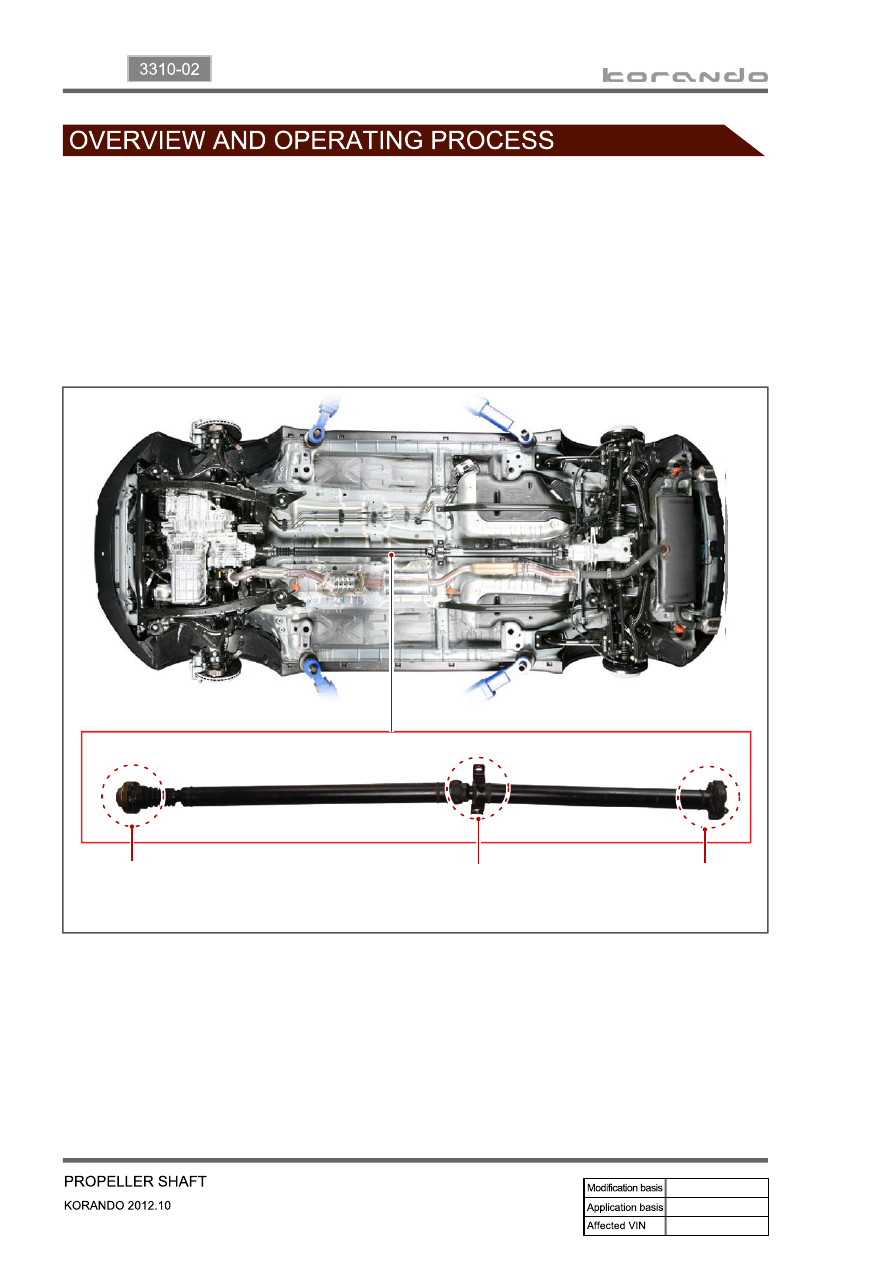

1. OVERVIEW

The propeller shaft is a thin steel pipe which transfers the power from the transmission to the E-coupling,

and has high resistance to torsion and bending.

The propeller shaft has the universal joint (cross axle) mounted on the center of the shaft and splines for

the slip joint on the E-coupling side to accommodate the height and length changes which occur as the

shaft rotates at high speed.

And the rubber bushing for center bearing in the center of the propeller shaft keeps the balance of the

shaft and absorbs its vibration.

Function of propeller shaft

▶

Transmits driving torque.

Accommodates the angle change (universal joint / CV joint).

Accommodates the axial length change (splines for the slip joint).

-

-

-

CV joint

Universal yoke and

center bearing

Universal yoke and

rubber coupling

05-5

3310-02

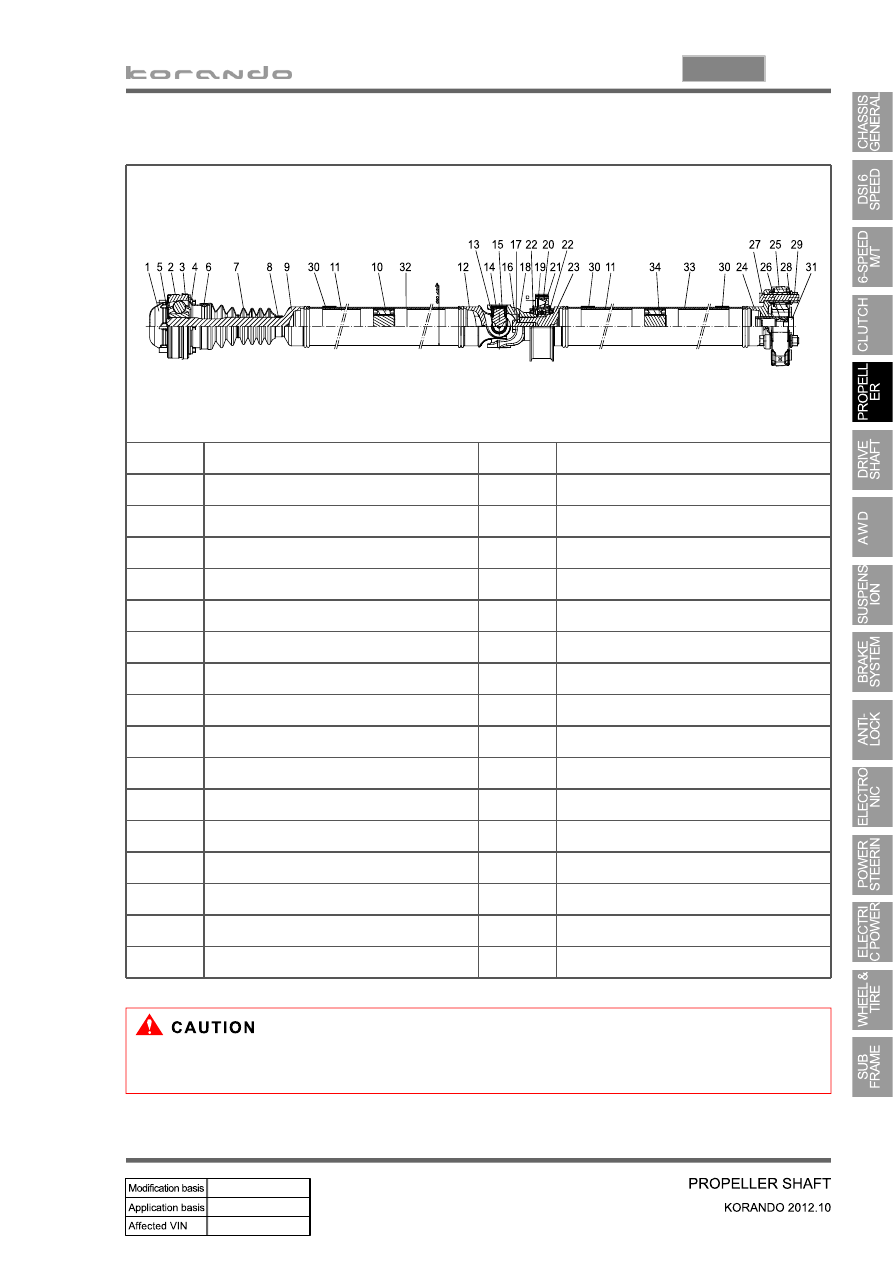

2. COMPONENT

1

End cap

18

Plain washer

2

VL joint assembly

19

AL washer

3

Washer

20

Center bearing assembly

4

Bolt

21

Ball bearing

5

Circlip

22

Dust shield

6

Clamp (big)

23

Intermediate shaft

7

Boot

24

Fork yoke

8

Clamp (small)

25

Rubber coupling

9

Stub shaft

26

Alignment support

10

Bending absorber

27

Bolt

11

Paper damper

28

Washer

12

Tube yoke

29

Lock nut

13

Oil seal

30

Balance weight

14

Spider

31

Protecter

15

Bearing cap

32

Tube

16

Intermediate yoke

33

Tube

17

Bolt

34

Bending absorber

Do not remove the rubber coupling since the vibration balance could be improper once removed it.

06-3

4110-01

1. SPECIFICATION

Component

Item

Specifications

2WD,

4WD

Front drive
shaft

Joint type

Inside: Tripod joint
Outside: Ball joint

Max. allowed angle

Inside: 23°
Outside: 46°

To compensate the bending
angle

Installation of equivalent
length shaft

Rear drive
shaft

Joint type

Inside: Cross groove joint
Outside: Ball joint

Max. allowed angle

Inside: 23°
Outside: 23°

Rear differential
carrier

Type

Independent Rear Drive Axle
(IRDA)

Reduction gear type

Hypoid gear

Gear reduction ratio

2.93

Diameter of gear

Ø152 mm

Oil type

Hypoid gear oil
(SAE 75W/90)

Final drive gear backlash

0.10 to 0.15 mm

Differential gear backlash

0 to 0.076 mm

Propeller shaft

Joint type

PTU side: CV joint
Rear axle side: Rubber coupling

Sliding distance

±25 mm or more

Unbalance

80 g.mm or less at 3,000 rpm

Total runout

0.3 mm or less

4WD

only
