SsangYong Korando III (2010 year). Manual - part 224

03-9

3190-01

2) Internal Configuration

03-10

3) Schematic Diagram

4) Gear Ratio

Item

Speed gear

Final gear

Total gear

ratio

Number of

teeth

Gear ratio

Number of

teeth

Gear ratio

Input

Output

Input

Output

1st

13

46

3.538

13

59

4.538

16.059

2nd

22

42

1.909

8.664

3rd

28

33

1.179

5.349

4th

43

35

0.814

3.694

5th

38

28

0.737

15

59

3.933

2.898

6th

43

27

0.628

2.47

Reverse

13

17

3.91

15.377

24

36

One input gear is used for 1st forward driving and back-up driving.

One input gear is used for 4th and 6th forward driving.

-

-

03-11

3190-01

2. POWER FLOWS

1st speed gear

2nd speed gear

3rd speed gear

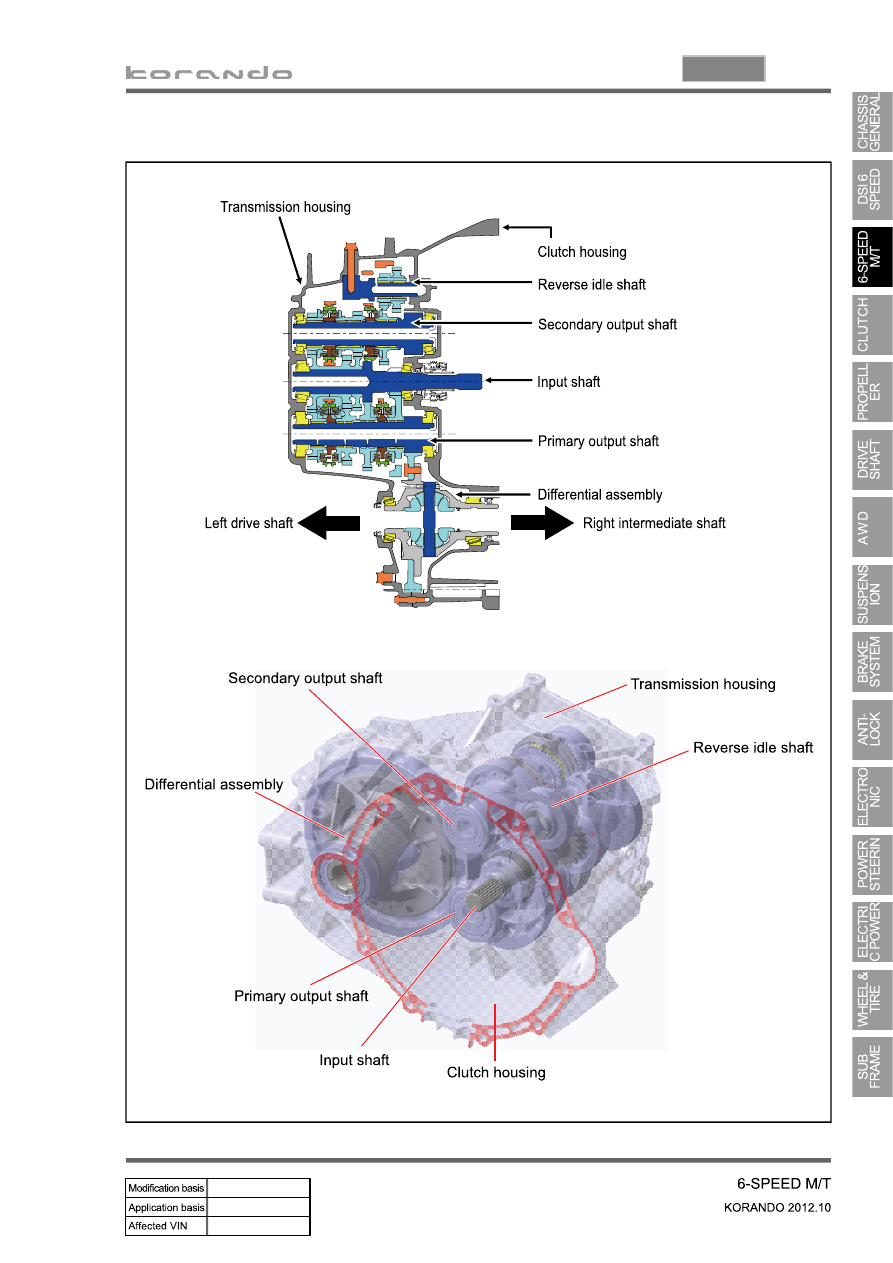

Sectional view of WM6F1 M/T

03-12

Reverse gear

4th speed gear

5th speed gear

6th speed gear
