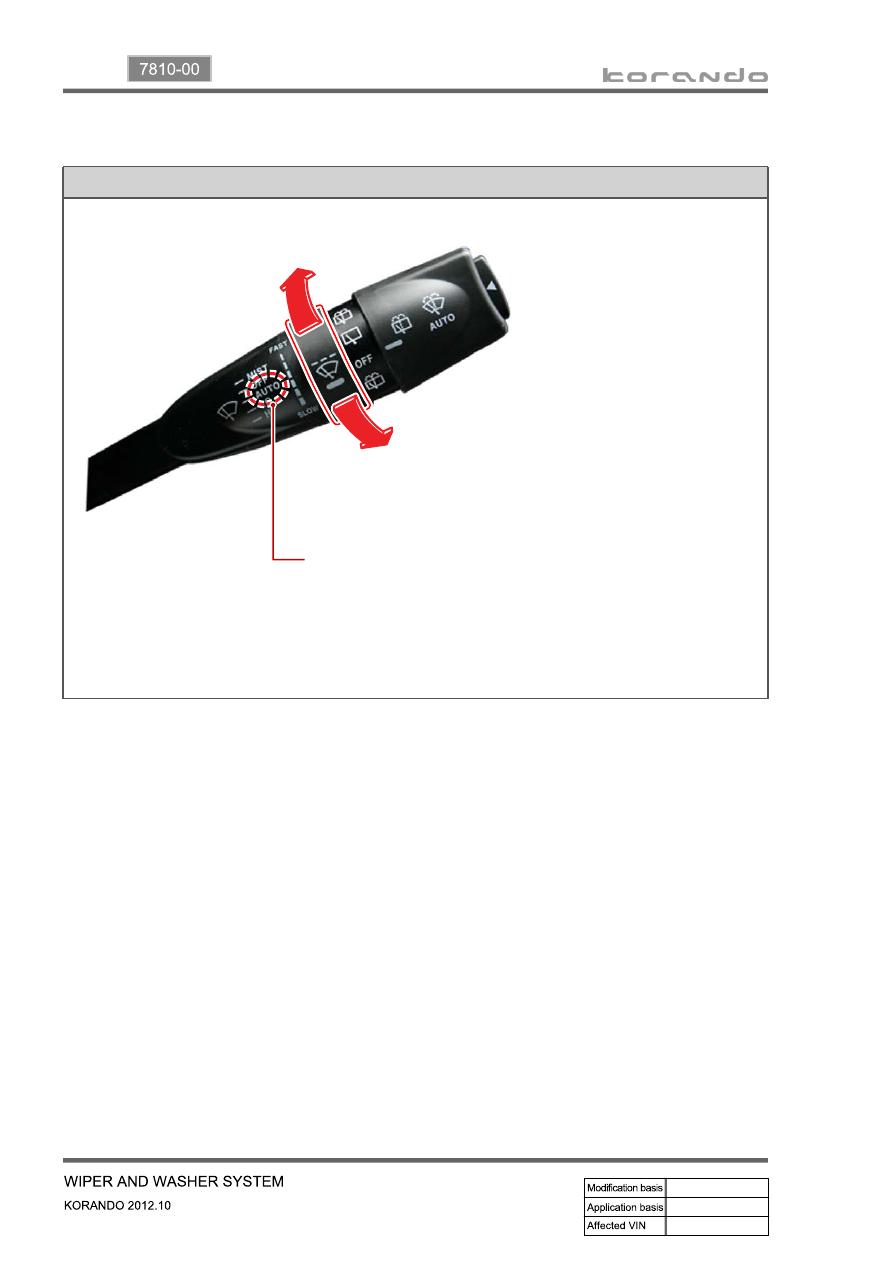

AUTO operation and sensitivity control

5) Rain Sensor Coupled Wiper Control Function

AUTO: Wiper operates automatically by rain sensor

FAST <----> Auto delay/auto speed control

A position that can control sensitivity against rains on the

windshield and transmits wiping demand signal accordingly.

08-21

7810-00

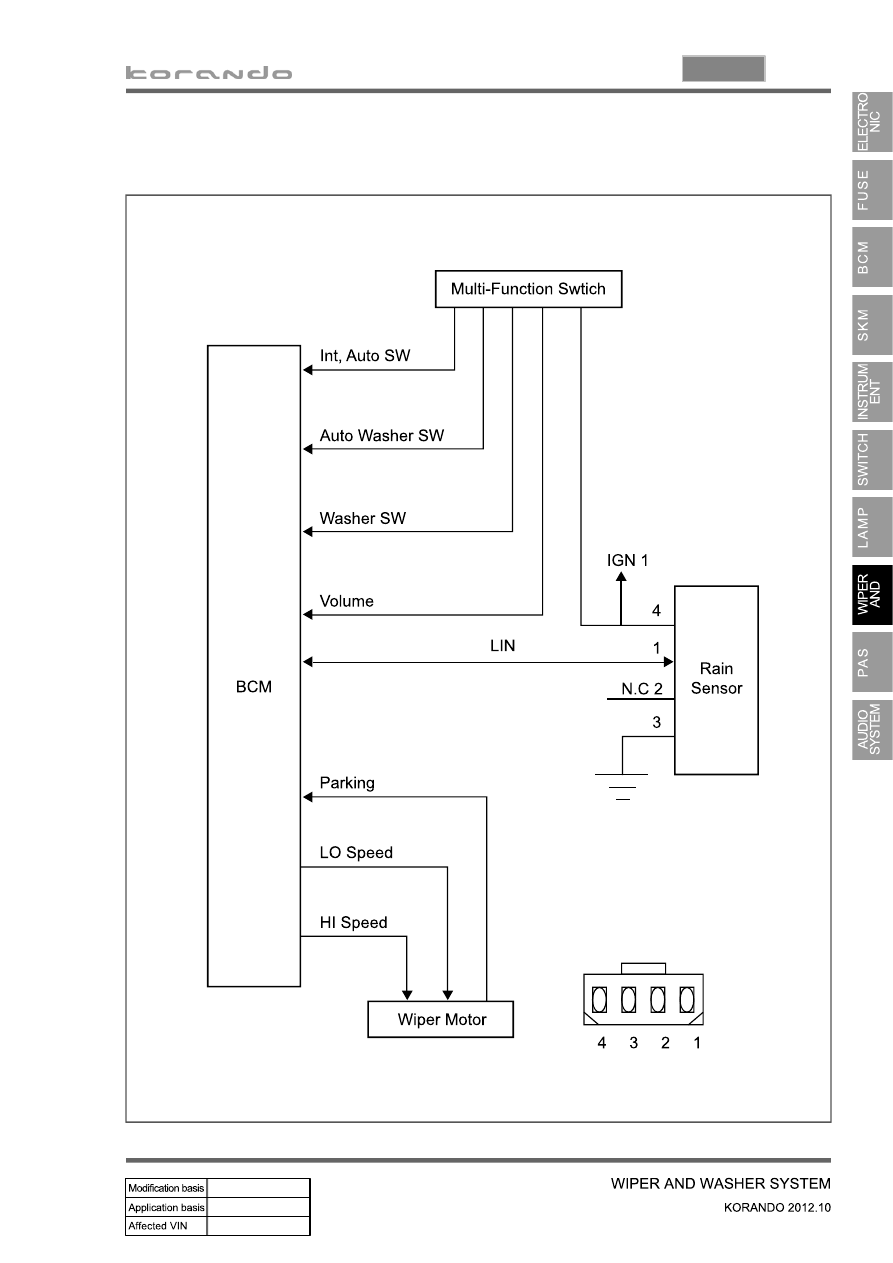

System layout

▶

(1) Rain sensor coupled wiper operation (LIN)

08-22

If the intermittent/automatic wiper switch is in "ON" position, the wiper motor does not operate even

when turning the ignition switch to ON from OFF position.

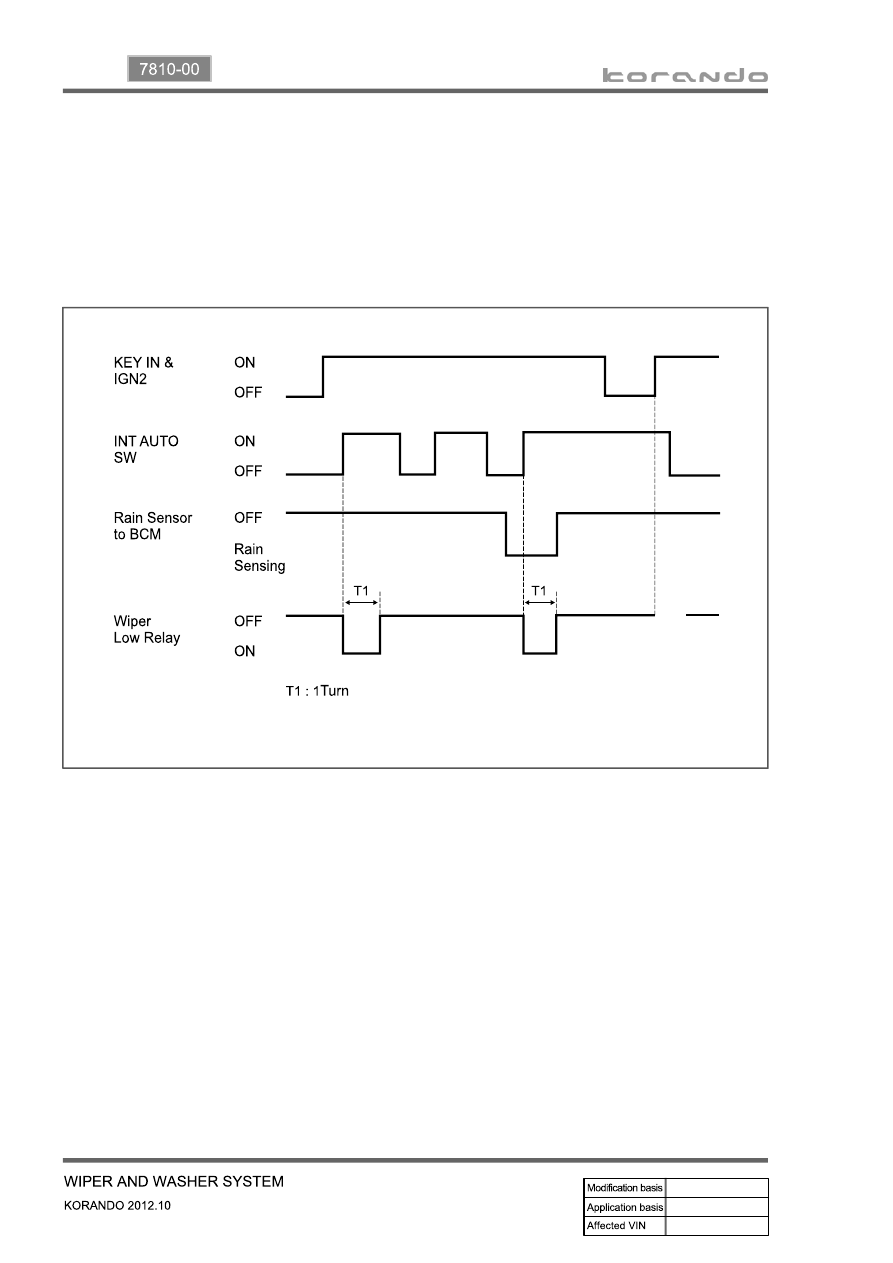

When the INT/AUTO wiper switch is turned on from off with the ignition switch ON, the wiper is

operated at low speed for the 1st cycle regardless of the rain sensor signals. After that, if the

INT/AUTO wiper switch is turned on from off, the wiper cycles one time at low speed only when the

rain sensor detects the presence of rain.

1.

2.

(2) Power-up reminder wiper

08-23

7810-00

When the washer switch signal is received during intermittent operation coupled with rain sensor

with IGN ON and intermittent/automatic

washer switch operation, the wipers operate in washer coupled mode regardless of the

communication with the rain sensor. However, if the washer switch

signal is received the washer relay is activated and wiper relay remains activated,

when the data coupled with rain sensor indicates continuous wiper operation.

Even though the wiping system is in washer coupled wiper mode, the operating data are sent to

rain sensor.

1.

2.

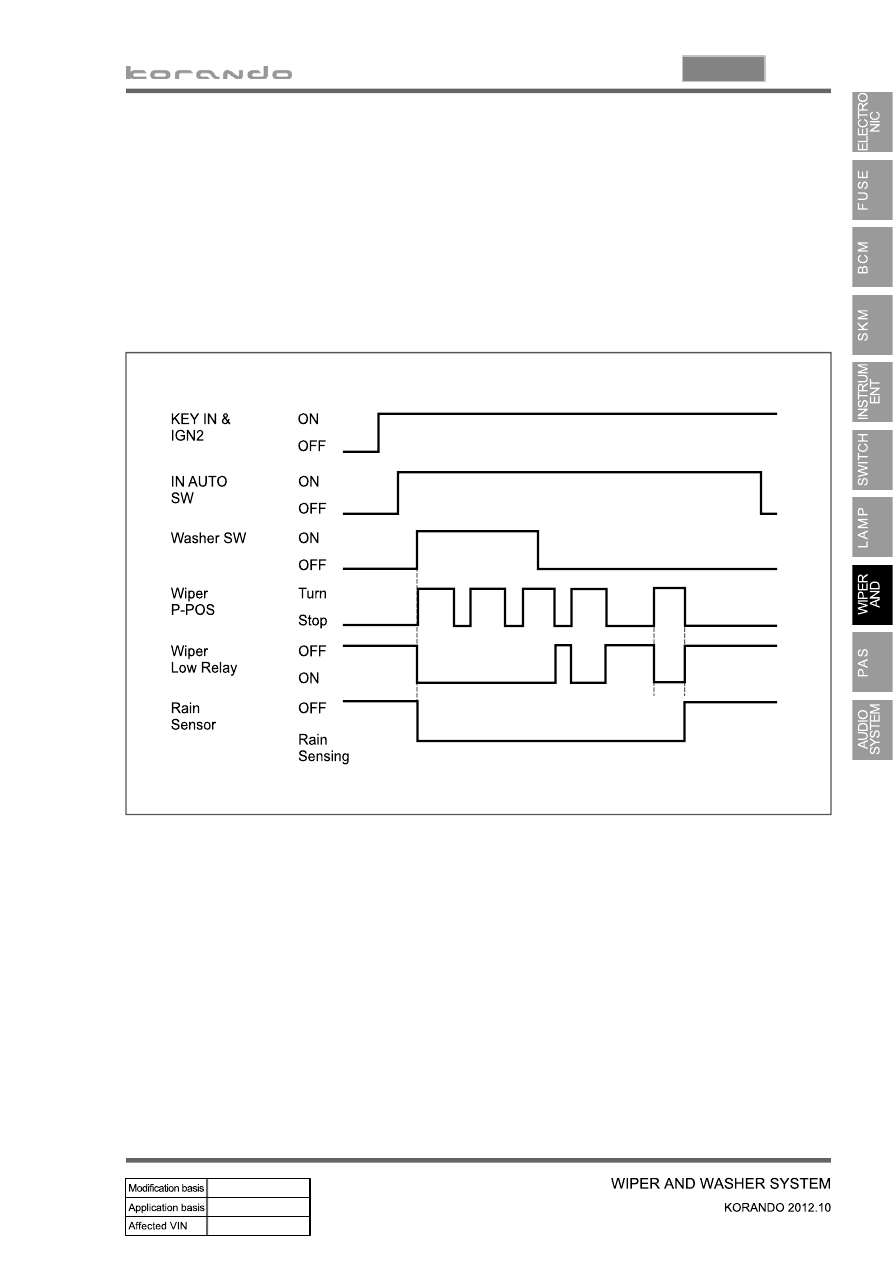

(3) Washer coupled wiper operation during rain sensor coupled operation
