08-24

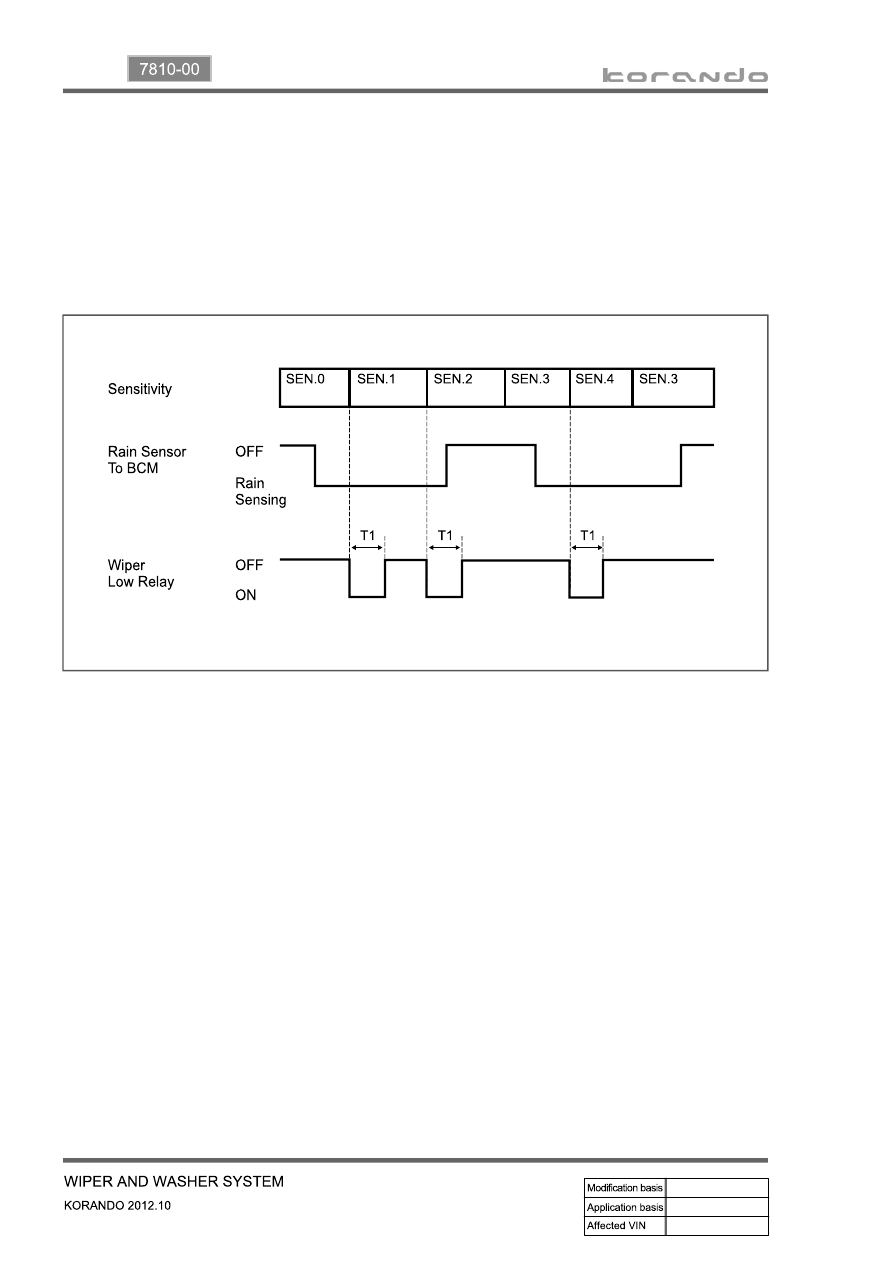

When the wiping speed control switch is turned to "FAST" with IGN2 ON, intermittent/automatic wiper

switch in "ON" position and wiper motor stop (parking position), the wiper motor operates one cycle at

low speed.

(only when the rain sensor detects raindrops)

If the wiping speed control switch is changed more than 2 stages within 2 seconds, the wiper motor

operates only one cycle.

1.

*

(4) Sensitivity control (instant wiping)

08-25

7810-00

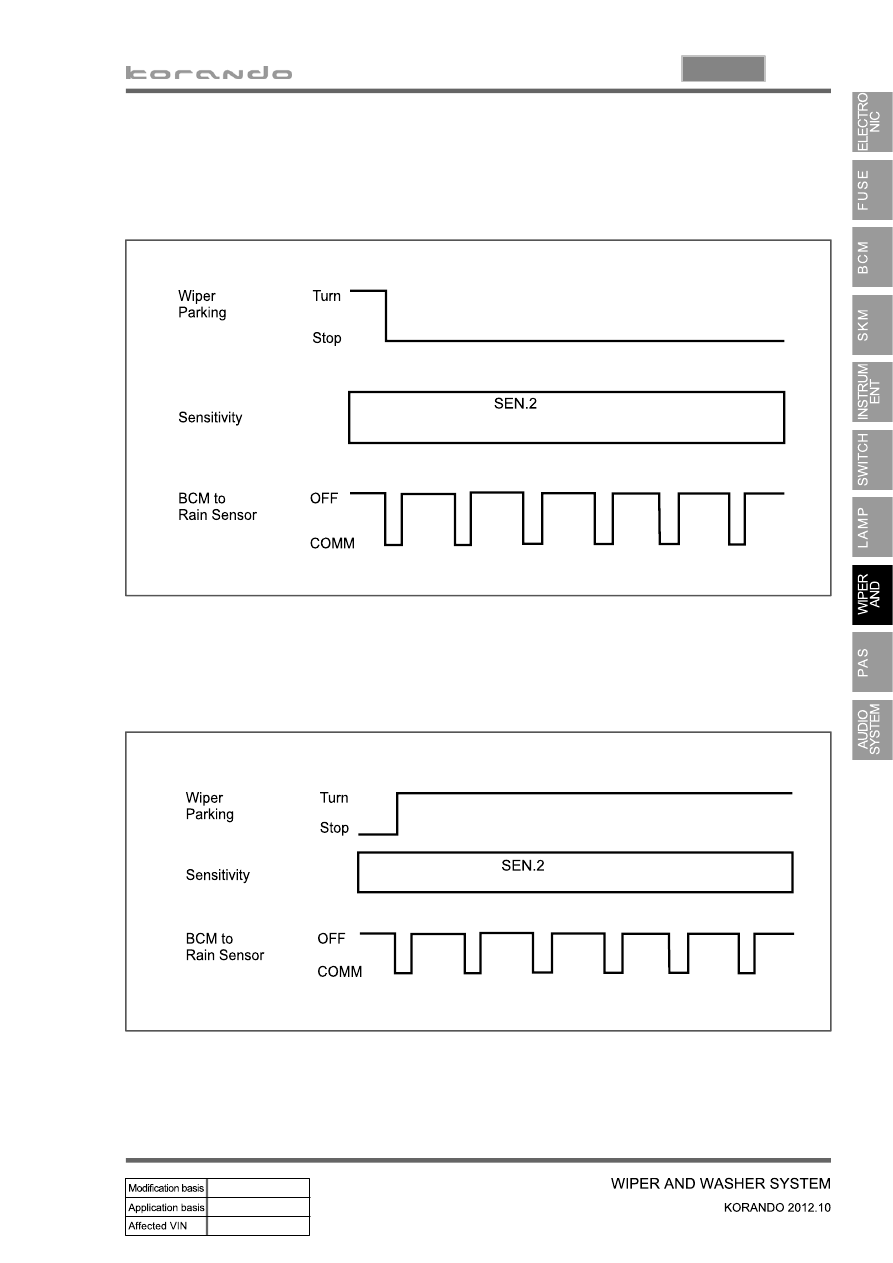

When the parking terminal is shorted to power with IGN2 ON and intermittent wiper switch in "ON"

position, the wiper system sends the signal for current wiping status for 2 seconds. After that, it

sends the current signal for parking status continuously.

* The wiper motor is operated only when there is a request from the rain sensor.

2.

The wiper system sends continuously the signal for current status when the wiper parking terminal

is shorted to ground with IGN2 ON and intermittent wiper switch in "ON" position.

* The wiper motor is operated only when there is a request from the rain sensor.

1.

(5) For abnormal wiper parking signal

08-26

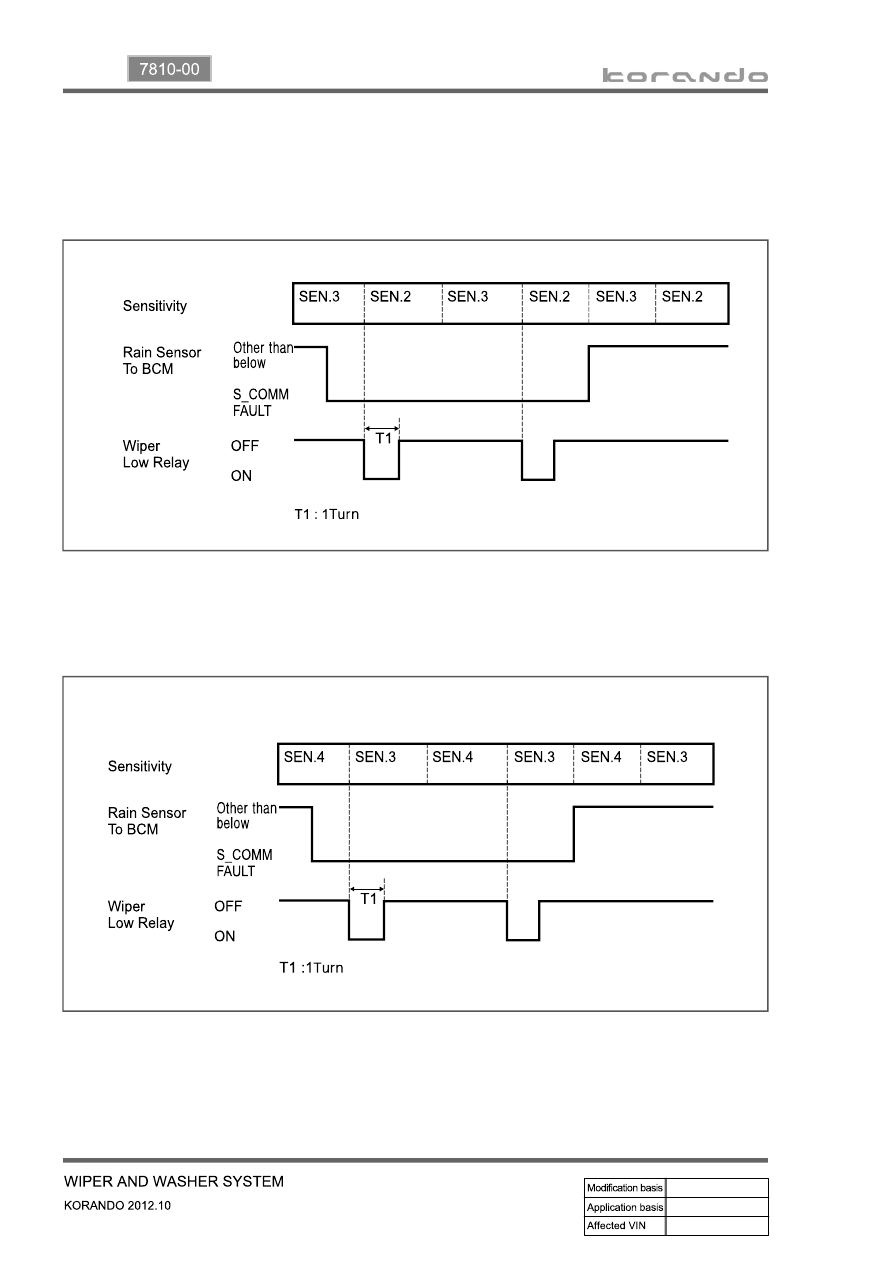

When the wiper speed control switch is turned to step 3 from step 4 the wiper motor cycles one time

at low speed, provided that the BCM receives a communication error signal from the rain sensor unit

with IGN ON and the INT/AUTO switch ON.

2.

When the wiper speed control switch is turned to step 2 from step 3 the wiper motor cycles one

time at low speed, provided that the BCM receives a faulty sensor signal from the rain sensor unit

with IGN ON and the INT/AUTO switch ON.

1.

(6) For faulty rain sensor

08-27

7810-00

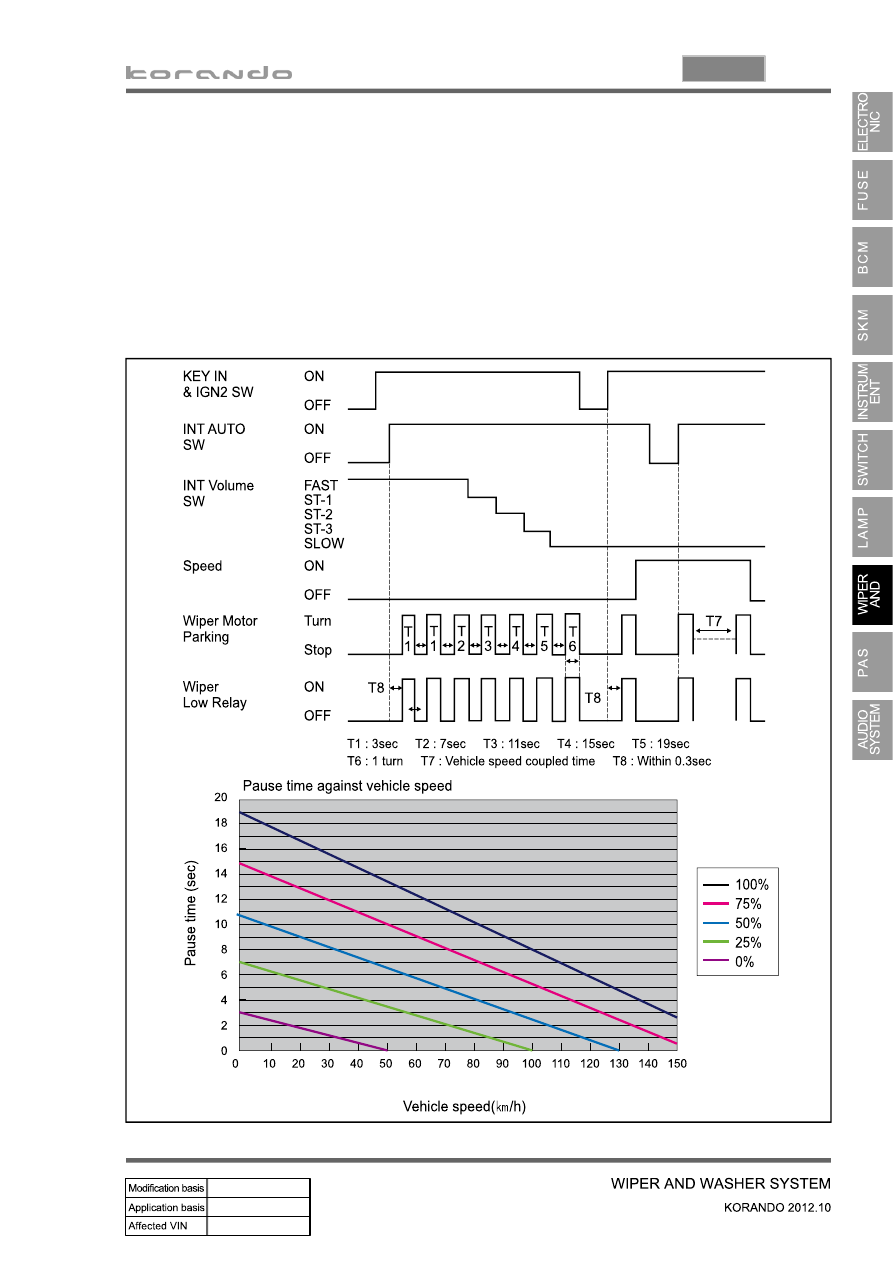

For the vehicles without rain sensor, the BCM operates the wiper as follows:

When turning the ignition switch to ON from OFF position with the intermittent wiper switch in "ON"

position, the wipers do not operate.

When turning the wiper switch to ON from OFF position after turning the ignition switch to ON position,

the wipers operate one cycle.

The wiper's operation cycle depends on the vehicle speed (CAN communication with instrument

cluster) and wiping speed the side fascia panel.
- Wiping cycle: 3 ± 0.5 sec. (FAST) to 19 ± 2 sec. (SLOW)

1.

2.

3.

(7) Speed sensitive intermittent wiper
