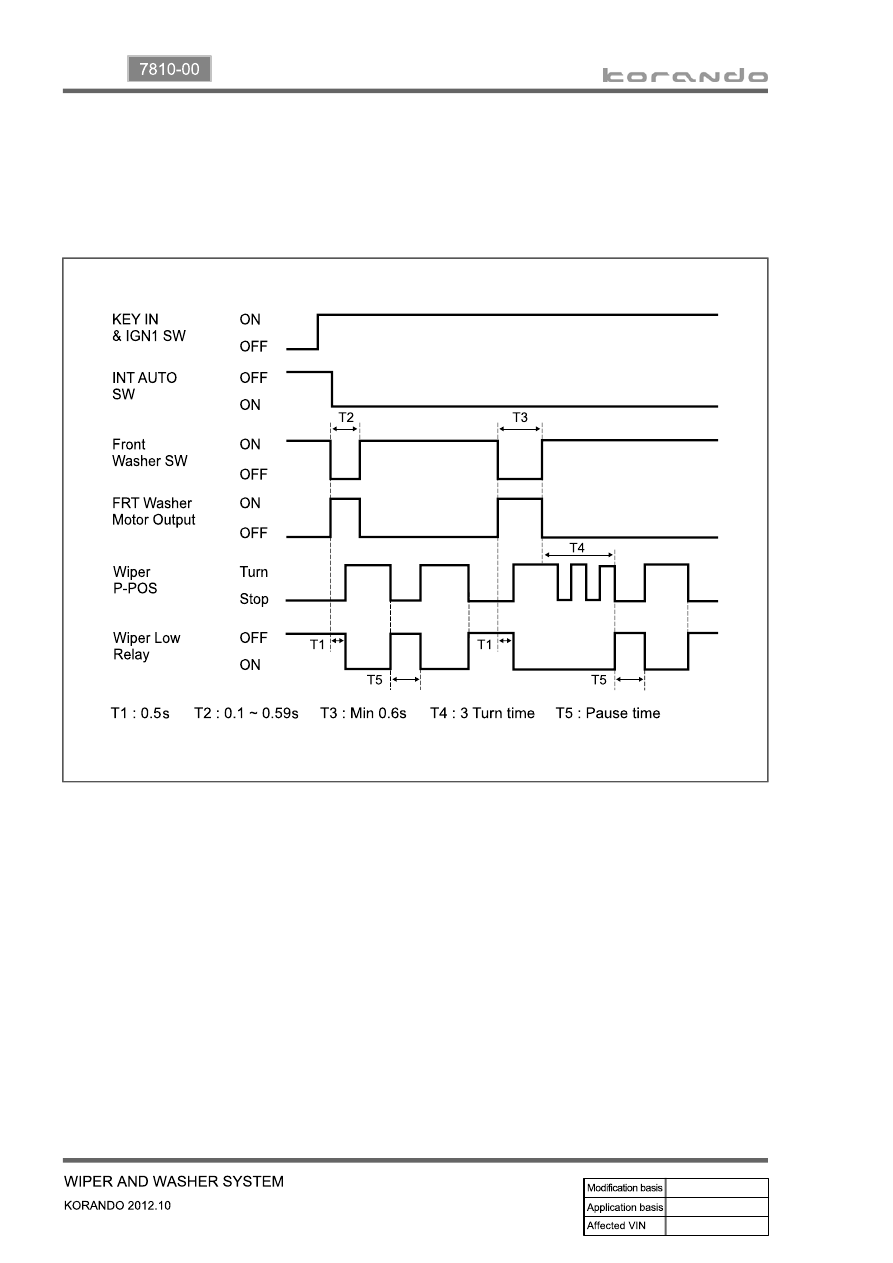

When holding the front washer switch at ON position for 0.1 to 0.59 seconds during the wiper

operation by the intermittent/automatic wiper switch, the wiper will operate only once. When holding

the washer switch for more than 0.6 seconds, the wiper relay is activated 0.5 seconds after. The

wiper stops after three more wipes since that the washer switch is turned to "OFF" position.

2.

08-17

7810-00

When the AUTO washer switch is operated with IGN ON and the INT/AUTO switch OFF, the

washer motor is operated for 2 sec. and the wiper continues to cycle 4 times. And then the washer

motor is operated for 2 sec. and the wiper continues to cycle 3 times before returning to park

position.

The auto washer switch signal is overridden during speed sensitive intermittent wiper, washer

coupled wiper or auto washer coupled wiper operation.

When turning the wiper switch to AUTO position during the operation of auto washer, the auto

washer stops its operation and the intermittent/automatic wiping mode will be started.

The front and rear washer switch signal are overridden during the operation of auto washer.

The input from the switch during the AUTO washer coupled wiper operation also is ignored.

1.

2.

3.

4.

5.

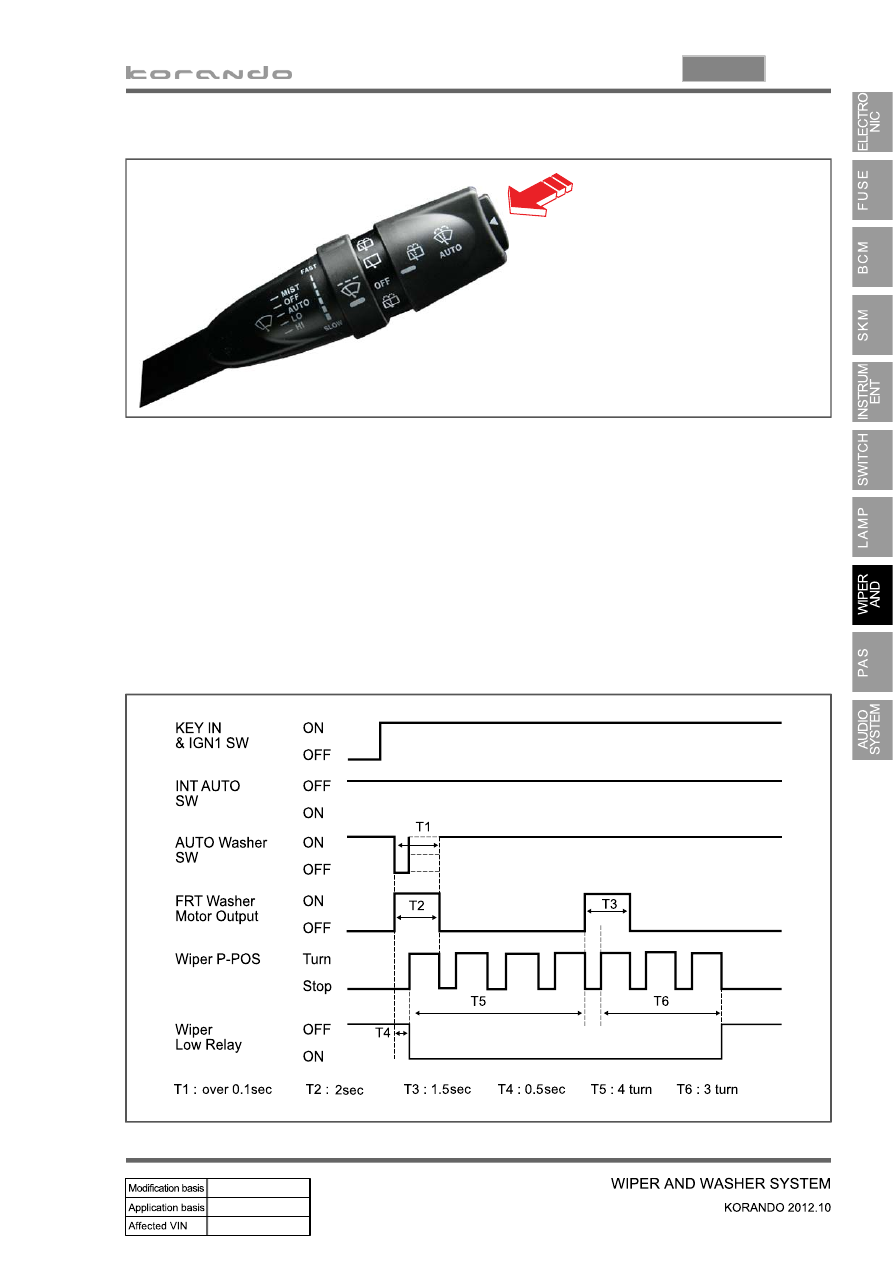

(2) AUTO washer coupled wiper

Auto washer switch

If pressing the switch when the wiper switch turns

to the "OFF" position, washer fluid is sprayed

once and wiper operates 4 times.

After a while, washer fluid is sprayed once more

and the wiper operates 3 times.

08-18

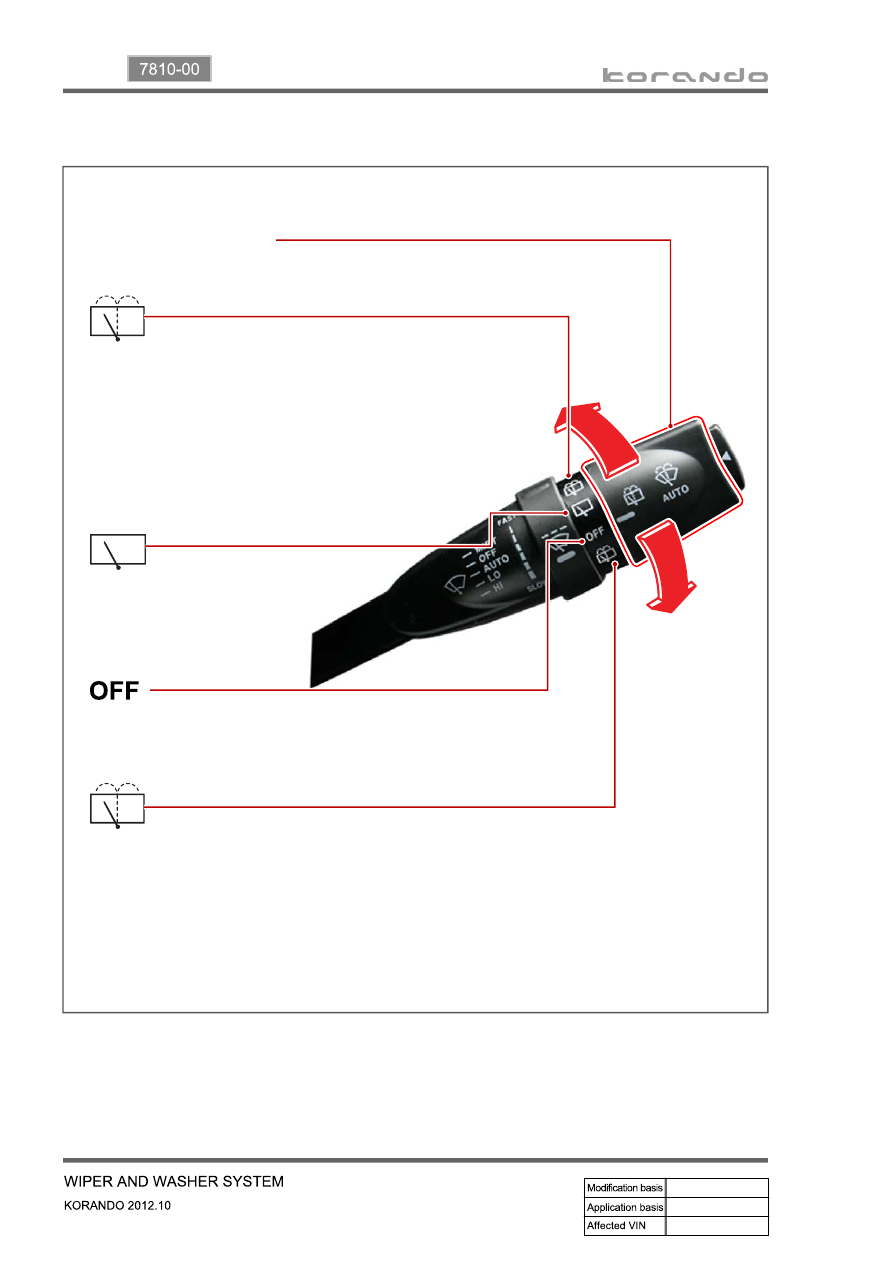

Rear wiper switch

When the switch is fully turned, washer fluid will

be sprayed onto the rear window glass and the

wiper will also operate.

When the switch is released, it will stop in the

Rear Wiper Operation mode and only the wiper

will keep operating.

Rear wiper operation

Rear wiper stops

When the switch is fully turned, washer fluid

will be sprayed onto the rear window glass

and the wiper will also operate. When the
switch is released, it will return to the “OFF

position and turn off the wiper and washer.

3) Rear Wiper Control Function

08-19

7810-00

4) Rear Washer Control Function

The rear washer motor is operated only when the rear washer switch is activated with the ignition

key ON.

If the front washer or automatic washer switch signal is received during the rear washer switch

operation, the washer motor stops and the front washer or automatic washer motor begins to

operate.

1.

2.

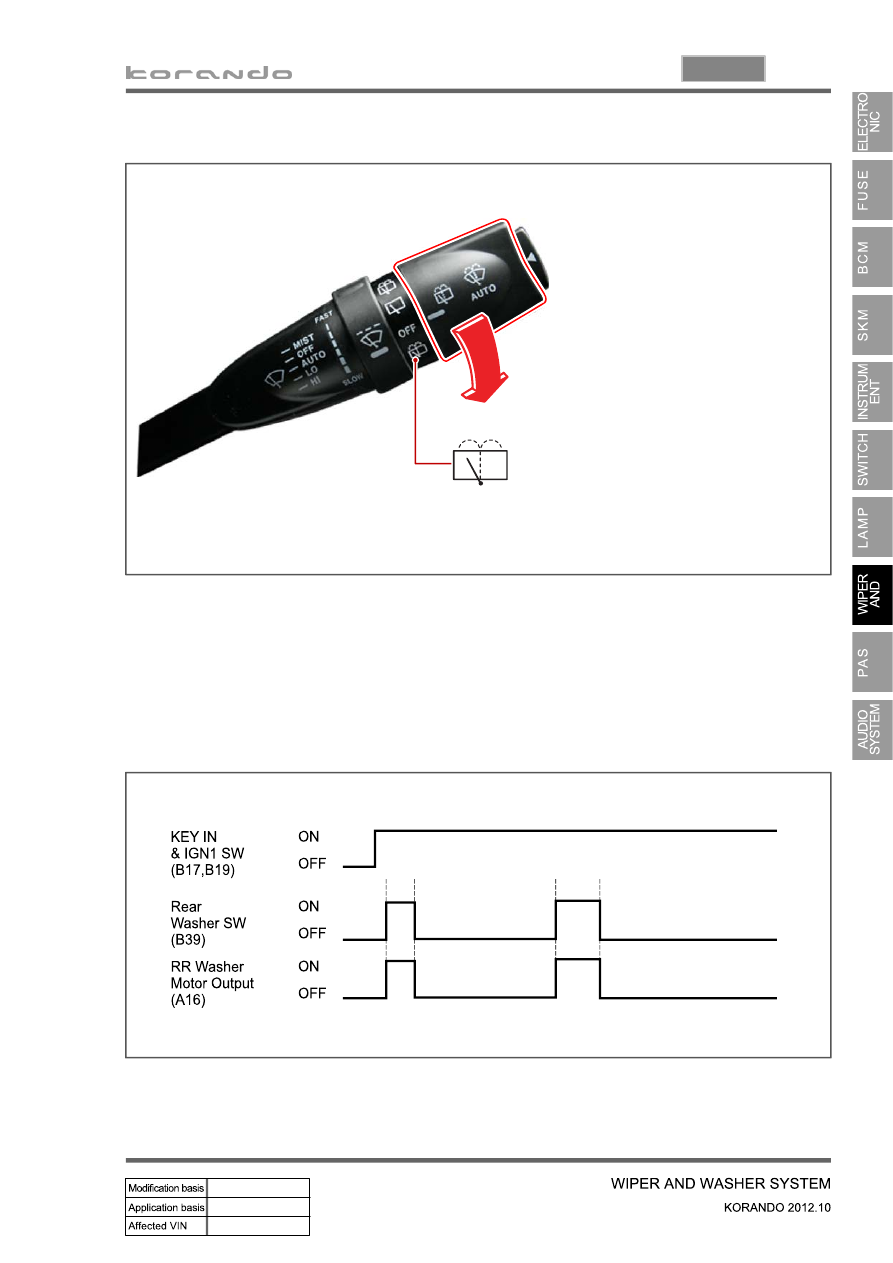

Rear washer motor control

▶

When the switch is fully turned, washer fluid

will be sprayed onto the rear window glass

and the wiper will also operate. When the
switch is released, it will return to the “OFF"

position and turn off the wiper and washer.
