08-12

4. WIPER AND WASHER OPERATION

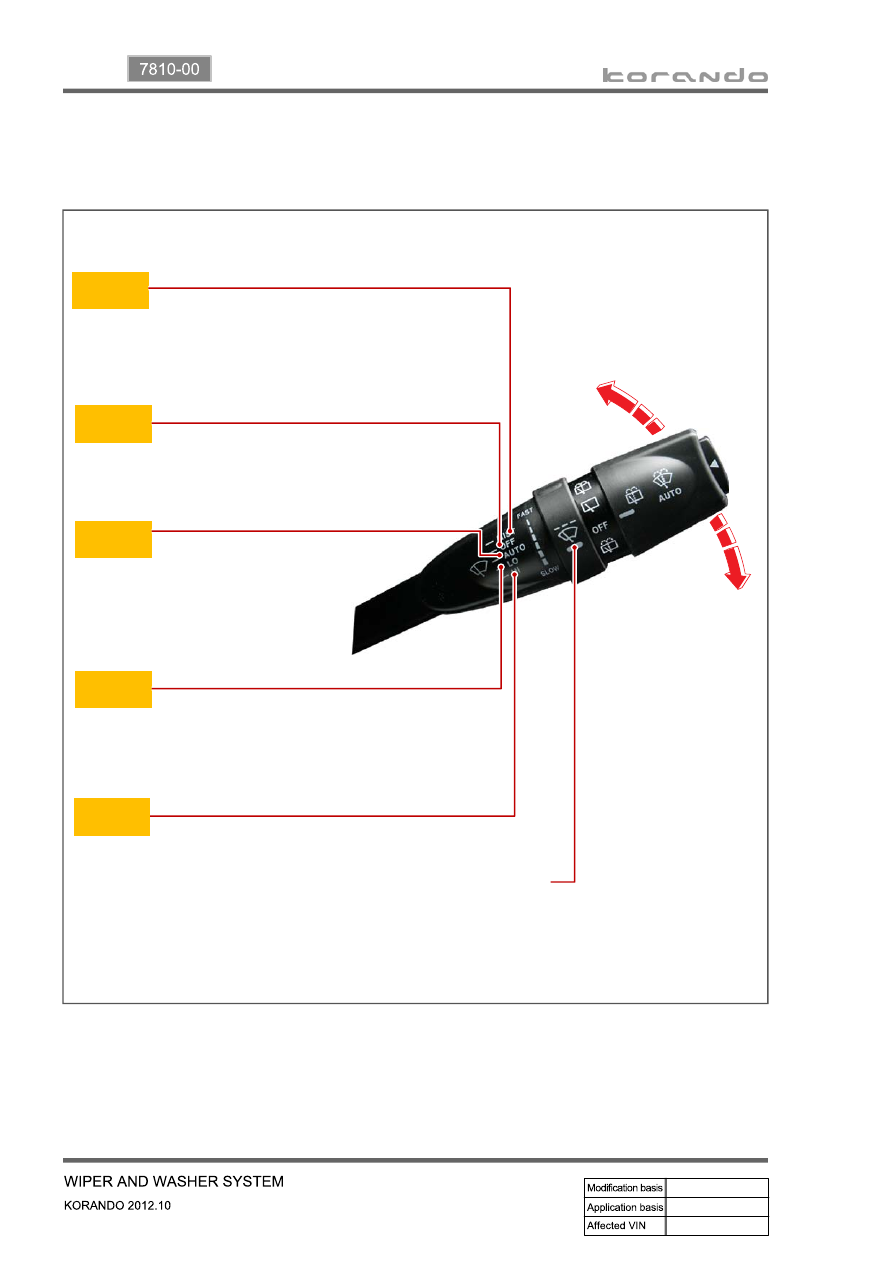

1) Windshield Wiper Control Function

The wiper operates for 1 cycle when pushing

up the lever. The lever will return to the "OFF"

position when released.

Wiping speed control switch

When turning to FAST, wiping speed gets faster and when

turning to SLOW, wiping speed gets slower.

Stop the operation.

Wiper speed controls automatically

according to the vehicle speed or

amount of rain (rain sensing wiper).

Wiping speed gets faster

when placing the pointer at

the "HI" position.

Wiping speed gets slower when placing

the pointer at the "LO" position.

MIST

OFF

AUTO

LO

HI

08-13

7810-00

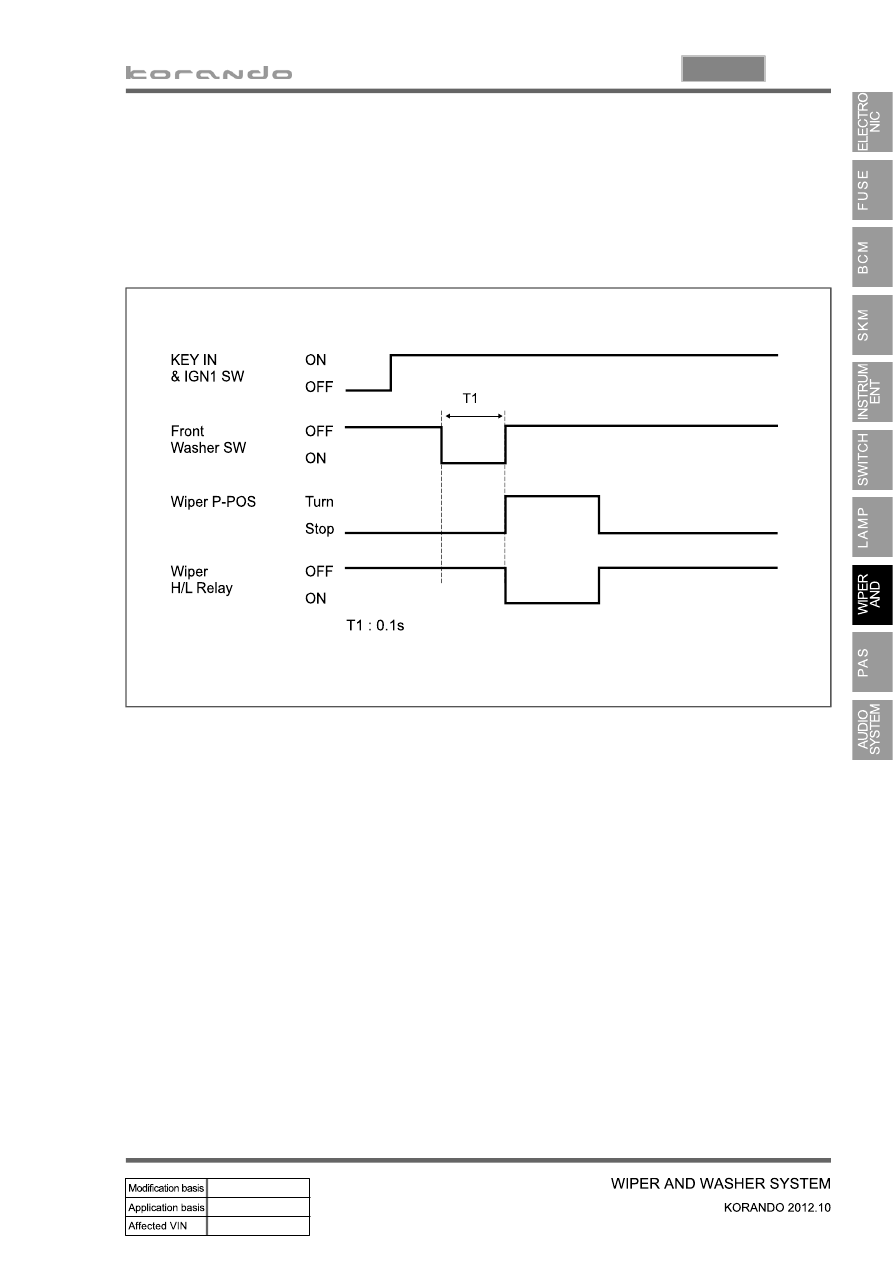

(1) Wiper mist

When the multifunction switch is pushed to the MIST position for 0.1 sec. or more with the IGN1 ON,

the wiper relay is turned on after 0.1 sec. has passed. When the wiper returns to the park position, the

wiper relay is turned off.

When the MIST switch signal is input the wiper is operated at high speed. When the switch is release

from the MIST position, the wiper is operated at low speed.

1.

2.

08-14

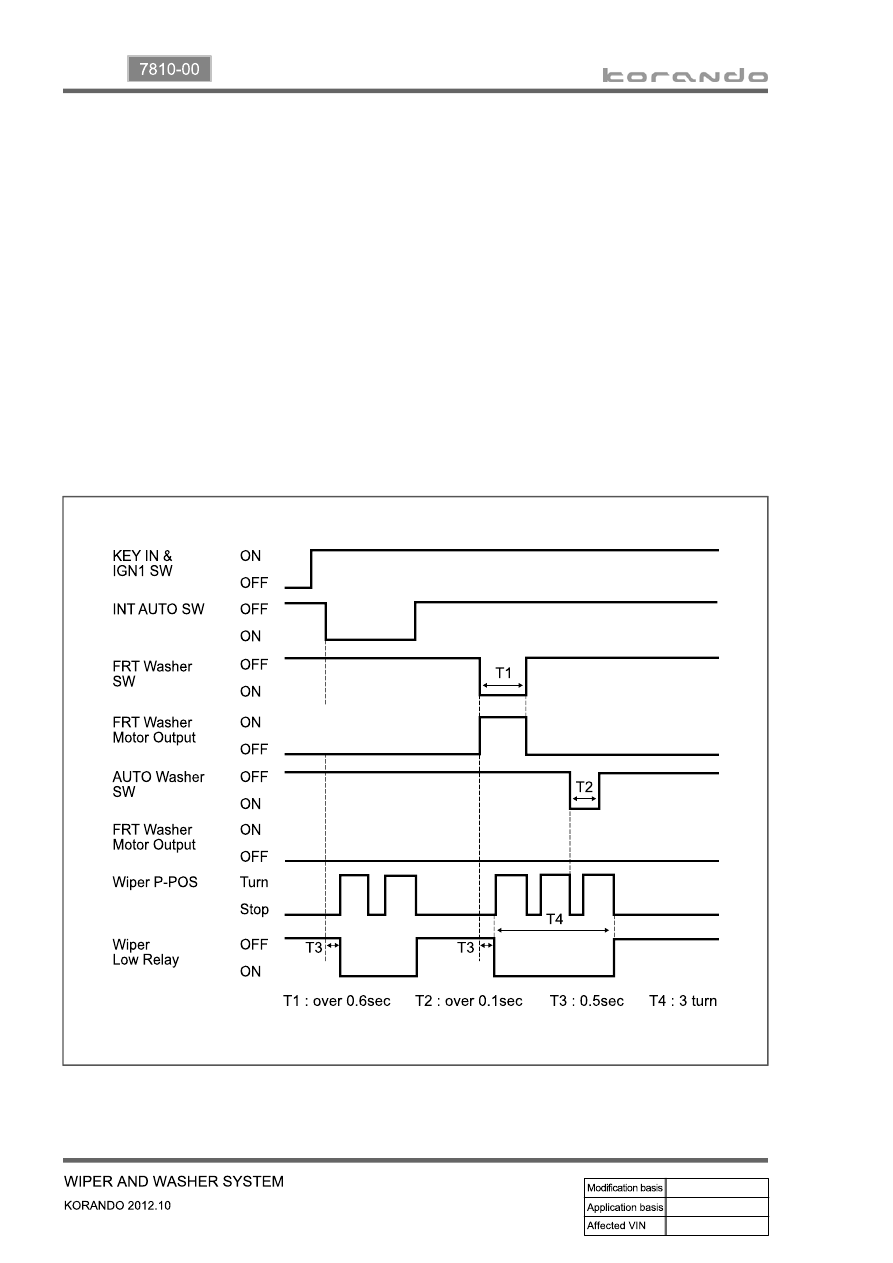

(2) Wiper LO/HI control

The wiper LOW relay is turned on when the multifunction wiper switch is at the LO position. The wiper

HIGH relay is turned on when the wiper switch is at the HI position. When the wiper switch is at the HI

position, both the LOW relay (constant operation) and HIGH relay are operated.

The wiper motor returns to parking position and stops, even when turning off the ignition switch during

wiper operation.

The wiper relay should stay ON in low/high wiper operation mode even if the parking signal for the

wiper motor is not received. In INT/AUTO wiper operation mode, the wiper relay should be turned

OFF after 5 seconds if there is no parking signal for the wiper for 3 seconds and informs the driver of

parking position signal abnormality.

While the wiper operates at low/high speed, the front/rear washer switch can be operated but the auto

washer switch cannot.

The wiper motor returns to parking position and stops when turning off the ignition switch during wiper

operation in high mode.

1.

2.

3.

4.

5.

08-15

7810-00

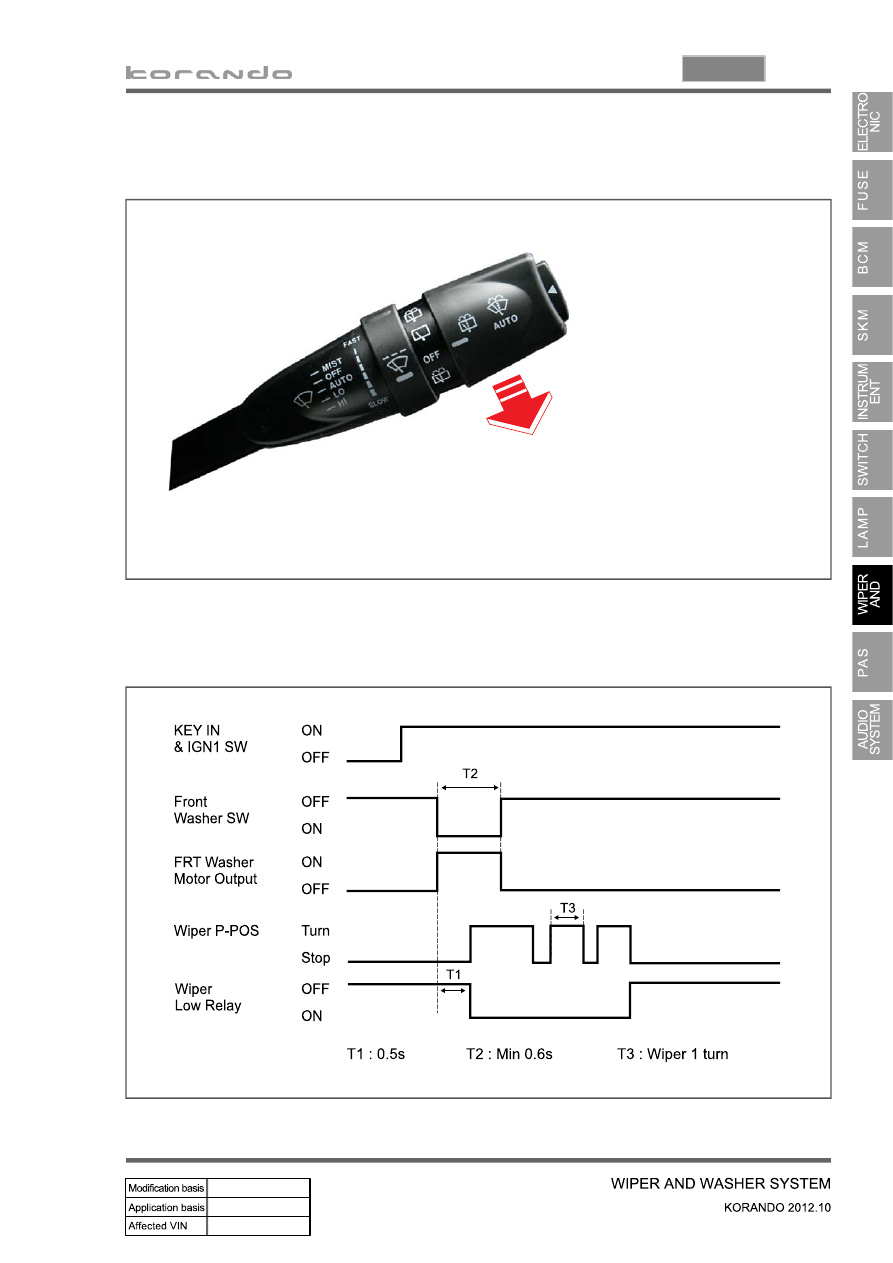

When holding the front washer switch at ON position for more than 0.6 seconds with IGN ON, the

wiper relay is activated 0.5 seconds after. The wiper stops after three more wipes since that the

washer switch is turned to "OFF" position.

1.

2) Windshield Washer Control Function

(1) Windshield washer coupled wiper

Wiper and Washer Coupled Operation

Pull the switch briefly (for less than 0.6 sec.)

: One wiping cycle

Pull and hold the switch for more than 0.6 sec.

: Three wiping cycles with washer fluid spray
