07-9

8310-00

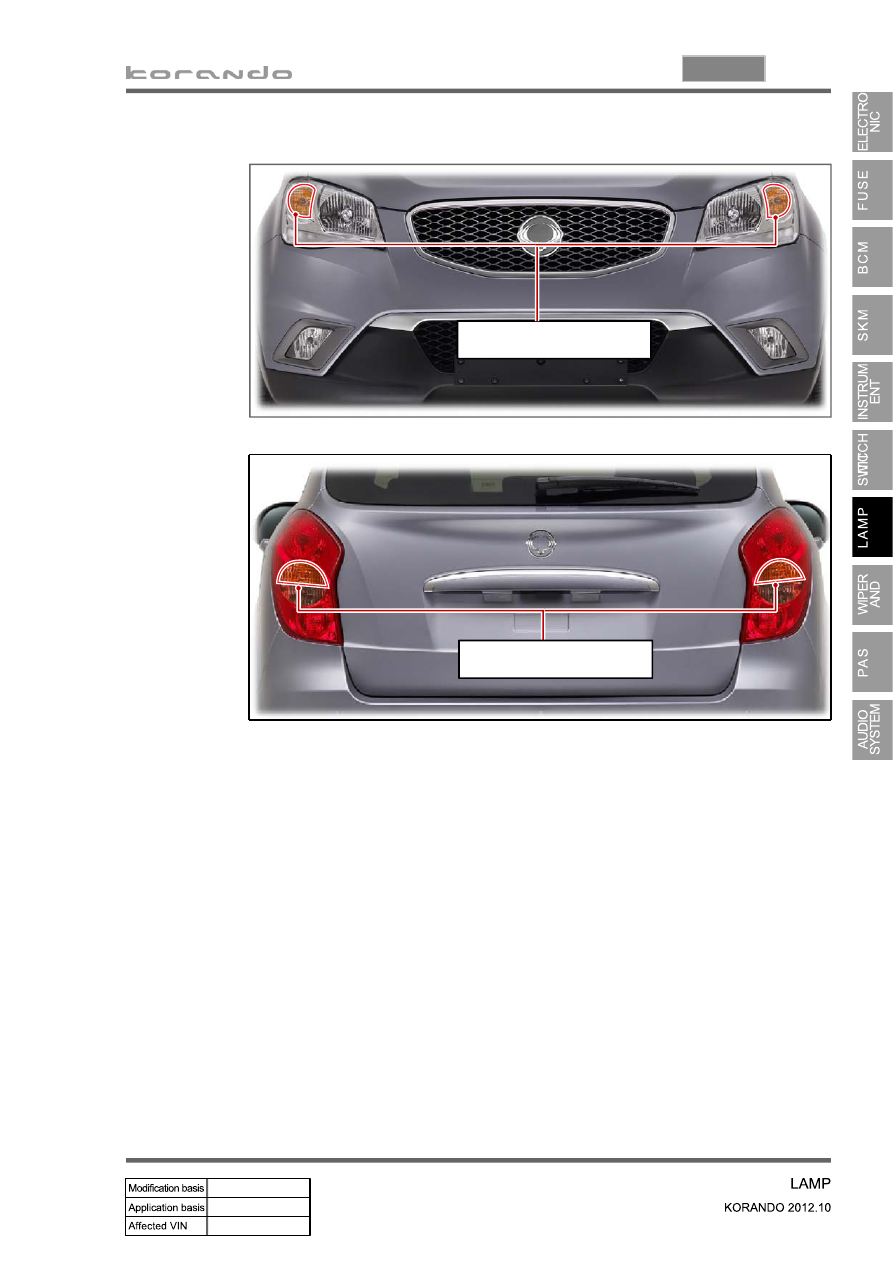

Turn signal lamp

Rear

▶

Front

▶

(4) Turn signal lamp / Side repeater lamp

The turn signal lamp is operated by the BCM when the BCM receives a signal from the multifunction

switch. The BCM cycles the turn signal lamp and buzzer (ON/OFF) 75 times per minute.

The turn signal lamps are operational only when IGN1 is ON.

If the turn signal lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per

minute.

The BCM determines that there is an open circuit if the load is 3.0 A or less, and there is a short circuit if

the load is 7.0 A or more.

When turning ON the turn signal switch, the lamp blinks 3 times by the BCM. When turning OFF the

switch during the operation, the turn signal lamp blinks 3 times and goes off.

When turning OFF and then immediately ON the turn signal switch during auto blinking operation of 3

times, the turn signal lamp blinks additional 3 times.

If one of the turn signal lamp is flashing and the other lamp switch is turned on, the lamp for the activated

switch flashes.

Turn signal lamp

07-10

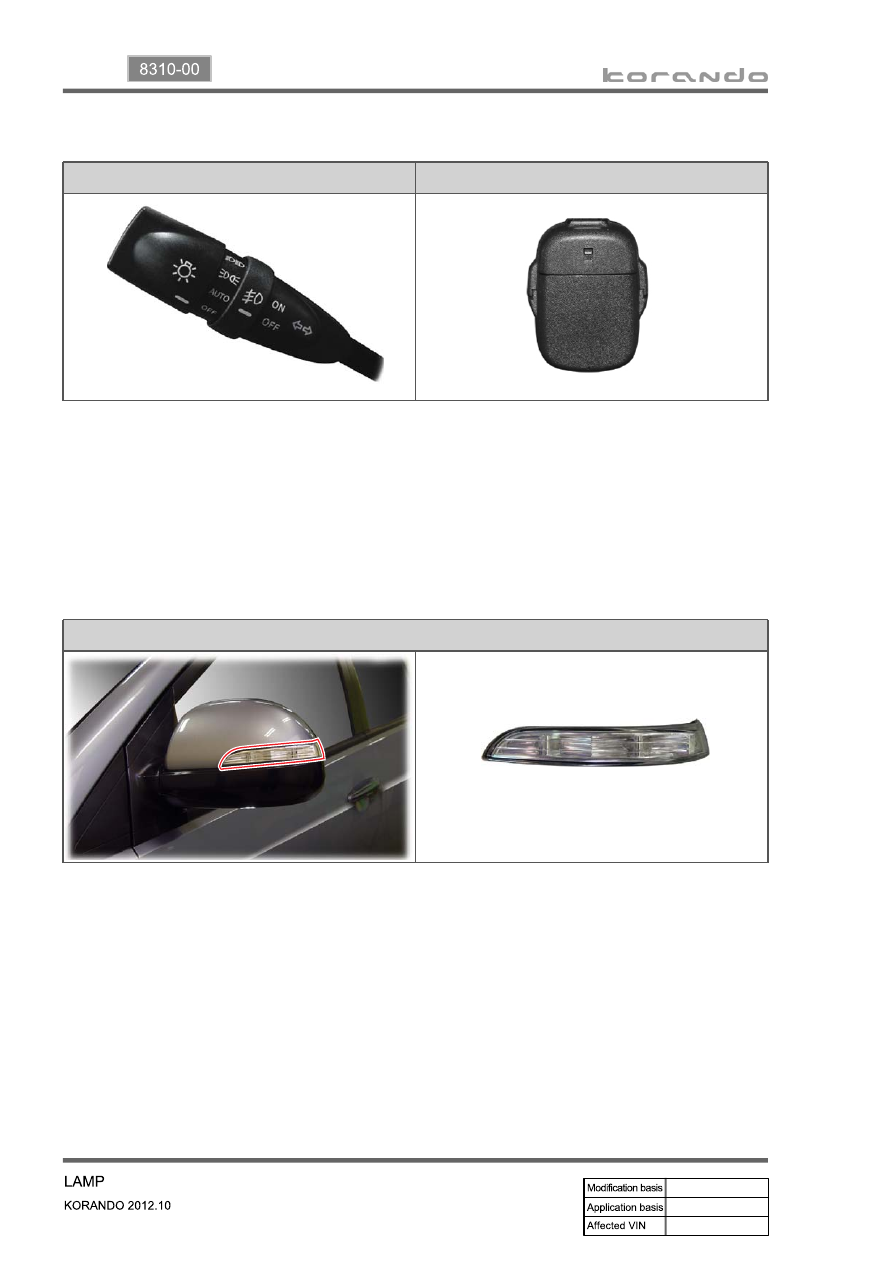

(5) Auto light (LIN)

The auto light sensor unit is installed to the back side of the ECM mirror located upper center of the

windshield, and detects the illuminance change. The BCM communicates with the auto light sensor

when the ignition is turned on, and turns on or off the tail lamp and headlamp automatically according to

the signals from the sensor when the multifunction switch is set to AUTO light.

The BCM communicates with the rain sensor even if the multifunction switch is in tail lamp.

Auto light switch

Automatic light sensor unit

(6) Side repeater lamp

Side repeater lamp

The side repeater lamp is operated by the BCM when the BCM receives a signal from the multifunction

switch.

The BCM cycles the side repeater lamp and buzzer (ON/OFF) 75 times per minute.

The side repeater lamp operates only when IGN1 is ON.

If the side repeater lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per

minute.

The lamp automatically flashes 3 times when the multifunction switch is turned on. If the switch is turned

off

during this operation, the lamp flashes 3 times and then goes off.

If the switch is turned off and then on during the 3 times of automatic flashing, the lamp flashes 3 more

times.

07-11

8310-00

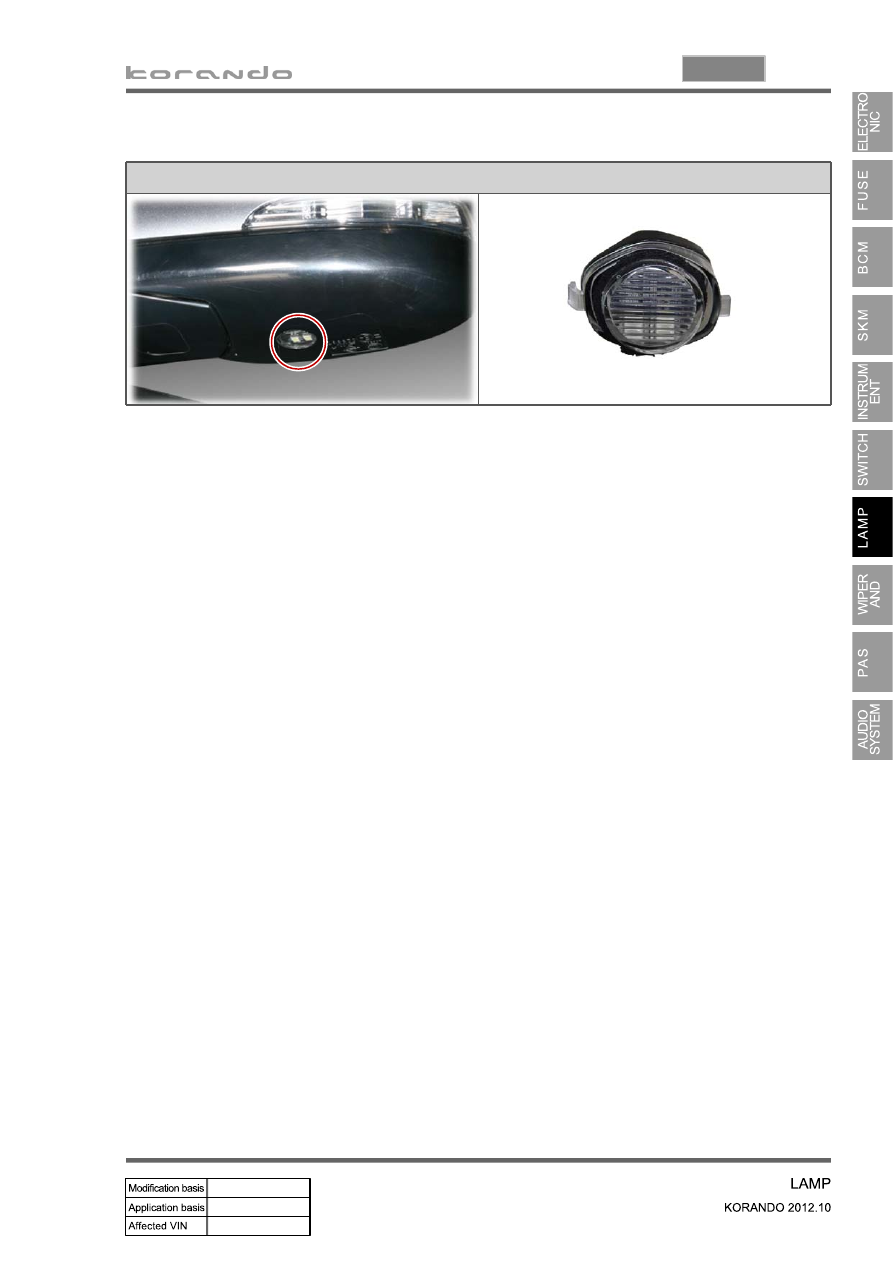

Approach (puddle) lamp

(7) Puddle (approach) lamp

Approach lamp ON

1.

Lamp control for models with SKM

▶

When turning the ignition switch to OFF from ON position and opening the driver door, the

approach lamps come ON.

When receiving the UNLOCK signal from the smart key remote control or outside door handle

switch signal in the theft deterrent mode, the approach lamps come ON for 30 seconds.

When receiving the AUTO approach signal in the theft deterrent mode, the approach lamps come

ON for 30 seconds.

-

-

-

Approach lamp OFF

2.

When receiving the door lock signal from the smart key remote control or outside door handle

switch signal with the approach lamps ON, the lamps go OFF (reactivation of theft deterrent

mode).

When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.

The approach lamps go OFF after 30 seconds.

-

-

-

Approach lamp ON

1.

Lamp control for models without SKM

▶

When receiving the UNLOCK signal in the theft deterrent mode, the approach lamps come ON for

30 seconds.

When turning the ignition switch to OFF from ON position and opening the driver door, the

approach lamps come ON.

-

-

Approach lamp OFF

2.

When receiving the door lock signal with the approach lamps ON, the lamps go OFF (reactivation

of theft deterrent mode).

When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.

The approach lamps go OFF after 30 seconds.

-

-

-

07-12

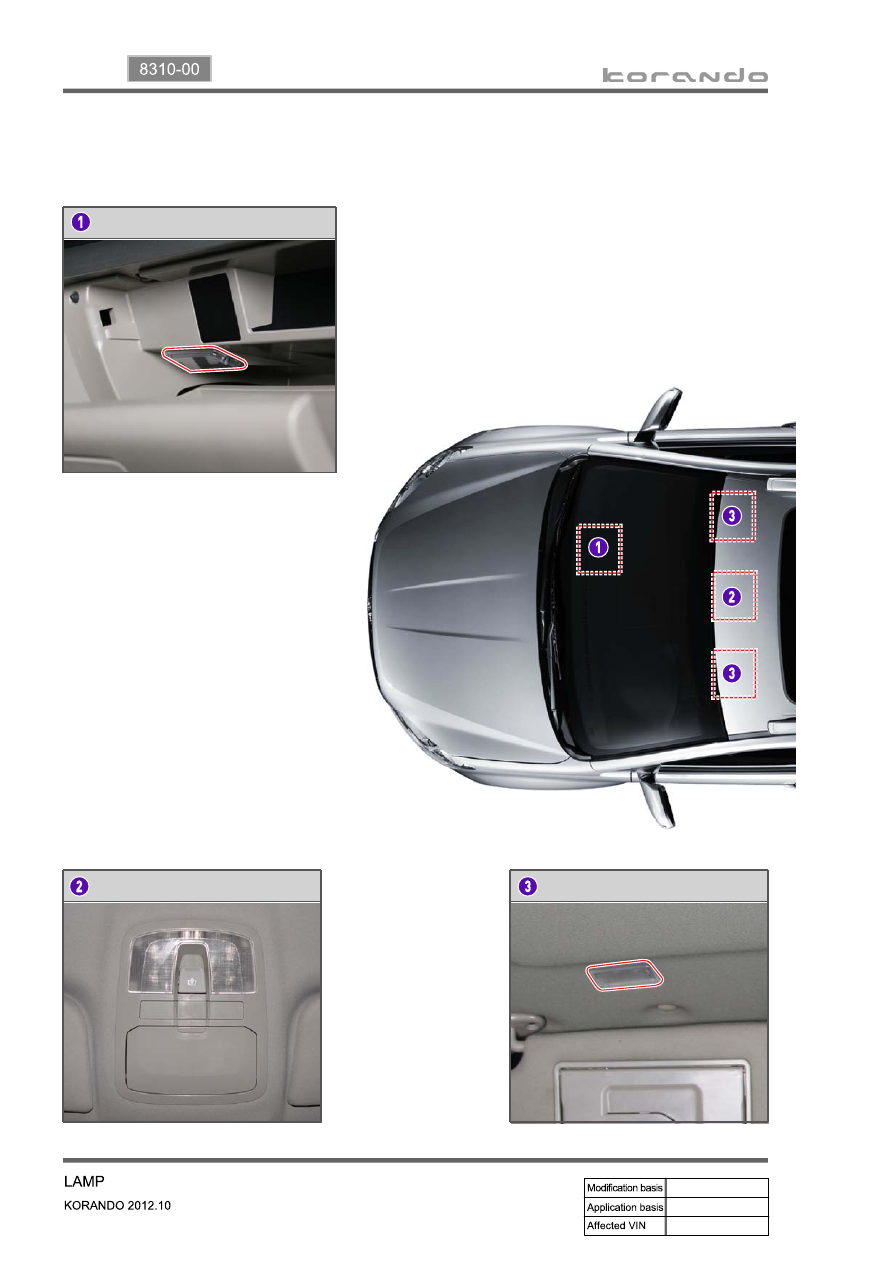

Sun visor lamp

Glove box lamp

Front room lamp

1) Layout

2. INTERIOR LAMPS
