SsangYong Korando III (2010 year). Manual - part 190

07-5

8310-00

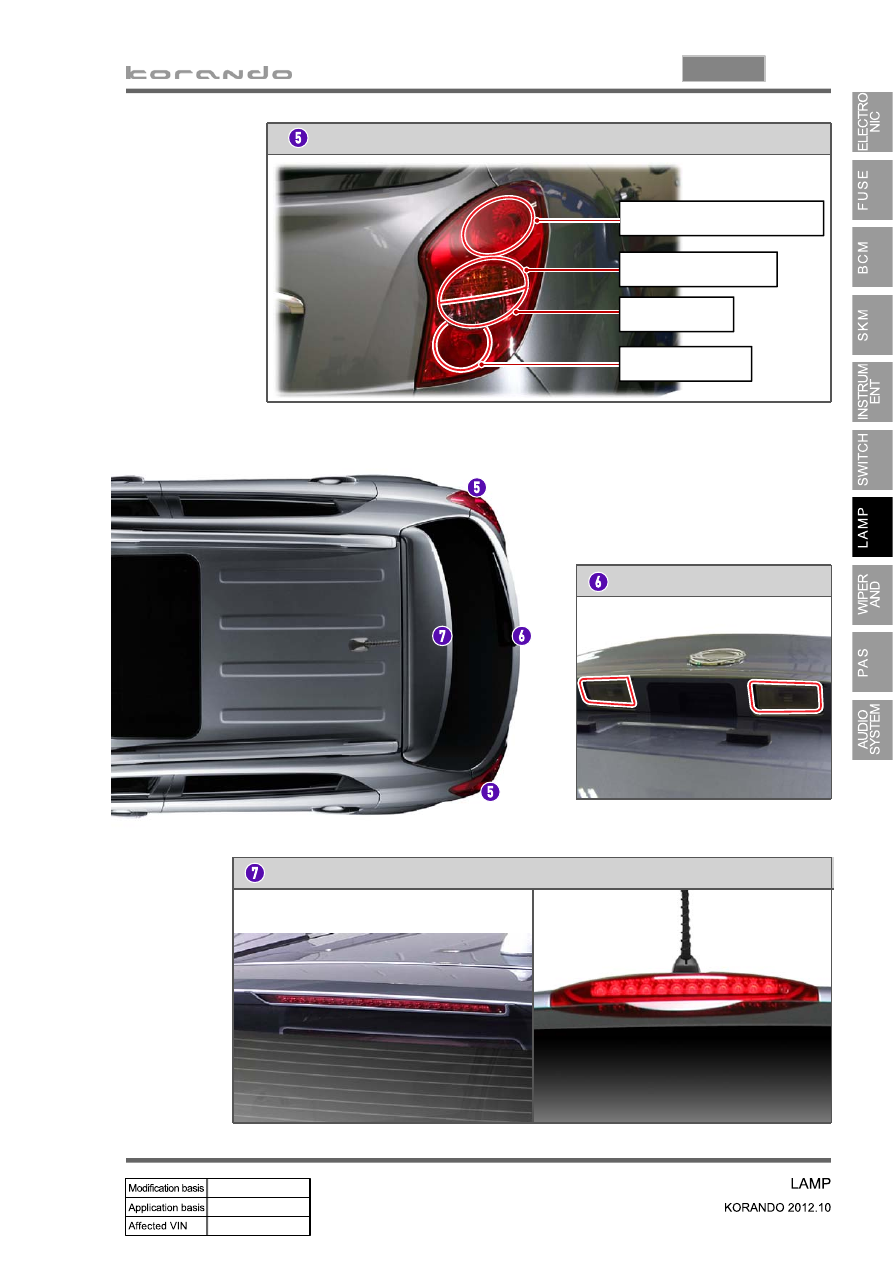

Rear combination lamp

Vehicle without

spoiler

Vehicle with spoiler

License plate lamp

Stop lamp and tail lamp

Rear fog lamp

Turn signal lamp

Backup lamp

High mounted stop lamp

07-6

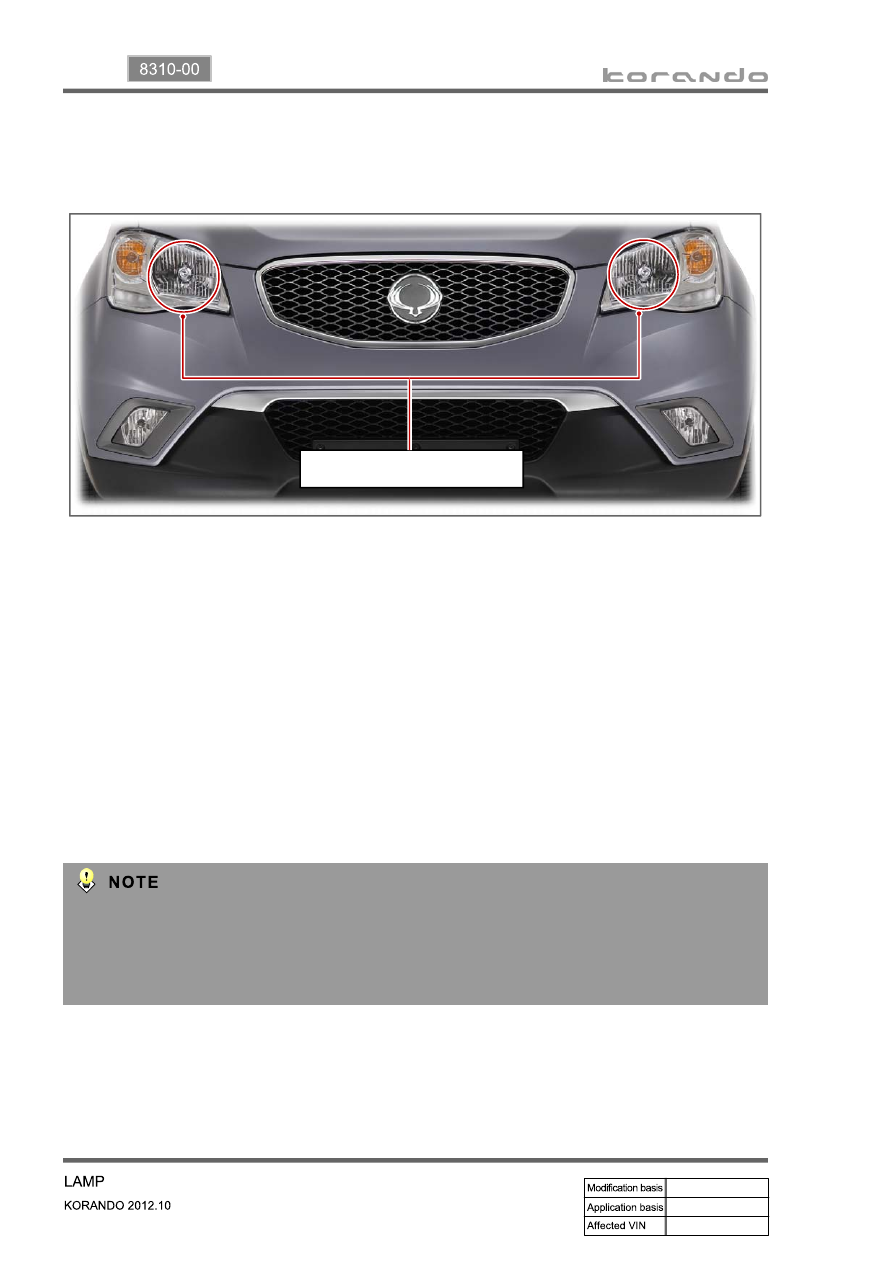

(1) Headlamp

2) Operation

High-beam/low-beam

Most of the functions of the headlamp is controlled by the multifunction switch. The functions performed by

REKES or SMART key are controlled by the BCM.

The BCM controls the headlamp and tail lamp by using the data sent through the LIN communication from

the automatic light sensor when the multifunction switch is in AUTO position.

Control by BCM

▶

Coming home lighting control

1.

The headlamp is illuminated for 30 sec. when the ignition switch is turned on and then off with the

multifunction switch in ON or AUTO.

The headlamp is turned off right after the ignition is turned on. And when all the doors (including

tailgate) are closed the headlamp is illuminated for 30 sec.; and all the doors are open, the headlamp

is illuminated for 3 minutes.

This function can be deactivated or activated with a diagnostic equipment.

-

-

-

DRL (Day Time Running Light)

▶

DRL is the function to turn on the high beam and tail lamp without any intervention from the light

switch. DRL turns off the lamps when turning off the light switch. This is an additional safety device to

prevent the accident.

07-7

8310-00

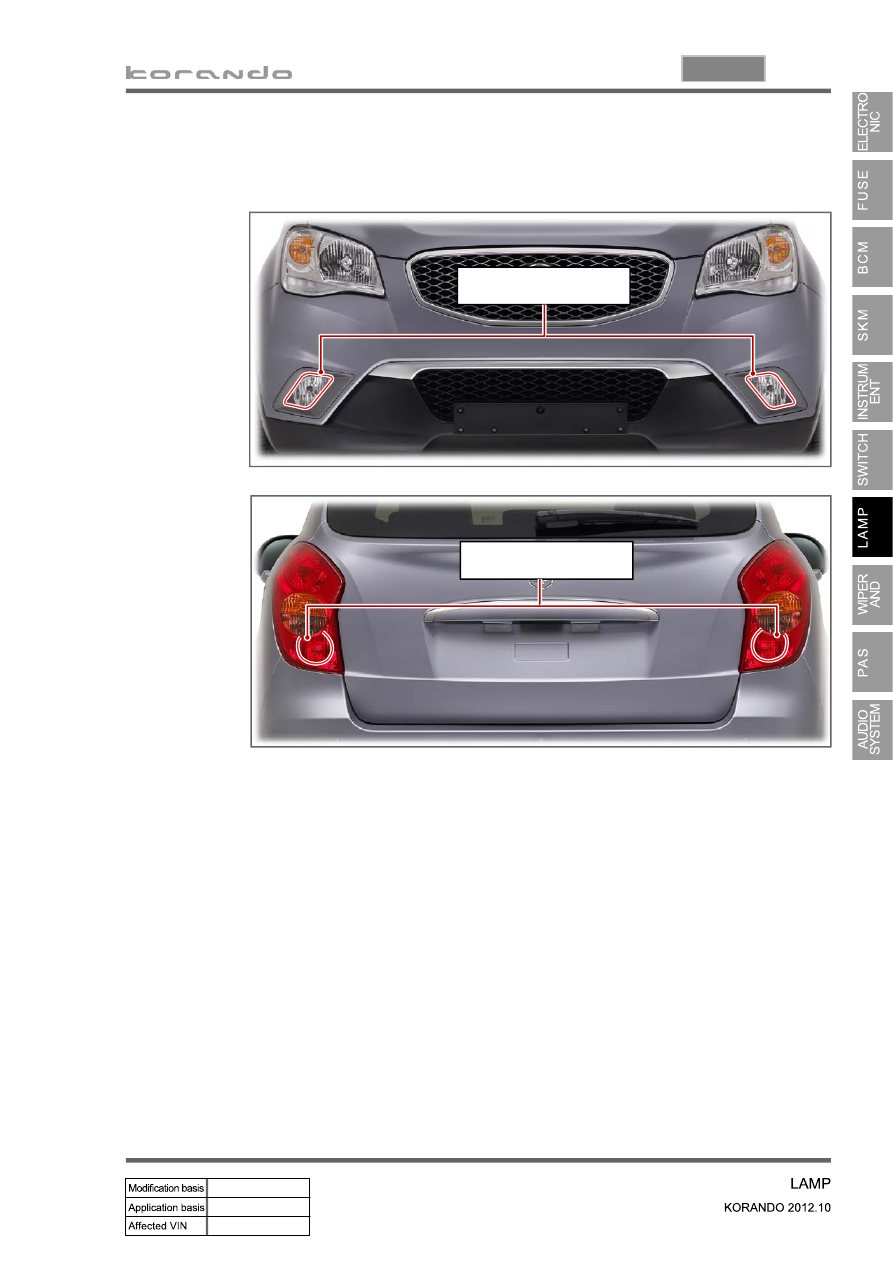

(2) Fog lamp

Front fog lamp

Rear

(EU only)

▶

Front

▶

Rear fog light

07-8

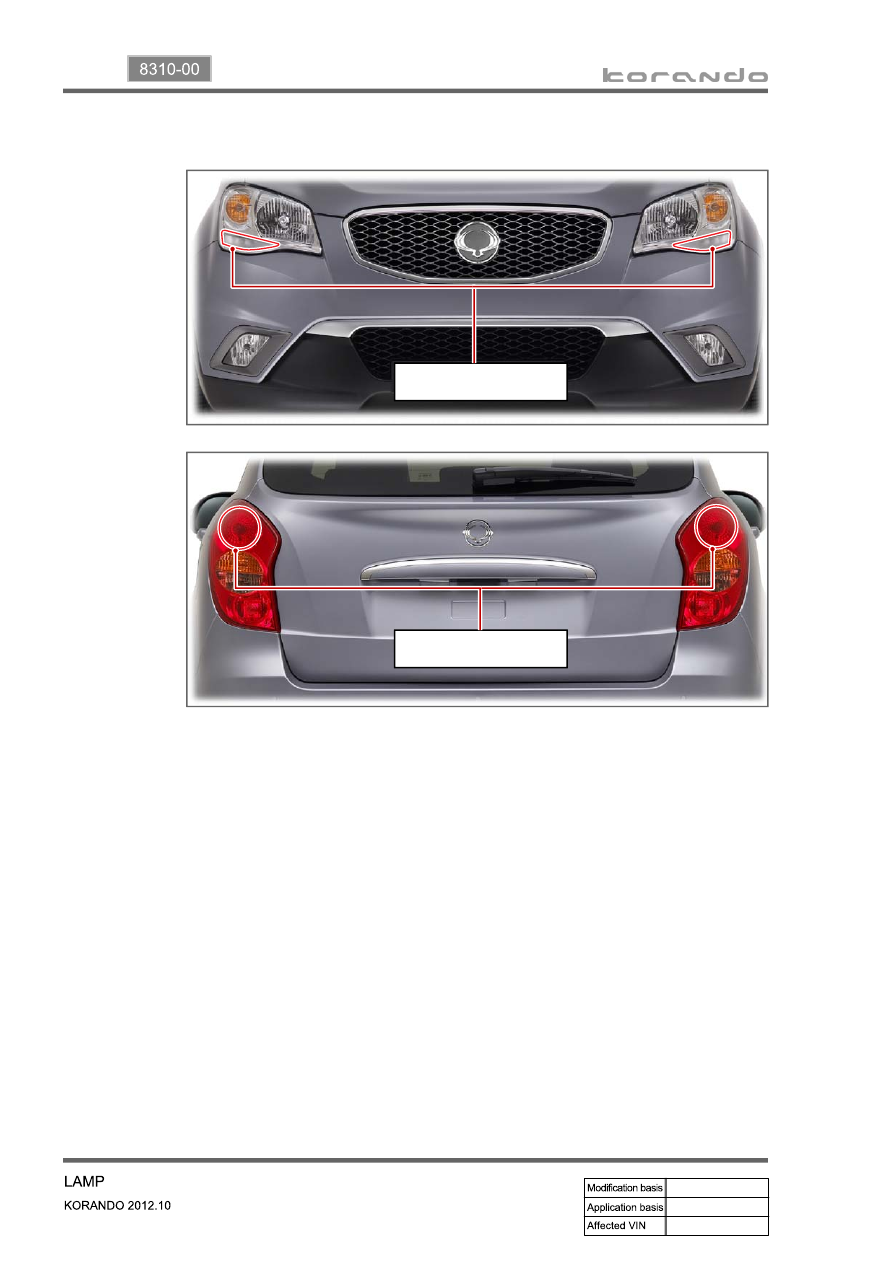

(3) Tail lamp

The tail lamp is operated by the BCM when the BCM receives a signal from the multifunction switch.

Tail lamp warning

▶

The buzzer sounds for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF when opening the

driver door with the key removed (without SKM)/with IGN OFF or ACC (with SKM) and tail lamp ON.

The buzzer stops its operation when turning off the tail lamp or closing the driver door during buzzer

operation. The buzzer stays ON when turning the tail lamp on again after turning it off during buzzer

operation.

1.

2.

Tail lamp auto turn-off

▶

When opening and closing the driver door after turning off the ignition with the tail lamp ON, the tail

lamps go off automatically.

The tail lamps come on again when inserting the ignition key (without SKM) and turning on the ignition

(with SKM) after tail lamp auto OFF.

The tail lamp should not go off when turning on the tail lamp switch with the ignition key removed

(without SKM) and with power off or ACC ON (with SKM).

-

-

-

Tail lamp

Rear

▶

Front

▶

Tail lamp
