06-43
8510-00
Tailgate open
▶

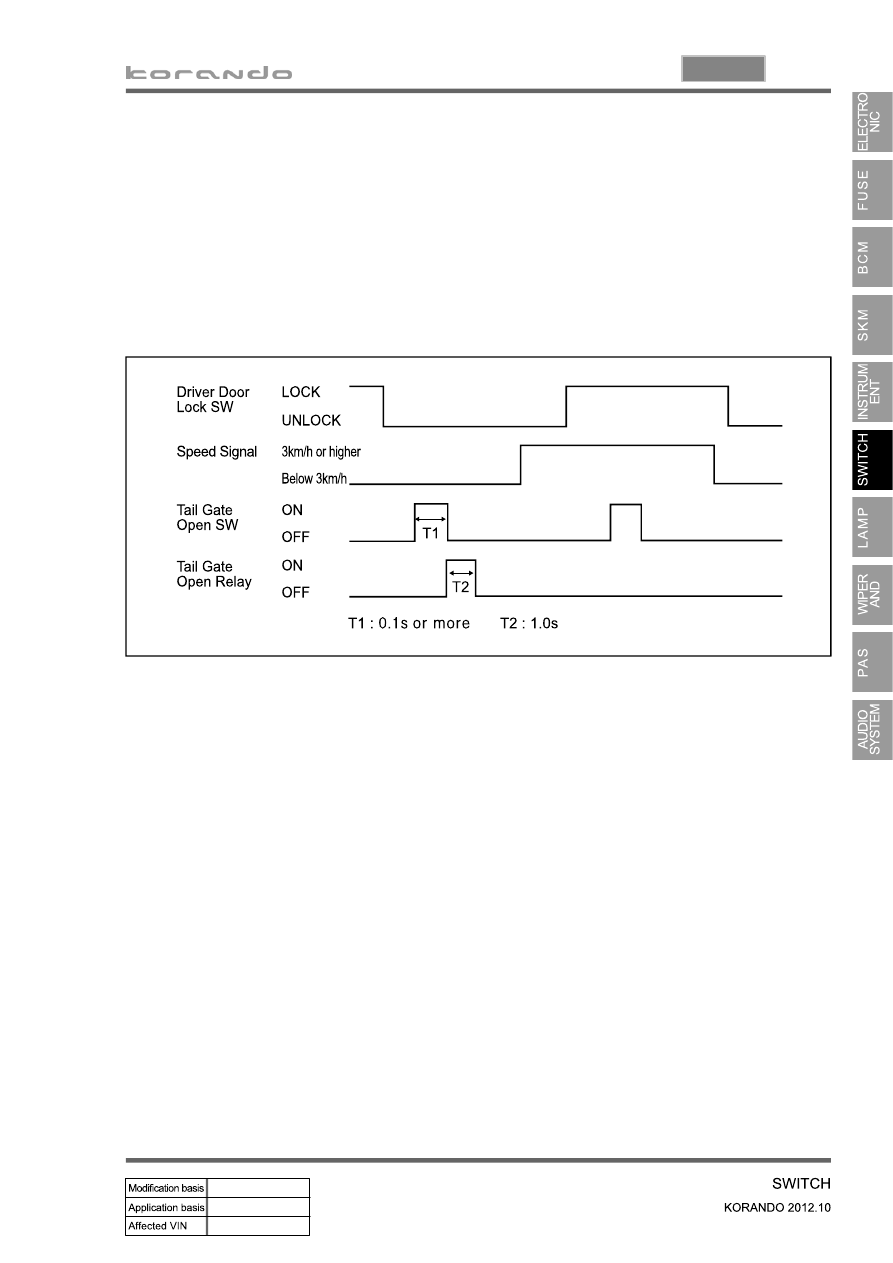

When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
speed below 3 (±0.1) km/h, the tailgate open relay is turned ON for about 1 second, with
power OFF, ACC ON or IGN ON. However, it is turned ON when the vehicle speed is below 3
(±0.1) km/h, with IGN ON.
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h with IGN ON during its operation. However, the BCM does not operate if the tailgate
open switch is pressed when the vehicle speed is above 3 km/h.
1.
2.
Tailgate open: REKES unlock (disarmed deterrent mode) → Tailgate open signal → Tailgate
open
-
Without SKM
When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
speed below 3 (±0.1) km/h, the tailgate open relay is turned ON for about 1 second.
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h during its operation.
When the tailgate switch on smart key is pressed in theft deterrent mode or with the smart key
detected by the exterior antenna, the SKM verifies the smart key and disarms the tailgate only. When
the tailgate is open and closed, the system enters into the theft deterrent mode again. If the tailgate
switch is not operated for 30 seconds, the system also does so.
The BCM checks that the verified smart key is in the luggage room 1 second after when the closed
tailgate is detected by the tailgate open switch with power OFF.
If there is a verified smart key in the luggage room when the tailgate is open and closed in theft
deterrent mode, the external buzzer sounds for 5 seconds.
When the driver press the tailgate open switch in order to look for the smart key, the BCM deactivates
lock so that the tailgate can be opened even though the driver door is locked. (maintains standby for
opening without verification)
1.
2.
3.
4.
With SKM
