06-39

8510-00

Front room lamp switch

The driver/passenger room lamps turns on
when pressing in these switches.

Door coupled operation switch

The front room lamp and center room
lamp come on when opening a door with
this switch pressed in.

Sunroof switch

Push up the switch briefly: 2-step auto sliding open

▶

Push up and hold the switch: manual sliding open

▶

When pushing up the switch briefly, the sunroof is automatically opened. Opening is carried

out in 2 steps. In first step, the area 5 cm behind the sunroof is not opened. Push up the switch

once again in order to open the sunroof completely. The sunroof operation stops if you

operate the switch during its operation.

The sunroof is opened as long as pushing up the switch.

Pull down the switch briefly: auto sliding close

▶

Pull down and hold the switch: manual sliding close

▶

When pulling down the switch briefly, the sunroof is automatically closed. To stop the closing

sunroof, operate the switch to either direction.

The sunroof is closed as long as pulling down the switch.

06-40

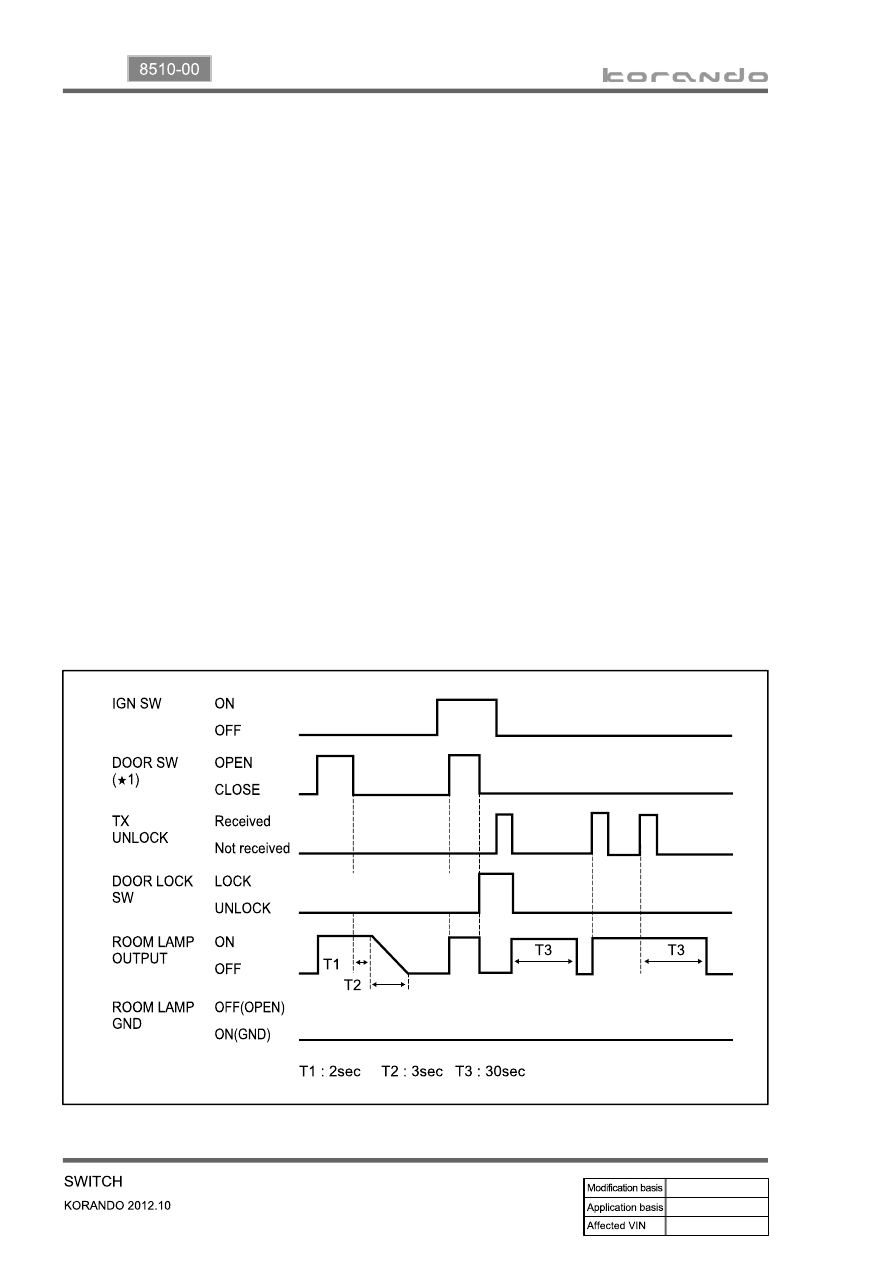

Door coupled room lamp operation and dimming control

▶

When opening any of doors while the room lamp switch in overhead console is pressed in ("Door"

coupled position), the front and center room lamps come on. If the key is removed and door stays open,

the room lamps automatically goes off after 10 minutes. The sleep mode will be deactivated when the

door is locked or closed with the lamp OFF automatically.

When closing the door with IGN ON, the room lamps go off immediately.

When closing the door with IGN OFF, the room lamps stay on for 2 seconds more and are dimmed

out the side fascia panel.

When turning the ignition switch to ON position during dimming out operation, the room lamps go off

immediately.

When receiving the door unlock signal with IGN OFF, key removed and door closed, the overhead

console room lamp/center room lamp come on for 30 seconds.

For specification with the SKM, the lamps come on by the REKES unlock or passive unlock signal.

When receiving the door unlock signal again while the lamps stay on by the REKES or passive unlock

signal, the overhead console/center room lamps stays on for 30 seconds more. (the lamps stay on

when receiving door unlock signal)

When opening a door during the coupled operation and dimming operation, the room lamps stays

ON. When closing it again, the lamps stay on for 2 seconds more and are dimmed out for 3 seconds.

While the room lamps dim out when the driver/passenger/rear doors are open and closed, they go off

immediately when entering into the theft deterrent mode.

The room lamps come on when AUTO approach signal is received.

1.

2.

3.

4.

5.

6.

7.

8.

06-41

8510-00

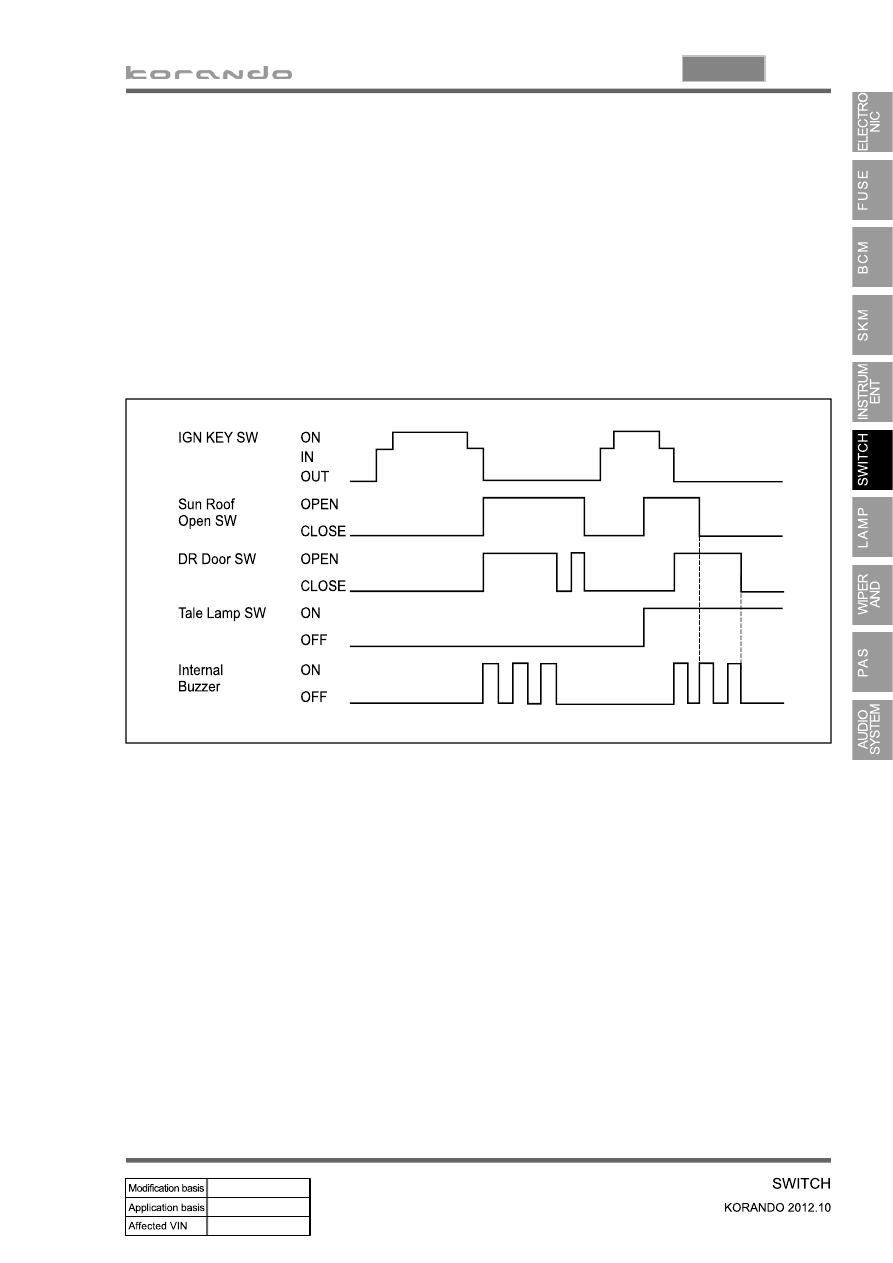

Sunroof warning control

▶

When removing the ignition key with the sunroof open (without SKM) or when opening the driver door

with IGN OFF or ACC and sunroof open (with SKM), the indoor buzzer sounds for 10 seconds with

the interval of 0.02s ON/1.58s OFF.

When opening and closing the driver door or closing the sunroof during indoor buzzer operation, the

buzzer stops its operation immediately.

When closing the driver door or sunroof and opening again during warning operation, the sunroof

warning does not work. If the condition is met after the ignition switch is turned to "ON" position again,

the indoor buzzer sounds for 10 seconds with the interval of 0.02s ON/1.58s OFF.

The sunroof warning has a priority over the tail lamp ON warning.

1.

2.

3.

4.

06-42

Tailgate open switch

7. TAILGATE SWITCH

Tailgate open switch
