Multifunction wiper switches

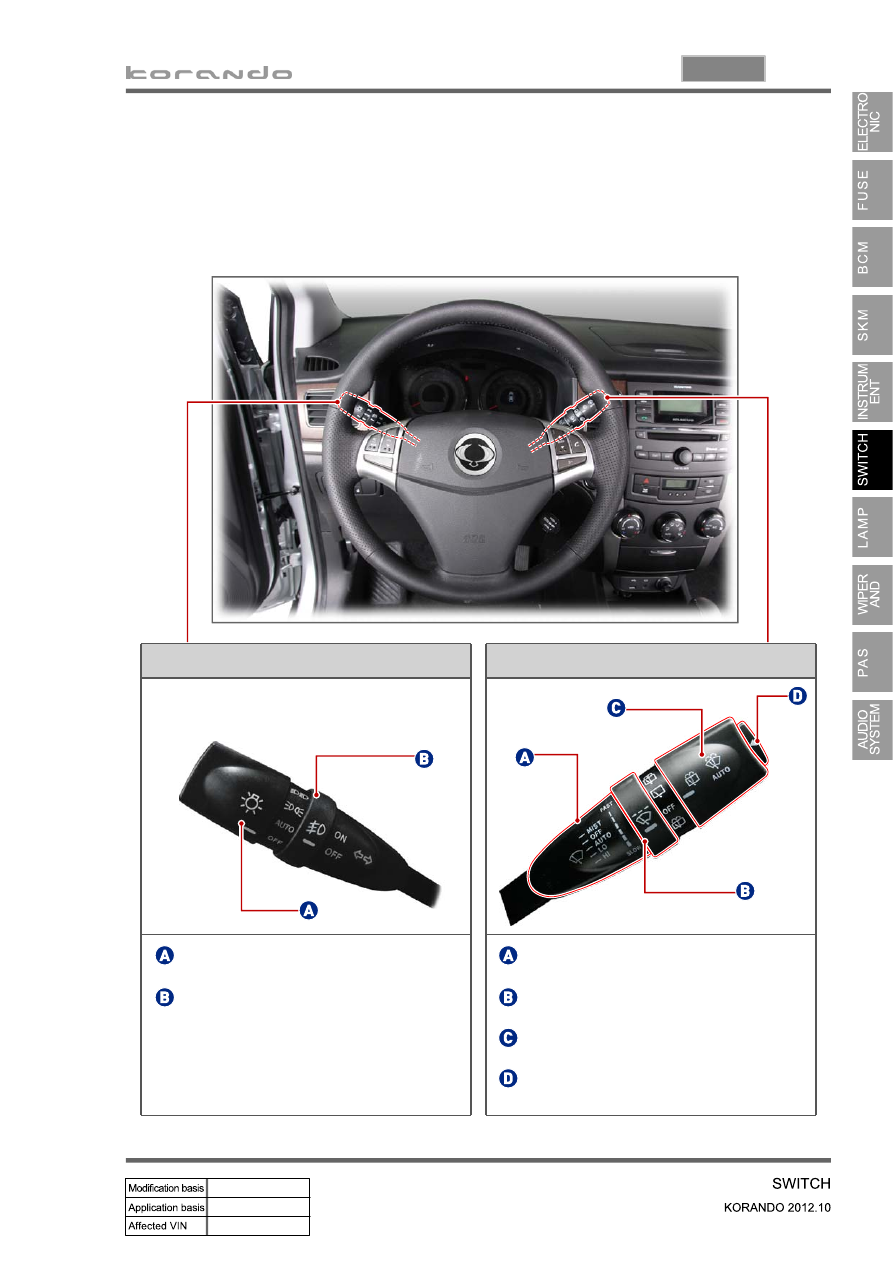

2) Multifunction Switch

Multifunction light switches

Light switch

Front wiper switch

Wiper speed dial

Rear wiper switch

Front fog lamp switch

Front auto washer switch

The multifunction switch contains the auto washer and wiper switch, front fog lamp switch and auto

hazard warning flasher switch. For the vehicle with air bag, since the contact coil is fitted to the upper part

of the multifunction switch and ESP steering wheel angle sensor is fitted to upper part of the contact coil,

pay attention to when removing and fitting or checking the wiring.

06-32

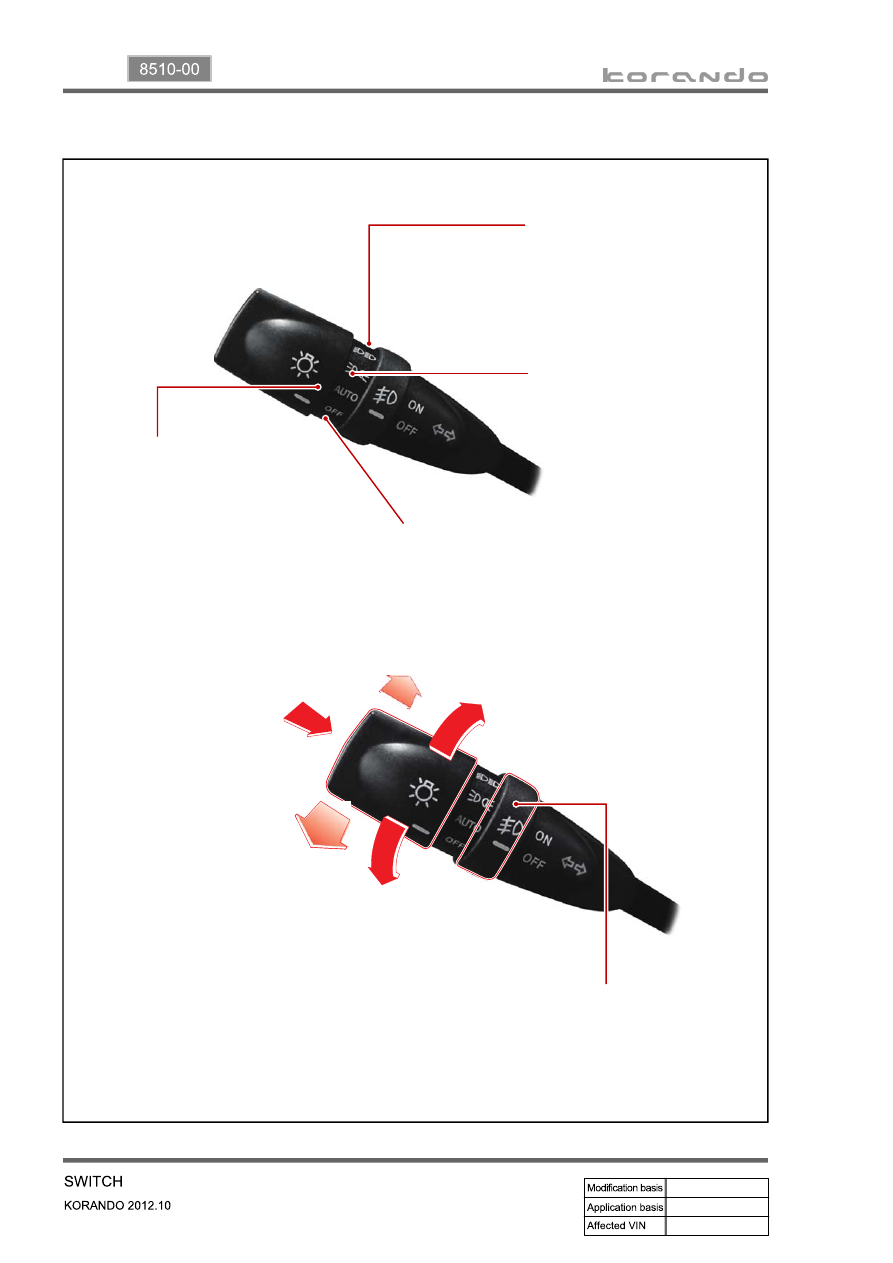

Light switch

▶

Headlamps ON

Headlamp, side-marker, tail,

license plate, fog, and

instrument cluster lamps come

on.

Tail lamp ON

Side-marker, tail, license plate,

fog, and instrument cluster

lamps come on.

Automatic light ON

Head- and tail lamps

automatically turn on or off based

upon the intensity of the sunlight

analyzed by the automatic light

sensor.

Lights OFF

High beam ON

To turn on the headlamp high

beam, push the lever towards

the instrument cluster with the

headlamp low beam on.

Right turn signal lamp blinks

Passing

Regardless of the position of the light

switch, when holding the lever toward

the steering wheel, the headlights are

on high beam during the hold.

Front fog lamp switch

To turn on the fog lights, turn this

switch while the tail lamps or

headlamps are turned on.

Left turn signal lamp blinks

06-33

8510-00

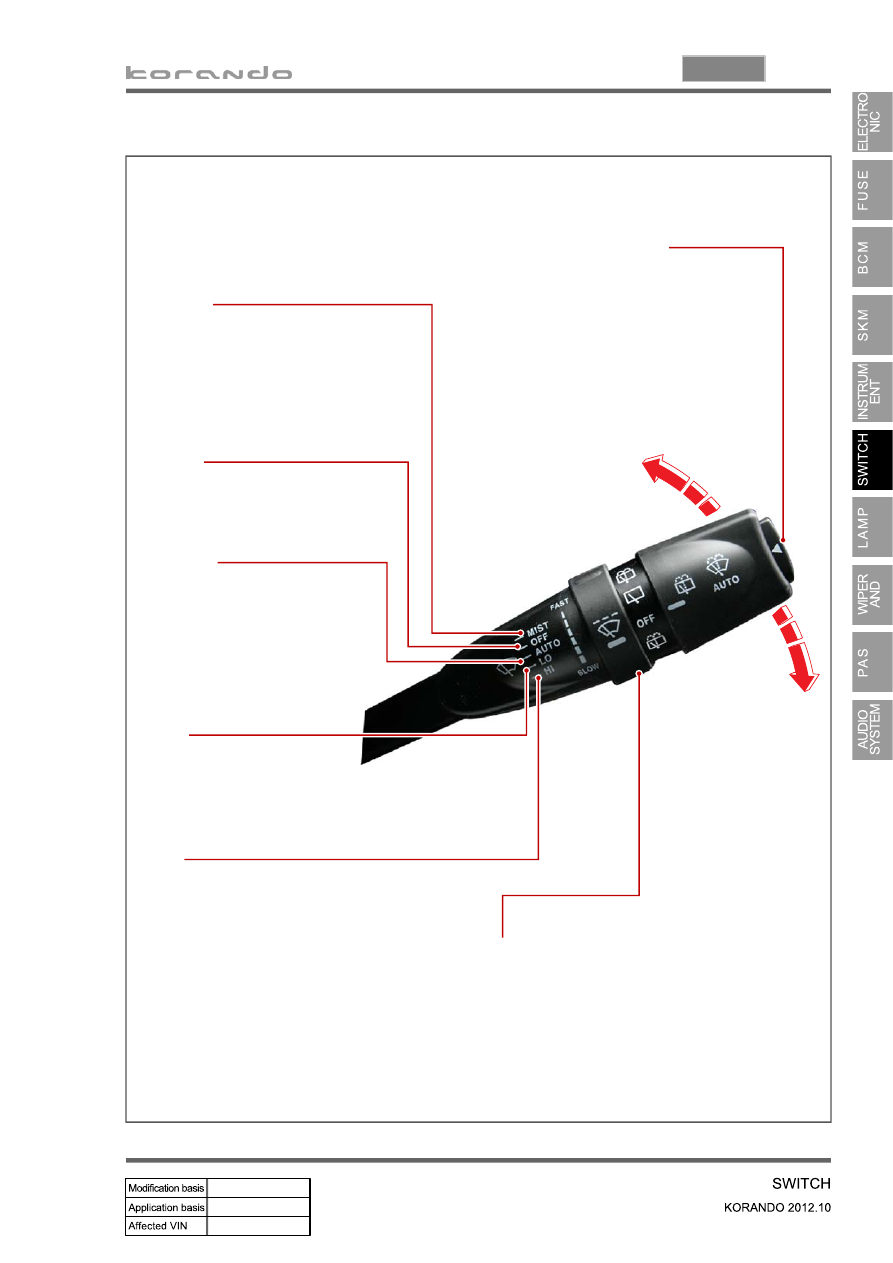

The wiper operates for 1 cycle

when pushing up the lever. The

lever will return to the "OFF"

position when released.

Wiping speed control switch

When turning to FAST, wiping speed gets faster and when

turning to SLOW, wiping speed gets slower.

Stop the operation.

Wiper speed controls

automatically according to the

vehicle speed or amount of rain

(rain sensing wiper).

Wiping speed gets faster when

placing the pointer at the "HI"

position.

Wiping speed gets slower

when placing the

pointer at the "LO" position.

MIST

OFF

AUTO

LO

HI

Auto washer switch

If pressing the switch when the wiper

switch turns to the "OFF" position,

washer fluid is sprayed once and

wiper operates 4 times.

After a while, washer fluid is sprayed

once more and the wiper operates 3

times.

Wiper switch

▶

06-34

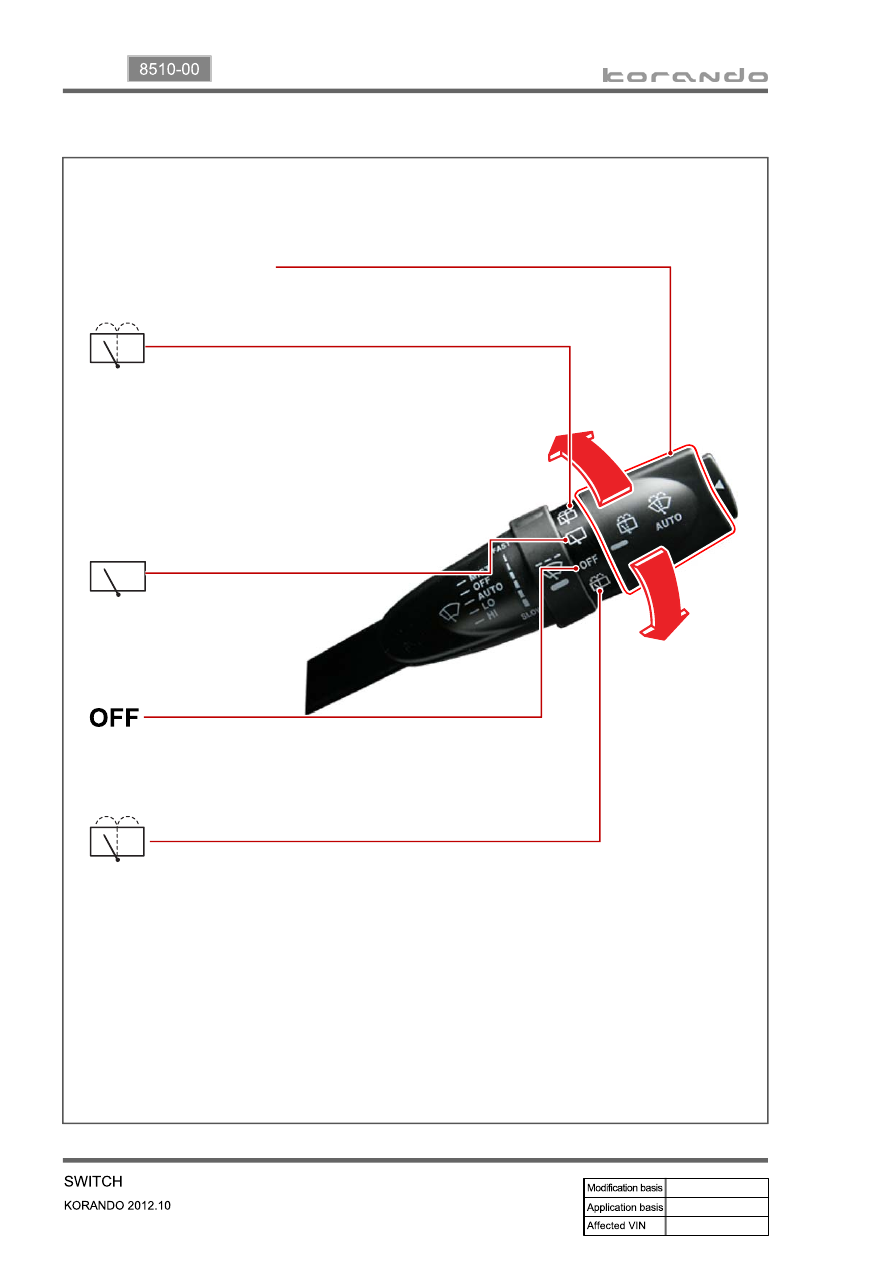

Rear wiper switch

When the switch is fully turned, washer fluid will

be sprayed onto the rear window glass and the

wiper will also operate.

When the switch is released, it will stop in the

Rear Wiper Operation mode and only the wiper

will keep operating.

Rear wiper operation

Rear wiper stops

When the switch is fully turned, washer fluid will

be sprayed onto the rear window glass and the

wiper will also operate. When the switch is
released, it will return to the “OFF" position

and turn off the wiper and washer.
