06-15
8510-00
The outside mirror folding switch is self return type and the aiming switch is seesaw and self return type.
Do not fold or unfold the outside rearview mirrors manually. It may cause a malfunction of the mirror
folding system.
Setting
1.
Set auto folding function: When pressing the mirror folding switch for over 3 seconds, the auto folding
function is set and the internal buzzer sounds once (ON: 0.1 sec, OFF: 0.2 sec).
Release auto folding function: When pressing the mirror folding switch for over 3 seconds, the auto
folding function is set and the internal buzzer sounds twice (ON: 0.1 sec, OFF: 0.2 sec).
-
-
Auto folding:
2.
When receiving the LOCK signal from the REKES, the system operates in the sequence of "Door lock
→ Theft deterrent mode activation → Mirror folding" for BCM without SKM.
When receiving the outside door handle switch signal or door lock signal from the smart key remote
control, the system operates in the sequence of Door lock → Theft deterrent mode activation →
Mirror folding" for BCM with SKM.
-
-
Auto unfolding sequence
When receiving the UNLOCK signal from the REKES, the system operates in the sequence of "Door
unlock → Theft deterrent mode deactivation → Mirror unfolding" for BCM without SKM.
When receiving the outside door handle switch signal or door unlock signal from the smart key remote
control, the system operates in the sequence of Door unlock → Theft deterrent mode
deactivation → Mirror unfolding" for BCM with SKM.
When the auto folding function is set, the automatic unfolding is not available if the mirrors have been
folded manually.
(The outside rearview mirror will be folded automatically if the auto folding function is set.)
The factory setting is the enabling the auto folding function.
3.
4.
5.

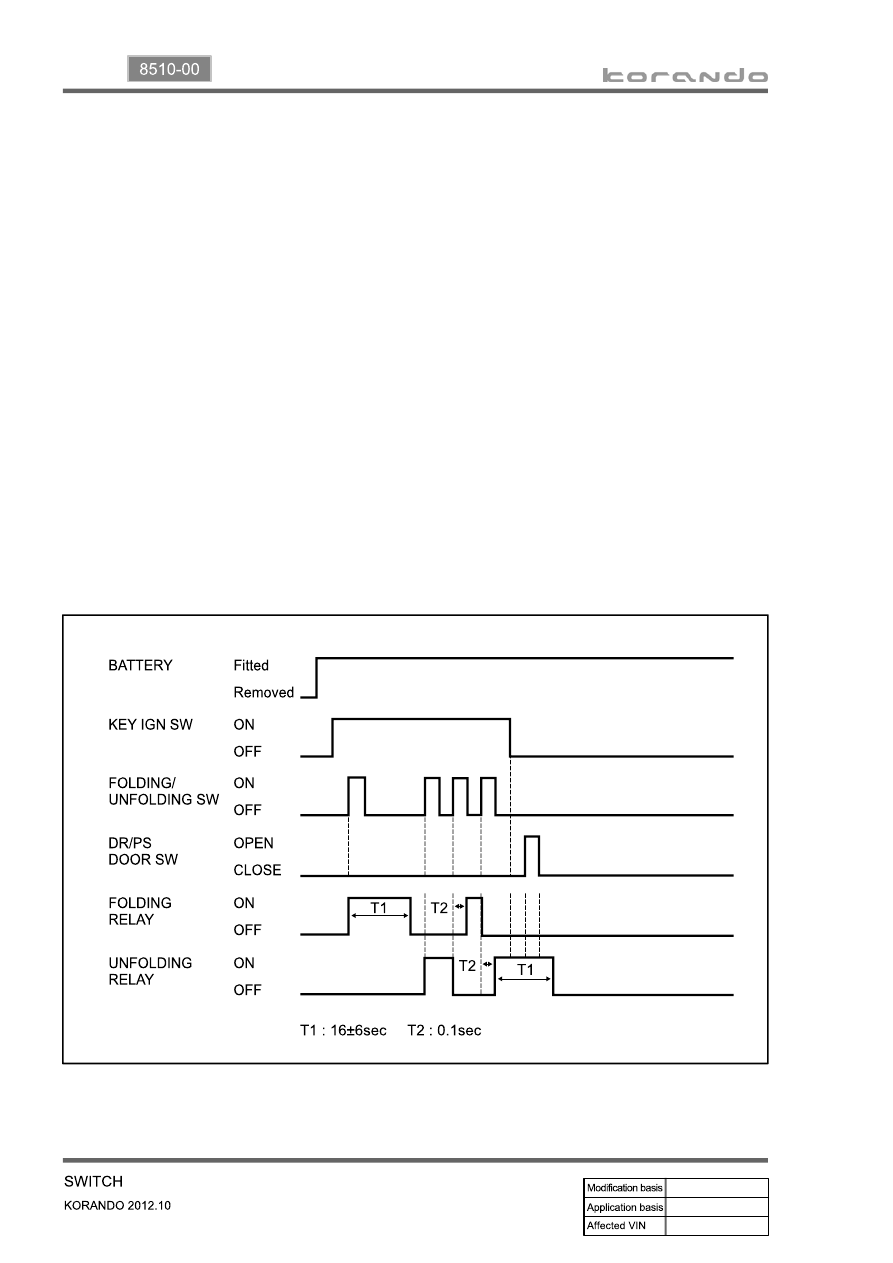

Auto folding/unfolding control
▶
