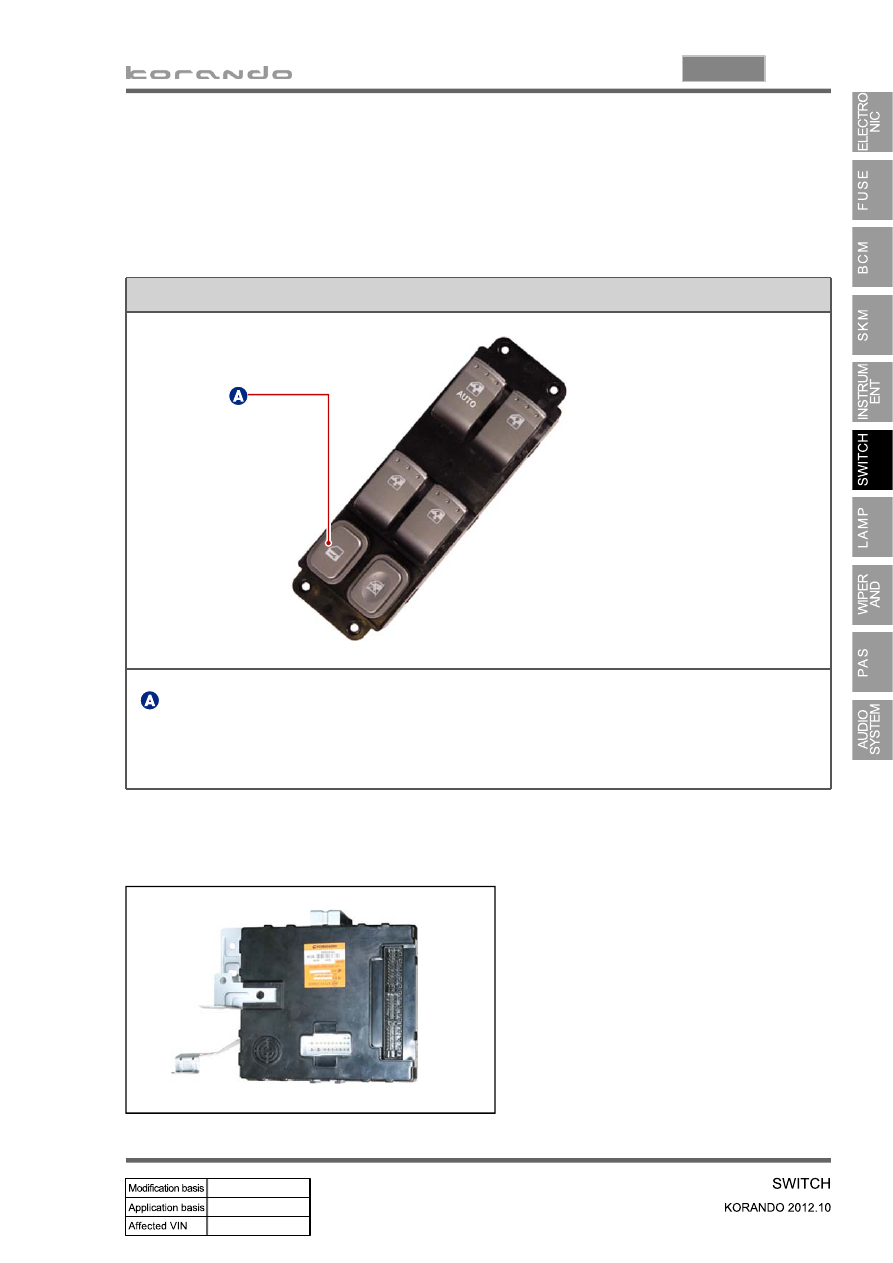

Door lock/unlock switch

Function of door lock/unlock switch

▶

There are 5 actuators in door lock/unlock system (including tailgate). All of them can control the

corresponding door lock and unlock separately. But, the driver door lock switch can control all door

locks. The BCM controls the lock/unlock switch using the door lock/unlock relay. This is a same control

type with Auto door lock function that locks the doors when the vehicle speed exceeds 30 km/h. (see

circuit diagram)

Door lock/unlock relay (integrated in BCM)

▶

Door lock/unlock switch

When the door lock/unlock switch is pressed while all doors including the tailgate are locked, all doors

will be unlocked. When the switch is pressed again, all doors will be locked.

06-12

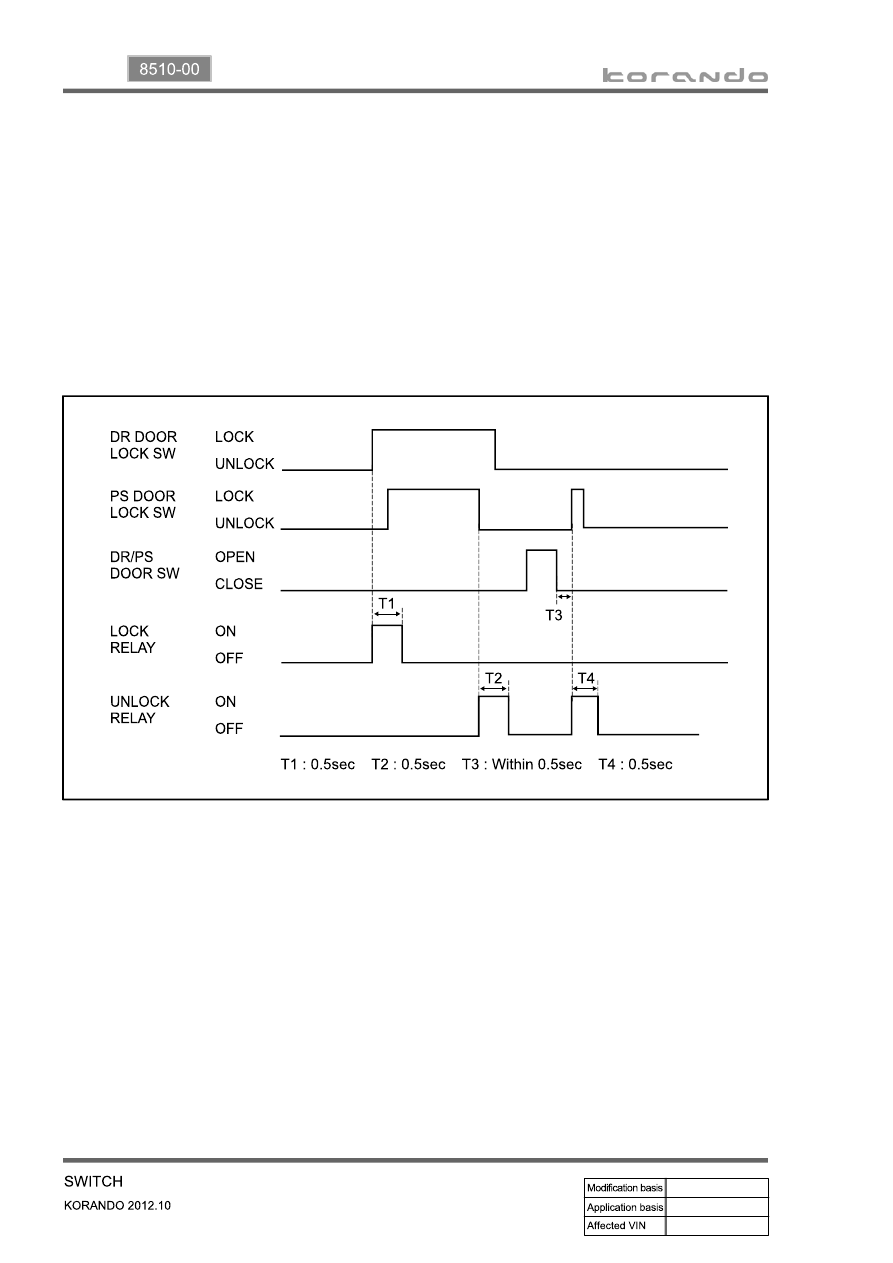

Door lock/unlock control by door LOCK switch

▶

When moving the driver or passenger door lock (knob) switch to LOCK from UNLOCK position, BCM

sends the LOCK signal for 0.5 seconds.

When moving the driver or passenger door lock (knob) switch to UNLOCK from LOCK position, BCM

sends the UNLOCK signal for 0.5 seconds.

The LOCK (UNLOCK) operation by the door lock (knob) switch is not available when sending the

LOCK (UNLOCK) signal by any other method such as remote control key.

When reconnecting the battery, the door lock (knob) switch is not operational regardless of the door

lock switch positions.

All doors stay unlocked when receiving the door lock signal in 0.5 seconds after closing the doors.

1.

2.

3.

4.

5.

06-13

8510-00

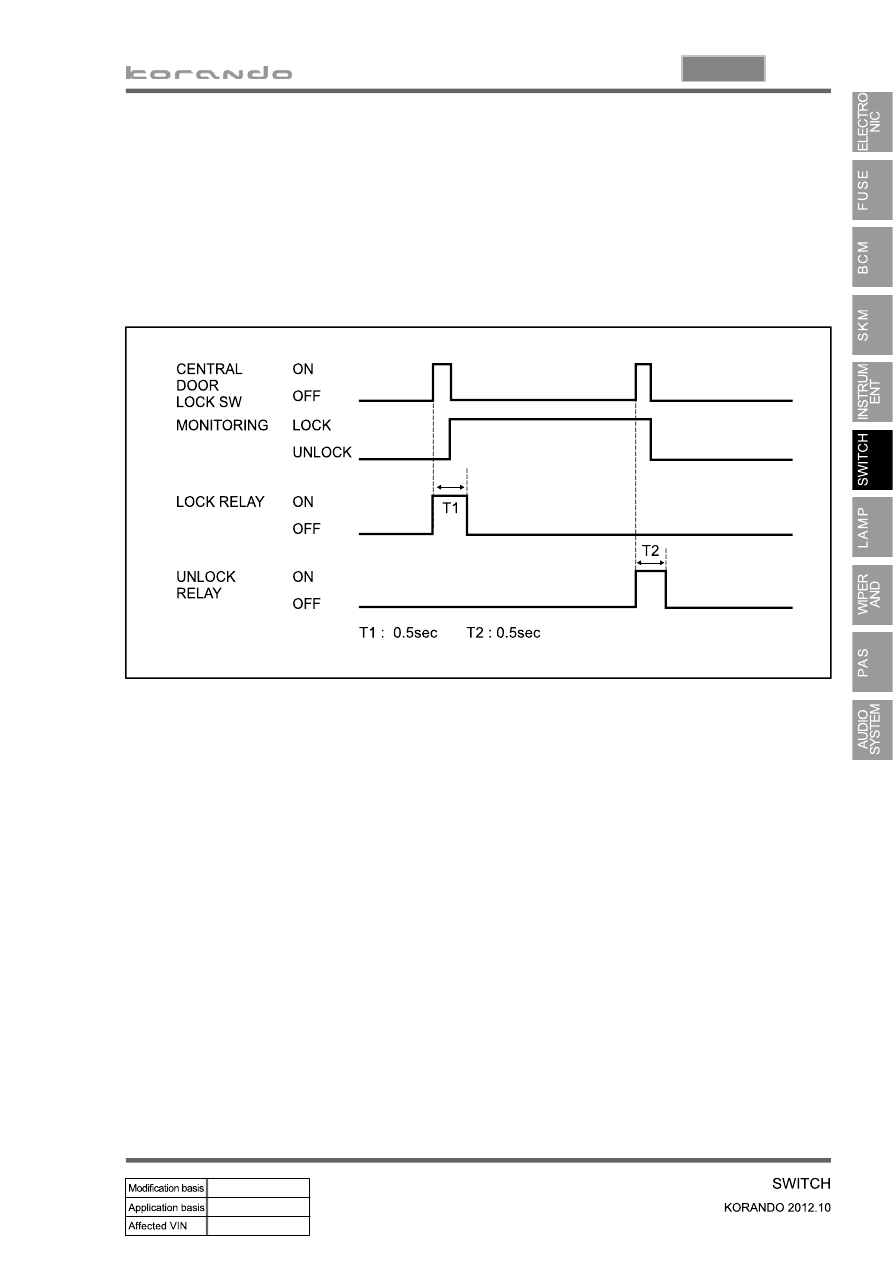

Door lock/unlock control by central door lock switch

▶

When pressing the central door lock/unlock switch, BCM sends the LOCK or UNLOCK signal

according to the previous condition of driver door lock switch for 0.5 seconds.

The central door dock switch is not available when the system is in theft deterrent mode.

When turning the ignition off, all doors are automatically unlocked if any of the door lock (knob)

switches is in LOCK position.

When pressing the central door lock switch with any door open, the system unlocks the doors

immediately after locking them.

1.

2.

3.

4.

06-14

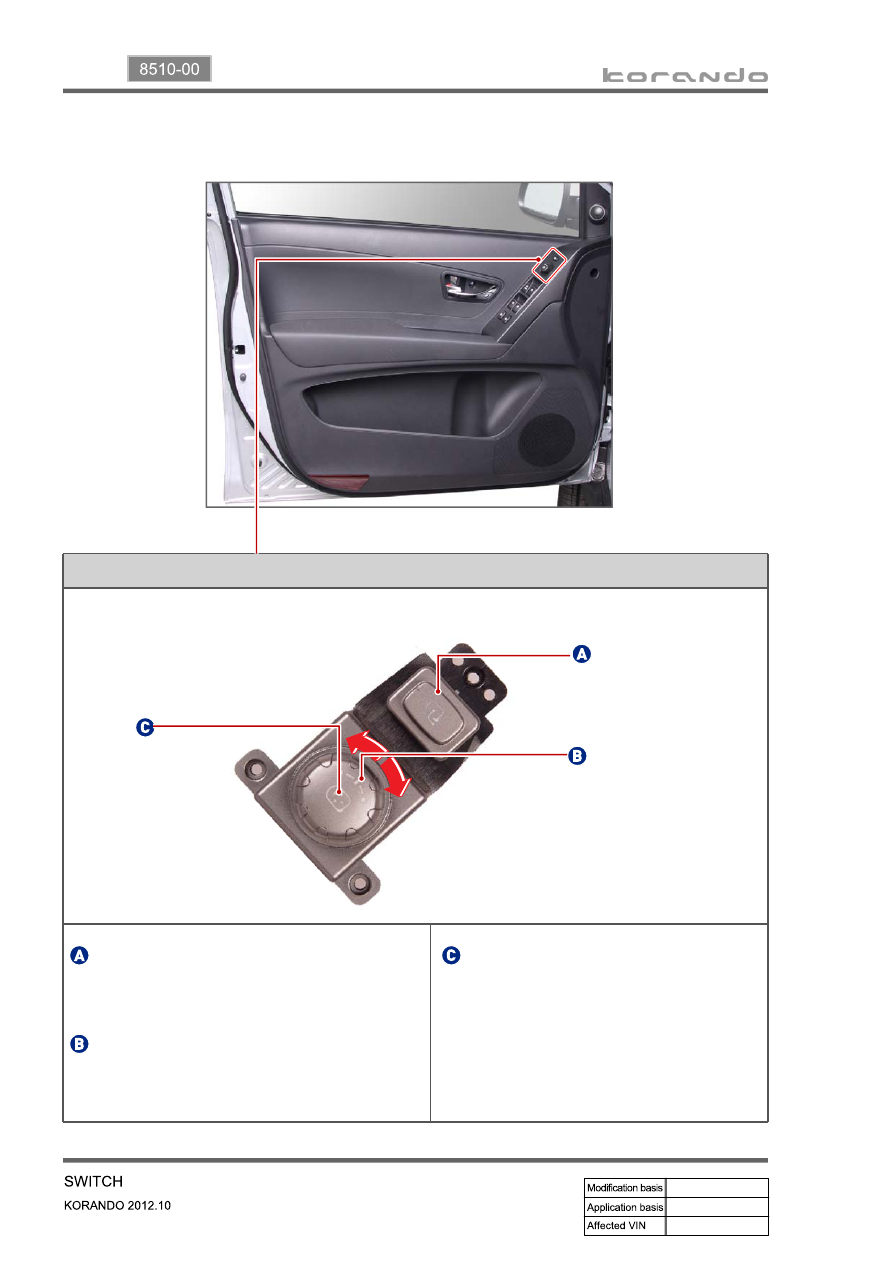

Outside rearview mirror switch

(2) Outside Mirror Switch

Outside mirror folding/unfolding switch

Mirror selection switch

The outside mirrors are folded/unfolded

whenever pressing this switch.

LH: Driver side mirror

RH: Passenger side mirror

Mirror aiming switch

Adjust the selected mirror up, down, left,

or right by pressing the corresponding

edges of the switch to get a desired view.
