SsangYong Korando III (2010 year). Manual - part 180

06-7

8510-00

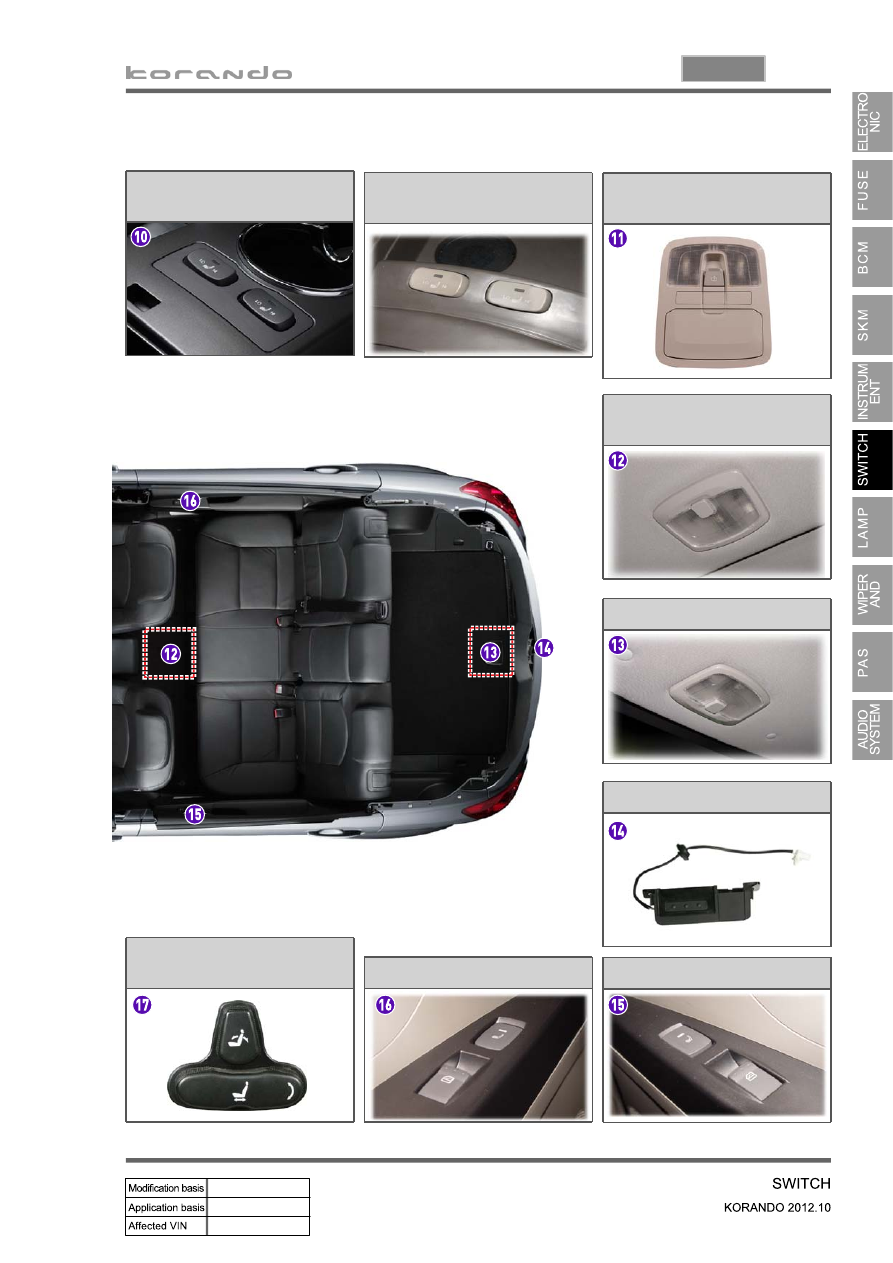

Center room lamp

switch

Front seat heated wire

switch (STD)

Rear door switch (RH)

Overhead console

switch

Rear door switch (LH)

Tailgate switch

Front seat heated wire

switch (DLX)

Luggage lamp switch

Driver power seat

switch

06-8

Power window main switch

1) Driver Door Switches

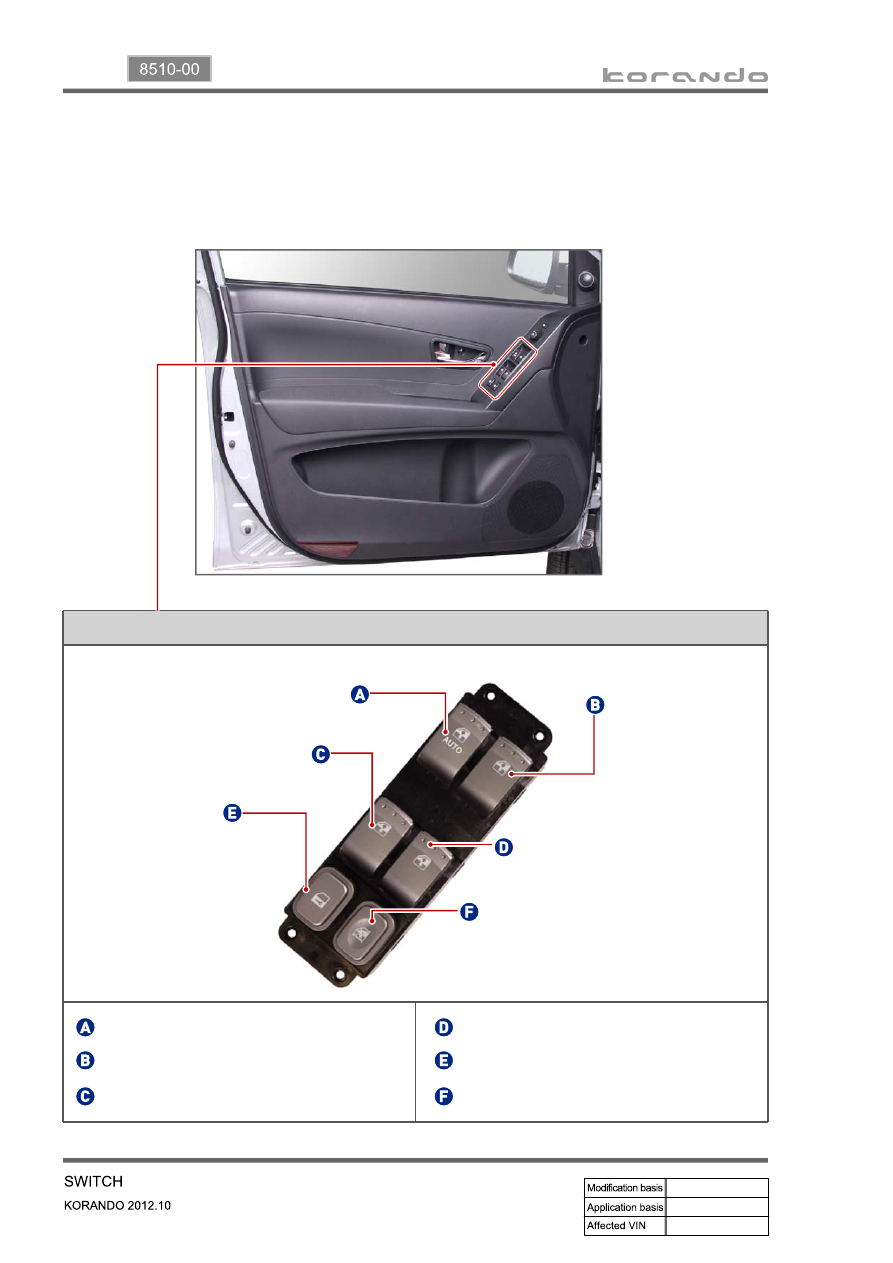

2. SWITCH CLUSTER ON DOOR TRIM

(1) Power window main switch

Driver door window switch

Rear LH window switch

Window lock switch

Passenger door window switch

Rear RH window switch

Door lock/unlock switch

06-9

8510-00

Door lock/unlock switch

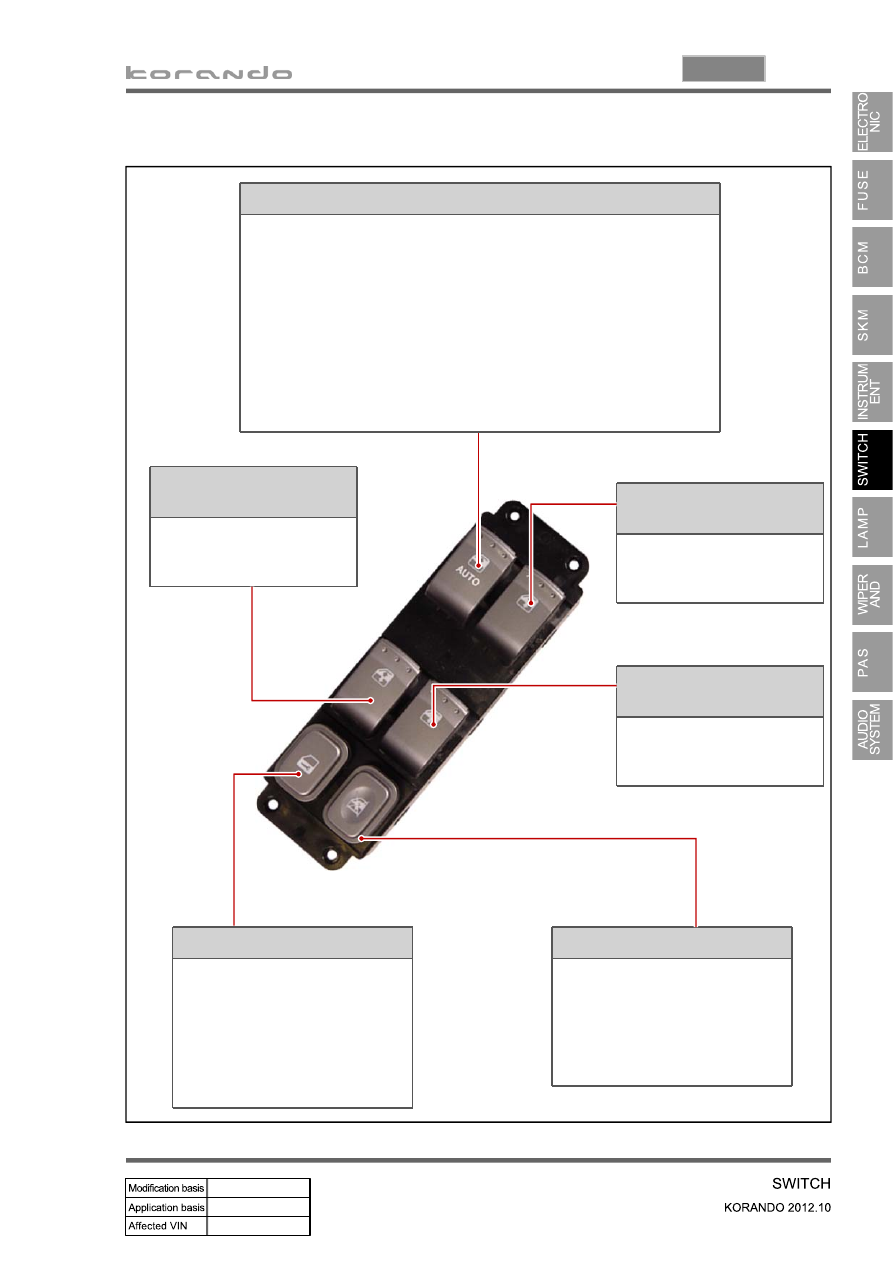

When the door lock/unlock switch
is pressed while all doors
including the tailgate are locked,
all doors will be unlocked. When
the switch is pressed again, all
doors will be locked.

Window lock switch

If the window lock switch is
pressed down, only driver window
is operative. Passenger and rear
windows cannot be operated by
their switches.

Rear LH window

switch

The window is up and down
while this switch is operated.

Passenger door

switch

The window is up and down
while this switch is operated.

Rear RH window

switch

The window is up and down
while this switch is operated.

Driver door window switch

The driver's door window switch has Auto down/Auto up function. The
window can be controlled within 30 seconds by activating the power
window relay even after turning off the ignition switch.
However, if any of front doors is opened or the Lock switch on the
remote control key is pressed (theft deterrent mode is activated)
during the delaying period, the delaying time is immediately canceled
(power window relay is deactivated).
There are two variants of this: only auto down and anti-trap (auto
down and auto up).

06-10

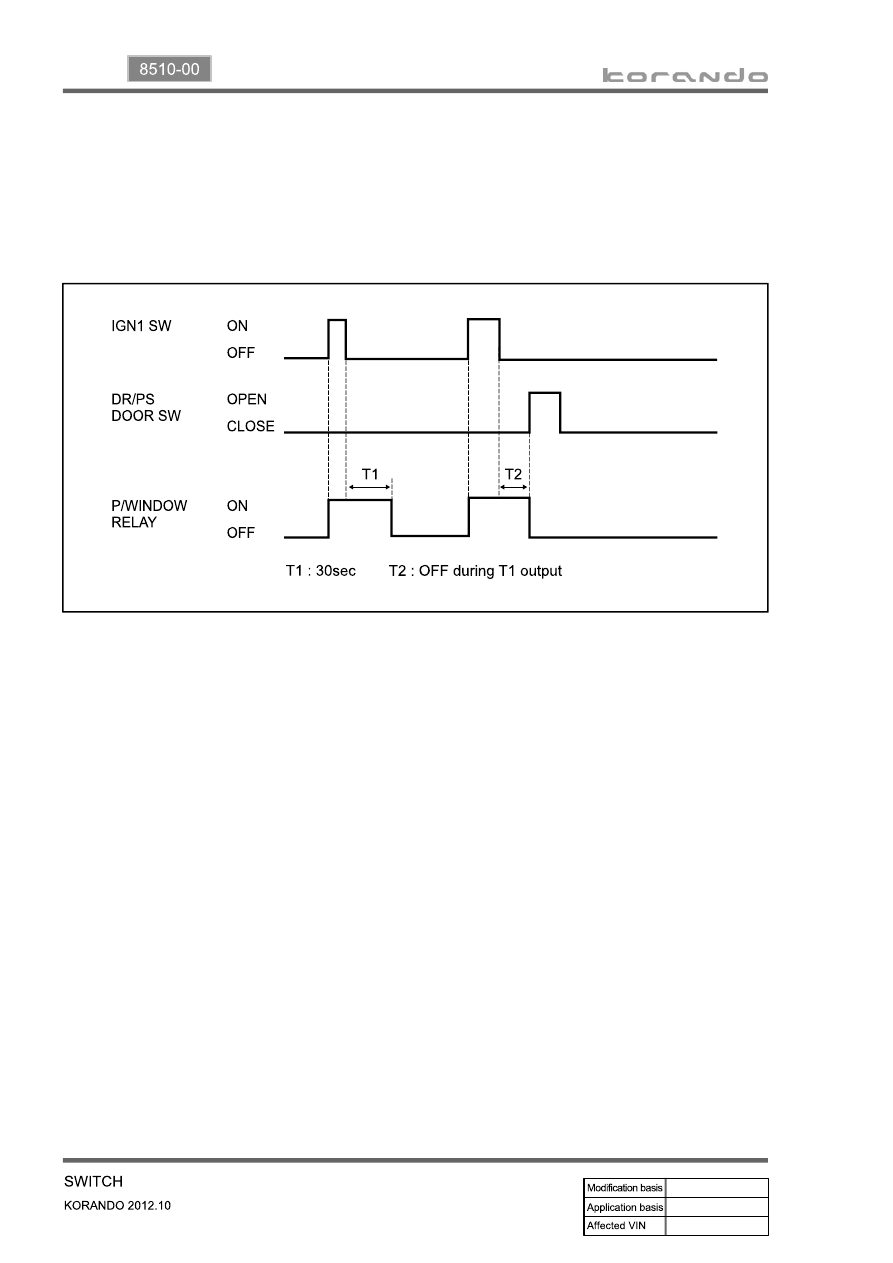

Time lag power window control

▶

When turning the ignition switch to ON position, the power window relay is turned ON.

The power window relay keeps ON for 30 seconds even when stopping the engine.

However, the power window relay is turned OFF when opening a front door.

When locking the door (activation of theft deterrent mode), the power window relay is immediately

turned OFF.

1.

2.

3.
