05-47

8010-01

Pin No.

Message

Operating condition

Domestic

Export

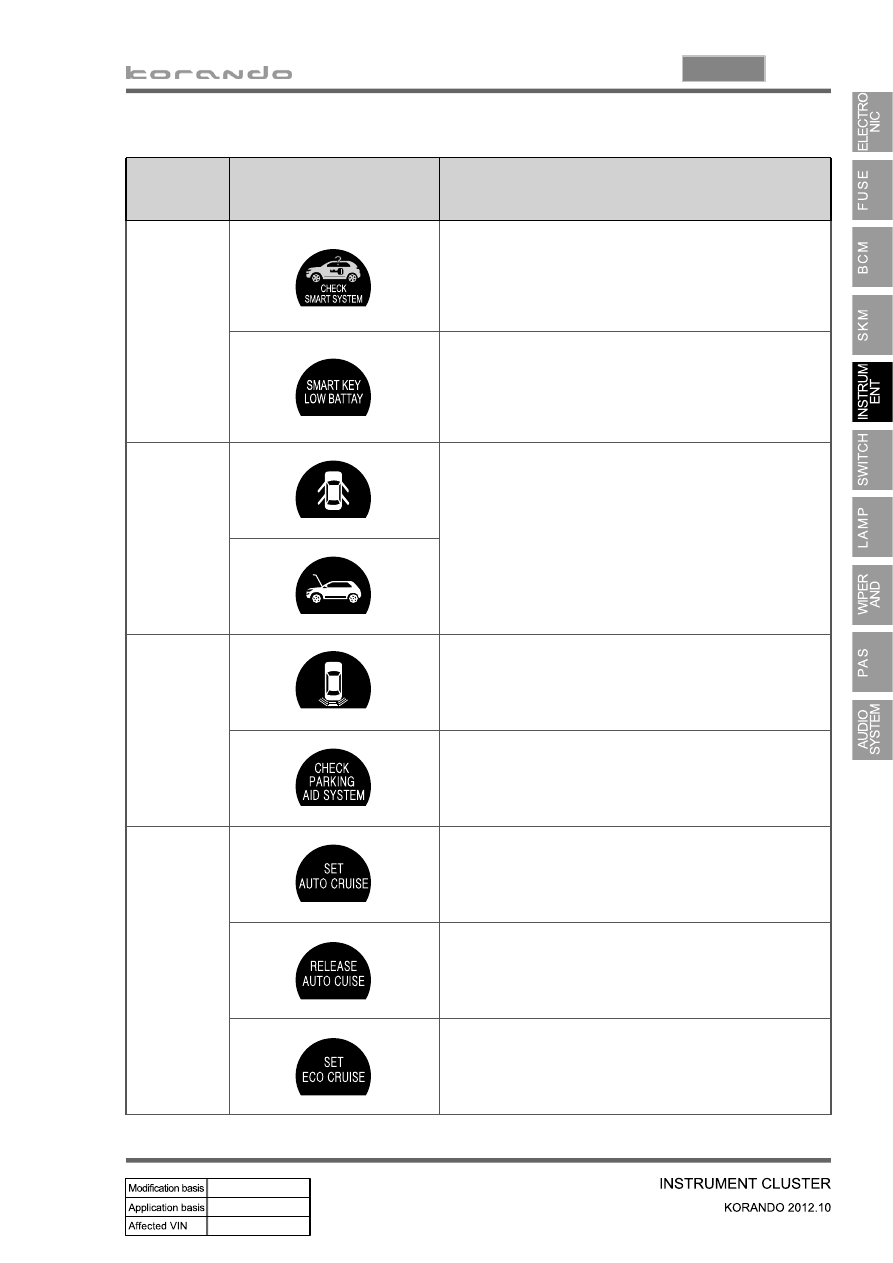

Smart key
warning

This message comes on for 10 seconds if incorrect
signal on vehicle power control, ignition switch or gear
shift position is received or the signal is not received from
the SKM after the smart key is verified.

This message comes on for approx. 10 seconds if the
low smart key battery is detected when the ignition
switch is pressed or the engine is started.

Door

This message comes on to inform the driver that any of
the doors is open or closed.
While the door/tailgate is displayed in 4 steps, the hood
displayed in 3 steps.

Parking aid
system

If any obstacle is detected in the rear of the vehicle when
the shift lever is moved to "R" position with IGN ON,
each sensor shows its position and distance.

If any error is detected during initial diagnosis, it is
displayed as "?". Other than that is operated in the same
way as the PAS distance measurement mode.

Cruise
control

This message comes on when the cruise control system
is activated.

This message comes on when the cruise control system
is deactivated.

This message comes on when the cruise switch is
moved to the ECO position.

Pin No.

Message

Operating condition

05-48

Pin No.

Message

Operating condition

Domestic

Export

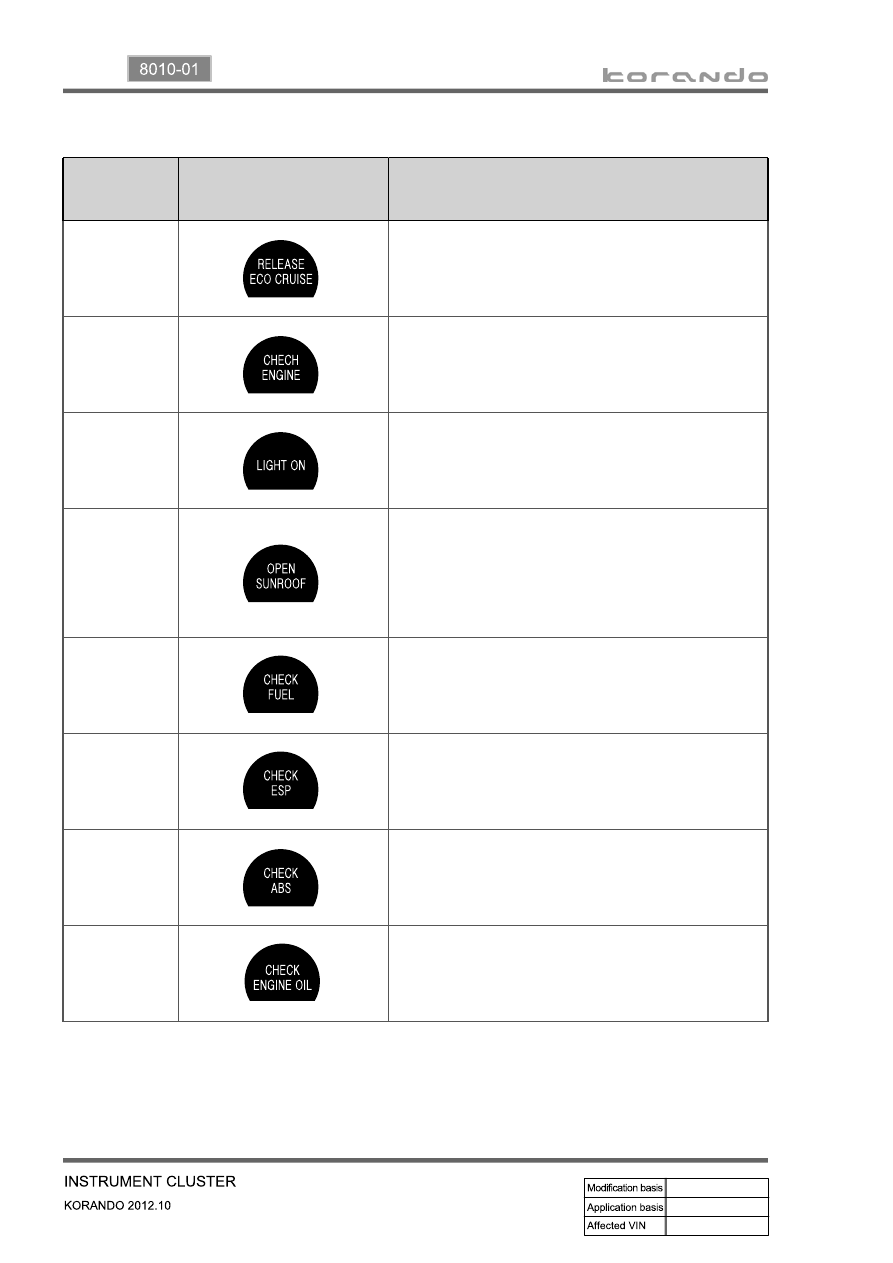

Cruise control

This message comes on when the ECO cruise mode
is deactivated.

EMS

This message comes on when the engine is faulty.

Lamp

This message comes on when the tail lamps are ON
with the ignition in the "OFF" or "ACC" position.

SUNROOF
SYSTEM

For the vehicle with SKM, this message comes on
when the sunroof is open with the ignition in the "OFF"
or "ACC" position. For the vehicle without SKM, this
comes on when the sunroof is open with the ignition in
the "OFF" position and the key removed.

Low fuel level

This message comes on when the remaining fuel is
insufficient.

ESP check

This message comes on when the ESP system is
faulty.

ABS check

This message comes on when the ABS system is
faulty.

Engine oil level
check

This message comes on when the engine oil level is
low.

Pin No.

Message

Operating condition

05-49

8010-01

Pin No.

Message

Operating condition

Domestic

Export

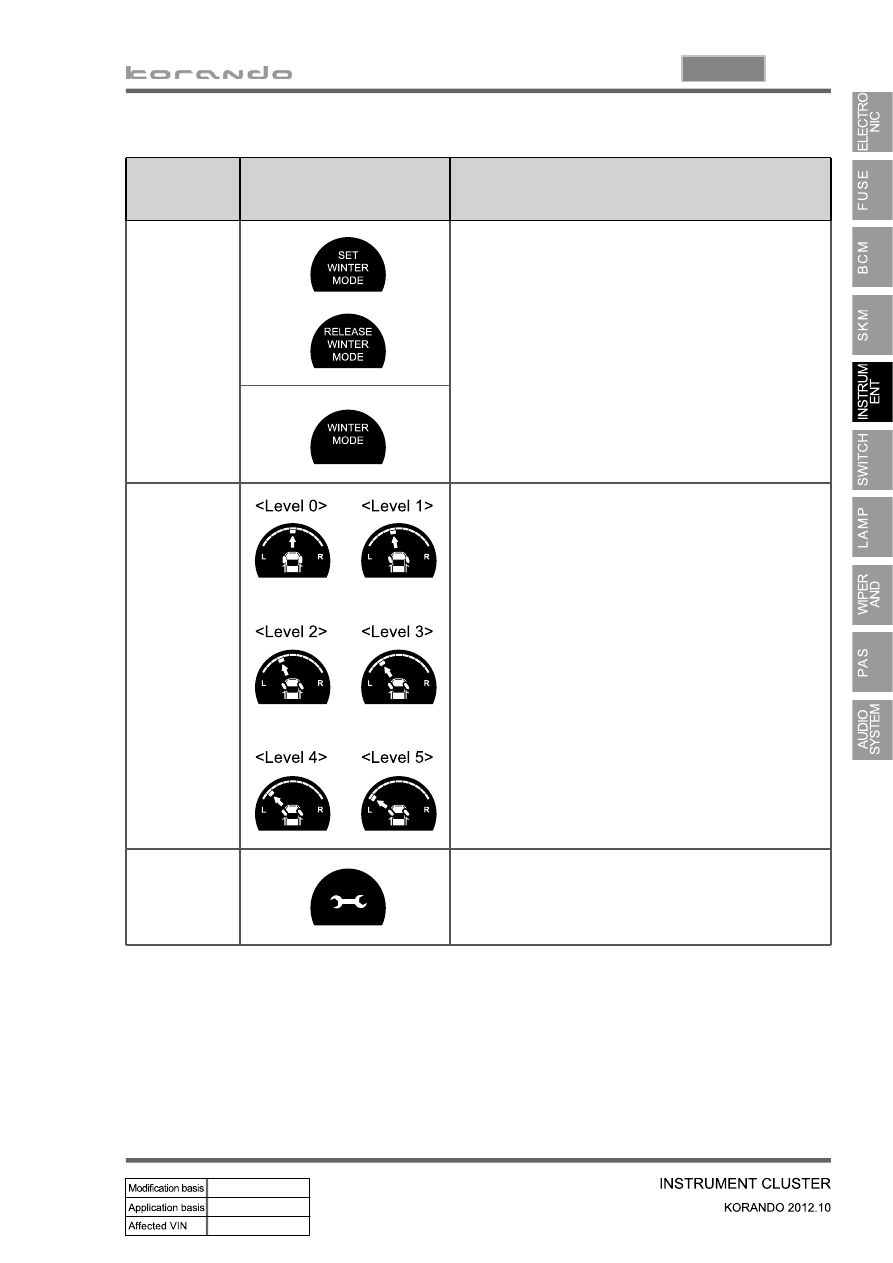

Winter mode
(SVC class)

Tire alignment
(applies to
vehicle with
EPS)

CAN scan

(This message goes off when all the CAN signal inputs
are normal)

The message "SET WINTER MODE" is displayed

on the LCD display when the winter mode is

activated. The message "RELEASE WINTER

MODE" is displayed when it is deactivated.

The message "WINTER MODE" is displayed when

the vehicle starts off with the winter mode set.

-

-

This message helps the driver to predict the driving

direction since the tire alignment is displayed on the

instrument cluster.

The images on the left show that the tires are

aligned to the left. When the tires are aligned to the

right, the image is symmetrical vertically.

Tire alignment is displayed between level 0 and

level 5 depending on the alignment degree when

the ignition switch is turned to "ON" position from

"OFF" position with the shift lever in "P" or "N"

position. While the images up to level 2 comes on

for 5 seconds, the images from level 3 stay on.

These messages are not displayed when the EPS

check message is displayed.

-

-

-

-

Pin No.

Message

Operating condition

05-50

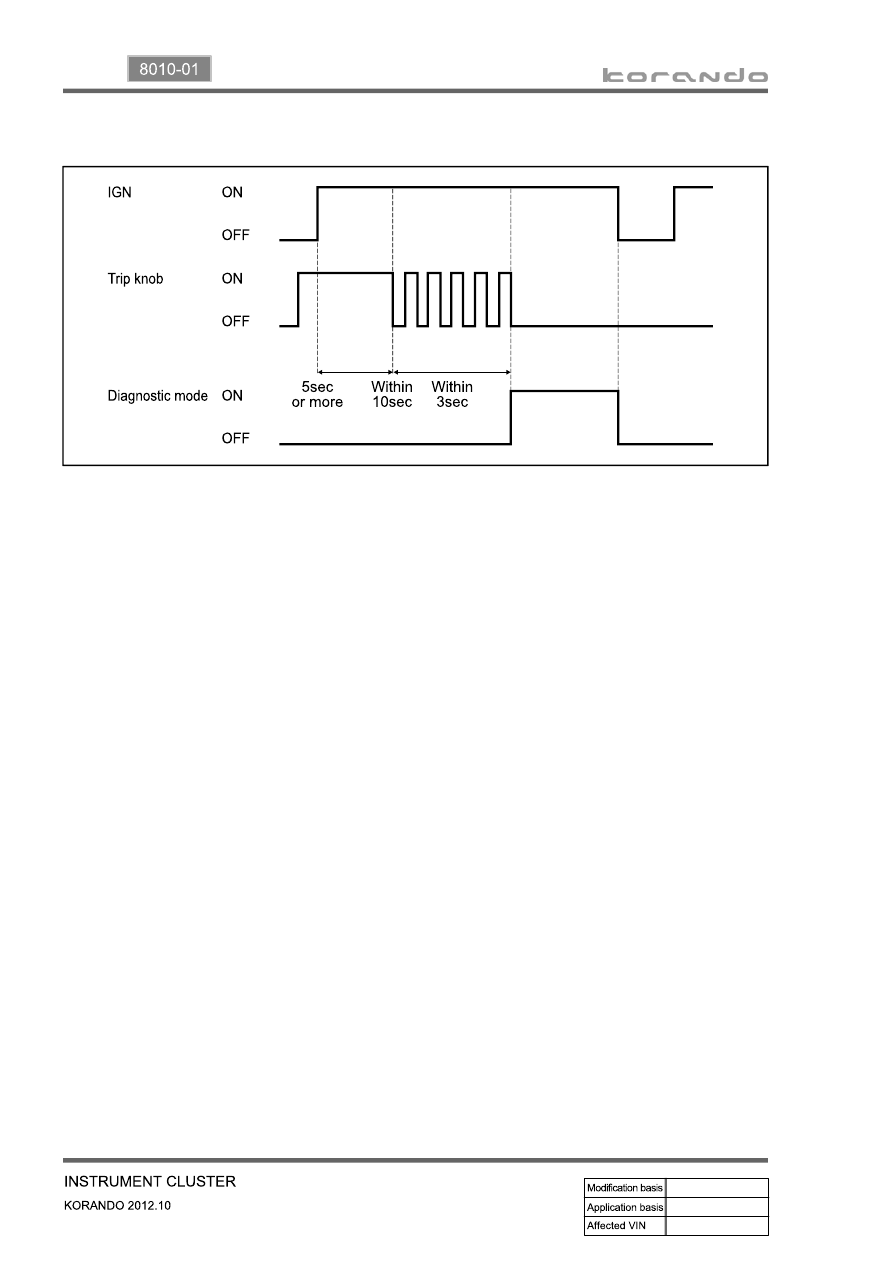

5. SELF DIAGNOSIS

1. Self diagnosis for gauge

Speedometer: Check the whole speed range (minimum to maximum).

Tachometer: Check the whole rpm range (minimum to maximum).

-

-

2. Self diagnosis for symbols

All symbols ON

(except the wired type symbols: air bag, passenger air bag, turn signal indicators, hazard warning

lamp, high beam, front fog lamp)

-

3. ETC

When entering into the self diagnosis mode, the instrument cluster illumination output will be 100%.

All the remaining segments are ON.

The spanner symbol goes off if CAN messages to the instrument cluster are OK. If not, it blinks.

The mode and illumination switch inputs are overridden.

-

-

-

-

6. VARIANT CODING

The instrument cluster enables all functions by receiving the vehicle's variant codes through CAN

communication when turning the ignition switch to ON position.

The systems verified by variant code performs the pre-warning and time-out operation. If not

confirmed, all data for the systems, even exiting in CAN network, are overridden.

-

-

4. Diagnosis mode deactivation condition

The diagnosis mode is deactivated when the ignition switch is turned to "OFF" position or the

engine is running.

-
