05-39

8010-01

Function

Signal

Remark

Display type

3 digits LCD

Display range

0.0 km ~ 99.9 km
(0 miles~99.9 miles)

Resolution

0.1 km (mile)

Display interval

every 10 seconds

Data clear

- Disconnect B+
   voltage
- Press and hold Reset
  switch for more than
  1 sec.
- Reset automatically
  when refilling

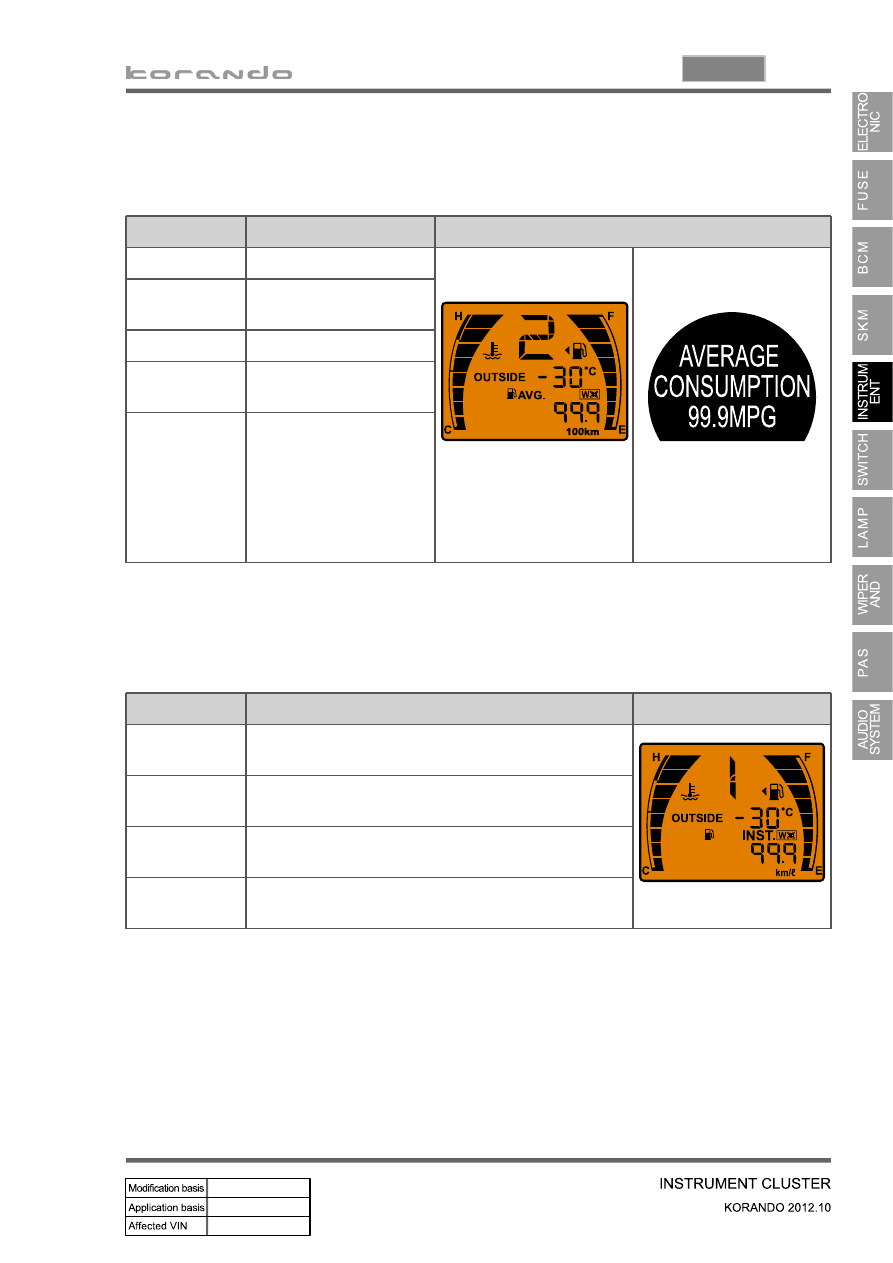

(2) Average Fuel Consumption Mode

The LCD display indicates average fuel consumption calculated based on total driving distance and total

fuel consumption since B+ power supply or data reset.

(3) Instant Fuel Consumption Mode

The LCD display indicates the instant fuel consumption (for 2 seconds) calculated based on driving

distance and fuel consumption for last 2 seconds.

Function

Signal

Remark

Display type

3 digits LCD

Display range

0.0 ~ 99.9
(MPG, ℓ/100 km, km/ℓ)

Resolution

0.1 km (mile)

Display interval

every 2 seconds

<STD>

<SVC>

<STD>

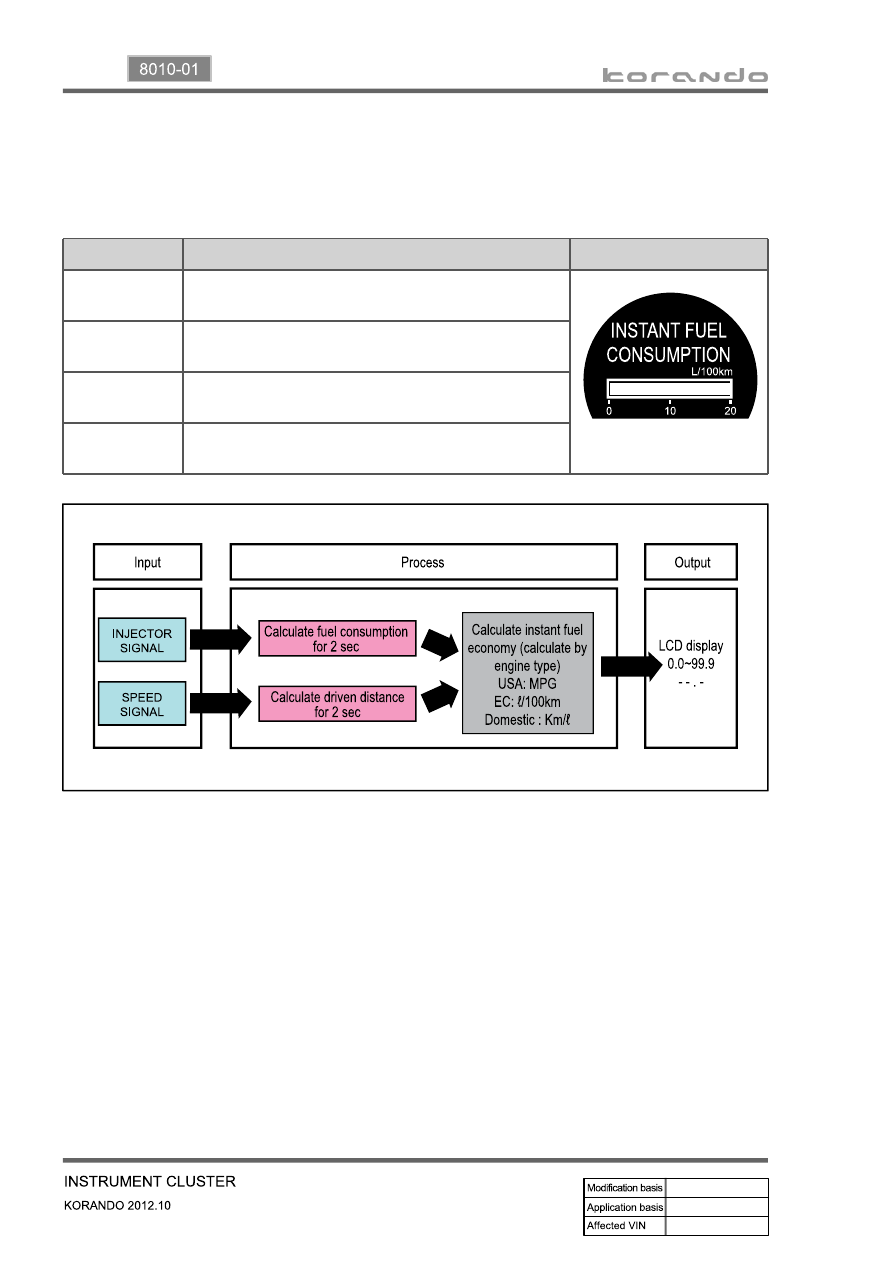

05-40

When the ignition is switched on and the vehicle is drived more than 10 km, average fuel consumption

is displayed at every 200 ms, based on the fuel consumption and driving distance for 600 ms.

-

Function

Signal

Remark

Display type

DOT BAR TYPE(92DOT)

Display range

0.0 ~ 20(ℓ/100km, km/ℓ)/ 0.0 ~ 50(MPG)

Resolution
(DOT)

0.2174(ℓ/100km, km/ℓ per Bar),
0.5435(MPG per Bar)

Display interval

every 200ms(25℃)

<SVC>

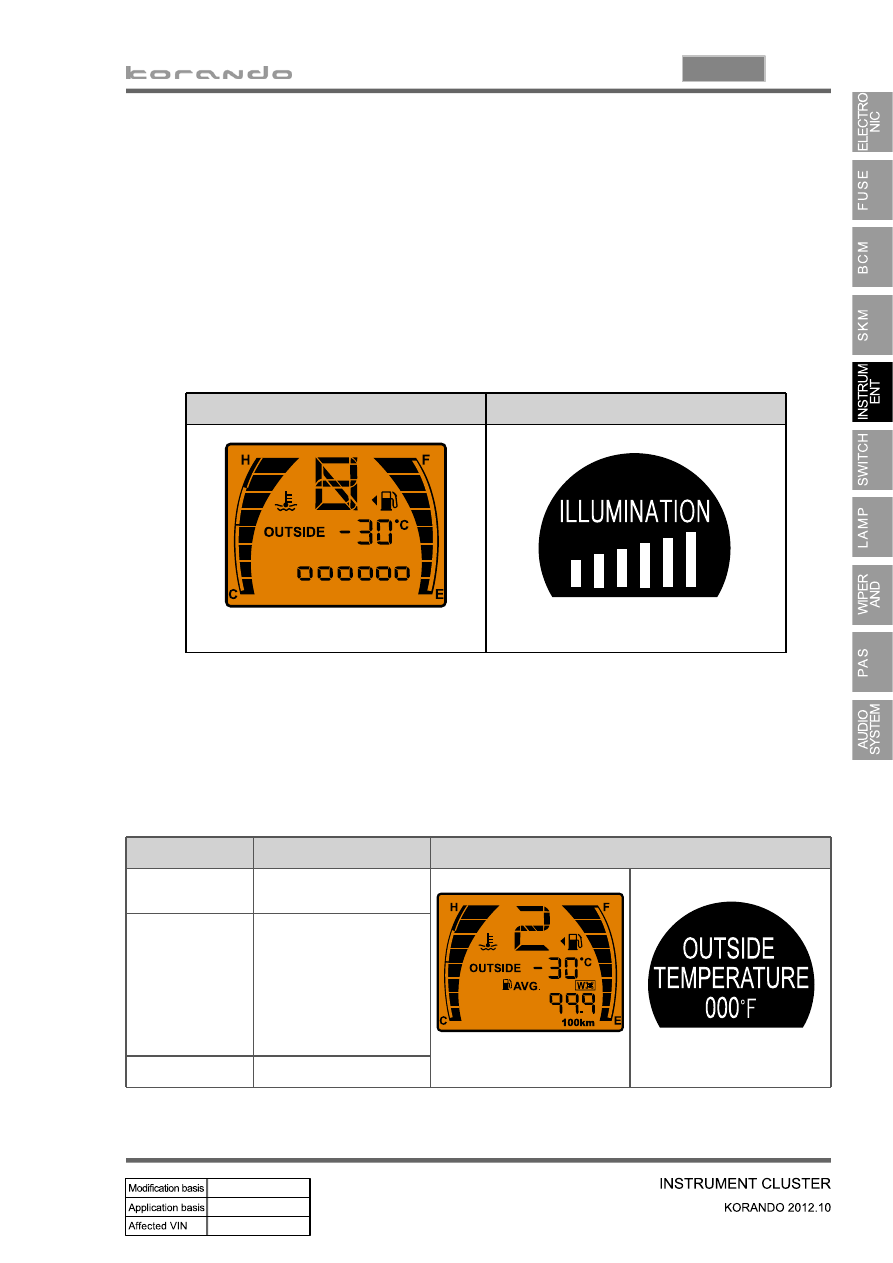

05-41

8010-01

SVC class instrument cluster

STD class instrument cluster

(4) Illumination Mode

(5) Ambient Air Temperature Mode

The ambient air temperature is calculated and displayed.

This is displayed on both STD and SVC class, regardless of FATC type (automatic or manual).
For SVC class, the driver set only the unit between ℃ and ℉ on the DOT LCD, the ambient

temperature is displayed on the SEG LCD.

-

-

-

Function

Signal

Remark

Display type

3 digits LCD

Display range

Resolution

1℃(1℉)

TRIP/RESET switch

▶

Press for less than 1 second: change to next mode

Press for more than 1 second:

: Enter into illumination level mode
→ Level changes by 1 step up and down when pressing the switch for more than

    1 second on consecutively illumination mode
    (e.g. Level 4 → 5 → 6 → 5 → 4 → 3 → 2 → 1)

If the Trip/Reset switch is not pressed within 3 seconds after getting into the illumination mode, the

LCD changes to next mode.

-

-

-

-30℃ ~ 90℃
(-22℉~ 194℉)
-31℃ ~ -33℃
 : maintain 30℃
91℃~93℃
 : maintain 90℃

-

-

-

<STD>

<SVC>

<STD>

<SVC>

05-42

9) Buzzer

Specifications

▶

Function

Signal

Part name

PKM17EPP-2002-B0 (MURATA, Piezoelectric Sound Components)

Permitted input voltage

25 VP-P or less

Operating temperature

-20˚C to +70˚C

Storage temperature

-30˚C to +80˚C

Sound pressure level

70 dB/min (3 Vp-p, 2 kHz, square wave, 10 cm)

Capacitance

10.9 nF ±30% (120 Hz)

Output

▶

Pin No.

Middle East

(STD only)

Except Middle

East

Buzzer

Priority

ON_Time

OFF_Time

PAS

O

O

-

-

0

Over speed

warning

O

X

500 ms

200 ms

1

ESP

O

O

100 ms

100 ms

2

Temperature

warning

O

O

500 ms

500 ms

3

Fuel filter

O

O

500 ms

500 ms

4

Parking

brake

O

O

2.8 s

1.5 s

5

Modulating frequency: 1.96 kHz

If the signal with higher priority is activated during the operation of signal with lower priority, the

current operation should be completed before starting the operation with higher priority.

If there are multiple signals at a time, the operation should be completed by the priority.

-

-

-
