05-43

8010-01

10) PAS (Parking Aid System)

(2) Self Diagnosis Mode

Operating conditions

Self diagnosis is performed once when the ignition is switched on (gear shift lever in "R" position). If

the system is defective (Fail) due to open sensor or communication problem, the information for the

failed sensor is sent to the instrument cluster.

▶

Fail condition (However, no obstacle should be within 30 cm)

1. The signal wire is open

2. The power wire (+ and -)is open

-

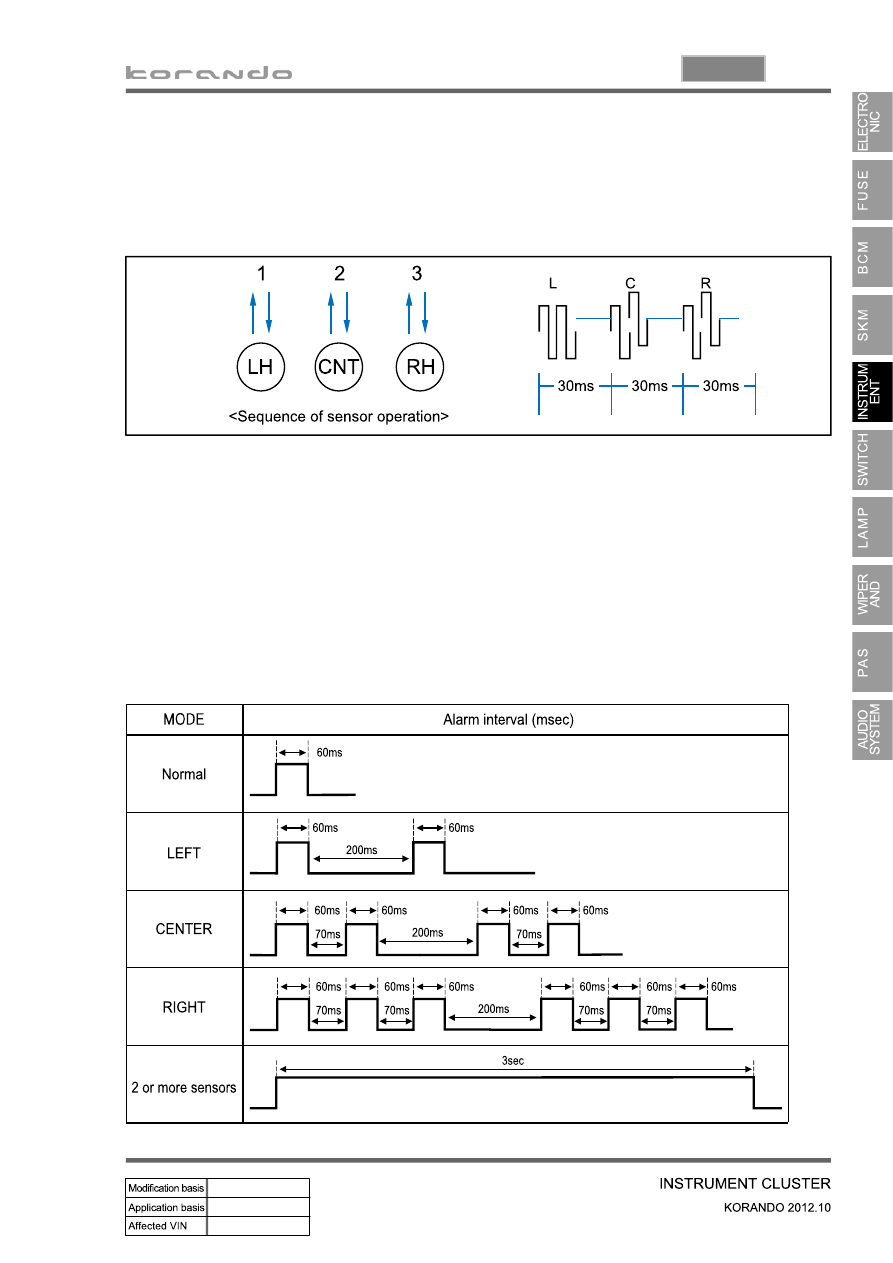

Buzzer interval during self diagnosis

▶

(1) Sensor Operating Process

The ultrasonic sensors transmit ultrasonic waves and receive the reflected waves from an obstacle to
detect it in the following order: L → C → R.

05-44

Timeout processing time for buzzer interval after measuring distance/self diagnosis: 600 ms

- If timeout is reached, the PAS returns to undetected condition.

Process while re-inputting

After timeout, the process is performed normally if the signal required for display is received from

beginning to end.

(not detectable if the signal is received in the midst of process)

1.

2.

Exception/error handling

-

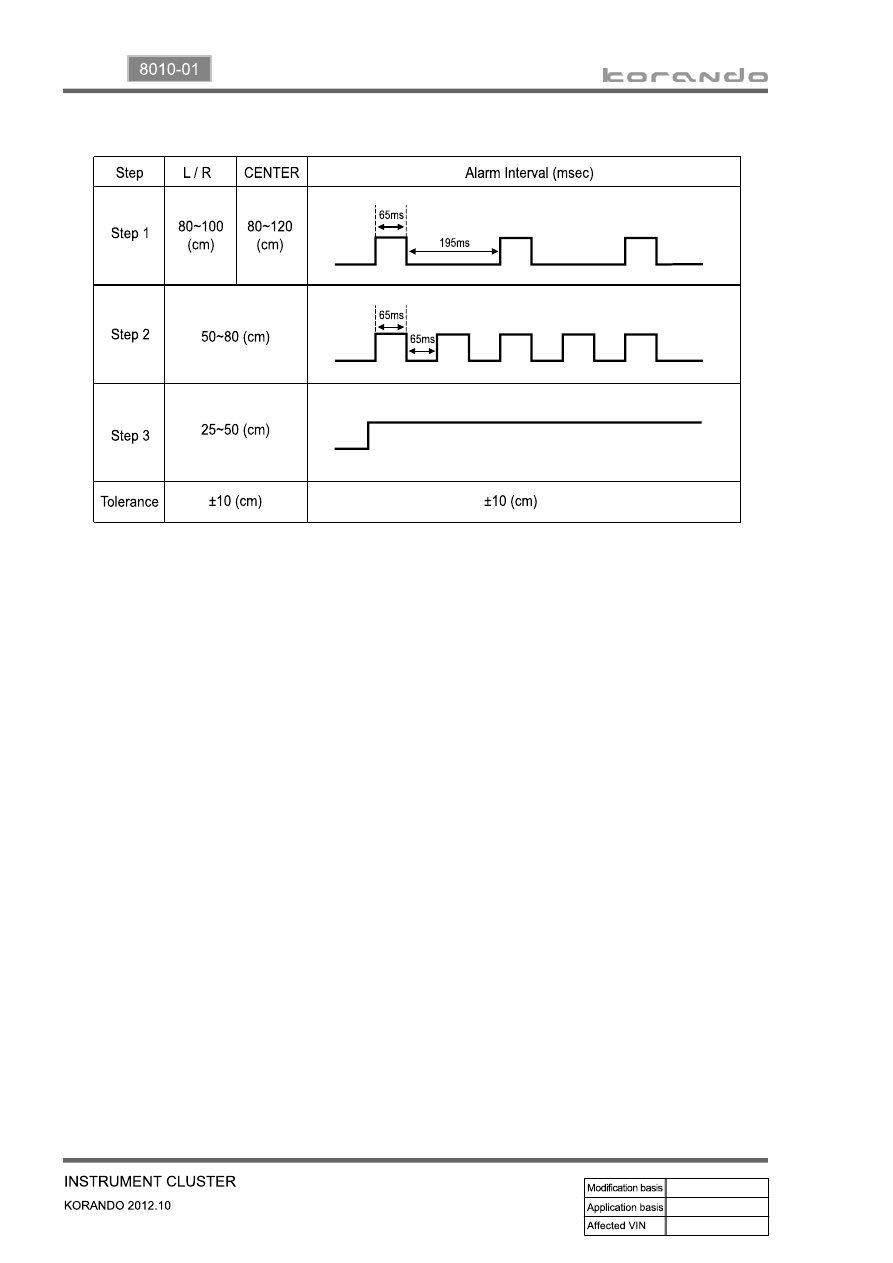

Buzzer interval when measuring distance

▶

05-45

8010-01

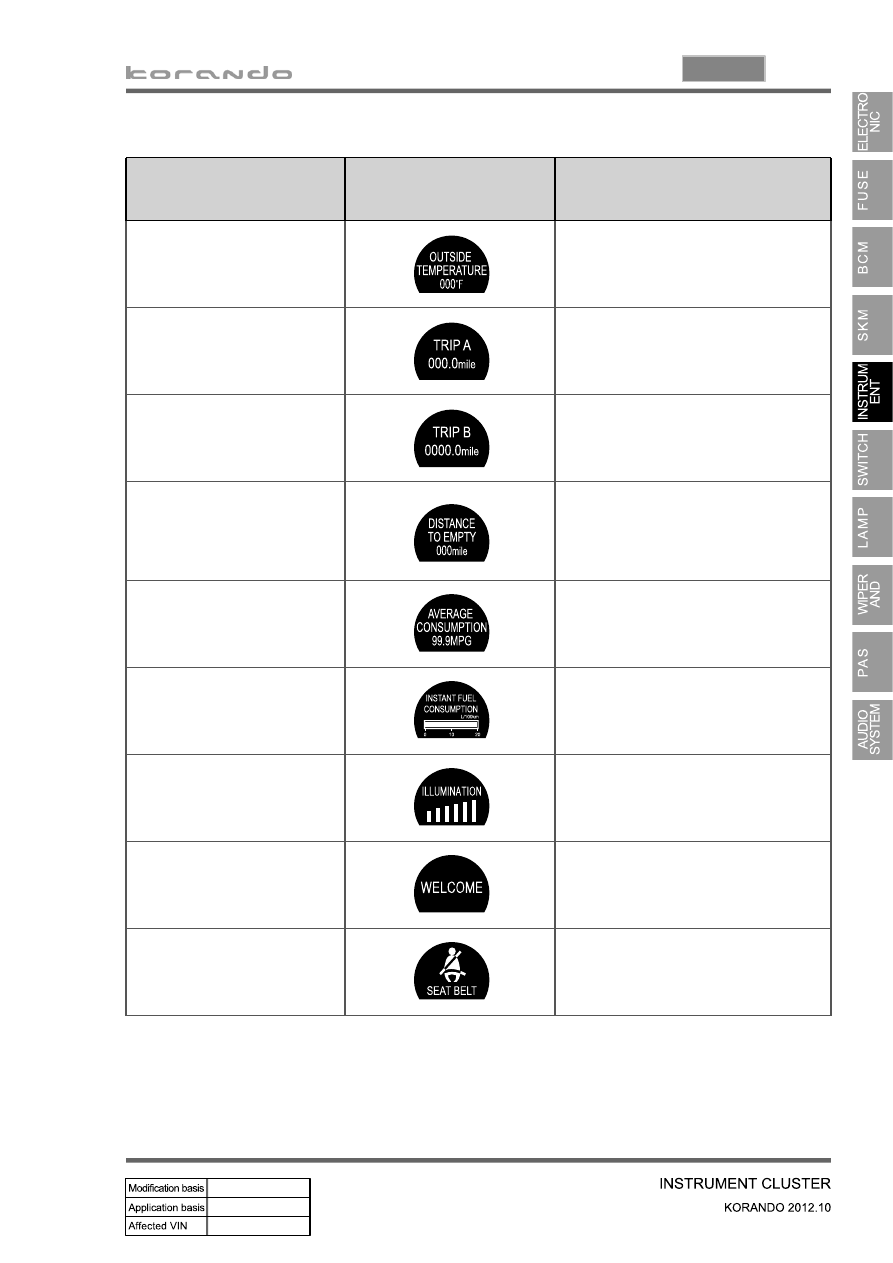

Pin No.

Message

Operating condition

Ambient temperature:
indicates air temperature
outside control

TRIP switch

Trip A

Reset: Press and hold the Trip switch
for more than 1 second

Trip B

Reset: Press and hold the Trip switch
for more than 1 second

Distance to empty:
indicates a distance can be
driven with the fuel remaining
control

Factory-setting mode

Average fuel consumption:
indicates average fuel
control

Reset: Press and hold the Trip switch
for more than 1 second

Instant fuel consumption:
indicates fuel consumption for
a short periods

TRIP switch

Illumination brightness:
indicates tail lamp brightness
control

Brightness control: Press and hold the
Trip switch for more than 1 second

Start-up screen

Displayed for 2 seconds right after
ignition is switched on

Driver's seat belt
reminder

Displayed for 4 seconds after
'WELCOME' screen

DOT LCD message display

▶

Pin No.

Message

Operating condition

05-46

Pin No.

Message

Operating condition

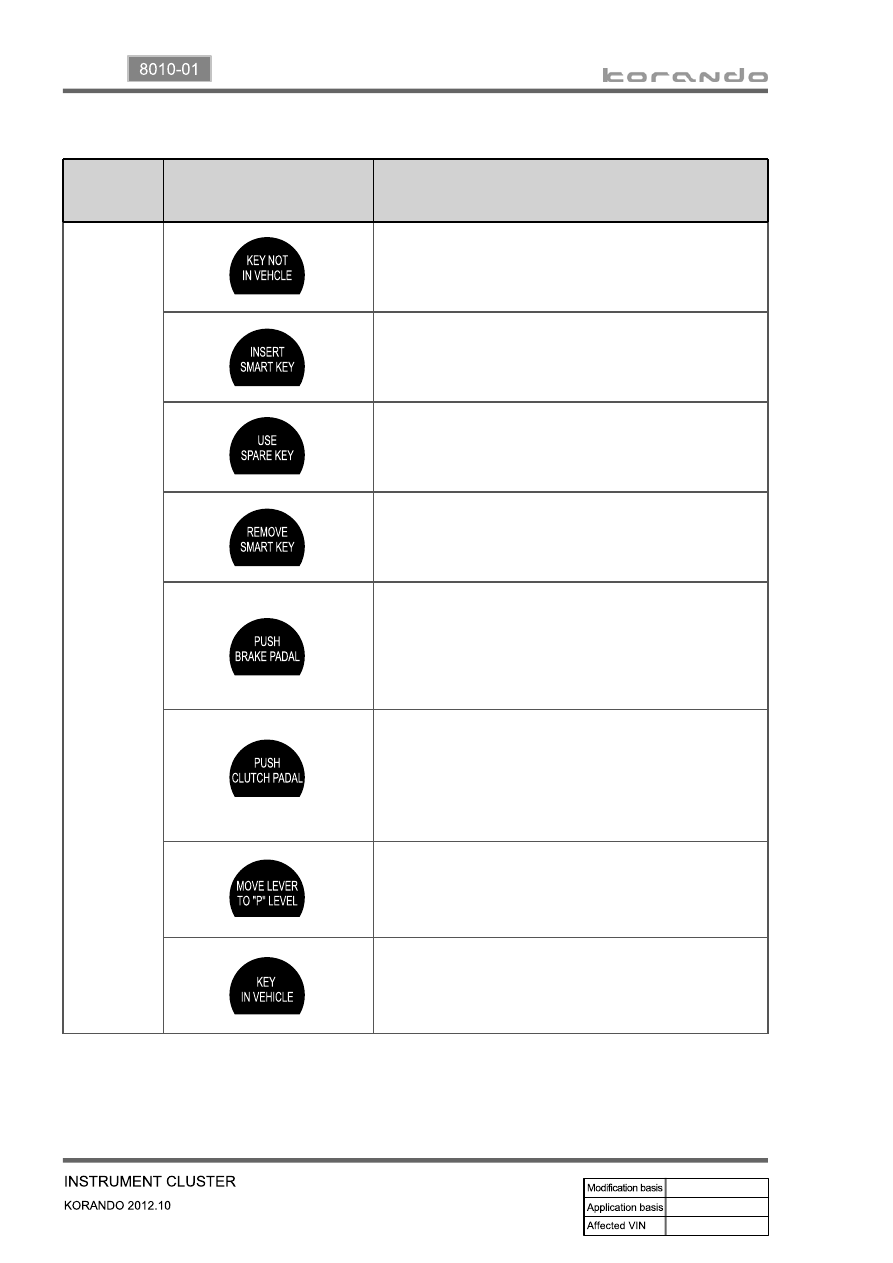

Domestic

Export

Smart key
warning

This message comes on the LCD display, if the smart
key is not in the vehicle when the door is open and
closed in the ignition ON or ACC mode.

This message comes on the LCD display for approx. 10
seconds, if the ignition switch is pressed when the smart
key is not in the vehicle.

This message comes on the LCD display for approx. 10
seconds, if the smart key verification fails after inserting
the smart key into the key holder.

This message comes on the LCD display for approx. 10
seconds with warning sound if the smart key is in the key
holder when the driver door is open with ignition OFF.

This message informs the driver that the brake pedal
should be depressed and the ignition switch be pressed
in order to start the engine, if the ignition is switched to
ACC mode for more than one time when the driver keeps
pressing the ignition switch without depressing the brake
pedal.

This message informs the driver that the clutch pedal
should be depressed and the ignition switch be pressed
in order to start the engine, if the ignition is switched to
ACC mode for more than one time when the driver keeps
pressing the ignition switch without depressing the clutch
pedal.

This message comes on for approx. 10 seconds to
inform the driver that the ignition switch should be
pressed with the shift lever in P in order to start the
engine.

This message comes on for approx. 10 seconds to
inform the driver that the verified smart key is in the
vehicle, if the driver locks the door using another verified
smart key with all the doors closed.

Pin No.

Message

Operating condition
