05-35

8010-01

05-36

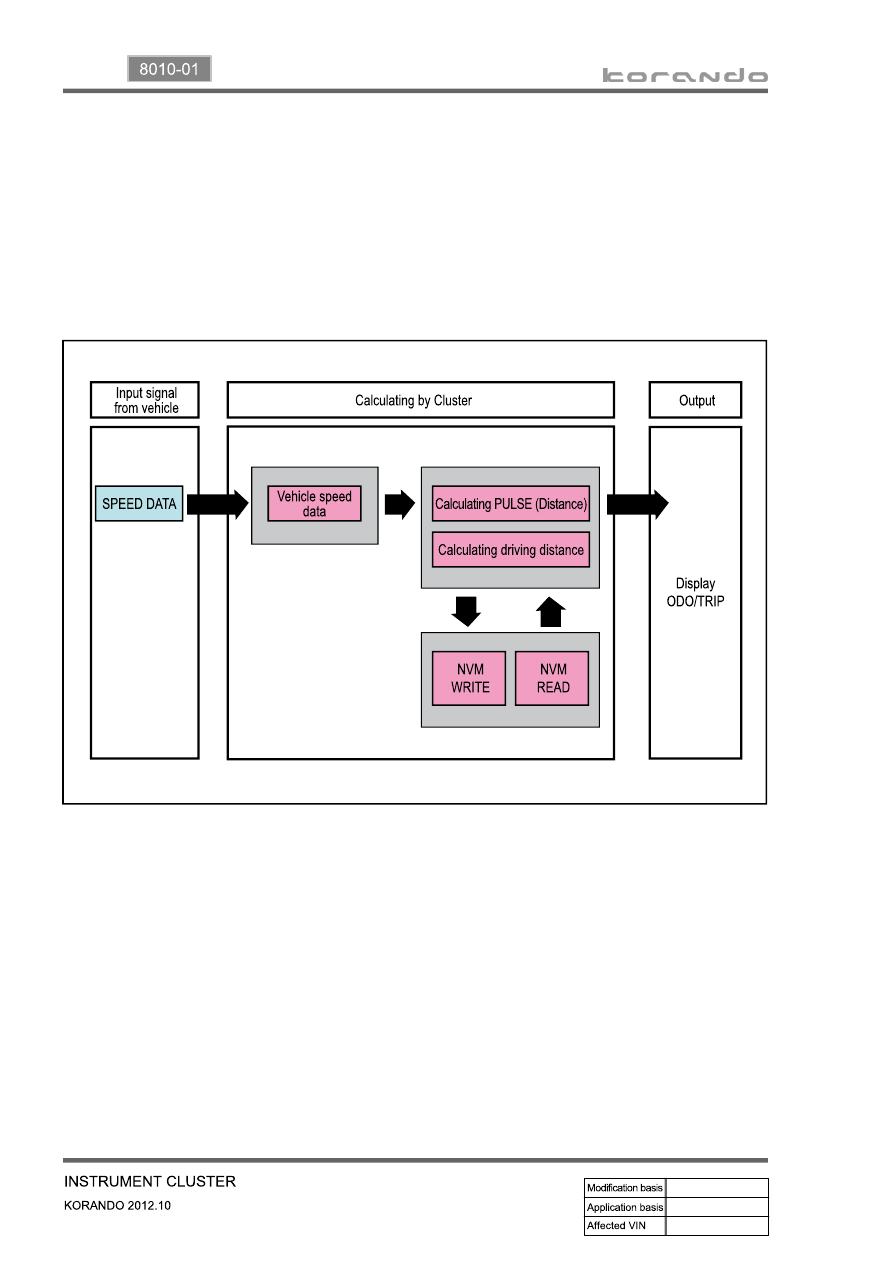

7) Odometer (ODO) and Trip Meter (TRIP)

The total driving distance (0 to 999,999 km or 0 to 999,999 miles) and the trip distance (0.0 to 999.9 km

or 0.0 to 9,999.9 miles) are calculated by using the value of pulse per 1 km which is programmed in the

EEPROM.

Applicable maximum driving speed is 300 km/h. If the vehicle speed goes over the limit, ODO and Trip

meter does not operate any more and the pointer indicates the maximum km/h (MPH). The pulse count

information is sent from the speed module according to the speed CAN data that matches the speed

frequency.

05-37

8010-01

Function

Signal

Remark

Input data

Speed signal

Display type

4 digits LCD

Display range

A: 0.0 ~ 999.9 km
(mile)
B: 0.0 ~ 9999.9 km
(mile)

Resolution

0.1 km (mile)

Maximum Odo
value

A: 0.0 → 999.9 → 0.0
km
B: 0.0 → 9999.9 →
0.0 km

IGN OFF

Memorize and maintain previous trip distance

Data clear

Supply B+ voltage for the first time
Press and hold mode switch for more than 1 sec.

Maximum Odo
value

If the signal indicating actual vehicle speed above 300 km/h is received, the data is
not accumulated.

Function

Signal

Remark

Input data

Speed signal

Display type

6 digits LCD

Display range

0~999999 km(mile)
Hold

Resolution

1 km (mile)

Maximum Odo
value

If the signal indicating
actual vehicle speed
above 300 km/h is
received, the data is
not accumulated.

STD Class Odometer Display & Data Storage

▶

STD Class Tripmeter Display

▶

<STD>

<SVC>

<STD>

<SVC>

05-38

Function

Signal

Remark

Display type

3 digits LCD

Display range

50 km ~ 999 km
(30 miles ~ 999 miles)

Resolution

1 km (mile)

Display interval

every 1 seconds

(1) DTE (Distance To Empty) Mode

The DTE (distance to empty) function is an estimation on how much further the vehicle can be driven with

the fuel remaining in the tank, based on the previous driving pattern (fuel economy).

8) Display Mode

STD Class Odometer Display & Data Storage

▶

<STD>

<SVC>
