05-31
8010-01
The pre-warning of the MICOM control warning is performed 400 ms after turning the ignition switch to
ON position.
IGN ON detecting time: 40~80 ms after turning ignition switch to ON position
-
-

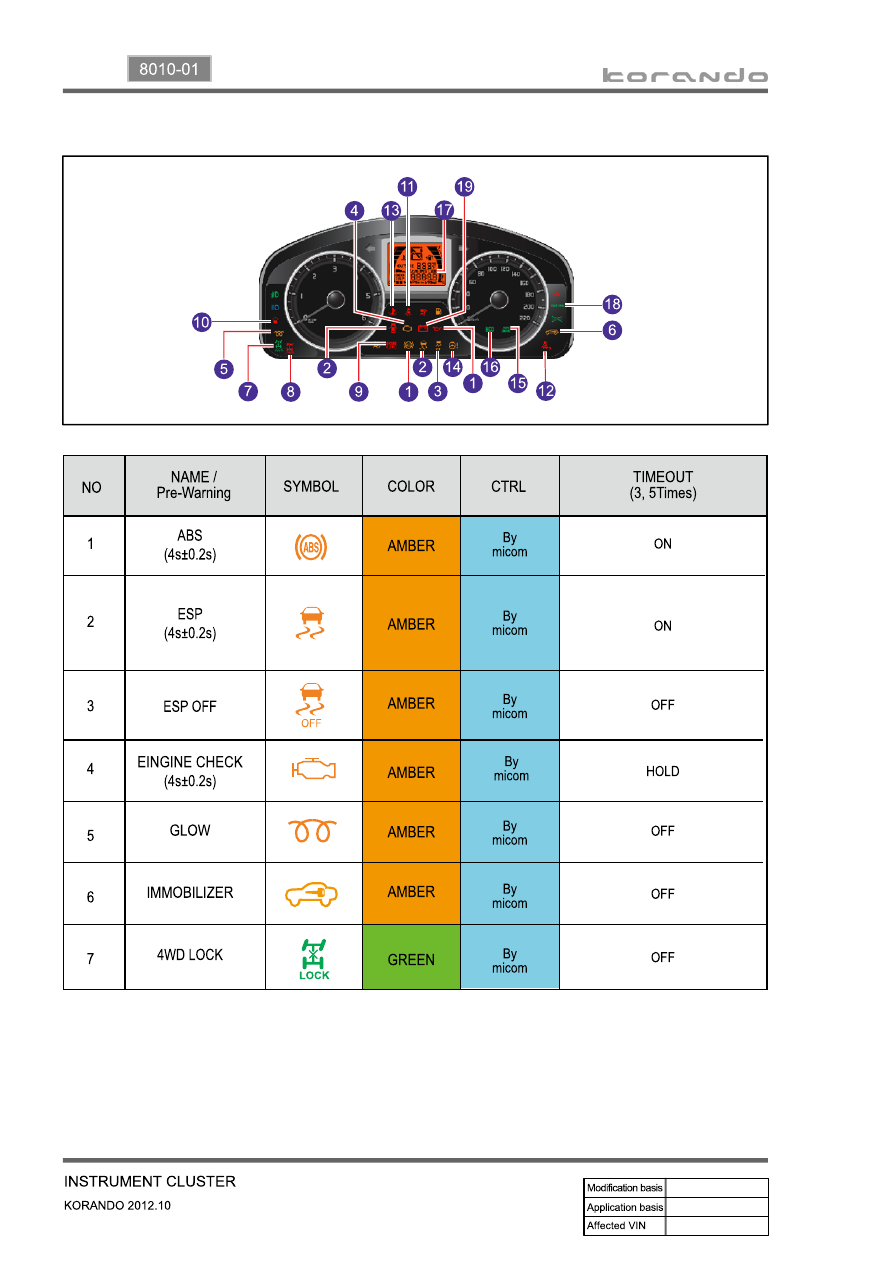

The pre-warning is performed for 4 seconds after turning the ignition switch to ON position. BCM checks
that the warning lamps (ABS, ESP, ESP OFF, 4WD CHECK, 4WD LOCK) are matched with CAN
signals.
The pre-warning is performed by the variant code.
