SsangYong Korando III (2010 year). Manual - part 183

06-19

8510-00

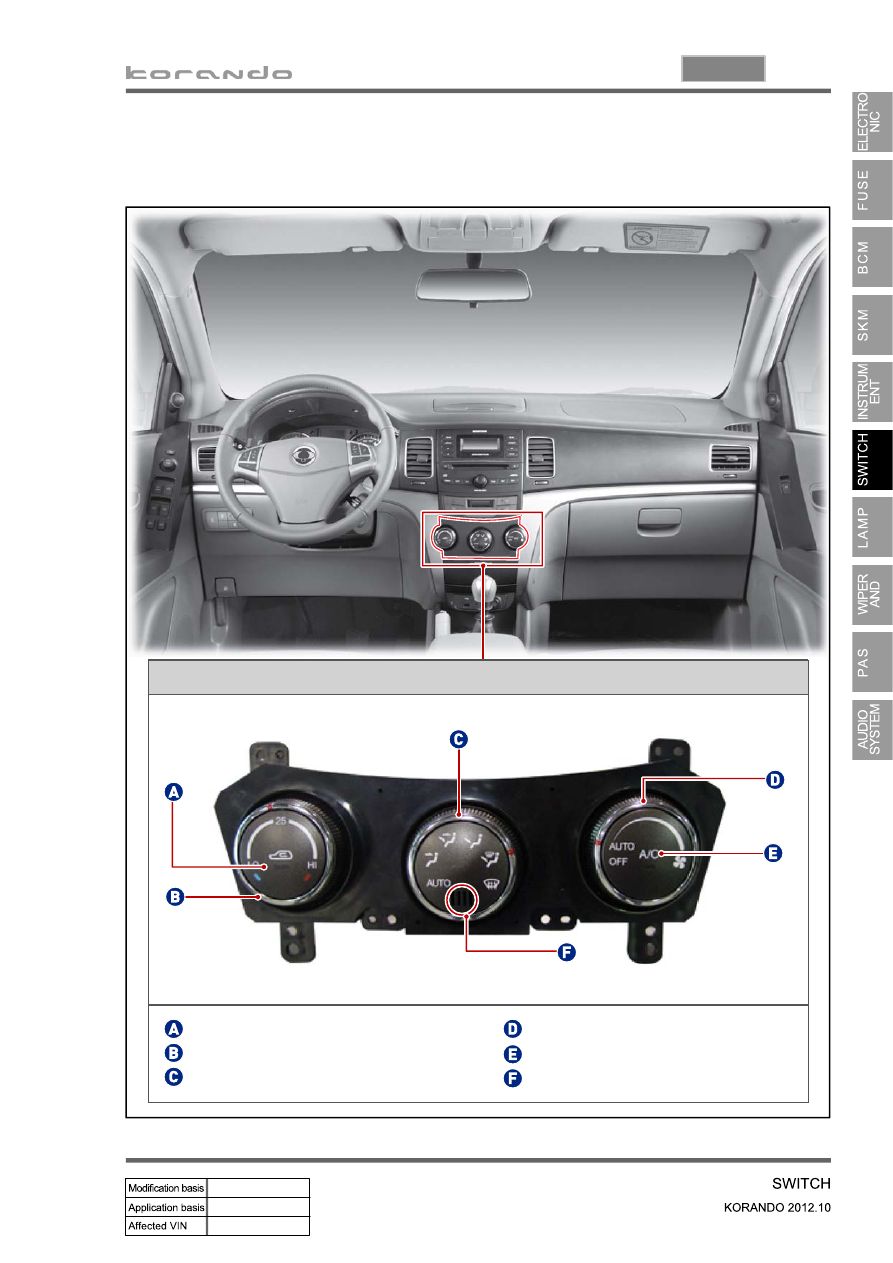

FATC switch

1) FATC Switches

Air source mode switch

Temperature dial

Mode dial

Fan speed dial

A/C switch

In-car temperature sensor

3. SWITCH CLUSTER ON INSTRUMENT PANEL

06-20

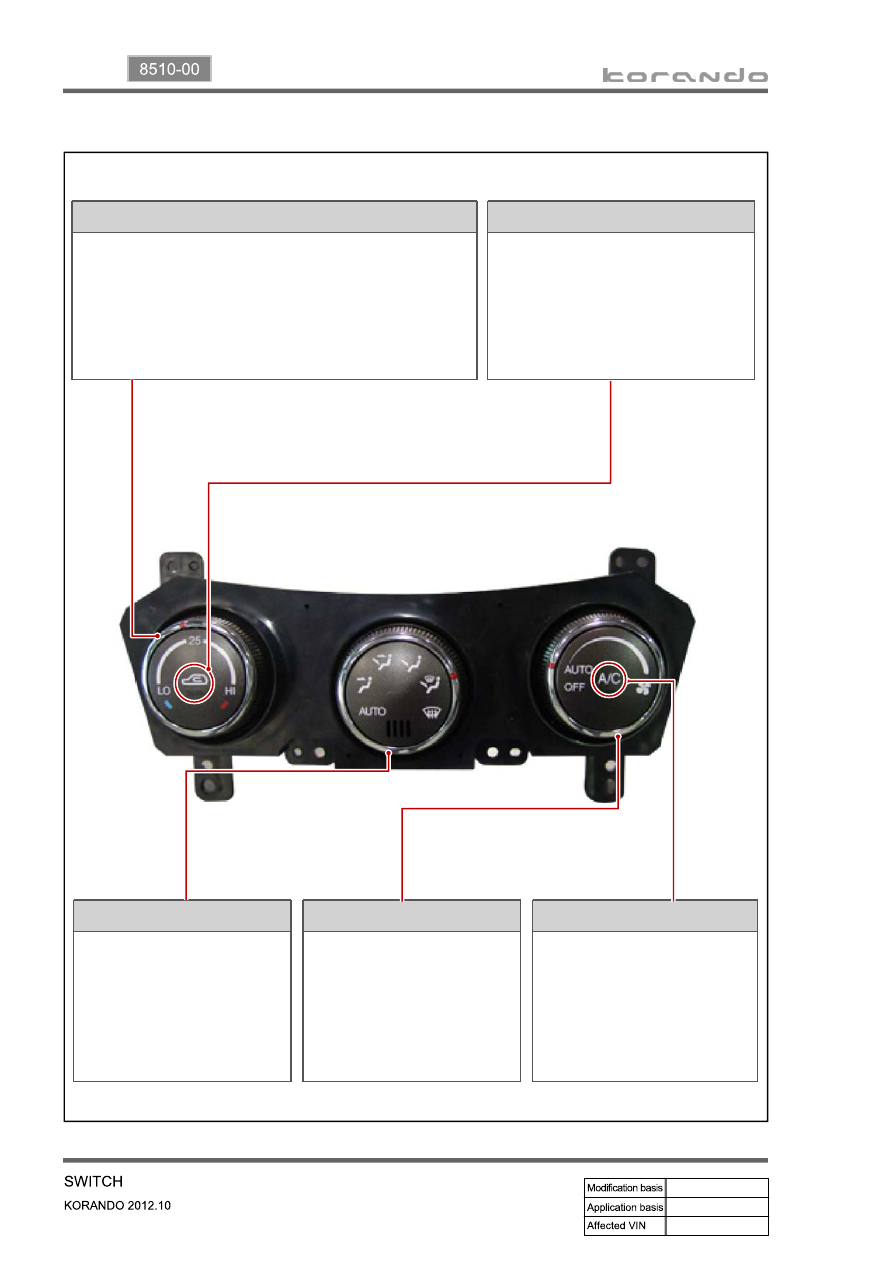

Temperature dial

In full AUTO mode, the FATC receives various signals
such as the indoor temperature, ambient temperature,
engine coolant temperature, sunlight, from different
sensors to control the A/C compressor, mode door, intake
actuator assembly, air mix door, blower motors, etc. to
keep indoor environments fresh.

Fan speed dial

In full AUTO mode, the blower
motor is controlled
automatically according to the
set temperature. The blower
motor speed can also be
controlled manually.

Mode dial

You can choose a desired
mode from the 5 modes by
turning the mode as required.
The dial indicator for the
selected mode comes on to
inform the operator.

Air source mode switch

When you press this switch,
recirculation indicator comes on and
the system is changed into the
recirculation mode. (However, under
defroster
mode or defroster/floor mode, it stays
in the fresh air mode.)

A/C switch

When pressing this switch, the
air conditioner operates in
manual mode and A/C ON
indicator comes on.
The A/C starts automatically
when the defroster mode is
selected.

06-21

8510-00

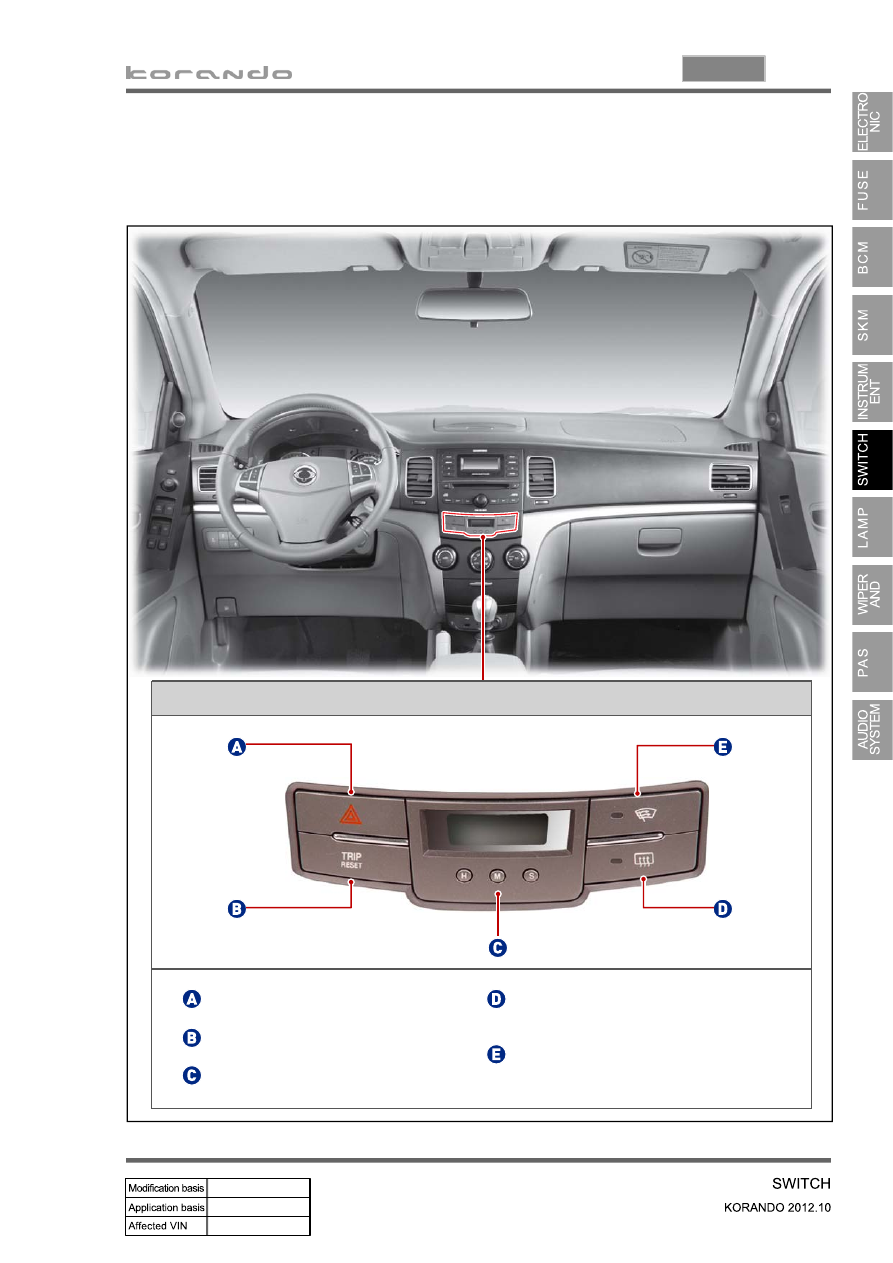

2) Center Fascia Switch

Center fascia switch

Hazard warning flasher switch

TRIP reset switch

Digital clock

Rear glass & outside mirror

heated wire switch

Windshield heated wire

The center fascia switch contains the hazard warning flasher switch, windshield heated wire switch,

digital clock, rear glass heated wire switch and trip switch.

06-22

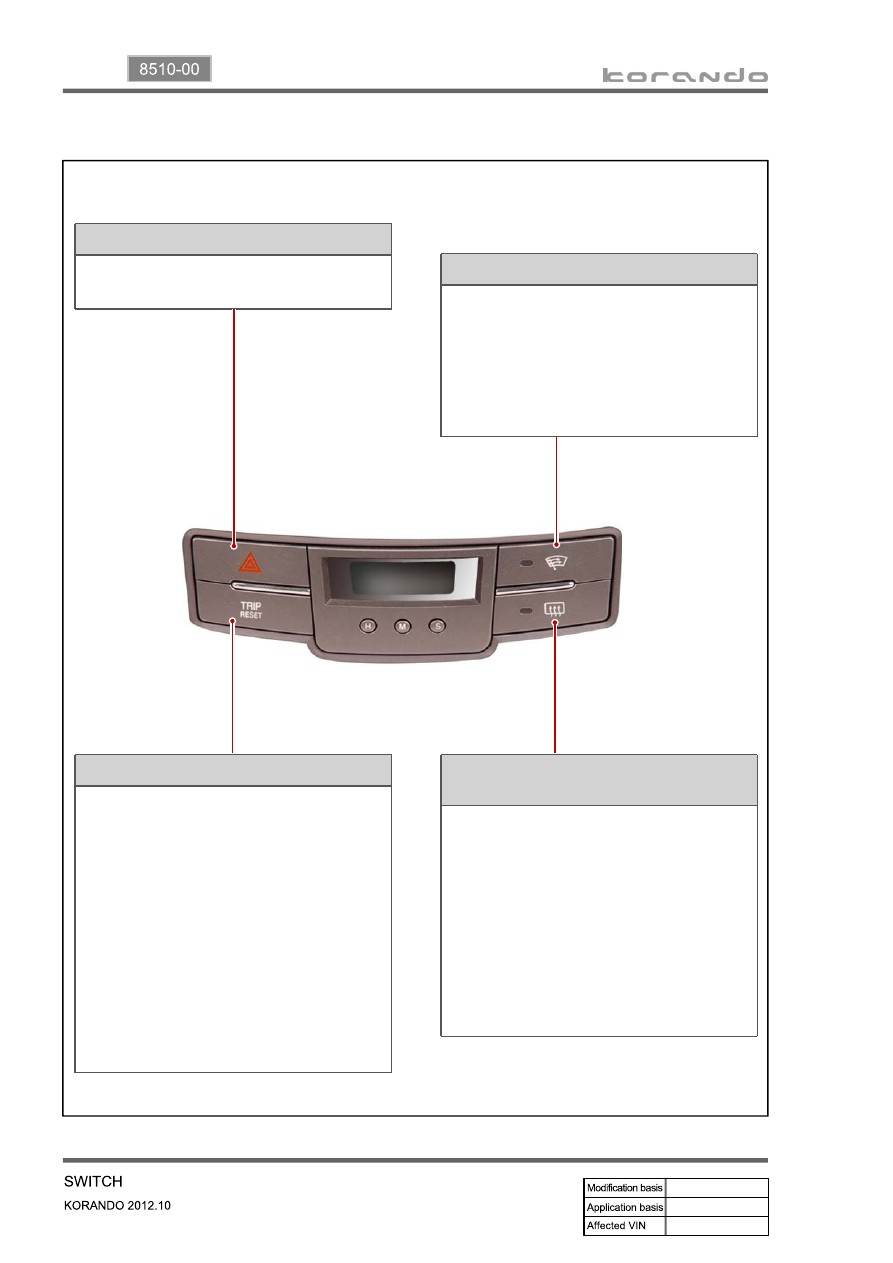

Hazard warning flasher switch

When this switch is pressed, the hazard
warning flashers blink.

Windshield heated glass switch

This is to prevent the windshield wiper blades
from being frozen.
The heated wire operates for about 12
minutes. Press the switch again to stop the
operation.
The indicator in the switch comes on when in
use.

TRIP/Reset switch

Whenever pressing this button, the
information is displayed in the following order:
Odometer, Trip A, Trip B, Distance to empty,
Average fuel consumption, Instant fuel
consumption, Illumination level, Ambient air
temperature (for STD); Trip A, Trip B,
Distance to empty, Average fuel
consumption, Instant fuel consumption,
Illumination level, Ambient air temperature
(for SVC). Press and hold this button to
initialize (reset) Trip A/Trip B and average fuel
consumption, adjust illumination level or
change the unit of temperature.

Rear glass/outside

 mirror heated wire switch

Press this switch to turn on the tailgate and
outside rearview mirror heated wire. The
heated wire operates for about 12 minutes.
Press the switch again to stop the operation.
The heated glass will operate for about 6
minutes when the switch is pressed again
within 10 minutes after completion of its first
operation cycle.
The indicator in the switch comes on when in
use.
