Hazard flasher indicator control

▶

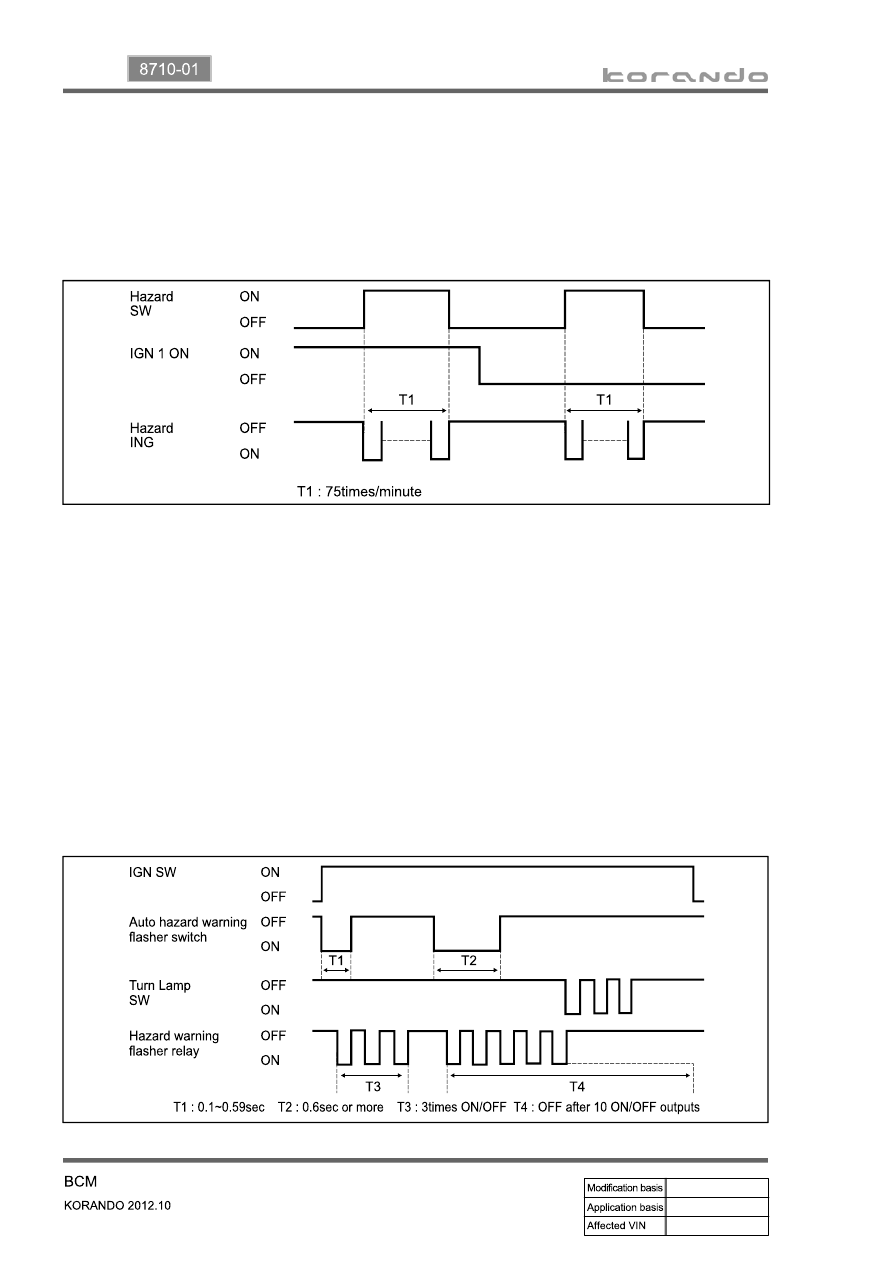

When pressing the hazard flasher switch, the hazard flasher indicator blinks with the interval of

75/min.

When pressing the hazard flasher again switch during Step (1), the indicator stops its operation.

This function is available if the battery is connected (B+).

1.

2.

3.

Auto hazard flasher control

▶

When the auto hazard flasher is operated for 0.1~0.59 seconds, the hazard flasher indicator blinks 3

times.

When the auto hazard flasher is operated for more than 0.6 seconds, the hazard flasher indicator

blinks 10 times.

The hazard flasher has priority over the auto hazard flasher and both have the same flash frequency.

This function is only available when the ignition key is in the "ON" position.

When the ignition switch is turned to OFF position during its operation, the auto hazard flasher stops

the operation.

The hazard flasher stops operation as soon as the signal is received from the turn signal lamp (hazard

flasher) switch during this operation.

If the turn signal lamp switch is turned on, the auto hazard flasher does not operate even though its

signal is received.

1.

2.

3.

4.

5.

6.

7.

03-61

8710-01

Emergency hazard flasher control (coupled with ABS)

▶

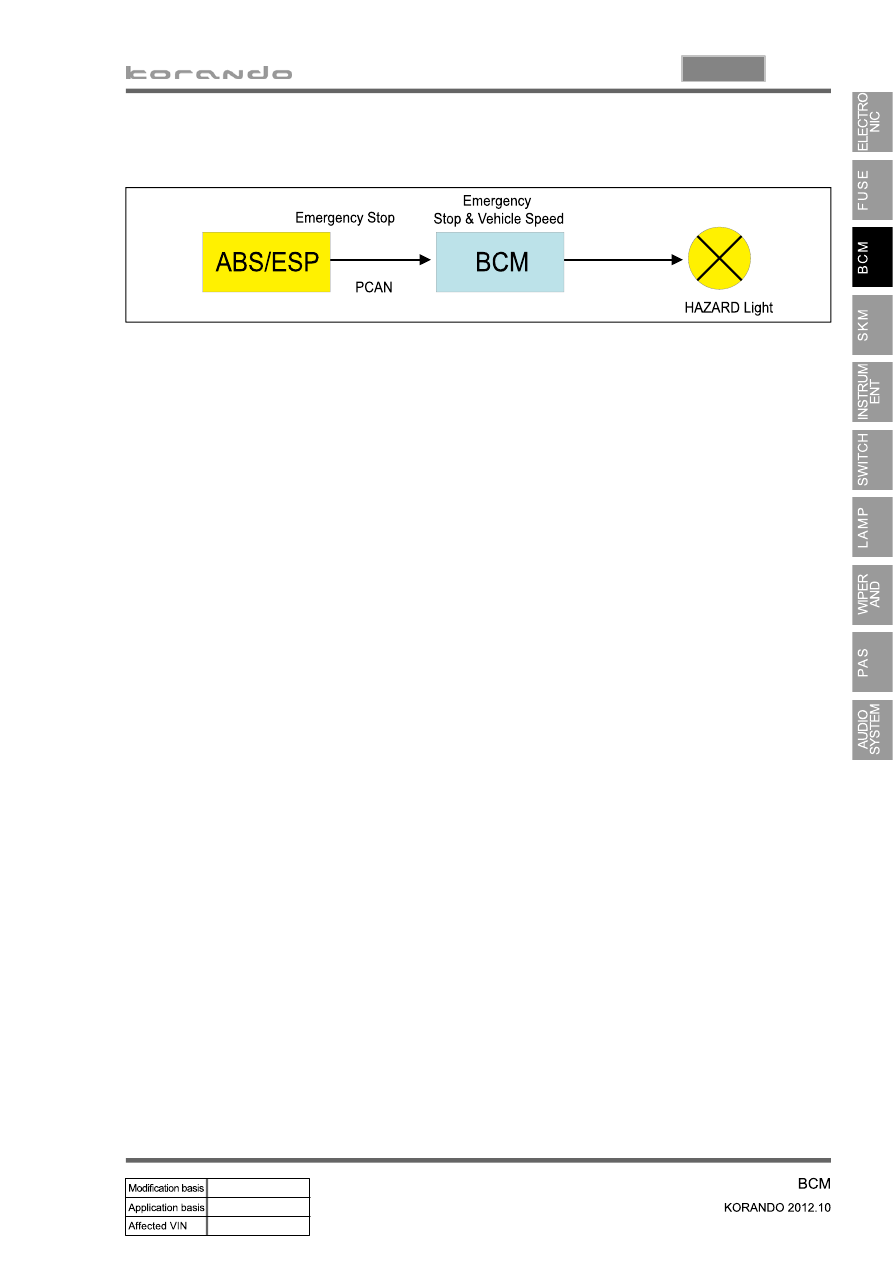

System layout

1.

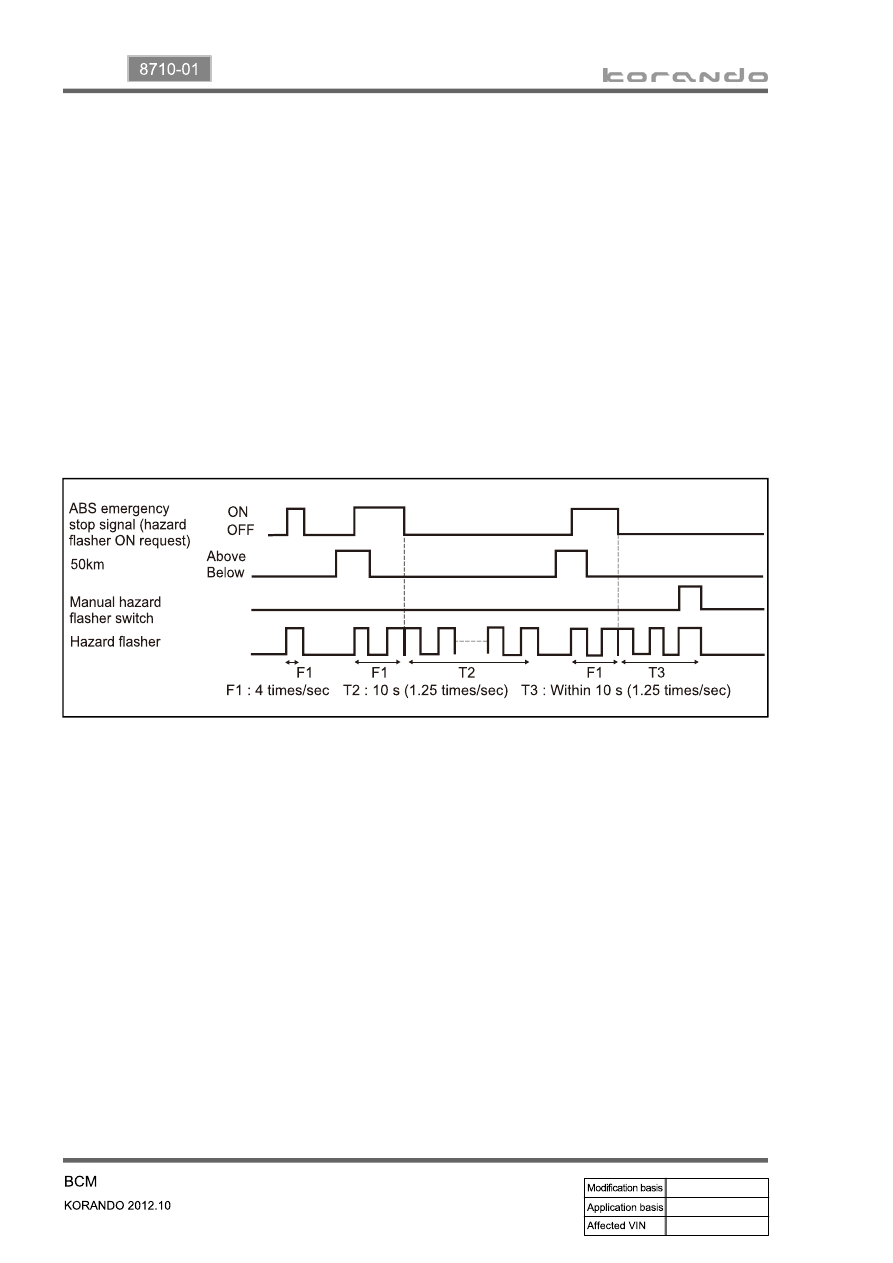

Operating conditions: When receiving the emergency hazard flasher ON signal from ESP and ABS.

When receiving the emergency stop signal through PCAN communication it blinks with the interval of

4 Hz and when receiving the emergency stop OFF signal through PCAN communication it blinks with

the interval of 1.25 Hz, normal operating speed.

However, the manual operation of the switch has a priority over this function.

2.

Priority

Manual hazard flasher > Emergency stop signal > Emergency auto hazard flasher > Auto hazard

flasher

(If emergency stop signal is received through PCAN communication during hazard flasher

operation, the signal is overridden. If the emergency hazard flasher signal is received during multi-

function automatic hazard flasher operation or multi-function automatic hazard flasher is received

during emergency hazard flasher operation, emergency stop is performed.)

When the emergency stop signal is received, the hazard flasher blinks with the interval of 4 Hz,

then returns to normal operation speed. After that, if the emergency stop signal is received again,

the emergency hazard flasher blinks with the interval of 4 times/sec.

-

-

03-62

The emergency hazard flasher does not operate if the vehicle speed is over 50 km/h when the

emergency stop signal is received.

The emergency hazard flasher operates if the vehicle speed is 50 km/h or lower when the

emergency stop signal is received.

When vehicle speed increases more than 10 km/h above the speed when the signal is received

during operation by emergency braking signal, the emergency hazard flasher stops operation.

When turning emergency hazard flasher switch OFF during operation by emergency braking

signal, it stops operation.

It is deactivated automatically 10 seconds after if items 2) and 3) above are not met during

operation by emergency braking signal.

If multi-function automatic hazard flasher signal is received during operation by emergency

braking signal, it will be overridden.

1)

2)

3)

4)

5)

6)

OFF conditions:

The BCM flashes the emergency auto hazard flasher with interval of 1.25 times/sec.:

3.

03-63

8710-01

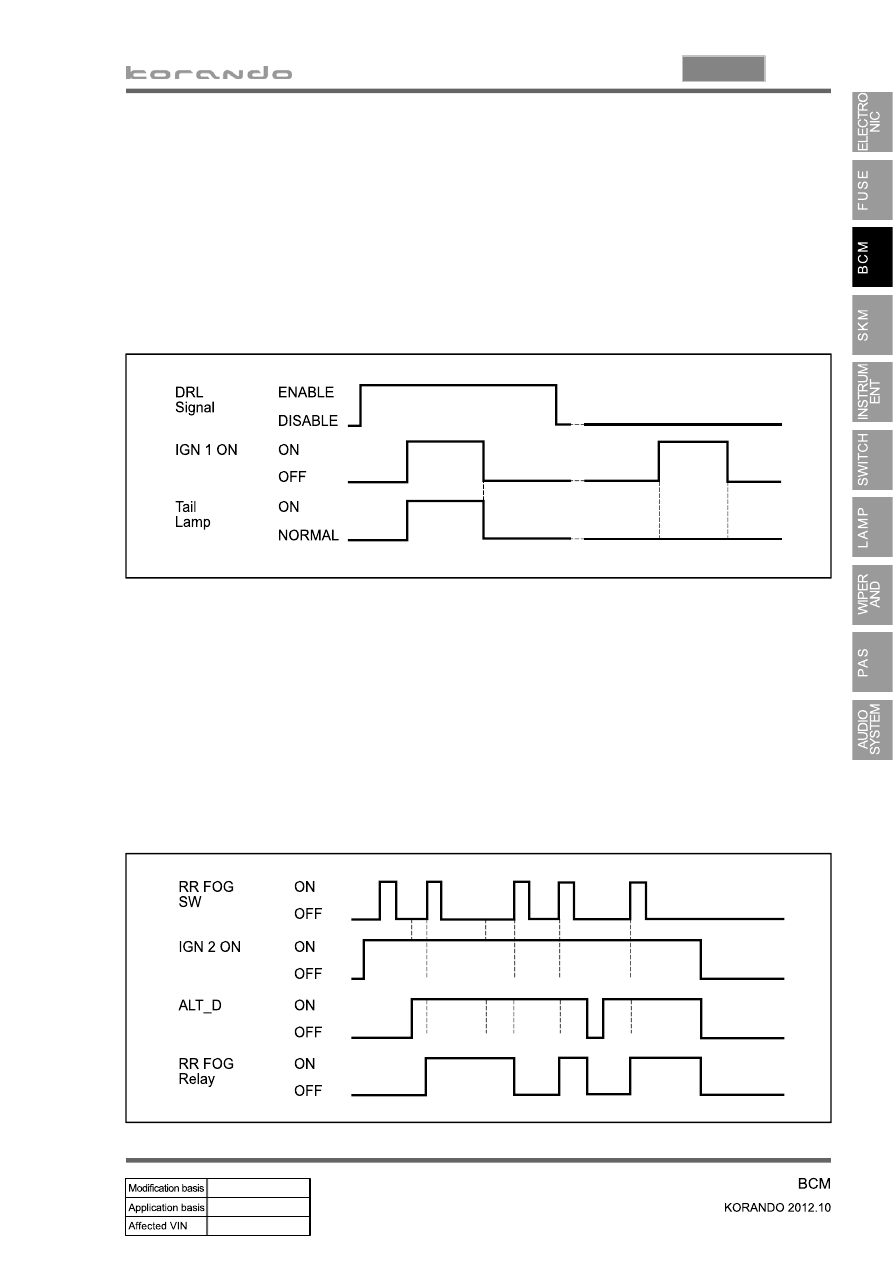

19) DRL (Daytime Running Light) Control

When receiving the DRL activation signal, the tail lamps are turned ON when turning the ignition

switch to ON position, and the headlamps are turned ON when the engine speed is 300 rpm or

higher.

When turning ON the tail lamp switch during engine running, the headlamps are turned OFF.

The headlamps do not come ON when the engine speed is above 300 rpm with the tail lamp switch

ON.

The auto light sensor is not available in the vehicle with DRL system.

If there is no DRL activation signal, the light system operates in normal conditions.

1.

2.

3.

4.

5.

20) Fog Lamp Control

When pressing the rear fog lamp switch with IGN2 ON (headlamp ON condition), the rear fog lamps

are turned ON. When pressing the rear fog lamp switch again during the operation, the rear fog lamps

are turned OFF.

The rear fog lamps do not come ON when the IGN2 switch is turned to OFF position or the light

switch is OFF.

The rear fog lamps should not automatically come on again if they have been turned OFF by any

other way other than the switch.

1.

2.

3.

(The rear fog lamps are applied to only EU region)
