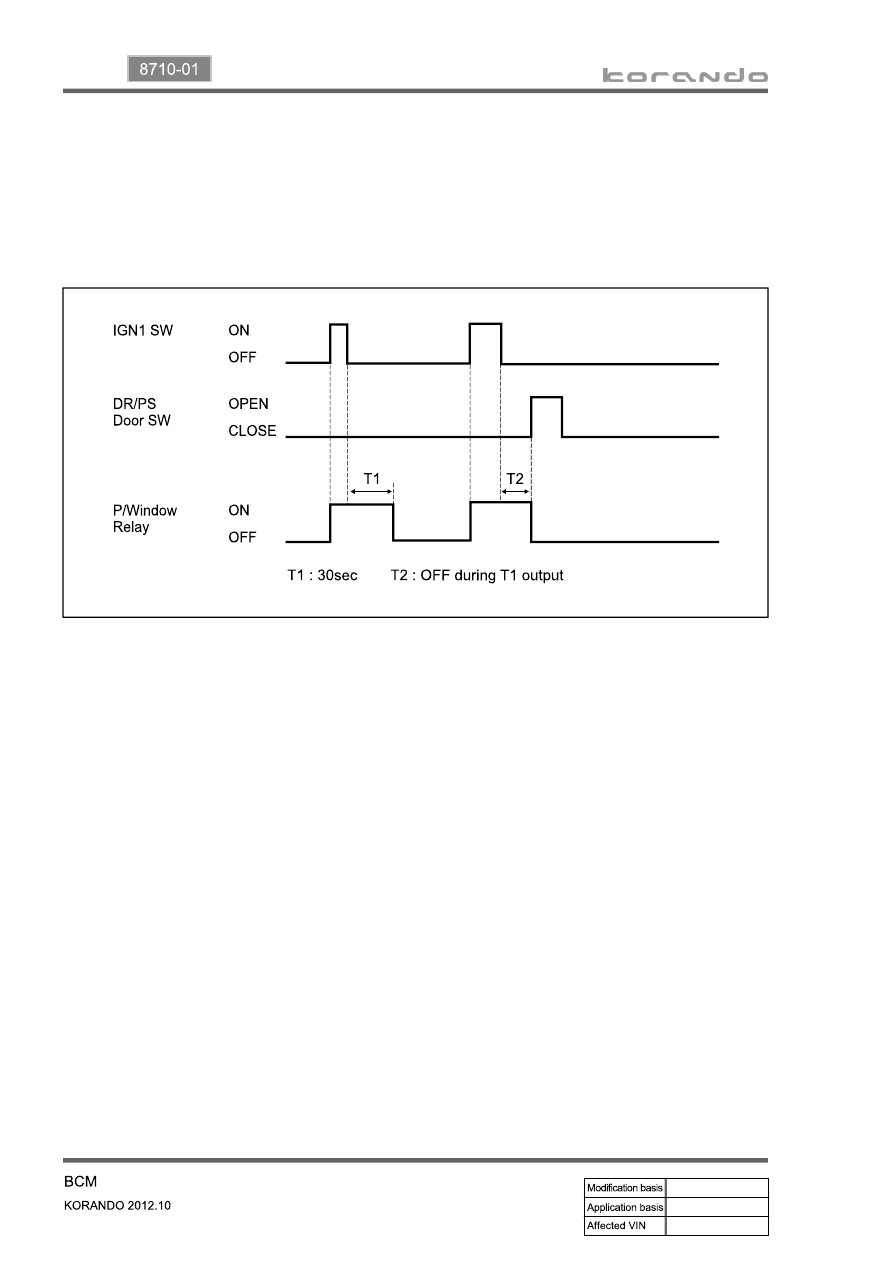

16) Time Lag Power Window Control

When turning the ignition switch to ON position, the power window relay is turned ON.

The power window relay keeps ON for 30 seconds even when stopping the engine.

However, the power window relay is turned OFF when opening a front door.

When locking the door (activation of theft deterrent mode), the power window relay is

immediately turned OFF.

1.

2.

3.

17) Sleep Mode

If the driver door/passenger door/rear doors/tailgate lock switch is not changed for 6 seconds with all

driver door/passenger door/rear doors/tailgate closed, key removed, IGN1 and IGN2 OFF, the

vehicle enters into sleep mode for system power down.

If any of conditions in Step (1) is not satisfied, the System Wake-up mode is activated.

When output such as room lamp, key hole illumination, tail lamps and power window is activating or

all the doors keep closed for 30 seconds after door is unlocked for conditions in Step (1), the system

is in normal mode. Then, if there is no change within 6 seconds with all output conditions and ready

conditions released and all the doors closed, the sleep mode is activated.

When turning on the overhead room lamp switch, the overhead room lamps come on for 10 minutes

and go off, and the sleep mode is activated after 6 seconds.

When the coming home light OFF conditions are satisfied, the sleep mode is activated.

In this condition, when opening a door or inserting the ignition key into key hole, the sleep mode is

deactivated.

1.

2.

3.

4.

5.

6.

03-57

8710-01

18) Flasher (Blinking) Function

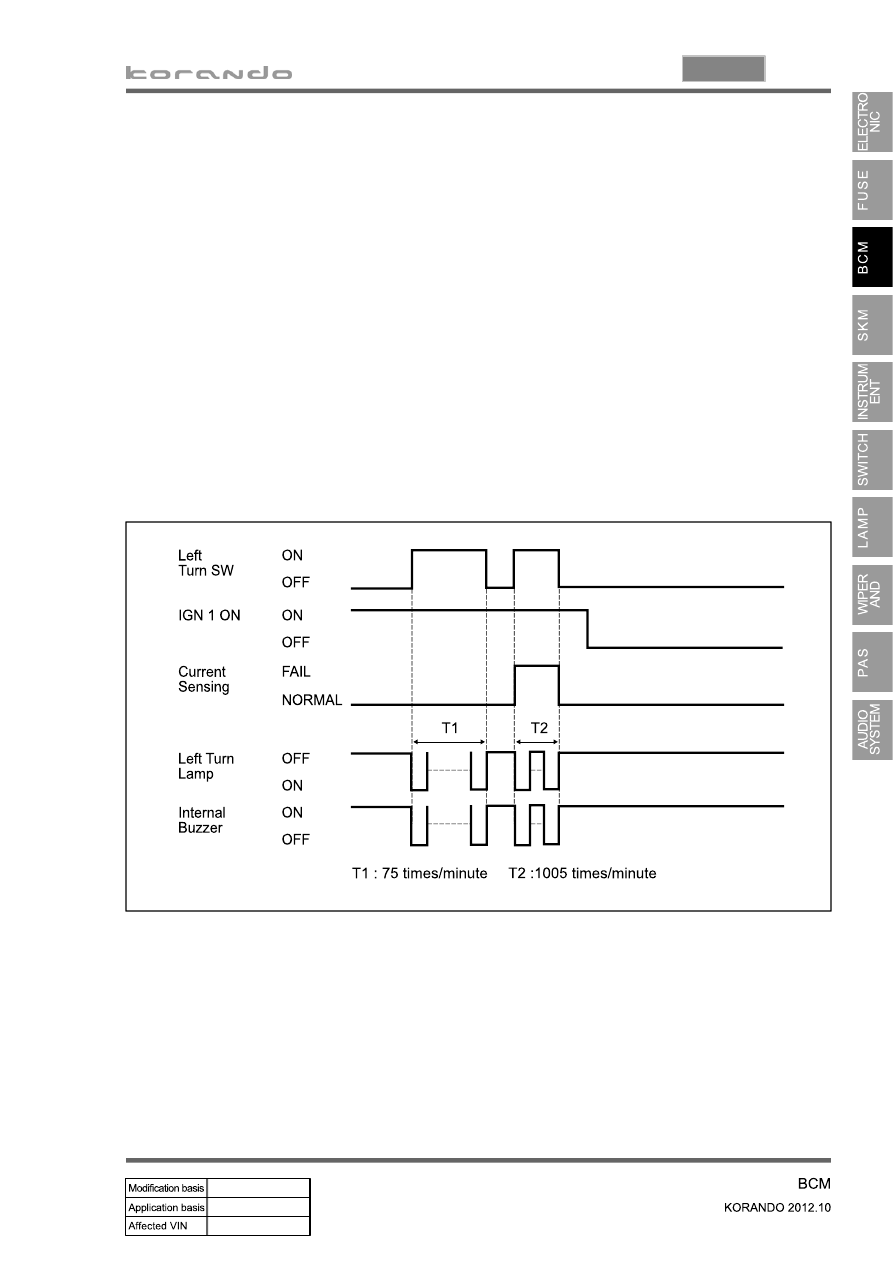

Turn signal lamp control

▶

When the BCM is received the multifunction switch signal, it operates the turn signal lamp

and interior buzzer with the intervals of 400 ms ON/400 ms OFF for 75 times/min.

The turn signal lamps are operational only when IGN1 is ON.

If the turn signal lamp is defective during its operation, the turn signal lamp blinks with the intervals of

300 ms ON/300 ms OFF for 100/min and the interior buzzer sounds with same interval.

Defective conditions by BCM: Open - below load of 3.0 A, Short - over load of 7.0 A (load means lamp

load here)

When turning ON the turn signal switch, the lamp blinks 3 times by the BCM. When turning OFF the

switch during the operation, the turn signal lamp blinks 3 times and goes off.

When turning OFF and then immediately ON the turn signal switch during auto blinking operation of 3

times, the turn signal lamp blinks additional 3 times.

When turning ON another turn signal switch during the operation, currently operated turn signal lamp

stops immediately and another turn signal lamp starts blinking.

1.

2.

3.

4.

5.

6.

7.

03-58

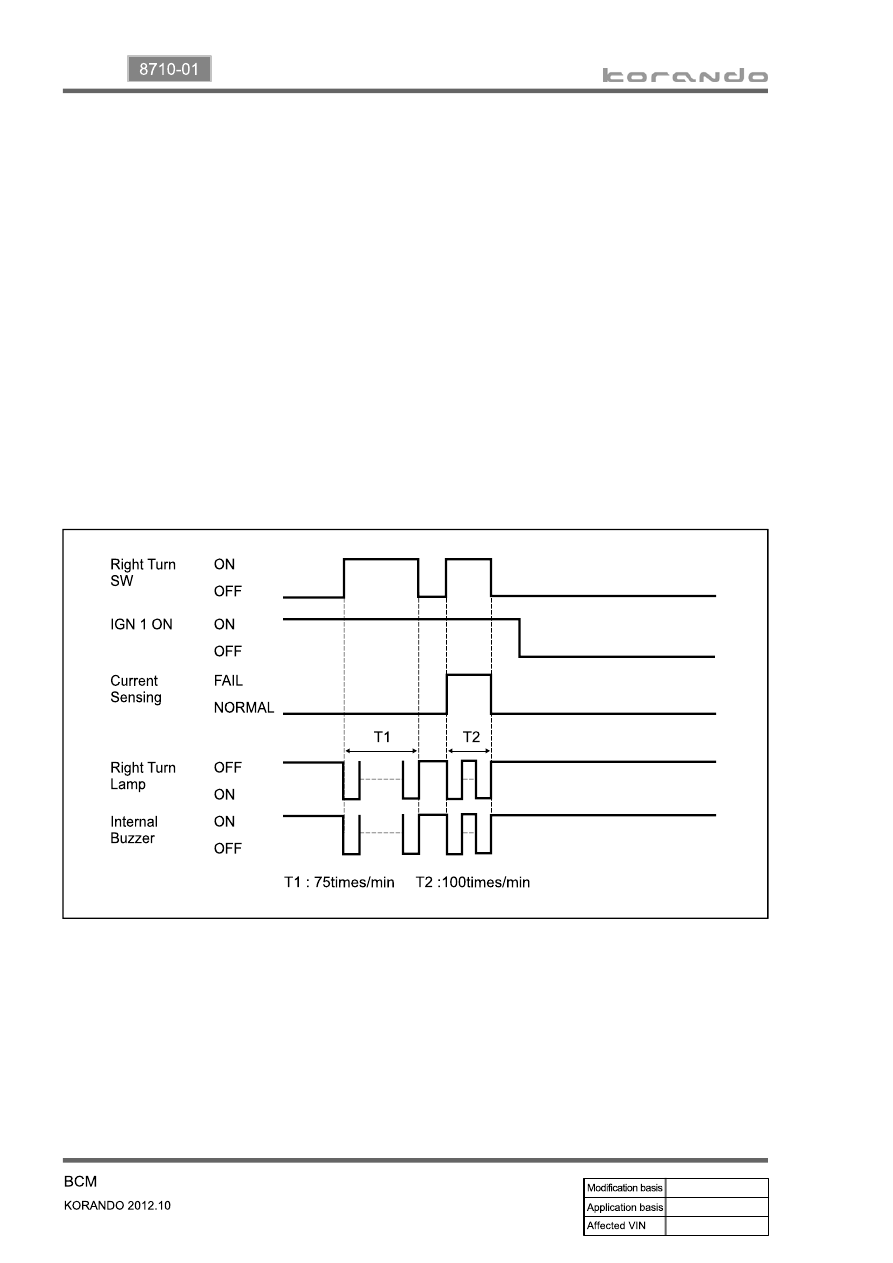

Right turn signal lamp control

▶

When the BCM is received the multifunction right turn signal lamp switch signal, it operates the right

turn signal lamp and interior buzzer with the intervals of 400 ms ON/400 ms OFF for 75 times/min.

When turning OFF the right turn signal switch during its operation, the turn signal lamp and buzzer

stop the operation.

The turn signal lamps are operational only when IGN1 is ON.

If the turn signal lamp is defective during its operation, the turn signal lamp blinks with the intervals of

300 ms ON/300 ms OFF for 100/min and the interior buzzer sounds with same interval.

Defective conditions by BCM: Open - below load of 3.0 A, Short - over load of 7.0 A (load means lamp

load here)

When turning ON the turn signal switch, the lamp blinks 3 times by the BCM. When turning OFF the

switch during the operation, the turn signal lamp blinks 3 times and goes off.

When turning OFF and then immediately ON the turn signal switch during auto blinking operation of 3

times, the turn signal lamp blinks additional 3 times.

When turning ON the left turn signal switch during the right turn signal lamp operation, the right turn

signal lamp stops immediately and the left turn signal lamp starts blinking.

1.

2.

3.

4.

5.

6.

7.

03-59

8710-01

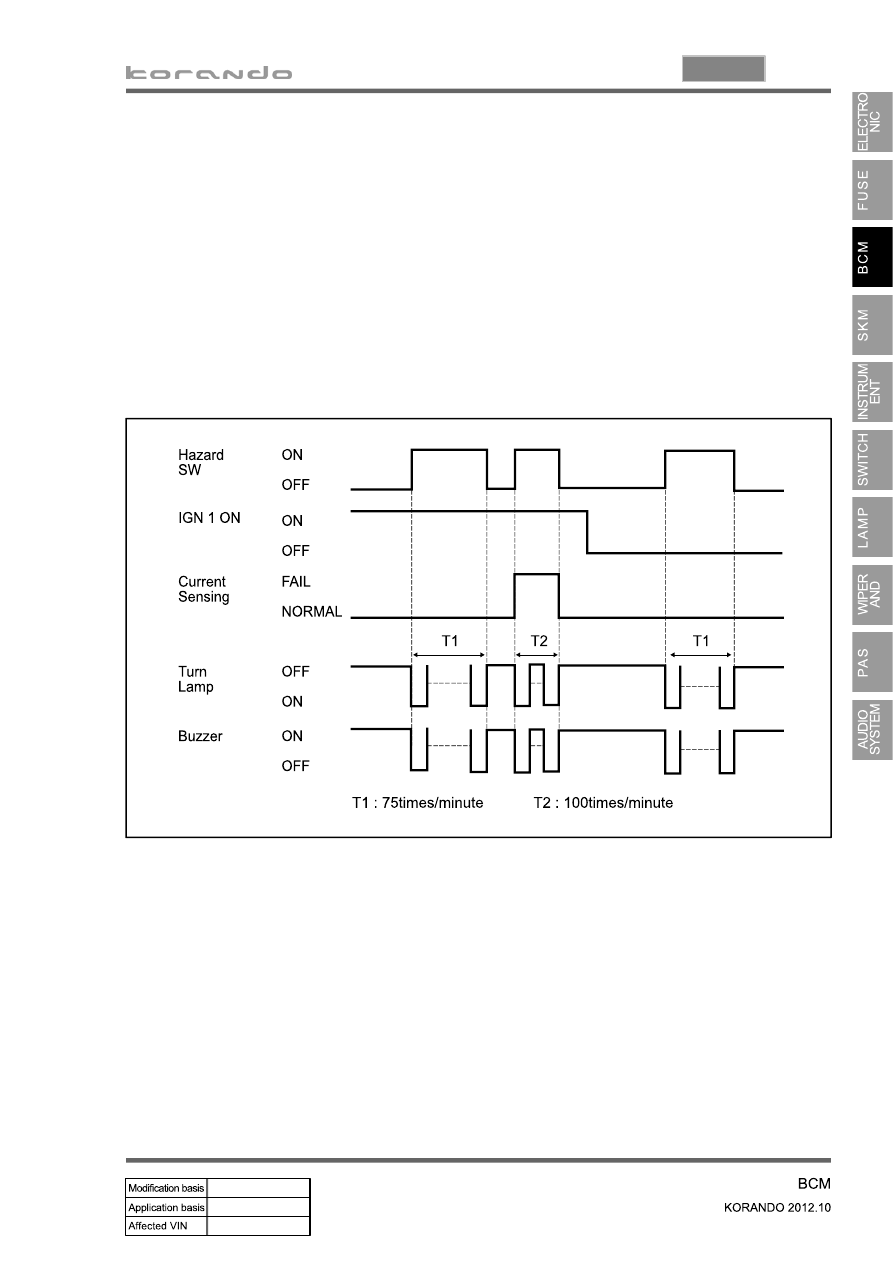

Hazard flasher switch control

▶

When pressing the hazard flasher switch, the left/right turn signal lamps blink with the intervals of 400 ms

ON/400 ms OFF for 75/min and the interior buzzer sounds with same interval.

When pressing the hazard flasher switch again during its operation, the turn signal lamps and horn stop

the operation.

This function is available if the battery is connected (B+).

If the turn signal lamp is defective during its operation, the left turn signal lamp blinks with the interval of

300 ms ON/300 ms OFF (100/min) and the interior buzzer sounds with same interval.

The tolerance between left turn signal lamp and right turn signal lamp should be below 100 ms.

The hazard flasher has a priority over the turn signal lamp.

Priority of hazard flasher is as follows:

Seat belt reminder > Key reminder > Sunroof > Tail lamp > Hazard flasher > Turn signal lamp

1.

2.

3.

4.

5.

6.
