14) Tailgate

Tailgate control in BCM without SKM

▶

When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
speed below 3 (±0.1) km/h, the tailgate open relay is turned ON for about 1 second, with

power OFF, ACC ON or IGN ON. However, it is turned ON when the vehicle speed is below 3
(±0.1) km/h, with IGN ON.

The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed

goes over 3 km/h with IGN ON during its operation. However, the BCM does not operate if the

tailgate open switch is pressed when the vehicle speed is above 3 km/h.

1.

2.

Tailgate open: REKES unlock (disarmed deterrent mode) → Tailgate open signal → Tailgate

open

-

Tailgate control in BCM with SKM

▶

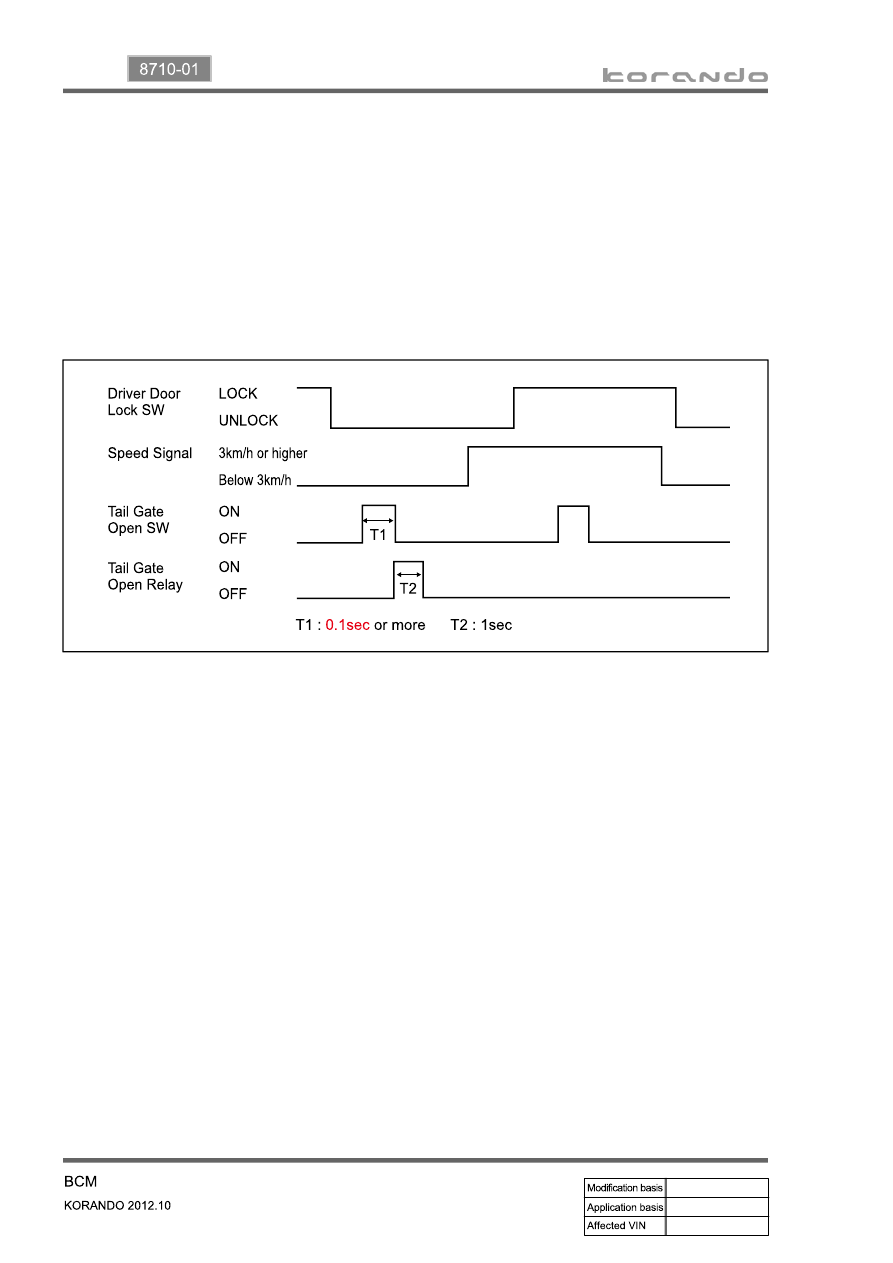

When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
speed below 3 (±0.1) km/h, the tailgate open relay is turned ON for about 1 second.

The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed

goes over 3 km/h during its operation.

When the tailgate switch on smart key is pressed in theft deterrent mode or with the smart key

detected by the exterior antenna, the SKM verifies the smart key and disarms the tailgate only. When

the tailgate is open and closed, the system enters into the theft deterrent mode again. If the tailgate

switch is not operated for 30 seconds, the system also does so.

The BCM checks that the verified smart key is in the luggage room 1 second after when the closed

tailgate is detected by the tailgate open switch with power OFF.

If there is a verified smart key in the luggage room when the tailgate is open and closed in theft

deterrent mode, the external buzzer sounds for 5 seconds.

When the driver press the tailgate open switch in order to look for the smart key, the BCM deactivates

lock so that the tailgate can be opened even though the driver door is locked. (maintains standby for

opening without verification)

1.

2.

3.

4.

03-49

8710-01

15) Theft Deterrent Alarm

Theft deterrent alarm control in BCM without SKM

▶

Entering into theft deterrent mode by REKES remote control

1.

When receiving the door lock signal with the key removed, all doors including tailgate and engine

hood closed, all doors are locked and the theft deterrent mode is activated. At this moment, the

turn signal lamps blink twice.

When pressing the lock switch on remote control key again in 4 seconds, the turn signal lamps

blink twice and the horn sounds once in the theft deterrent mode. In other words, when pressing

the door lock button once, all the doors are locked and the turn signal lamps only blink twice, and

another press in 4 seconds makes the turn signal lamps blink twice and alarm horn sound once.

When receiving the door lock signal with any door (except tailgate and engine hood) open, the

doors are unlocked immediately after locking them first.

When receiving the door lock signal with the tailgate or engine hood open, the doors are closed if

they are open, but the theft deterrent mode is not activated. However, when closing the opened

tailgate or engine hood, the theft deterrent mode is activated with two blinks of turn signal lamps.

If a door or tailgate is not opened within 30 seconds after unlocking the doors with remote control

key in theft deterrent mode, all doors will be automatically locked again (re-lock operation). When

entering into the theft deterrent mode, the turn signal lamps blink twice and the horn sounds once.

The theft deterrent mode can be activated only when the above conditions are satisfied.

Ex) The theft deterrent mode cannot be activated when locking the doors with key hole on door.

-

-

-

-

-

-

03-50

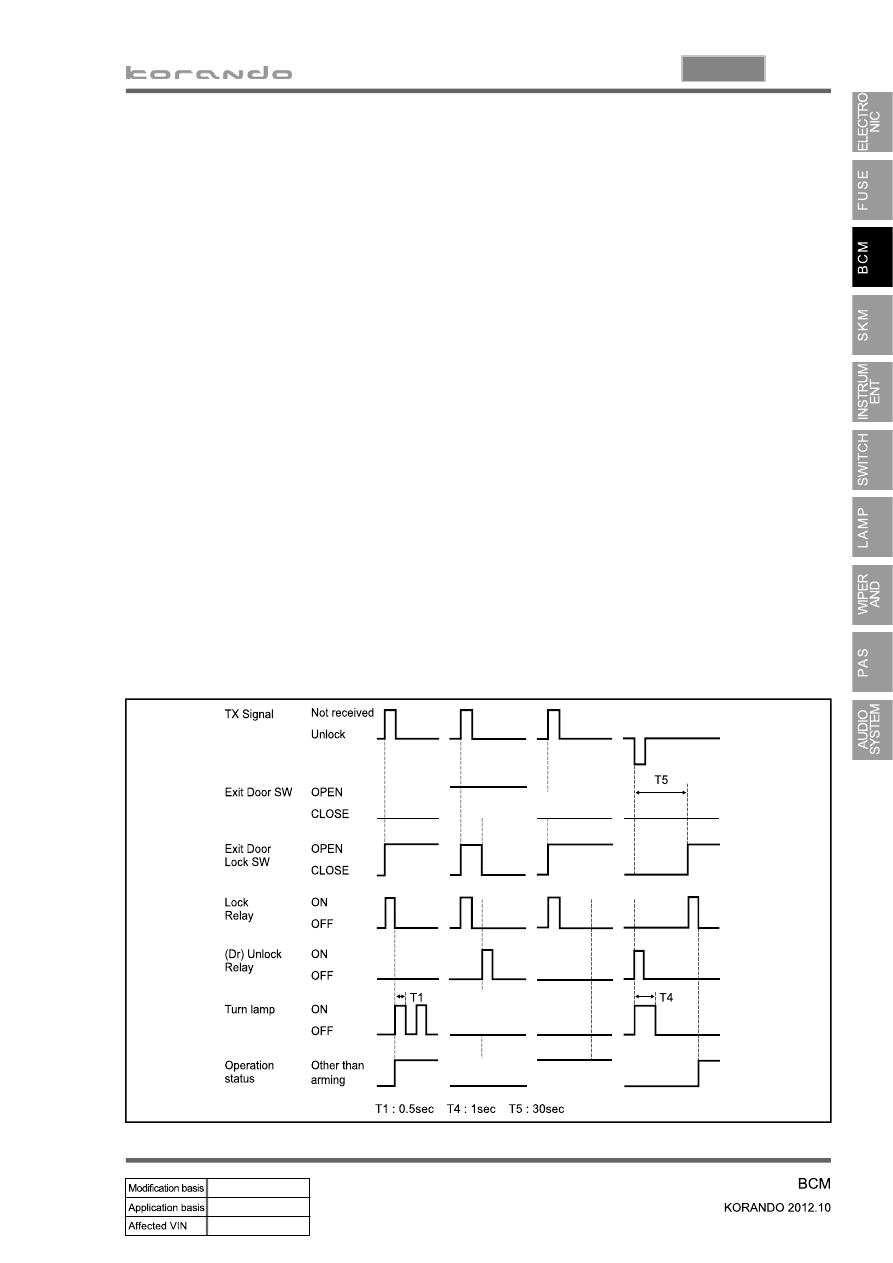

Disarming by REKES remote control

2.

When unlocking the doors or turning the ignition switch to ON position.

When receiving the door unlock signal in theft deterrent mode, all doors are unlocked and the turn

signal lamps blink once (the horn does not sound).

When receiving the door unlock signal with the theft deterrent mode disarmed, the turn signal

lamps blink once (the horn does not sound).

-

-

-

In theft deterrent mode

BCM observes the conditions below continuously:

3.

Battery connection (B+)

Front/rear door open

Tailgate open

4 doors lock/unlock

Engine hood open

-

-

-

-

-

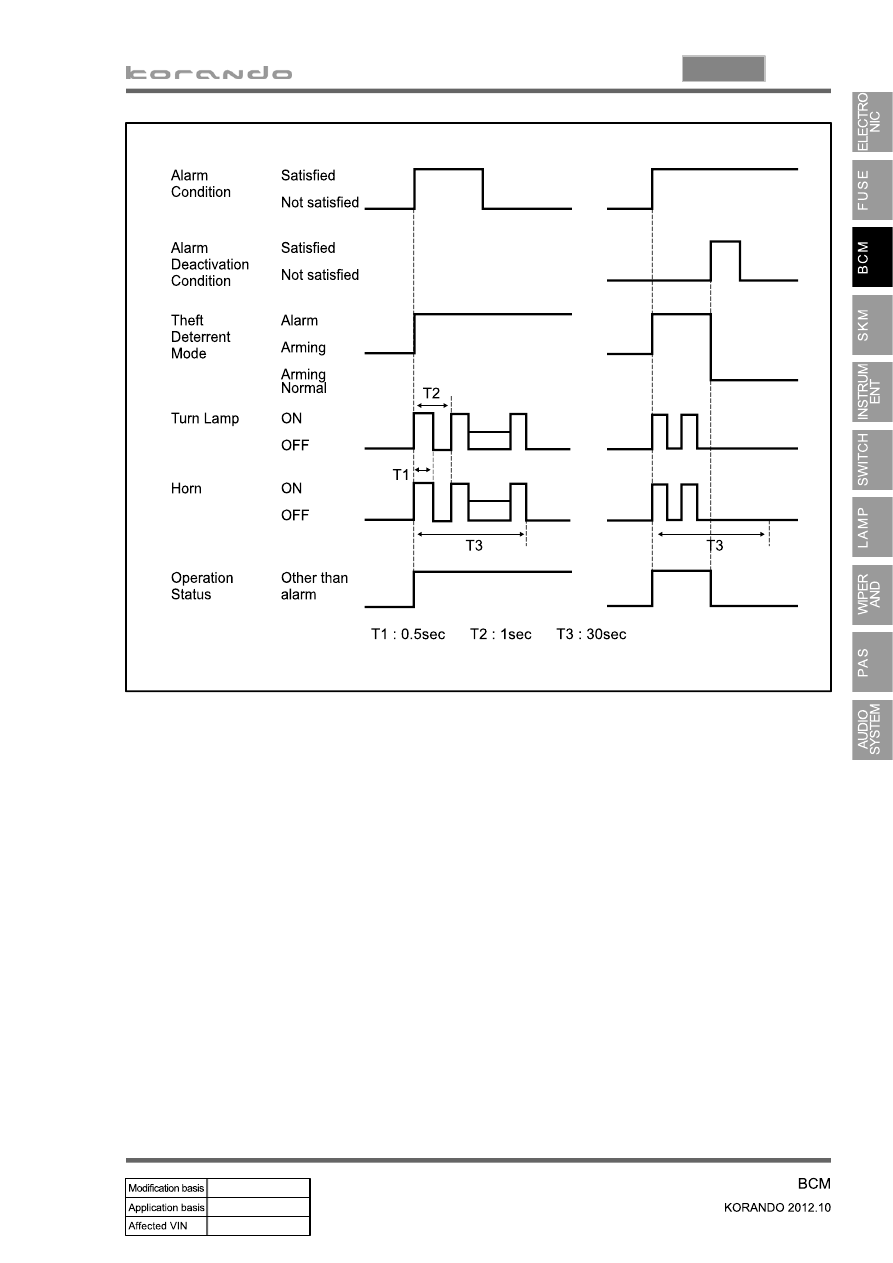

Activation of theft deterrent alarm

4.

When any of doors, tailgate or engine hood is open in theft deterrent mode

When unlocking the door lock switch in theft deterrent mode

When opening a door after completion of theft deterrent alarm (for 30 seconds)

Horn and the turn signal lamps operate for 30 seconds with the interval of 0.5s ON/0.5s OFF.

-

-

-

-

Disarming conditions of theft deterrent mode

5.

When pressing any switch (lock, unlock, panic) on the remote control key during the theft deterrent

alarm, the alarm stops its operation.

When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops its

operation.

(For vehicle with immobilizer system, the alarm stops after completion of authorization. For vehicle

without immobilizer system, the alarm stays ON for 30 seconds)

When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops

and the theft deterrent mode is deactivated after 30 seconds (remaining time).

If there is not any disarming commend, the alarm stays ON for 30 seconds and the theft deterrent

mode continues.

-

-

-

-

Operation when disarming

6.

The horn and the turn signal lamps stop their operation.

-

03-51

8710-01

The theft deterrent/alarm status is stored in the EEPROM, and monitoring is followed by

operation when connecting the battery.

-
