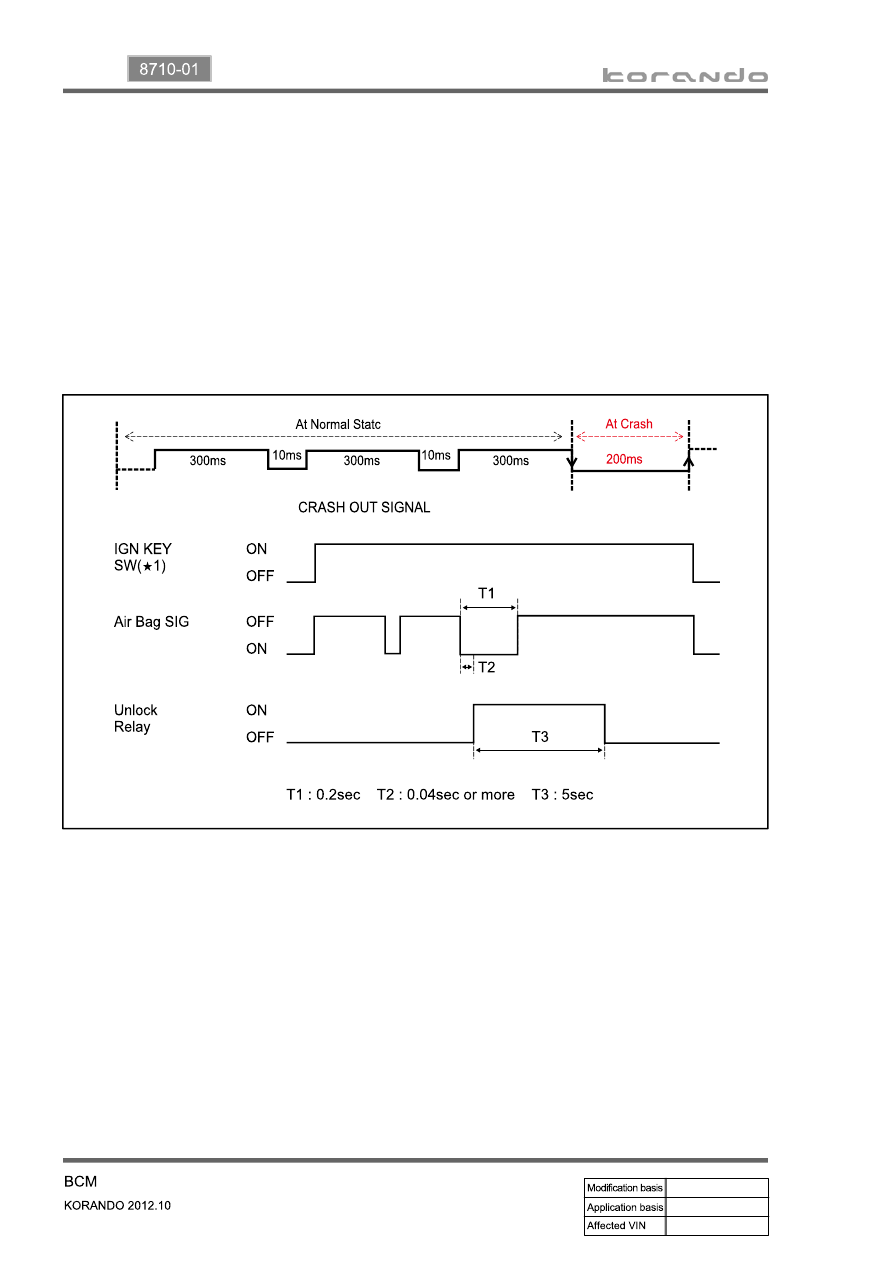

Auto door unlock (crash unlock) control

The air bag collision signal input cannot be accepted within 7 seconds after turning the ignition key to

"ON" position.

After the 7 seconds, the air bag signal is activated. If the air bag signal is turned ON (crash) from OFF,

BCM sends the door unlock signal for 5 seconds after 0.04 seconds.

The unlock signal is sent for the remaining of the period even when turning OFF the ignition switch

while receiving the unlock signal due to the crash.

The room lamps come ON when receiving the crash signal. (except when the front room lamp switch

is in OFF position.)

The turn signal lamps also blink when receiving the crash signal.

This function is reset when disconnecting the battery.

1.

2.

3.

4.

5.

6.

03-45

8710-01

12) Panic Alarm

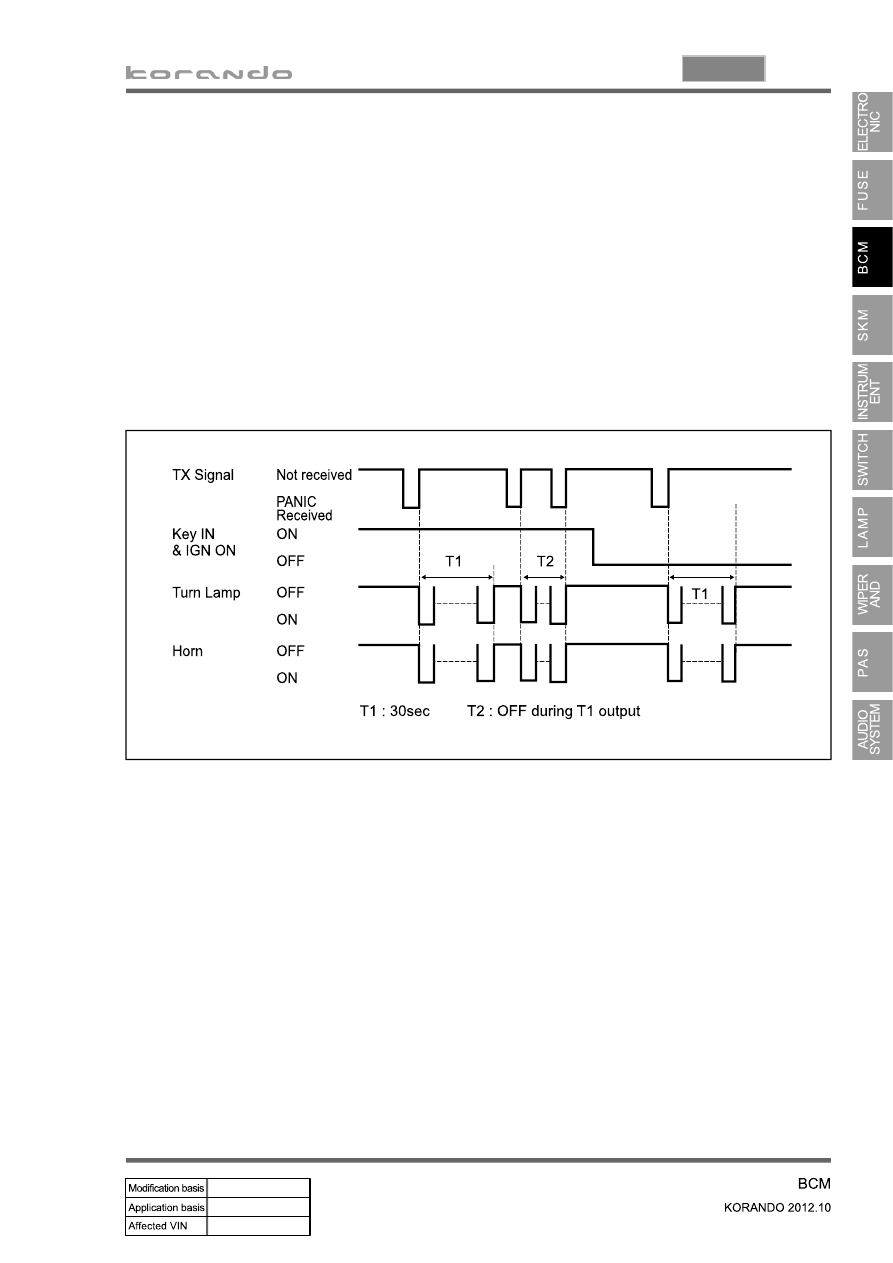

Panic alarm by REKES signal

When receiving the panic signal with Power OFF, ACC and IGN ON, the horn and turn signal lamps

operate for T1 with the interval of 0.5s ON/0.5s OFF.

When receiving the door lock or panic signal during the panic operation, the panic alarm stops.

(other commands are overridden)

The theft deterrent functions are as below:

- The theft deterrent alarm stops when receiving the panic alarm during its operation.

- The panic alarm stops and then the theft deterrent alarm starts its operation when occurring the

theft deterrent alarm conditions during panic alarm.

This function should be available regardless of the key status.

This function should be activated only when the ignition key is inserted (EU region).

1.

2.

3.

4.

5.

03-46

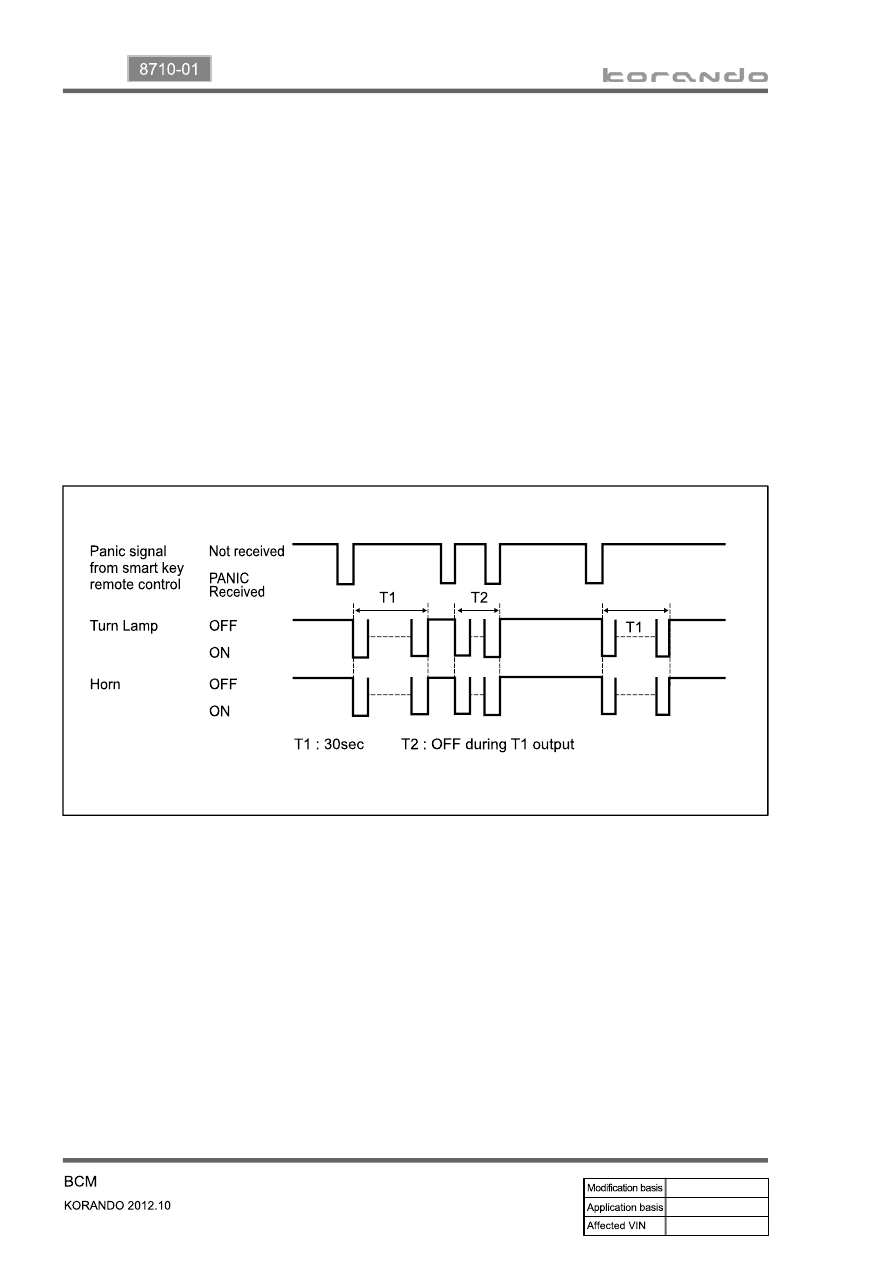

Panic alarm by SKM smart key's remote control

When the BCM receives "Panic command by smart key remote control" as a BCAN signal, it

activates panic alarm by operating the horn and turn signal lamp for 30 seconds with a interval of

0.5s ON/0.5s OFF. However, the BCM used in EU region is operated when receiving the panic

command from the smart key remote control and the signal that the smart key is in the vehicle with

Power OFF, ACC and IGN ON.

The BCM stops the panic function and operates the function depending on the signal in the event of

following commands during turn signal lamp and horn operation by the "Panic command from smart

key remote control".

The panic alarm stops and then the theft deterrent alarm starts its operation when occurring the theft

deterrent alarm conditions during panic alarm.

All the functions are controlled by SKM and operated by signal from SKM.

1.

2.

3.

4.

Stops panic function activated by "Panic command from smart key remote control" through

BCAN signal

Panic function is activated when receiving other command

-

-

03-47

8710-01

Coming home lighting control

The low beam keeps on for 30 seconds when the ignition switch is turned to ON from OFF position

with the headlamp ON.

Coming home lighting OFF condition

This function can be activated or deactivated with the diagnostic device. (default setting: active)

1.

2.

3.

3 minutes after all doors and tailgate are open and closed

(lighting goes off 30 seconds after without extension when the closed doors are open)

When receiving REKES and passenger door lock signals (close, open, close) twice during coming

home lighting operation

Lighting goes off during its operation when headlamp and AUTO light switch are turned to other

position than ON

Lighting goes off when ignition switch is turned to ON position

-

-

-

-

13) Headlamp
