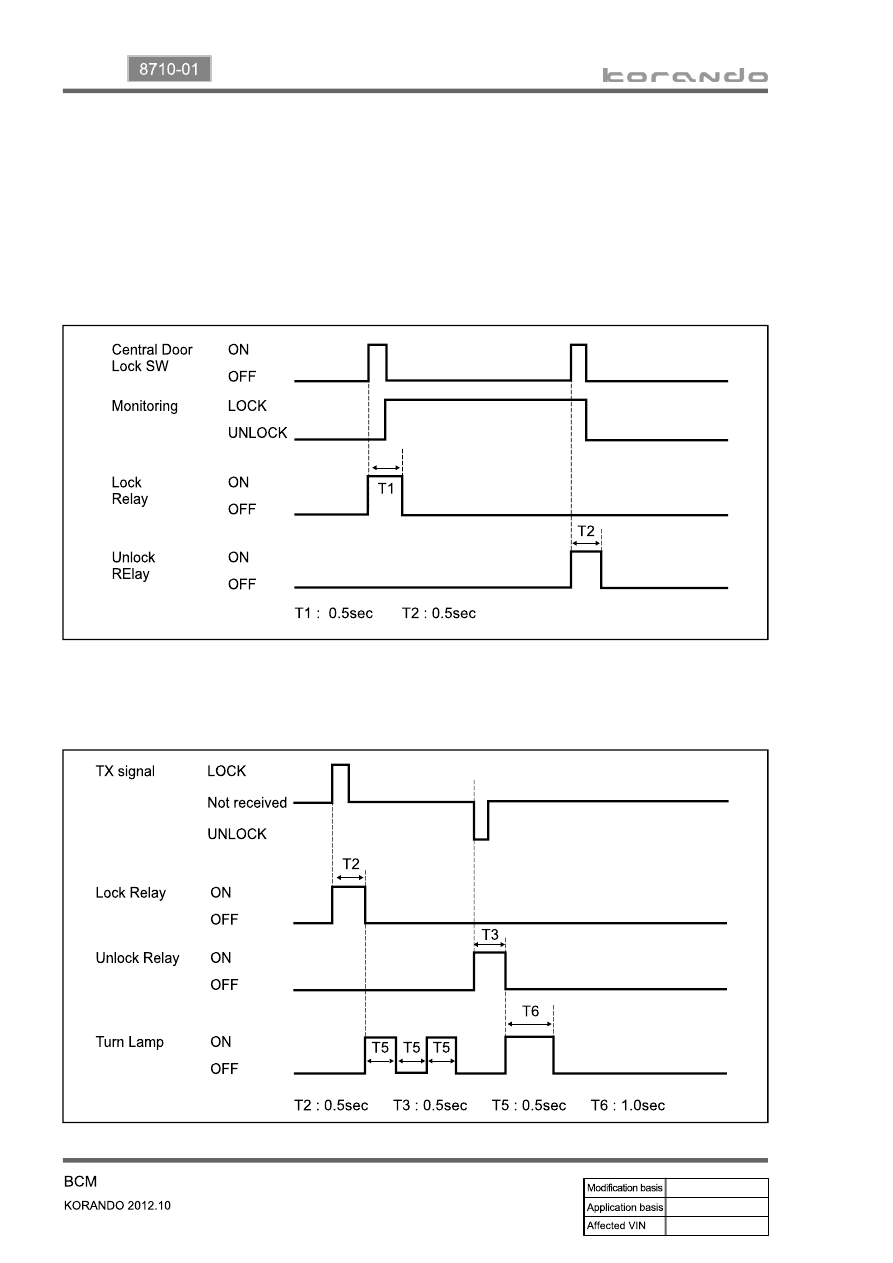

Door lock/unlock control by central door lock switch

▶

When pressing the central door lock/unlock switch, BCM sends the LOCK or UNLOCK signal

according to the previous condition of driver door lock switch for 0.5 seconds.

The central door dock switch is not available when the system is in theft deterrent mode.

When turning the ignition off, all doors are automatically unlocked if any of the door lock (knob)

switches is in LOCK position.

When pressing the central door lock switch with any door open, the system unlocks the doors

immediately after locking them.

1.

2.

3.

4.

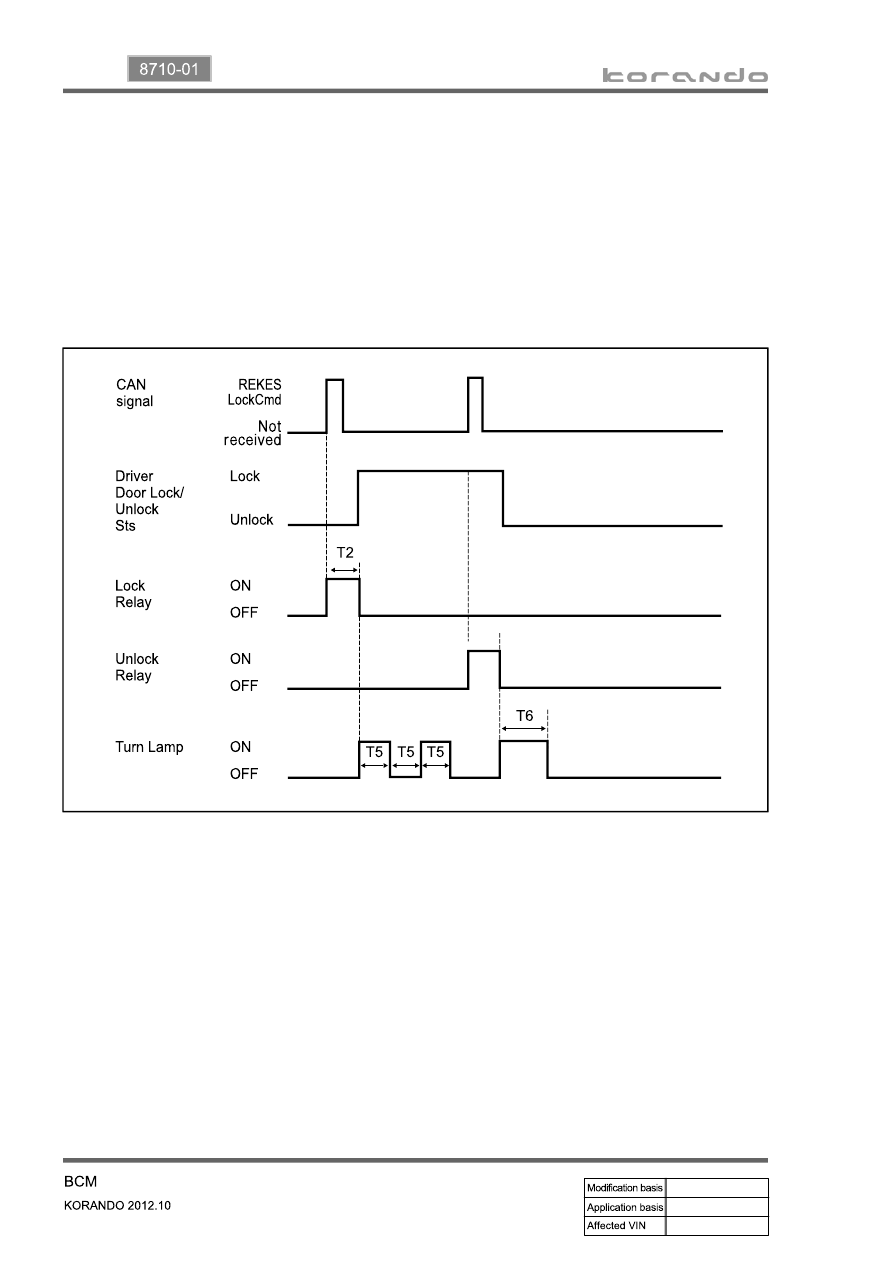

Door lock/unlock control by REKES signal

▶

When receiving the door lock signal, BCM sends the LOCK signal for 0.5 seconds.

When receiving the door unlock signal, BCM sends the UNLOCK signal for 0.5 seconds.

1.

2.

03-41

8710-01

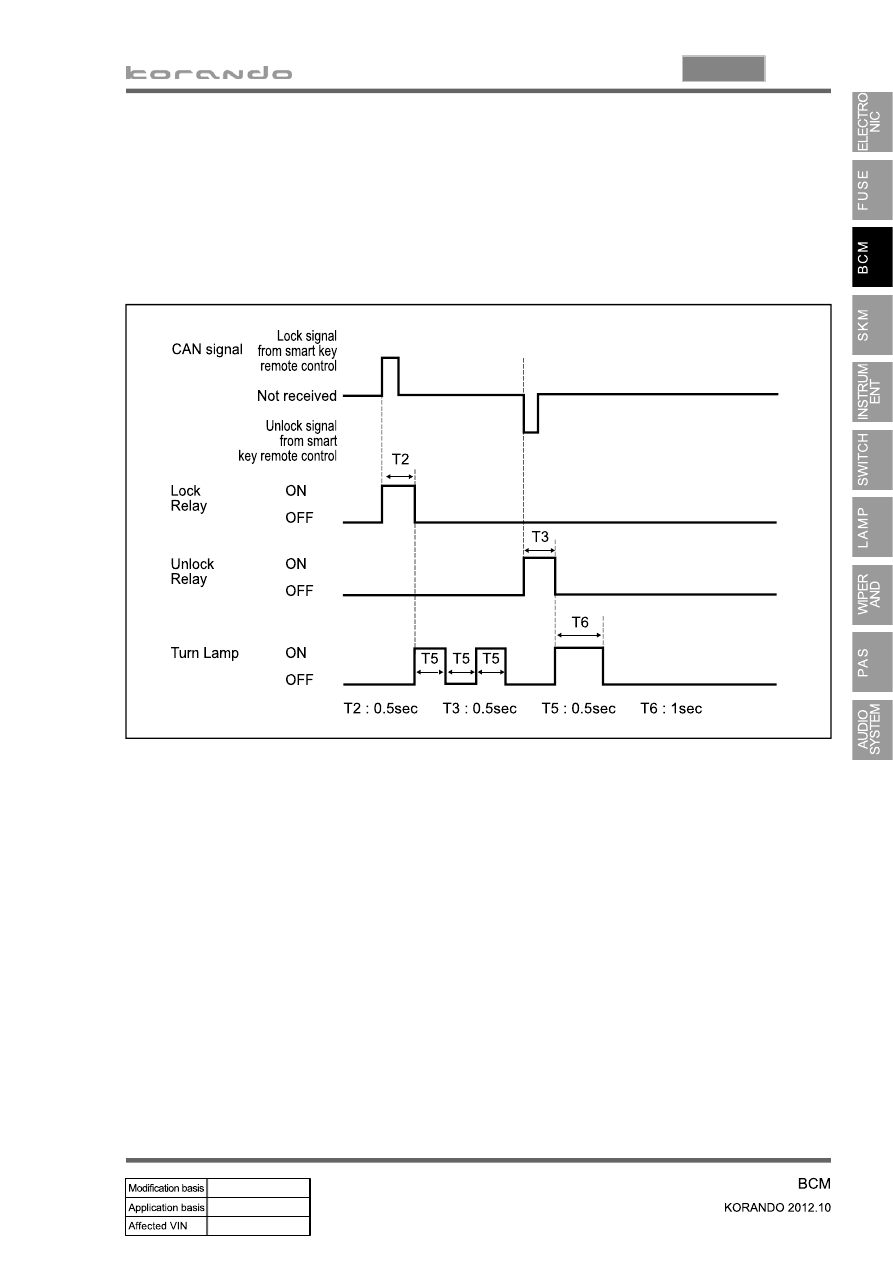

Door lock/unlock control by SKM smart key's remote control

▶

If the BCM receives the LOCK command through the BCAN communication (REKES lock signal)

when pressing the door lock switch of the smart key's remote control with IGN OFF or ACC ON, it

sends door lock signal for 0.5 seconds.

If the BCM receives the UNLOCK command through the BCAN communication when pressing the

door unlock switch of the smart key's remote control with IGN OFF or ACC ON, it sends door unlock

signal for 0.5 seconds.

1.

2.

03-42

Lock/unlock control by SKM passive entry

▶

The SKM searches for the verified smart key, sends door lock or unlock signal to the BCM through the

BCAN communication depending on the door status and sends the output for 0.5 seconds when

operating the outside door handle switch with IGN OFF, ACC ON or IGN ON.

(The BCM does not perform door lock if the driver door is unlocked when receiving the outside door

handle switch signal with IGN ON.)

The BCM activates door lock output for 0.5 seconds if the driver door is unlocked after receiving door

lock/unlock command, BCAN signal (outside door handle signal), with IGN OFF or ACC ON.

1.

2.

03-43

8710-01

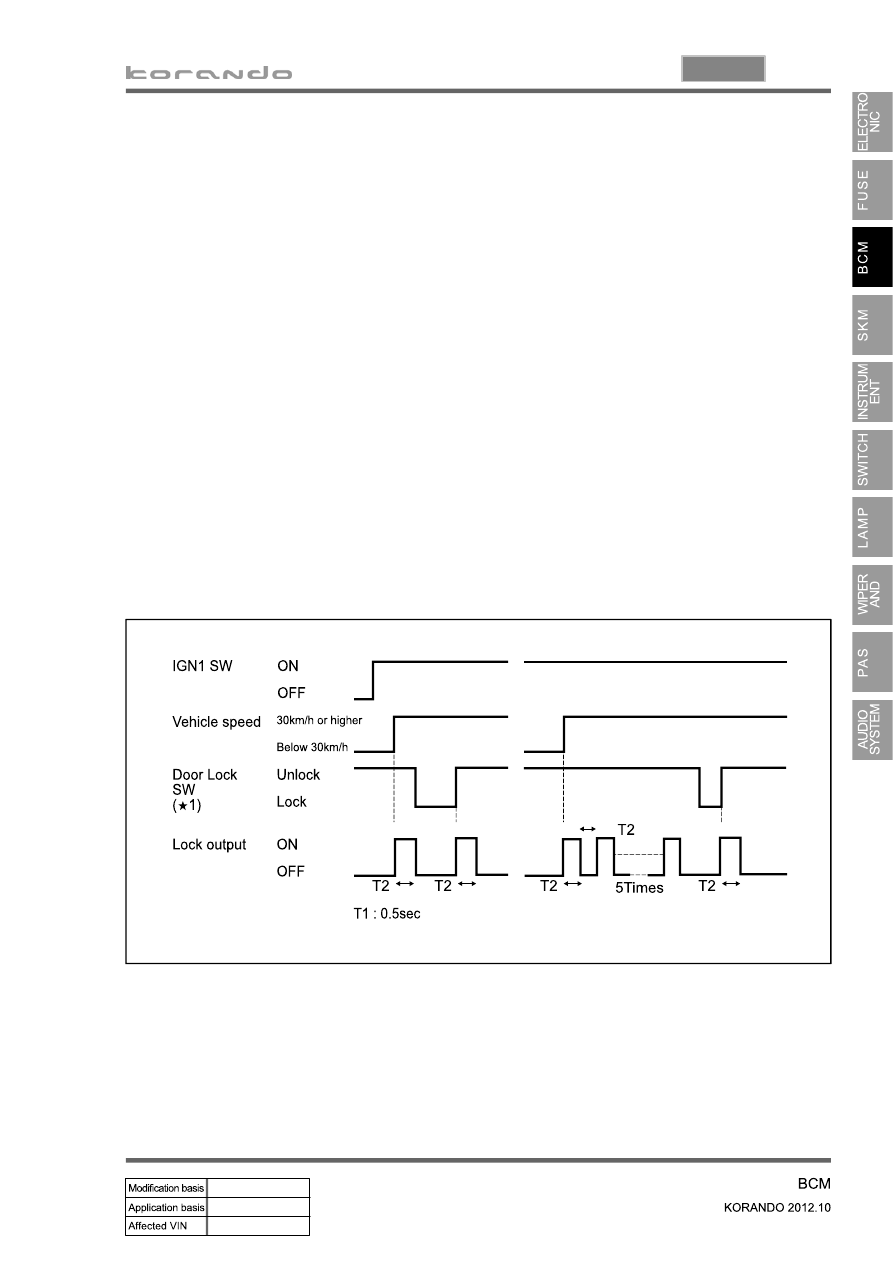

Auto door lock control

▶

Door lock output is activated when the vehicle speed is maintained above 30 km/h with IGN1 ON.

However, if all the doors are locked or fail, lock output is not activated.

If any of doors is not locked after Step (1), BCM activates the door lock output up to 5 times.

If the door is still unlocked, BCM considers the door as Fail.

If the failed door is changed from UNLOCK to LOCK, the fail record the side fascia panel.

If there is any failed door, the auto door lock function is not available.

(Even though the vehicle speed is increased over 30 km/h again after decreased below 30 km/h, BCM

does not send the auto door lock signal.)

When receiving the unlock signal for another door during Step (2), BCM sends the lock

signal for the door up to 5 times.

The unlock output is activated automatically when door lock output conditions are met by this function

or the IGN1 switch is turned to OFF from ON position (even though the lock output is not activated if

the vehicle speed is maintained above 30 km/h under lock condition). (If the LOCK condition is

established with the ignition switch ON, the system outputs UNLOCK signal unconditionally when

turning the ignition switch to OFF position.)

However, whether the door lock output condition is met or not is initialized when the IGN1 switch is

turned to OFF position.

When turning the ignition off, the fail record for a door will be initialized.

If any of door lock switches is in LOCK position when turning the ignition off, all doors are unlocked.

1.

2.

3.

4.

5.

6.

7.

8.

9.

(*1) Lock: All doors including tailgate are locked.

      Unlock: All doors including tailgate are unlocked.
