03-32

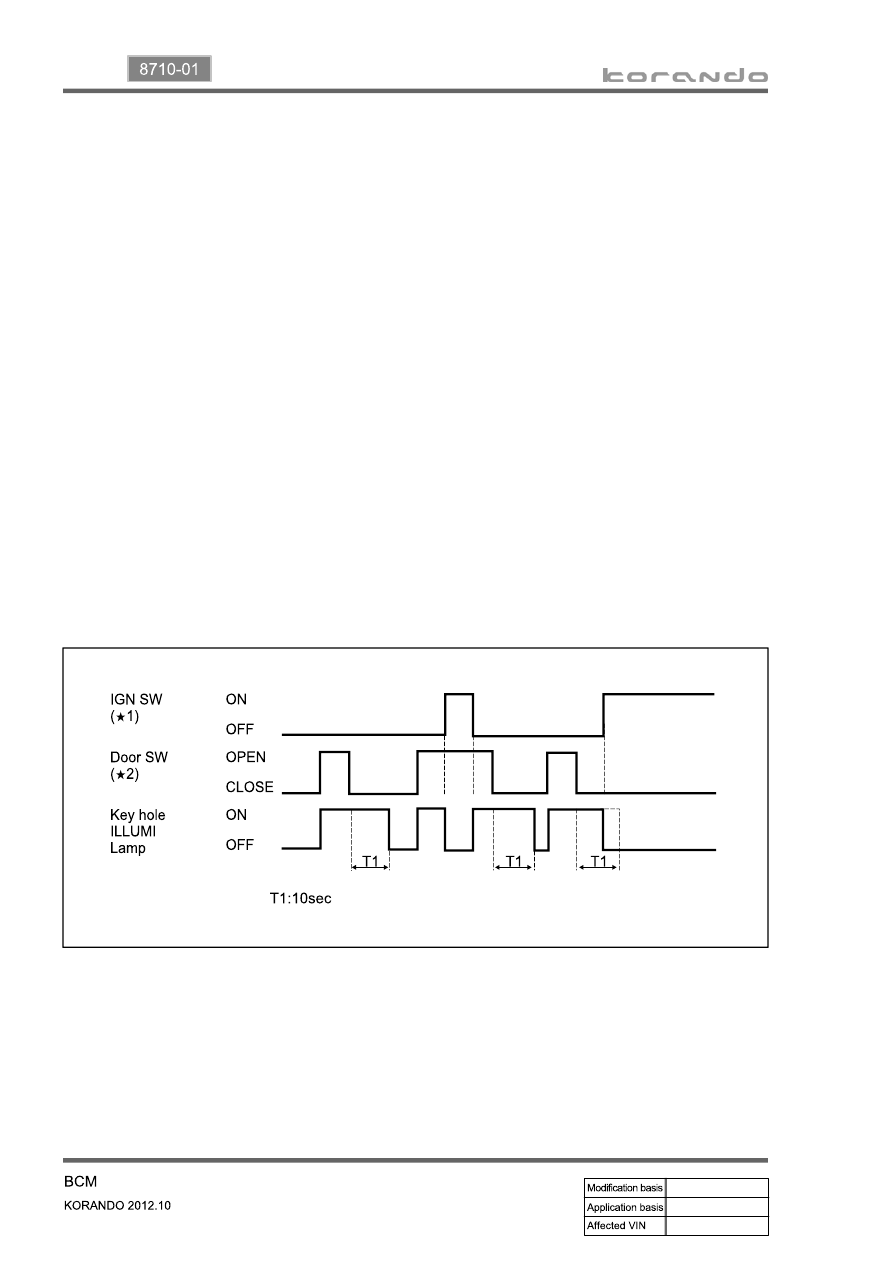

8) Key Hole Illumination

When opening the door with IGN OFF, the key hole lamp comes on.

When closing the door, the key hole lamp stays on for 10 seconds and goes off.

When turning the ignition switch to ON position during the operation of key hole illumination, it goes off

immediately.

When receiving the door lock signal (entering into theft deterrent mode), the lamp goes off.

The key hole illumination function has a priority over the immobilizer function.

If the communication with the immobilizer is interrupted, the lamp comes on for 11 seconds with the

interval of 0.5s ON/0.5s OFF regardless of the operating conditions of key hole lamp.

When turning the ignition switch to ON position in "Virgin" condition, the lamp comes on for 8 seconds

with the interval of 0.5s ON/0.5s OFF.

1.

2.

3.

4.

5.

6.

(*1) ON: IGN ON

      OFF: IGN OFF

(*2) Open: driver or passenger door is open

      Close: driver and passenger door are closed

Room lamp OFF control

▶

The room lamps stop operating when the BCM enters into the theft deterrent or sleep mode. (This is

to prevent battery discharge if the overhead room lamp and sensor room lamp switch is ON position.)

The room lamps go off automatically 10 minutes after the key is removed. After that, if the door unlock

or all door open signal is received and the key is inserted, the sleep mode is deactivated and the room

lamps operate for another 10 minutes.

The room lamps come on when the key is inserted (BCM without SKM) or the ignition switch is turned

to "ACC" or "ON" position (BCM with SKM) while the room lamps are OFF.

1.

2.

3.

03-33

8710-01

9) Defogger (Heated Wire) Timer

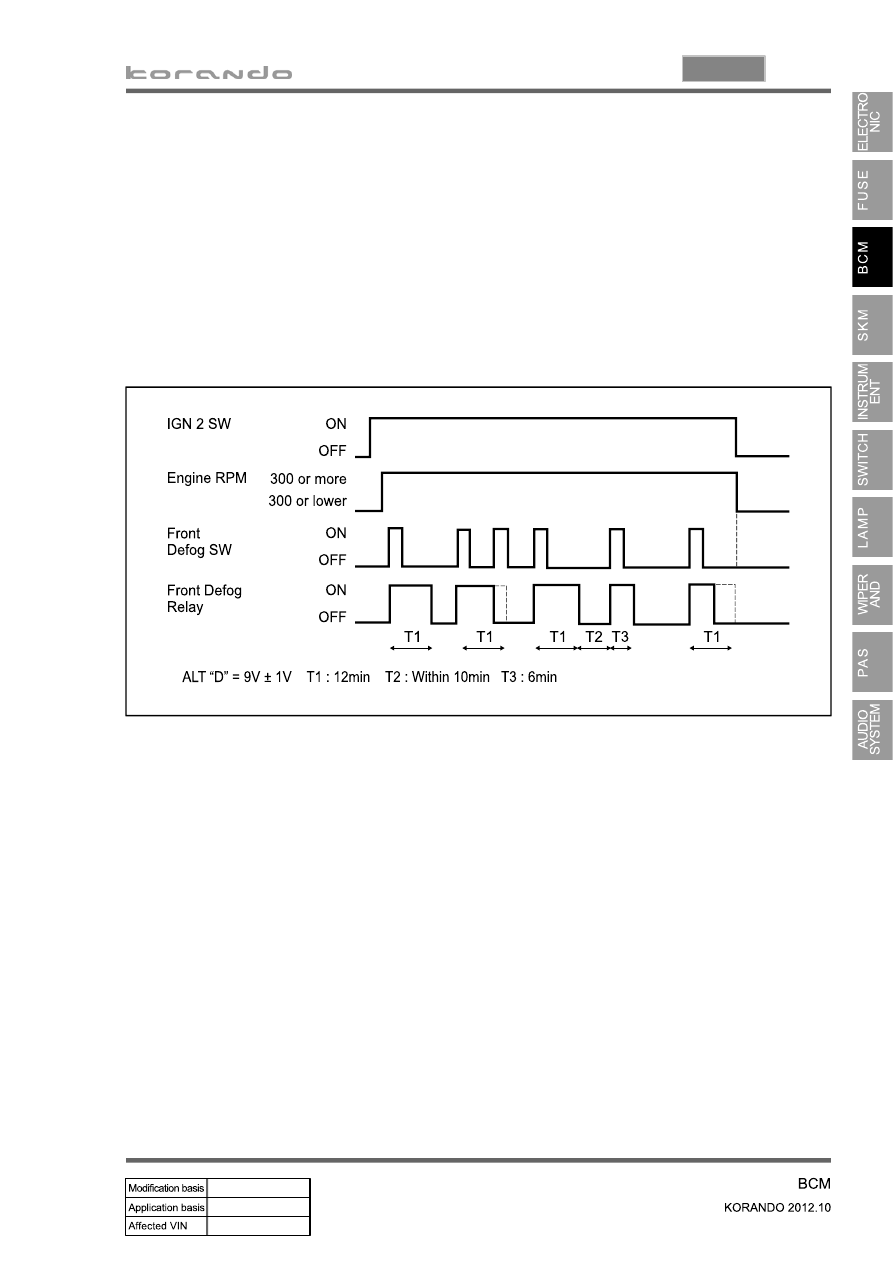

Front defogger timer control

▶

When turning ON the front defogger switch with IGN2 ON (engine speed over 300 rpm), the front

defogger operates for 12 minutes.

When turning OFF the front defogger switch during the operation, the defogger stops working.

If turning ON the defogger again within 10 minutes after completion of the first 12 minute operation, the

defogger additionally operates for 6 minutes one time only. (However, this not applied if the defogger

has been turned off by engine stop or defogger switch)

The defogger stops working when the ignition switch is turned to OFF position or engine speed is lower

than 300 rpm.

1.

2.

 3.

4.

03-34

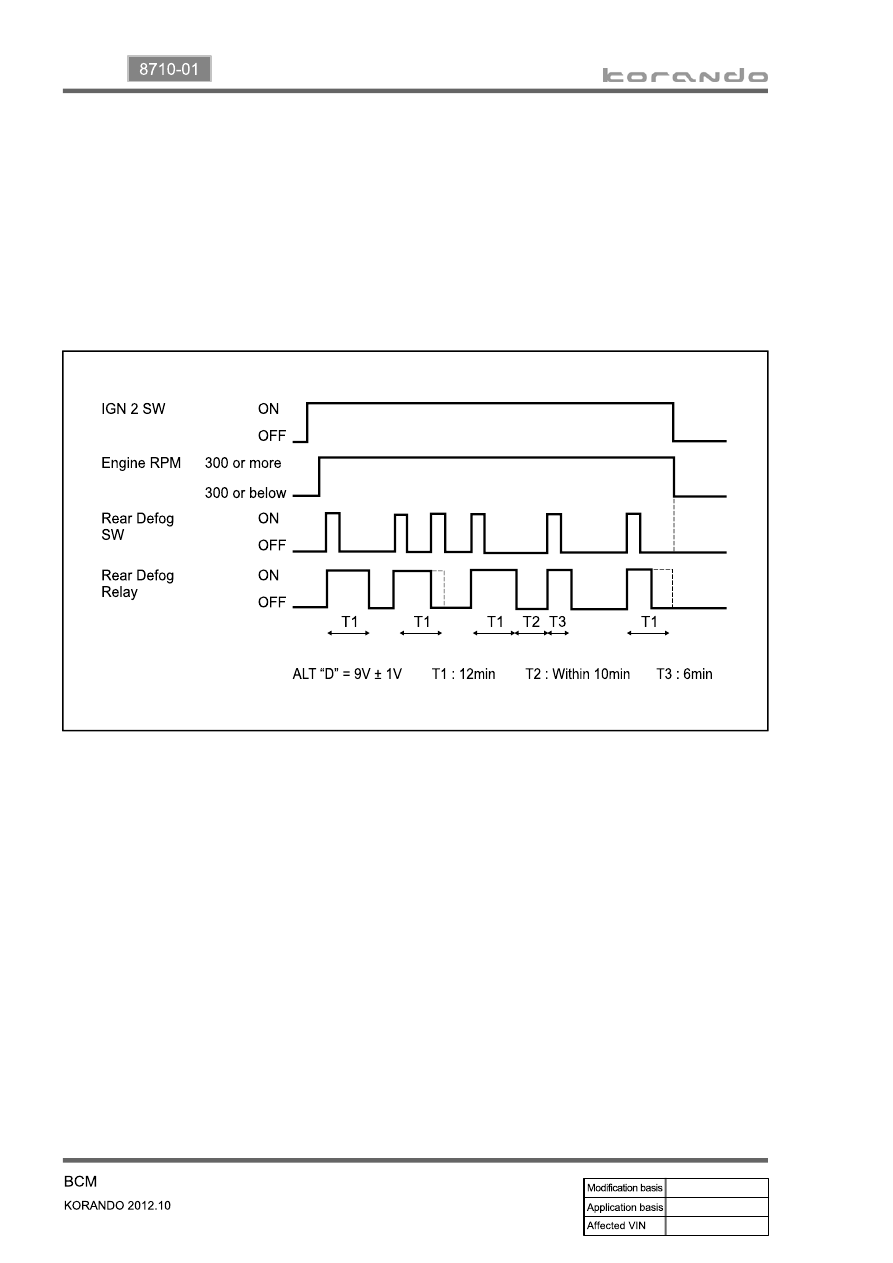

Rear defogger timer control

▶

When turning ON the rear defogger switch with IGN2 ON (engine speed over 300 rpm), the rear

defogger and outside rearview mirror defogger operate for 12 minutes.

When turning OFF the rear defogger switch during the operation, the defogger stops working.

If turning ON the defogger again within 10 minutes after completion of the first 12 minute operation, the

defogger additionally operates for 6 minutes one time only. (However, this not applied if the defogger

has been turned off by engine stop or defogger switch)

The defogger stops working when the ignition switch is turned to OFF position or engine speed is lower

than 300 rpm.

1.

2.

3.

4.

03-35

8710-01

10) Keyless Entry

Transmitter (REKES key)

▶

When the user operates the switch of the remote control key, the vehicle control messages formatted by

its CPU are sent to the main unit wirelessly. The, the CPU control the vehicle and the main unit controls

the vehicle operation.

Door unlock/panic button

Door lock

Door unlock/panic button

▶

Unlocking door and tailgate (briefly press)

If you press this button, it unlocks all doors and the tailgate and deactivates the theft deterrent mode.

When the theft deterrent mode is deactivated, the emergency hazard lights blink once.

If the door, tailgate or engine hood is not opened within 30 seconds after unlocking the door with the

remote control key in theft deterrent mode, the door is locked automatically, hazard warning flasher

blinks twice and buzzer sounds once. (entering into theft deterrent mode)

Panic function (press and hold for more than 2 sec)

When pressing (over 2 sec) the button, the hazard warning flasher blinks and buzzer sounds for

about 30 seconds.

Press the UNLOCK or PANIC button to deactivate this function.

1.

-

-

-

2.

-

-
